Citroen DS5 RHD 2011.5 1.G User Guide

Familiarisation

Automatic headlamp dipping

This system automatically changes between
dipped and main beam, depending on the
driving conditions, using a camera located in
the interior rear view mirror.
137

Front and rear parking sensors
This systems warns you of the presence of obstacles located in front of or behind thevehicle during parking manoeuvres.
12
7

Temporary puncture repair kit
This kit is a complete system consisting of a compressor and a sealant car tridge, to allow
the temporary repair of a tyre.
18
0
Exterior
Reversing camera

This system, available only with satellite
navigation, is activated automatically onengaging reverse gear and provides an imagein the colour screen.
129

Access
1.
Opening the fuel filler flap.
Ta n k c a p a c i ty: approximately 60 litres.


Fuel t ank
63


Unlocking

With the electronic key on your person and in
the defined zone A around the vehicle, passAyour hand behind the door handle to unlock the
vehicle, then pull on the handle to open the door.

Locking

With the electronic key in the defined zone Aaround the vehicle, press with a finger on
the door handle (at the markings) to lock the
vehicle.
Electronic key
48
A.
Unlocking the vehicle.B.Normal locking of the vehicle. C.Unlocking the boot and complete unlocking of the vehicle.


Keyless Entry and Starting
49


Boot
1.
Unlocking the boot (maintain pressure until
the boot is heard to unlock).
5
6

11Familiarisation
Interior


Head-up display

This system projects speed and cruise control/speed limiter information onto a smoked strip
in the driver's field of vision, so that they do not
need to take their eyes off the road.

Central storage containing various systems

It is illuminated, cooled and provides storage
and locations for s
ystems and loose items(USB Player, location for 0.5 litre bottle, ...).
Audio and communication
systems
These systems benefit from the latest
technology: MP3 compatible audio systems,
USB player, Bluetooth hands-free system,
satellite navigation system with colour screen,
auxiliary inputs, Hi-Fi audio system, ...
eMyWay
120
7
8
299 24
5
Audio system

Massage function

This system provides a lumbar massage for a
period of about 60 minutes. The massage is
done in 6 cycles of 10 minutes.
72
Electric parking brake
It combines the functions of automatic application on switching off the engine and automatic release when moving off. Manual application and release remains possible.
97

Illumination of the warning lamp indicates the state of the corresponding function.
Switch panels
Opening the fuel filler flap.

Opening the boot. 63 57 D
eactivation of the alarm.
48, 56
Electric parking brake activated.
9
7

Push button star ting/stopping.
94

Deactivation o
f Stop & Start.
117


Deactivation of parking sensors.
128

El
ectric child lock.
161


Deactivation of the DSC system.
169

Activation of Automatic headlamp
dippin
g.
137
119
Activation of lane depar ture warning.
5
5

Locking/unlocking the passenger compartment.

13Familiarisation
Sitting comfortably


Front seats
68


Manual
1.
Head restraint height and angleadjustment. 2.Backrest angle adjustment.3.Seat cushion height adjustment. 4.
Seat forwards-backwards adjustment.
5.Driver'slumbar suppor t adjustment.


Electrical
1.
Angle, seat height and seat for wards-
backwards adjustment. 2.Backrest angle adjustment.3.Driver'slumbar suppor t adjustment.4.
Manual cushion adjustment.
69

14 . Controls for electric windows/electric child lock/central locking.
15. eMyWay controls.
16.Gear lever.
17. Heating/air conditioning controls.
18
. Audio system.
19.Hazard warning lamps.
20.Multifunction screen.21. Central adjustable air vents. 22.Clock.
23.Star ting with the STA R T/STOP button.
24.Electronic key reader.
25. Wiper/screenwash/trip computer stalk.
26. Audio equipment steering wheel controls.

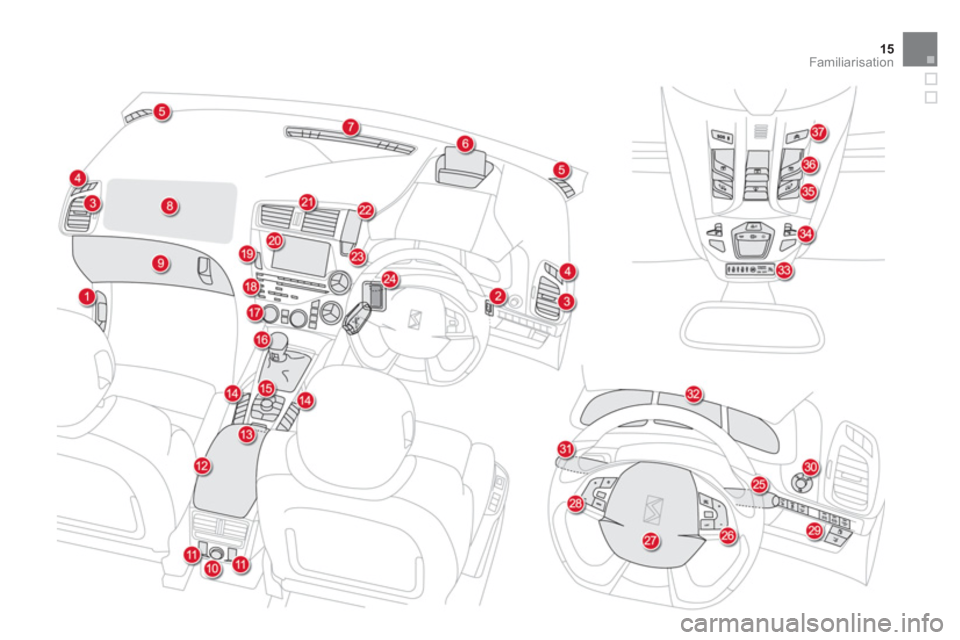

Instruments and controls
1.
Bonnet release lever.2.
Headlamp height adjustment. 3.
Side adjustable air vents.4.
Front door window demisting/defrosting
vents.
5. Quarter light demisting windows.
6.Head-up display.7. Windscreen demisting/defrosting vent.8.Passenger's airbag. 9.
Glove box/Passenger's airbag deactivationinside.10.12 V accessory socket. 11.
Rear electric window controls.12.Central armrest with storage.
USB por t /auxiliary socket.13.Electric parking brake.
27. Driver's airbag.
Horn. 28. Cruise control/speed limiter controls.29.
Switch panel (see previous page).30.
Door mirror adjustment.
31.Lighting and direction indicator stalk32.
Instrument panel. 33.
Seat belt and airbag warning lamps. 34.Courtesy lamp. 35.Head-up display controls. 36.Controls for glass roof panel blind.37.CITROËNLocalised Emergency Call -
CITROËNLocalised Assistance Call(depending on country of sale).

15
Familiarisation

Sitting comfortably
Head restraint adjustment
71
1.Release the adjustment mechanism.
2. Adjust for height and reach. 3.
Lock the adjustment mechanism.


Steering wheel adjustment
77
For reasons of safety, these operations must only be carried out with thevehicle stationary.


Heated seats control
0
: off.1: low.2
: medium. 3
: high. To lower it, simultaneously press button
A andpush down on the head restraint.
To raise it, guide the head restraint upwards to
the desired position.
To incline it, swivel the lower part backwards o
r
forwards.
72

17Familiarisation
Sitting comfortably


Door mirrors

Adjustment
1.
Selection of the left or right mirror.2.Adjusting the position of the mirror glass. 3.De-selection of the mirror.
4.
Folding the mirror.
7
6
Rear view mirror
77
1.Automatic detection of day/night mode.2. Rear view mirror adjustment.


Front seat belts
170
1.
Fastening.2.Adjusting for height.

Seeing clearly
Lighting
Ring A
Rin
g B

Wipers
13 4


Control stalk A: windscreen wipers
2. Fast wipe.
1. Normal wipe.
Int. Intermittent wipe.
0
. Park.
AUTO Automatic wiping.
È Single wipe: Brief pull on the stalk
towards.
Screenwash: Long pull on stalk towards you.
143

Switching on "AUTO" mode
)Briefly push the stalk downwards.


Switching off "AUTO" mode
)Briefly push the stalk downwards or place
the stalk in another position: Int, 1 or 2.
Ring B: rear wiper
14 5
14
4
Lighting off.
Automatic illumination o
f headlamps.
Sidelamps.
Dipped/main beam headlamps.
Front and rear
foglamps.
Park.
Intermittent wipe.
Screenwash. 13
3
