key Citroen DS5 RHD 2012.5 1.G Owner's Guide

65
Access

Safety anti-pinch

When the window rises and meets an obstacle, it stops and immediately partially lowers again.
In the event o
f unwanted opening of the
window on closing, press the switch until the
window opens completely, then pull the switch
immediatel
y until the window closes. Continue
to hold the switch for approximately one secondafter the window has closed.
The safety anti-pinch function is not active
during this operation.

Deactivating the rear window controls
Reinitialisation of the
electric windows


In the event of contact during operationof the windows, you must reverse themovement of the window. To do this,press the switch concerned.
When operating the passenger electricwindow switches, the driver mustensure that no one is preventing correct closing of the windows. The driver must ensure that the passengers use the electric windows correctly.
Be aware of children when operatingthe windows.
Be aware of passengers or other persons present when closing the
windows using the the electronic key or the "Access and Starting Hands Free"system.
Followin
g reconnection of the battery, the
safety anti-pinch function must be reinitialised.
The safety anti-pinch function is not active
during these operations:
- lower the window completely, then raise
it, it will rise in ste
ps of a few centimetreseach time the switch is pressed. Repeat
the operation until the window closes
completely,
- continue to press the switch for at least
one second a
fter reaching this position,
window closed.
For the safety of your children, pressswitch 5to prevent operation of the rear windows irrespective of their position.
The warnin
g lamp in the button comes on,
accompanied by a message confirmingactivation. It remains on, as long as the child
lock is activated.
The interior controls for the rear doors are also deactivated.
Opening the doors from the outside and
operation of the rear electric windows from the
driver's controls remain possible.

Mirrors
Each fitted with an adjustable mirror glassproviding the lateral rearward vision necessaryfor overtaking or parking. They can also be
folded for parking in confined spaces.
Door mirrors
If the mirrors are folded using control A ,they will not unfold when the vehicle is unlocked.


The folding and unfolding of the door mirrors using the electronic key can bedeactivated by a CITROËN dealer or a qualified workshop.
Fold the mirrors when putting your vehicle through an automatic car wash.
The objects observed are, in reality, closer than they appear.Ta k e this into account in order to correctly judge the distance of vehicles approaching from behind.

Demisting - Defrosting
Ad
justment
)
Turn control A
to the right or to the left toselect the corresponding mirror. )
Move control Ain all four directions toadjust. )
Return control Ato the central position.
Folding



- Automatic: lock the vehicle using the electronic key.


Unfolding



- Automatic: unlock the vehicle using the electronic key.
-
Manual: with the ignition on, turn control Adownwards.

- Manual: with the i
gnition on, turn control Aupwards.
Demisting-defrosting of the door
mirrors operates by switching on
the heated rear screen.
For more information, refer to
the "Rear screen demist-defrost" section.
The rear screen demist - defrostcan only operate when the engine isrunning.

Starting-switching off the engine
)Inser t the electronic key in the reader. )Press the brake pedal for vehicles with automatic gearbox or electronic gearbox
system, or fully declutch for vehicles with amanual gearbox.
Starting using
the electronic key
Startin
g with the "Keyless
Entry and Starting" system


If one of the star ting conditions is not met, a reminder message appears in the instrument panel screen. In some circumstances, it is necessary to turnthe steering wheel slightly while pressingthe "STA R T/STOP" button to assistunlocking of the steering; a messagewarns you when this is needed.
With a manual gearbox, put the gear lever in neutral.With the electronic gearboxsystem
, put the gear lever in N.
With an automatic gearbox
, put the gear lever in Por N
.


For Diesel vehicles
, in
temperatures below zero the engine will not star t until the preheater warning lamp has gone off.
If this warning lamp comes on after pressing "STA R T/STOP", you shouldhold the brake or clutch pedal downuntil the warning lamp goes off anddo not press the STA R T/STOP buttonagain.

)
With the electronic key inside the vehicle(it is not necessary to put it in the reader),
press the brake pedal for vehicles with
automatic
gearbox or electronic gearbox system, or fully declutch for vehicles with a
manual gearbox.
) Press the "START/STOP" button.
The engine star ts (see the
warning below for Diesel
vehicles).
)Press the "START/STOP" button.
The engine star ts (see the
warnin
g below for Diesel
vehicles).

The "Keyless Entry and Starting" devicemust be in the defined zone.
For safety reasons, do not leave thiszone with the vehicle running.

101Driving

Switching off using the
electronic key
)Immobilise the vehicle.


Electronic key left in the reader

If the electronic key is left in the reader, on opening the driver's door a messageappears to warn you.



Stopping with the
"Keyless Entry and
Startin
g" system
)Immobilise the vehicle.
If the vehicle is not immobilised,
the engine will not stop.
Ignition on without starting
the engine
(accessory position)
)
With the electronic key inside
the vehicle, press the "START/
STOP"
button.
The engine stops and thesteering column locks.
)
Press the "START/STOP
" button
The engine stops and thesteering column locks.











Anti-theft protection


Electronic engine immobiliser

The keys contain an electronic chip which has
a secret code. When the ignition is switched on, this code must be recognised in order for starting to be possible.
This electronic engine immobiliser locks theengine management system a few minutes
after the ignition is switched off and preventsstarting of the engine by anyone who does not have the key.
In the event of a malfunction, you are informed
by a message in the instrument panel screen.
In this case, your vehicle does not start; contact
a CITROËN dealer as soon as possible.
With the electronic key in the reader or the
Ke
yless Entry and Starting key inside the
vehicle, pressing the "START/STOP" button,with no action on the pedals, allows the ignition
to be switched on and so activate the ancillaryequipment.
)Remove the electronic key from the reader.
)
Press the "STA R T/STOP" button,
the instrument panel comes on
but the engine does not star t. ) Press the button again to switch
off the ignition and so allow the
vehicle to be locked.

If you use the accessory position for toolong, the system automatically goes intoeconomy mode to avoid the risk of a flatbattery.

Emergency starting with the
Keyless Entry and Starting
system
When the electronic key is in the defined zone and your vehicle does not star t after pressingthe "STA R T/STOP" button: )Inser t the electronic key in the reader. )Press the brake pedal on vehicles withautomatic gearbox or electronic gearbox
system, or fully declutch with a manualgearbox.)Press the "STA R T/STOP" button.The engine starts. In the event o
f an emergency only, the enginecan be switched of without conditions. To dothis, press and hold the "START/STOP" button
for about 3 seconds.
In this case the steering column locks as soon
as the vehicle stops.
I
f the electronic key is no longer in the defined
zone when driving or when you (later) request switching off the engine, a message appears in
the instrument panel.

Emergency switch- off
Electronic key not recognised by
the "Keyless Entry and Starting"
system
)Press and hold the "STA R T/STOP"
button for about 3 seconds if you want to
force switchin
g off the engine (note that restarting will not be possible without
the key).

Visibility





Exterior welcome
lighting
The remote switching on of the lighting makesyour approach to the vehicle easier in poor
light. It is activated according to the level of
light detected by the sunshine sensor.

Switching on

Switchin
g off


The exterior welcome lighting switches off
automatically after a set time, when the ignitionis switched on or on locking the vehicle.
Programming

The lighting duration is selected via
the vehicle configuration menu.
The duration of the welcome lighting isassociated with and identical to that of the automatic guide-me-home lighting.) Press the open padlock on the
remote control or the door handlewith Keyless Entry and Starting.







Door mirror
spotlamps

Switching on
The spotlamps come on:


- when you unlock the vehicle,

- when
you remove the electronic key from
the reader,

- when
you open a door,

- when you use the remote control.



Switching off

They are timed to go off automatically. To m a k e
your approach to the vehicle easier,
these illuminate:


- the zones facing the driver’s andpassenger’s doors,

- the zones forward of the door mirrors and
rearward of the front doors.
The dipped beam headlamps and the sidelamps come on; your vehicle is also unlocked.

163Child safety
The incorrect installation of a child seat in a
vehicle compromises the child's protection in the event of an accident.
Remember to fasten the seat belts or the child seat harnesses keeping the slack relative to the child's body to a minimum, even for short journeys.
When installing a child seat using the seat belt, ensure that the seat belt is tightenedcorrectly on the child seat and that it secures the child seat firmly on the seat of your vehicle. If your passenger seat is adjustable, move it for wards if necessary.
For optimum installation of the "forwards-facing" child seat, ensure that the back of the child seat is in contact with the back of the vehicle's seat and that the head restraint does not cause any discomfort.
If the head restraint has to be removed, ensure that it is stored or attached securely to prevent it from being thrown around the vehicle in the event of sharp braking.

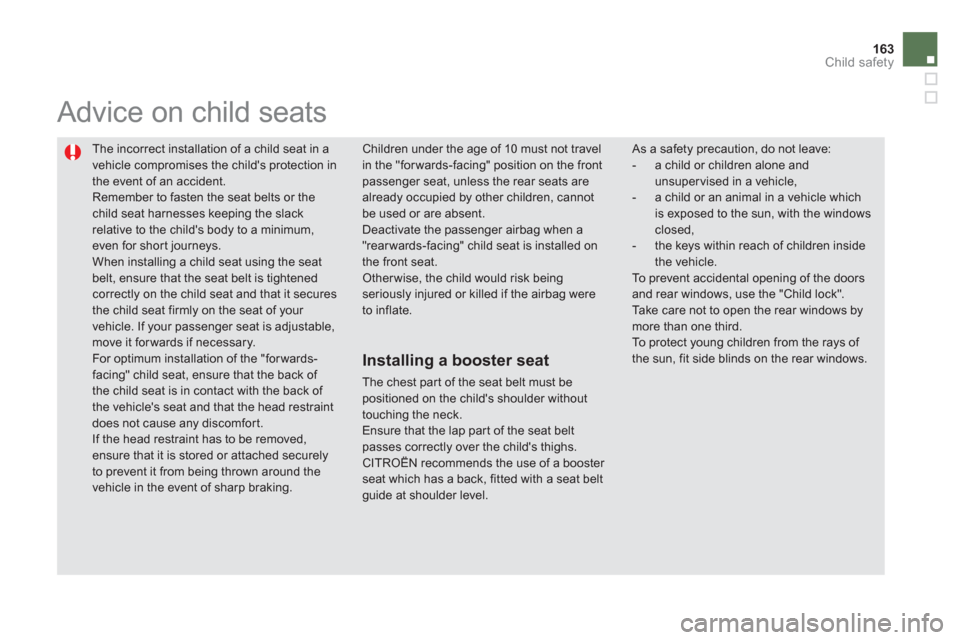

Advice on child seats

As a safety precaution, do not leave:
- a child or children alone and unsupervised in a vehicle, - a child or an animal in a vehicle whichis exposed to the sun, with the windows closed, - the keys within reach of children inside the vehicle. To prevent accidental opening of the doors and rear windows, use the "Child lock". Take care not to open the rear windows bymore than one third.To protect young children from the rays of the sun, fit side blinds on the rear windows.

Children under the age of 10 must not travel
in the "forwards-facing" position on the front passenger seat, unless the rear seats are already occupied by other children, cannot be used or are absent.
Deactivate the passenger airbag when a "rearwards-facing" child seat is installed on the front seat. Other wise, the child would risk beingseriously injured or killed if the airbag were to inflate.


Installing a booster seat

The chest par t of the seat belt must be positioned on the child's shoulder without touching the neck.
Ensure that the lap part of the seat belt passes correctly over the child's thighs. CITROËN recommends the use of a booster seat which has a back, fitted with a seat belt guide at shoulder level.

167
Child safety





Electric child lock

Remote control system to prevent opening of the rear doors using their interior controls and use of the rear electric windows.


Switching on Switching off


Any other status of the indicator lampindicates a fault with the electric childlock.
Have it checked by a CITROËN dealer or a qualified workshop.


This system is independent and in nocircumstances does it take the place of
the central locking control. Check the status of the child lock eachtime you switch on the ignition.
Always remove the key from the ignition when leaving the vehicle, even for a short time.
In the event of a serious impact, the electric child lock is switched off automatically to permit the exit of therear passengers.
)
With the ignition on, press this button. )
With the ignition on, press thisbutton again.
The indicator lam
p in the button comes on,
accompanied by a message to confirm that the child lock is on.
This indicator lamp remains on until the child
l
ock is switched off.
It is still possible to open the doors from the
outside and operate the rear electric windows from the driver's control panel.The indicator lamp in the button
goes off, accompanied by a message to confirm that thechild lock is off.
This indicator lamp remains off while the child
lock is switched off.

Deactivation
Only the passenger's front airbag can be deactivated:)inser t the key in the passenger airbagdeactivation switch, )turn it to the "OFF"position,)then, remove the key keeping the switch in
the new position.
Accordin
g to version, this warning lamp comes on either in the
instrument panel or in the seat belt
and passenger's front airbag warning lamp
display when the ignition is on and until the airbag is reactivated.
To assure the safety of your child,the passenger's front airbag must be deactivated when you install a "rear facing" child seat on the front passenger seat. Otherwise, the child would risk beingseriously injured or killed if the airbag were deployed.
If even one of the two airbag warning lamps comes on continuously, donot install a child seat on the frontpassenger seat.
Have it checked by a CITROËN dealer or qualified workshop.



Reactivation

When you remove the child seat, with the ignition off, turn the switch to the f"ON"
position to reactivate the airbag and so assure
the safety of your front passenger in the event
of an impact.
With the ignition on, this warninglamp comes on in the seat belt andpassenger's front airbag warninglamp display for approximately
one minute, if the passenger's front
airbag is activated.


Operating fault

If this warning lamp comes on in theinstrument panel, accompanied by an
audible warning and a message in theinstrument panel screen, contact a CITROËN dealer or a qualified workshop to have
the system checked. The airbags may no longer
be deployed in the event of a serious impact.
If this warnin
g lamp flashes, contact
a CITROËN dealer or a qualified workshop. The passenger's front
airbag may no longer be deployed in
the event of a serious impact.

The batteries contain harmful substances such as sulphuric acid and lead. They must be disposed of in accordancewith regulations and must not, in anycircumstances, be discarded with household
waste. Take used remote control batteries and vehicle batteries to a special collection point.
It is advisable to disconnect the batteryif the vehicle is to be left unused for more than one month.
Do not push the vehicle to star t the engine if you have an electronicgearbox or automatic gearbox.


Protect your eyes and face before handling the battery. All operations on the battery must becarried out in a well ventilated area and away from naked flames and sourcesof sparks, so as to avoid the risk of explosion or fire.
Do not try to charge a frozen battery; the battery must first be thawed out to avoid the risk of explosion. If the batteryhas been frozen, before charging have it checked by a CITROËN dealer or aqualified workshop who will check that the internal components have not beendamaged and the casing is not cracked,which could cause a leak of toxic and corrosive acid.
Do not reverse the polarity and use only a 12 V charger.
Do not disconnect the terminals whilethe engine is running.
Do not charge the batteries withoutdisconnecting the terminals first.
Wash your hands afterwards.








Before disconnecting the battery

Wait 2 minutes after switching off the ignition
before disconnecting the battery.
Close the windows and the doors before
disconnecting the battery.


Following reconnection of the
battery
Following reconnection of the battery, switch on
the ignition and wait 1 minute before star ting topermit initialisation of the electronic systems. However, if problems remain following this
operation, contact a CITROËN dealer or a qualified workshop.
Referring to the corresponding section,you must yourself reinitialise (depending on
version):


- the remote control key,

- the electric blind(s),- ...
