11Familiarisation
Interior


Head-up display

This system projects speed and cruise control/speed limiter information onto a smoked strip in the
driver's field of vision, so that they do not need to
take their eyes off the road.

Central storage containing various systems

It is illuminated, cooled and provides storage
and locations for s
ystems and loose items(USB Player, location for 0.5 litre bottle, ...).
Audio and communication
systems
These systems benefit from the latest
technology: MP3 compatible audio systems,
USB player, Bluetooth hands-free system, satellite navigation system with colour screen,
auxiliary inputs, Hi-Fi audio system, ...eMyWay126
84
305 25
1
Audio system

Massage function

This system provides a lumbar massage for a
period of about 60 minutes. The massage is
done in 6 cycles of 10 minutes.
7
8
Electric parking brake
It combines the functions of automatic application on switching off the engine and automatic release when moving off. Manual application and release remains possible.
103

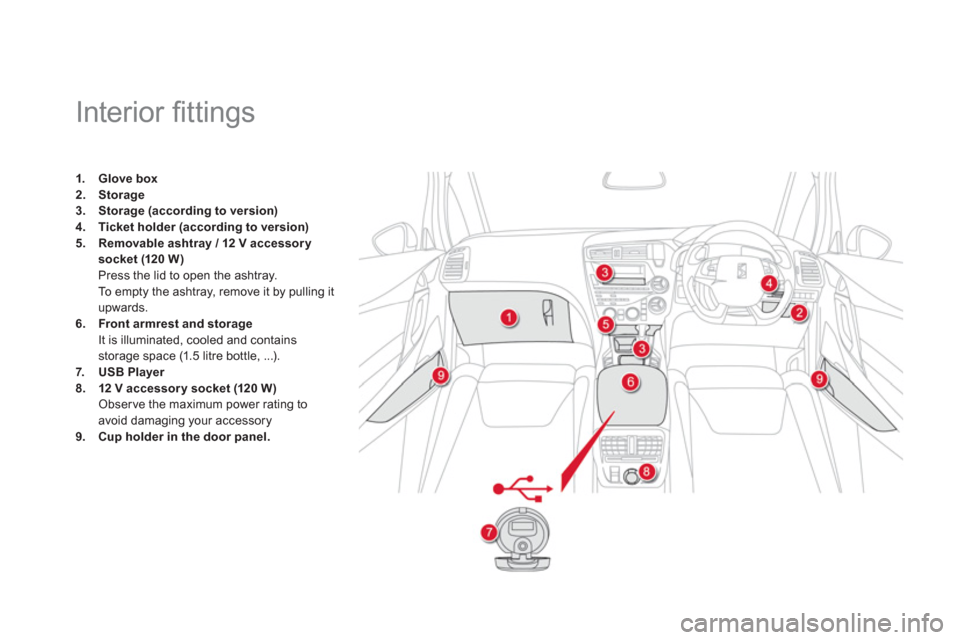

Interior fi ttings
1.Glove box2.Storage3.Storage (according to version)4.Ticket holder (according to version)5.Removable ashtray / 12 V accessory
socket (120 W)Press the lid to open the ashtray.
To e m p ty the ashtray, remove it by pulling it upwards.
6.Front armrestand storageIt is illuminated, cooled and contains
storage space (1.5 litre bottle, ...).
7.USB Player8.12 V accessory socket(120 W)Observe the maximum power rating toavoid damaging your accessory9. Cup holder rin the door panel.

USB Player


This connection box, consisting of a JACK
auxiliary socket and a USB por t, is located in
the front armrest (under the cover).
It permits the connection of por table device,
such as a di
gital audio player of the iPod® type®
or a USB memory stick.
It reads the audio file formats (MP3, OGG,
WMA , WAV, ...) which are transmitted to your
audio equipment and played via the vehicle's
speakers.
You can manage these files using the steering
mounted controls or the audio system control
panel and display them in the instrument panel screen.
When the U
SB por t is used, the por table devicecharges automatically.


For more information on the use of this system, refer to the "Audio andTelematics" section.
Comfor t and storage system for the driver andfront passenger.














Centre armrest
Storage
)For access to the large storage box, press button 1then lift the cover.)For access to the small storage box (below
the armrest cover
) press button 2then lift
the cover.
These can be used for por table devices (mobilephone, MP3 player...) which can be connected
to the USB por t / auxiliary socket.
An air vent (with adjustable opening) delivers cooled air into the large storage box.

251

The s
ystem is protected in such a way that it will onlyoperate in your vehicle.
eMyWay


01 First steps - Control panel


For safety reasons, the driver must carry out operations
which require prolonged attention while the vehicle is stationary.
When the en
gine is switched off and to prevent
discharging of the battery, the system switches off following the activation of the energy economy mode.



CONTENTS

02 Steering mounted controls

03 General operation

04 Navigation - Guidance

05 Traffic information

06 Using the telephone

07 Contacts - ADDR BOOK

08 Radio

09 Music media players

10 Audio settings

11 Configuration

12 Screen menu map p.
p.
p.
p.
p.
p.
p.
p.
p.
p.
p.
p.
252
254
255
2
57
270
273
281
284
287
293
294
296

Frequently asked questions p. 299


SATELLITE NAVIGATION SYSTEM
MULTIMEDIA BLUETOOTH TELEPHONE
AUDIO SYSTEM

01 FIRST STEPS


Short press: select a preset radio station.

Long press: store the current radio station. TA
(Traffi c
Announcement)function On / Off.
Displa
y the list of radio stations received, CD/MP3/Apple ®player tracks or folders.
Lon
g press: management of the classifi cation of MP3/WMA fi les/update the list of stations received.

A
ccess to "Audio
settings": musicalambiences, bass, treble,loudness, distribution, left/
right balance, front/rear fader, automatic volume adjustment.
Selection of AM / FM / DAB *

wavebands. Pr
ess and hold: reinitialise
the system.
Select the source: CD,USB, AUX, Apple® player, ®
Bluetooth Streaming, Radio.
Abandon the current
operation, go up one level.
Lon
g press: return topermanent display.
On / Off.
MODEbutton: select the type
of permanent display.

Rotation: ad
just volume(each source is independent,
including TA messages and navigation instructions).
Select:
- the previous/next line in a list or menu.
- the previous next media
folder.
- step by step previous
/next radio frequency.
- previous
/next MP3 folder.
Move u
p/down, in "Move the map
" mode.
Select:
- automaticall
y the previous/next radio frequency.
- the previous
/next CD, MP3 or media track.
Move le
ft/right, in "Move the map
" mode.
Display black screen.

Short press: mute / restore sound.
*
Depending on model.

03
A press on the dial gives access to short-cut menus according to the display in the screen.


RADIO:


Activate / Deactivate TA


Activate / Deactivate RD
S

GENERAL OPERATION







DISPLAY ACCORDING TO CONTEXT

MUSIC MEDIA PLAYERS,
CD or USB
(according to media):
Play modes:

Normal

Random

Random on all media

Re
petition


TELEPHONE
(call in progress):

Private mode

FULL SCREEN MAP OR IN
A NEW WINDOW:

Stop / Restore guidance Select destination
Enter an address
Directory
GPS coordinates
Divert route
Move the map
Info. on location
Select as destination
Select as sta
ge
Save this place (contacts)
Quit map mode

Guidance criteria

Put call on hold
1
1
1
1
1
1
1
1
2
2
2
2
2
1
2
2
2
1
1
1
1

DTMF ring tones

Han
g up1
1


Guidance options 1
Change waveband
Activate / Deactivate TA information
2
2

09

287






Access to the "MUSIC MEDIA PLAYER" menu
""""""""MEDIAMEDIAMEDIAMEDIAMEDIAMEDIAMEDIAMEDIAMEDIAMEDIAMEDIAMEDIAMEDIAMEDIAMEDIAMEDIAMEDIAMEDIAMEDIA""""""""
This list can also be displayed by pressing LISTat the steering mounted controls.

Go from the list to the menu (left/right).
or


Press MEDIA.

09MUSIC MEDIA PLAYERS

CD, MP3 CD / USB PLAYER


The audio equipment will only play audio fi les with ".wma, .aac, .fl ac, .ogg and .mp3" fi le extensions and with a bit rate of between 32 Kbps
and 320 Kbps.
It also supports VBR
(Variable Bit Rate) mode.
No other t
ype of fi le (.mp4, .m3u...) can be played.
WMA fi les must be of the standard wma 9 t
ype.
The samplin
g rates supported are 11, 22, 44 and 48 KHz.

It is advisable to restrict
fi le names to 20 characters, without using of special characters (e.g.: " " ? ; ˘) to avoid any playing and displayingproblems.

In order to be able to pla
y a recorded CDR or CDRW, when recording
it is preferable to select the ISO 9660 level 1, 2 or Joliet standard.
I
f the disc is recorded in another format it may not be played correctly.

It is recommended that the same recording standard is always used for an individual disc, with as low a speed as possible (4x maximum)for optimum sound quality.
In the
particular case of a multi-session CD, the Joliet standard isrecommended.
INFORMATION AND ADVICE
The s
ystem supports USB mass storage or iPod
devices via the USB port (suitable cable not supplied).
I
f a partitioned USB memory key is connected to the system, only the fi rst partition is recognised.

Control of the peripheral device is with the audiosystem controls.
The number of tracks is limited to 2000 maximum,
999 tracks per folder.
I
f the current consumption at the USB port exceeds 500 mA, the system goes into protection mode and
deactivates the port.

Other peripherals, not recognised on connection, must
be connected to the auxiliary socket using a Jack cable (not supplied).
In order to be read, a USB memor
y stick must be formatted FAT 16 or 32.

The s
ystem does not support the operation of an Apple Æplayer and a USB memory stick connected at the same time.
It is recommended that o
ffi cial Apple Æ USB cables are used to ensure Æ
correct operation.

09
SRC/
289
MUSIC MEDIA PLAYERS


SOURCES

Insert the CD in the pla
yer, insert the USB memorystick in the USB player or connect the USBperipheral to the USB port using a suitable cable (not supplied)

The system builds playlists (in temporary memory),
an operation which can take from a few seconds to several minutes at the fi rst connection.
R
educe the number of non-music fi les and the number of folders to reduce the waiting time.
The pla
ylists are updated every time the ignition isswitched off or connection of a USB memory stick. However, the system memorises these lists and
if they are not modifi ed, the loading time will be shorter.
Pla
y starts automatically after a period which
depends on the capacity of the USB memory stick.
SELECTION OF SOURCE

The SOURCE or SRCbutton on the steering mounted controls
allows a direct change to the next media source.
"CD / CD MP
3"
"
USB, iPod
"
"
AUX"
" STREAMING" "RADI
O"
Press MEDIAto display the "MEDIA " menu.

Select "Change media" and confi rm.

09
/
/
//
//
/ +/
-
+
/

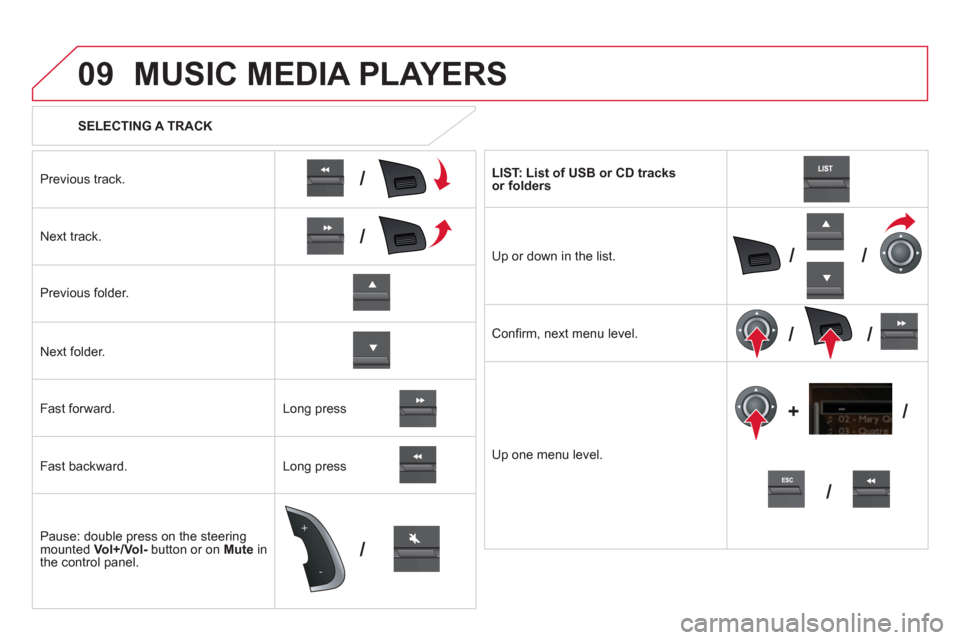

SELECTING A TRACK
MUSIC MEDIA PLAYERS
Previous track.
N
ext track.
Pr
evious folder.
N
ext folder.
F
ast forward.
Fast backward.
Pause: double press on the steerin
g mounted Vol+/Vol-button or on Muteinthe control panel. LI
ST: List of USB or CD tracksor folders
Up or down in the list.
Confi rm
, next menu level.

Up one menu level.
Lon
g press

Long press
