Instrument panel
31 Indicator and warning lamps
40Gauges and indicators
44Adjustment buttons
46 Setting the date and time
46 Clock
48 Tr i p c o m p u ter
52 Electronic key - remote control
61 Boot
62 Alarm
64 Electric windows
66 Cockpit glass roof
68Fuel tank
69 Misfuel prevention (Diesel)
74 Front seats
79Rear seats
82Mirrors
83Steering wheel adjustment
84Interior fi ttings
88Boot fi ttings
89 Tr i a ngle (stowing)
90 Heating and Ventilation
92 Dual-zone digital air conditioning
96 Rear screen demist - defrost
100Starting-switching off the engine
103 Electric parking brake
111Hill start assist
112 Manual gearbox
113Gear effi ciency indicator
114 Automatic gearbox
1186-speed electronic gearboxsystem
122Stop & Start
125Lane departure warning system
126 Head-up display
129Speed limiter
131 Cruise control
133 Parking sensors
135 Reversing camera

009009010010011011CHECKS TECHNICAL DATA AUDIO AND
TELEMATICS
225 Opening the bonnet
226 Petrol engines
227 Diesel engines
228Running out of fuel (Diesel)
229Checking levels
232 Checks
238Petrol engines
239Petrol weights
241 Diesel engines
242Diesel weights
244 Dimensions
245 Identifi cation markings
248 Emergency or assistance
251 eMyWay
305 Audio system

Electronic key: Keyless Entryand Starting
This system allows you to unlock, lock and star t
your vehicle while keeping the key on your person and in the defined zone around the vehicle.
53, 10
0
Exterior

Stop & Start

This system puts the engine temporarily into standby during stops
in the traffic (red lights, traffic jams, etc...). The engine restarts
automatically as soon as you want to move off. The Stop & Start
system reduces fuel consumption and exhaust emissions, and offers
the comfor t of complete silence when stationary.
122

Directional lighting

This lighting automatically provides additional forward visibility when cornering.
147

Daytime running lamps

This lighting, switched on automatically when
starting the engine, makes your vehicle more
visible to other road users.
141

11Familiarisation
Interior


Head-up display

This system projects speed and cruise control/speed limiter information onto a smoked strip in the
driver's field of vision, so that they do not need to
take their eyes off the road.

Central storage containing various systems

It is illuminated, cooled and provides storage
and locations for s
ystems and loose items(USB Player, location for 0.5 litre bottle, ...).
Audio and communication
systems
These systems benefit from the latest
technology: MP3 compatible audio systems,
USB player, Bluetooth hands-free system, satellite navigation system with colour screen,
auxiliary inputs, Hi-Fi audio system, ...eMyWay126
84
305 25
1
Audio system

Massage function

This system provides a lumbar massage for a
period of about 60 minutes. The massage is
done in 6 cycles of 10 minutes.
7
8
Electric parking brake
It combines the functions of automatic application on switching off the engine and automatic release when moving off. Manual application and release remains possible.
103

19Familiarisation

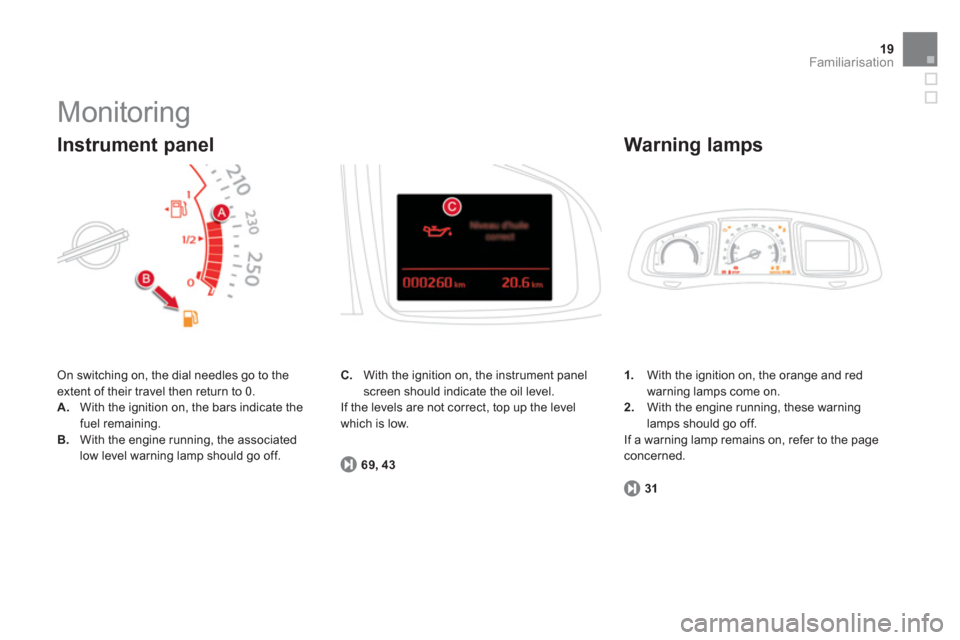

Monitoring
On switching on, the dial needles go to the extent of their travel then return to 0.
A.With the ignition on, the bars indicate the
fuel remaining.
B.With the engine running, the associated
low level warning lamp should go off.

Instrument panel
1.
With the ignition on, the orange and redwarning lamps come on. 2.With the engine running, these warninglamps should go off.
If a warning lamp remains on, refer to the page concerned.


Warning lamps
31
C.
With the ignition on, the instrument panelscreen should indicate the oil level.
If the levels are not correct, top up the level which is low.
69, 4
3

21Familiarisation

If this warning lamp comes on in
the instrument panel, automatic application / release is
deactivated. The parking brake must
be applied and released manually.

y
Before leaving the vehicle, check
that the the brake warning lamp and
the P warning lamp in the controllever A
are on fixed (not flashing).
103


If towing a trailer or caravan or if theslope might vary (transpor t by boat or lorry, recovery of the vehicle...) make a maximum application of the parking brake - by making a long pull on thecontrol lever A
- to immobilise thevehicle.
*
Dependin
g on country of sale.

Driving safely


Electric parking brake


Manual Application/Release
Manual application
of the parking brake is possible by pulling
the control lever A. With the ignition on, manual releaseof theparking brake is possible by pressing the brake pedal
and pulling
then releasing
the control lever A
.

On opening the driver's door with theengine running, if an audible signalis heard, apply the parking brake manually. Do not leave a child alone in the vehicle with the ignition on; they might release the parking brake.
Automatic Application / Release *

Press the accelerator and release the clutch(manual gearbox), the parking brake is releasedautomatically and progressively as you moveoff. With the vehicle stationary, the parking brakeis applied automatically on switching off the
engine.

Starting at temperatures above
zero


- Press the brake pedal.

- Make one shor t press (about one second) on the START/STOP
button.


Starting at temperatures below
zero
You must initiate preheating of the Diesel engine: -Without
placing your foot on the brake pedal, make a first shor t press on the STA R T/STOP button.

- Wait until the preheater warning lamp goesoff.
-
With
your foot on the brake pedal, make asecond short press on the START/STOP button.

Driving safely
Starting - stopping
the en
gine
Before starting
- Place the gear lever in neutral or inposition N
for the electronic gearbox
system or automatic gearbox.
- Inser t the electronic key in the reader or keep the Keyless Entry and Starting key in
the vehicle.

10
0

23Familiarisation
Driving safely


Speed limiter "LIMIT"
1.
Selecting speed limiter mode.2.Decrease the programmed value.3.Increase the programmed value.4.
Pause/resume speed limiter.
5. Display of the memorised speeds (by theaudio system memory).
These values must be set with the engine running.
12
9
131
Cruise control "CRUISE"
1.Selecting cruise control mode.
2. Programming a speed / Decrease the
programmed value.3. Programming a speed / Increase the
programmed value.4. Pause/resume cruise control.
5. Display of the memorised speeds (by the
audio system memory). In order to be programmed or activated, the
vehicle speed must be higher than 25 mph
(40 km/h), with at least 4th gear engaged on a manual gearbox (2nd gear on an electronicgear control or automatic gearbox).

Display in the instrument panel

The cruise control or speed limiter mode
appears in the instrument panel when it is
selected.

Gear efficiency indicator
113

The system may suggest, when appropriate,
that you change up a gear.

Driving safely
Stop & Start
Going into engine STOP mode
122

The "ECO"warning lamp comes
on in the instrument panel and the
engine goes into standby; with the electronic gearboxsystem andspeeds below 5 mph (8 km/h), press the brakepedal or put the gear lever in position N.In cer tain circumstances, the STOP modemay not be available; the "ECO"
warning lamp flashes for a few seconds, then goes off.


Going into engine START mode
Deactivation / Reactivation
123
123

The system is automatically reactivated every time the engine is star ted withthe STA R T/STOP button.

Before refuelling or doing anything under the bonnet, you must switch off the ignition with the START/STOP button. Th
e "ECO"
warning lamp goes off
and the engine restar ts with theelectronic gearbox system:


- with the
gear lever in position A
or Mrelease the brake pedal,

- or with the gear lever in position N
andbrake pedal released, move the gear lever
to position Aor M ,

- or engage reverse.
In certain circumstances, STA R T m o d e m ay be
invoked automatically; the "ECO"warning lampflashes for a few seconds, then goes off. You can deactivate the s
ystem at any time bypressing the "ECO OFF"
button; the button's
warning lamp comes on.

25
Familiarisation















































Eco-driving
Eco-driving is a range of everyday practices that allow the motorist to optimise their fuel consumption and CO2 emissions.
Optimise the use of
your gearbox
With a manual gearbox, move off gently, change up without waiting and drive by changing up quite soon. If your vehicle has the system, the gear efficiency indicator invites you to change up; it is displayed in the instrument panel, follow its instructions.
With an automatic or electronic gearbox, stay in Drive "D"or Auto "A"
, according to the type of gearbox, without pressing theaccelerator pedal heavily or suddenly.
Drive smoothly
Maintain a safe distance between vehicles, use engine braking rather than the brake pedal, and press the accelerator progressively. These practices contribute towards a reduction in fuel consumption and CO2 emissions and also helps reduce the background traffic noise.


If your vehicle has cruise control, make use of the system at speeds above 25 mph (40 km/h) when the traffic is flowing well.

Control the use of your electrical equipment
Before moving off, if the passenger compartment is too warm, ventilate it byopening the windows and air vents before using the air conditioning.
Above 30 mph (50 km/h), close the windowsand leave the air vents open. Remember to make use of equipment that canhelp keep the temperature in the passenger compartment down (sunroof and window blinds...).Switch off the air conditioning, unless it has automatic digital regulation, as soon as the desired temperature is attained.Switch off the demisting and defrosting controls, if not automatic.Switch off the heated seat as soon as possible.

Switch off the headlamps and front foglamps when the level of light does not require their use.

Avoid running the engine before moving off,particularly in winter; your vehicle will warmup much faster while driving.

As a passenger, if you avoid connecting your multimedia devices (film, music, video game...), you will contribute towards limitingthe consumption of electrical energy, and soof fuel.
Disconnect your por table devices beforeleaving the vehicle.
