Page 64 of 400

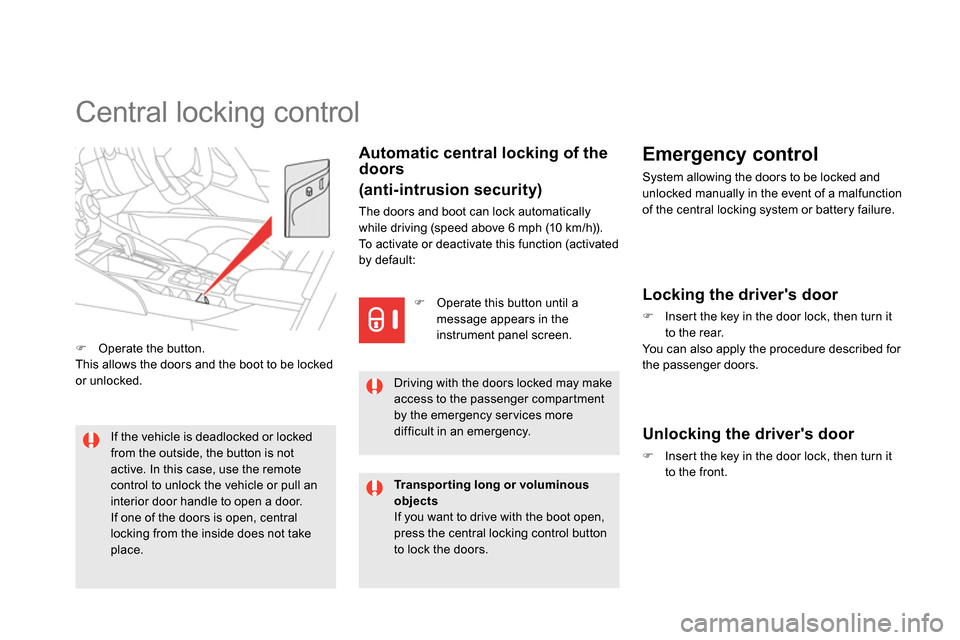

Central locking control
Automatic central locking of the
doors
(anti-intrusion security)
The doors and boot can lock automatically
while driving (speed above 6 mph (10 km/h)).
To activate or deactivate this function (activated
by default:
If the vehicle is deadlocked or locked
from the outside, the button is not
active. In this case, use the remote
control to unlock the vehicle or pull an
interior door handle to open a door.
If one of the doors is open, central
locking from the inside does not take
place.
Driving with the doors locked may make
access to the passenger compartment
by the emergency ser vices more
difficult in an emergency.
Operate the button.
This allows the doors and the boot to be locked
or unlocked.
Operate this button until a
message appears in the
instrument panel screen.
Transporting long or voluminous
objects
If you want to drive with the boot open,
press the central locking control button
to lock the doors.
Emergency control
System allowing the doors to be locked and
unlocked manually in the event of a malfunction
of the central locking system or battery failure.
Locking the driver's door
Insert the key in the door lock, then turn it
to the rear.
You can also apply the procedure described for
the passenger doors.
Unlocking the driver's door
Insert the key in the door lock, then turn it
to the front.
Page 86 of 400

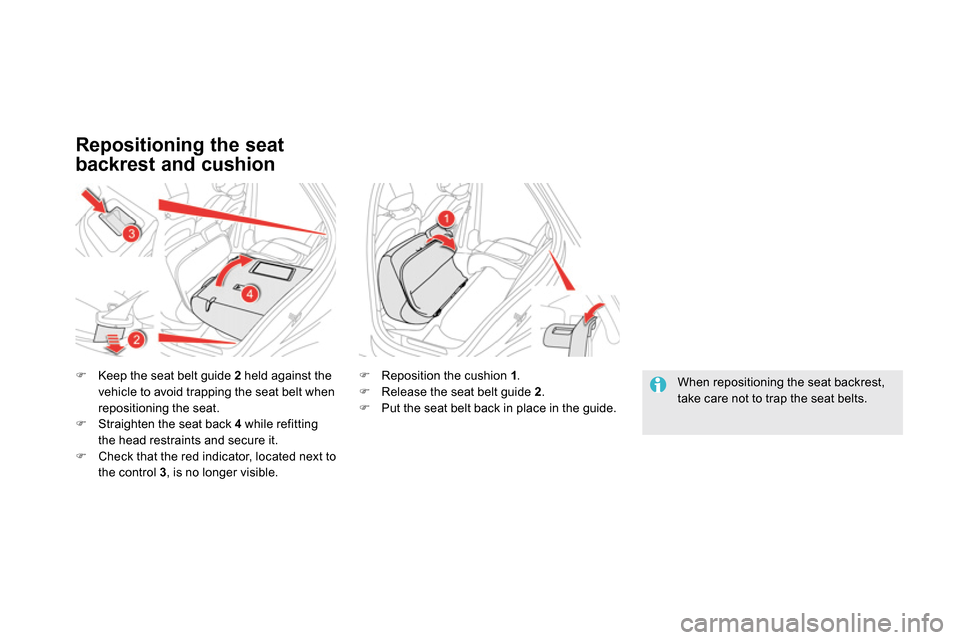

Repositioning the seat
backrest and cushion
Keep the seat belt guide 2
held against the
vehicle to avoid trapping the seat belt when
repositioning the seat.
Straighten the seat back 4
while refitting
the head restraints and secure it.
Check that the red indicator, located next to
the control 3
, is no longer visible.
Reposition the cushion 1
.
Release the seat belt guide 2
.
Put the seat belt back in place in the guide.
When repositioning the seat backrest,
take care not to trap the seat belts.
Page 91 of 400
89Comfort

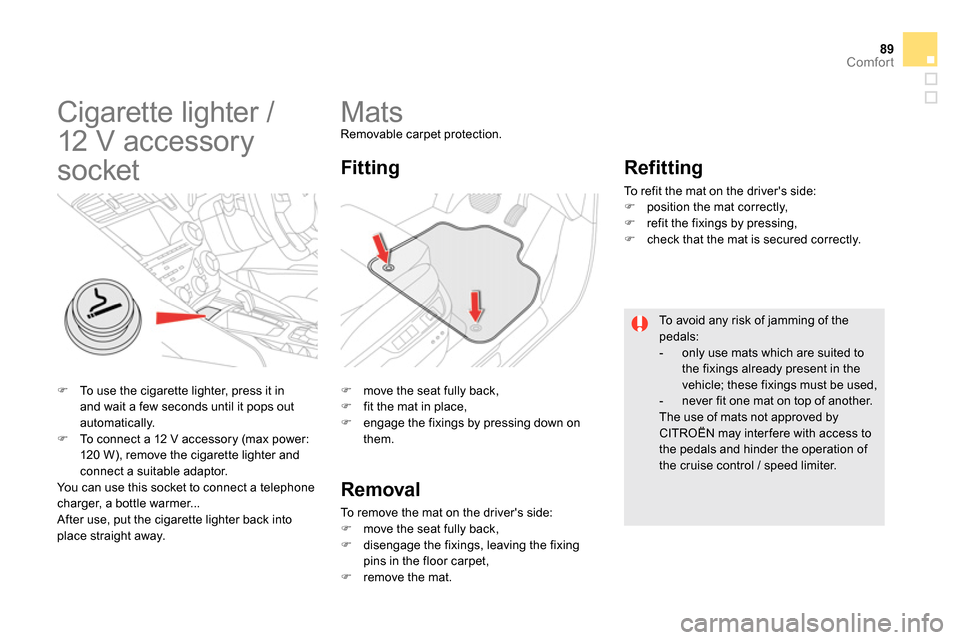

Mats
Removable carpet protection.
move the seat fully back,
fit the mat in place,
engage the fixings by pressing down on
them.
Fitting
Removal
To remove the mat on the driver's side:
move the seat fully back,
disengage the fixings, leaving the fixing
pins in the floor carpet,
remove the mat.
Refitting
To refit the mat on the driver's side:
position the mat correctly,
refit the fixings by pressing,
check that the mat is secured correctly.
To avoid any risk of jamming of the
pedals:
- only use mats which are suited to
the fixings already present in the
vehicle; these fixings must be used,
- never fit one mat on top of another.
The use of mats not approved by
CITROËN may inter fere with access to
the pedals and hinder the operation of
the cruise control / speed limiter.
To use the cigarette lighter, press it in
and wait a few seconds until it pops out
automatically.
To connect a 12 V accessory (max power:
120 W), remove the cigarette lighter and
connect a suitable adaptor.
You can use this socket to connect a telephone
charger, a bottle warmer...
After use, put the cigarette lighter back into
place straight away.
Cigarette lighter /
12 V accessory
socket
Page 172 of 400

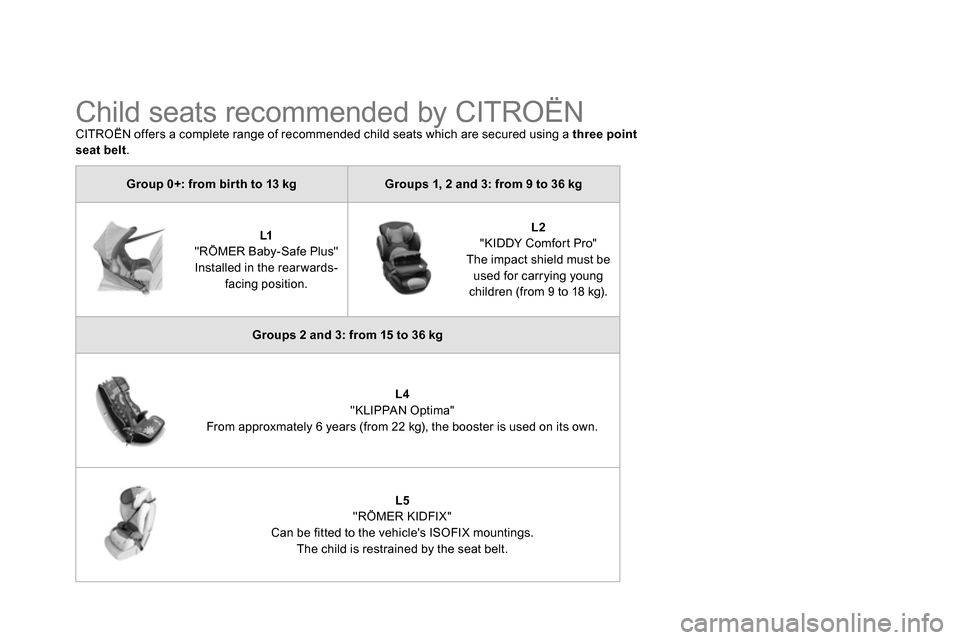

Group 0+: from bir th to 13 kg
Groups 1, 2 and 3: from 9 to 36 kg
L1
"RÖMER Baby-Safe Plus"
Installed in the rear wards-
facing position.
L2
"KIDDY Comfort Pro"
The impact shield must be
used for carrying young
children (from 9 to 18 kg).
Groups 2 and 3: from 15 to 36 kg
L4
"KLIPPAN Optima"
From approxmately 6 years (from 22 kg), the booster is used on its own.
L5
"RÖMER KIDFIX"
Can be fitted to the vehicle's ISOFIX mountings.
The child is restrained by the seat belt.
Child seats recommended by CITROËN
CITROËN offers a complete range of recommended child seats which are secured using a three point
seat belt
.
Page 173 of 400
171Child safety
Installing child seats attached using the seat belt
In accordance with European regulations, this table indicates the options for installing child seats secured using a seat belt and universally approved
(a)
according to the weight of the child and the seating position in the vehicle:
Weight of the child and indicative age
Seat
Under 13 kg
(groups 0 ( b ) and 0+)
Up to approx 1 year
From 9 to 18 kg
(group 1)
1 to 3 years approx
From 15 to 25 kg
(group 2)
3 to 6 years approx
From 22 to 36 kg
(group 3)
6 to 10 years approx
Front passenger seat ( c ) with
height adjustment
U (R)
U (R)
U (R)
U (R)
Outer rear seats (d)
U
U
U
U
Centre rear seat
X
X
X
X
(a)
Universal child seat: child seat that can be installed in all vehicles using a seat belt.
(b)
Group 0, from birth to 10 kg. Shells seats and baby carriers cannot be installed in the front passenger seat.
When installed in the 2
nd row, they prevent use of the other seats.
(c)
Refer to the legislation in force in your country before installing your child on this seat.
(d)
To install a child seat at the rear, "rear ward facing" or "for ward facing", move the front seat for wards, then straighten the backrest to allow sufficient space for the child seat and the child's legs.
Remove and stow the head restraint
before installing a child seat with a
backrest on a passenger seat. Refit the
head restraint once the child seat has
been removed.
U:
seat suitable for the installation of a child seat secured using a seat belt and universally
approved, "rear ward facing" and/or "for ward facing".
U (R):
same as U
, with the passenger seat adjusted to the highest position and as far back as possible.
X:
seat position not suitable for installation of a child seat for the weight class indicated.

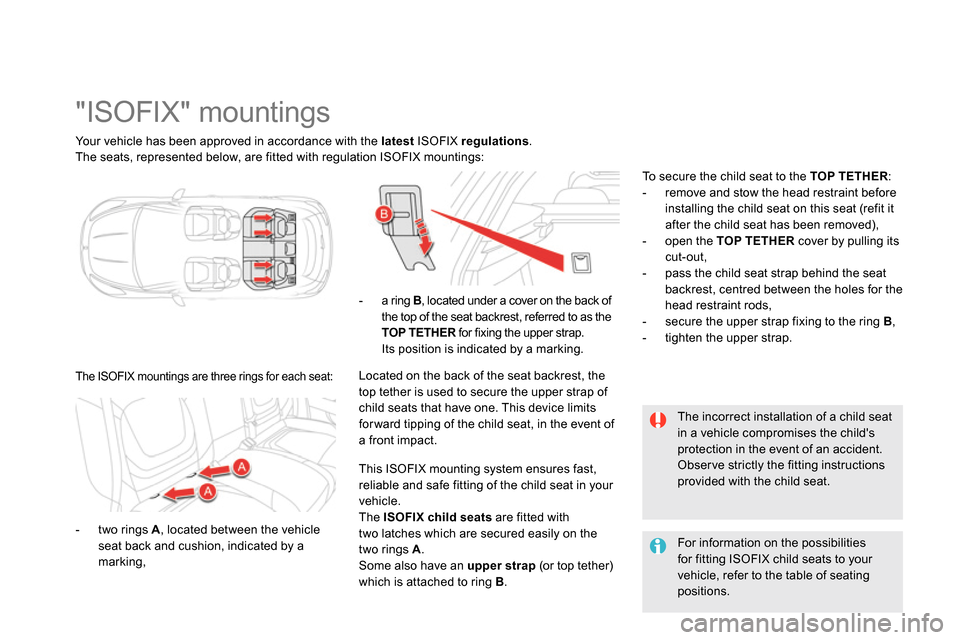

Page 174 of 400
Your vehicle has been approved in accordance with the latest ISOFIX regulations
.
The seats, represented below, are fitted with regulation ISOFIX mountings:
"ISOFIX" mountings
- two rings A
, located between the vehicle
seat back and cushion, indicated by a
marking,
This ISOFIX mounting system ensures fast,
reliable and safe fitting of the child seat in your
vehicle.
The ISOFIX child seats
are fitted with
two latches which are secured easily on the
two rings A
.
Some also have an upper strap
(or top tether)
which is attached to ring B
.
The incorrect installation of a child seat
in a vehicle compromises the child's
protection in the event of an accident.
Obser ve strictly the fitting instructions
provided with the child seat.
- a ring B
, located under a cover on the back of
the top of the seat backrest, referred to as the
TOP TETHER
for fixing the upper strap.
Its position is indicated by a marking.
To secure the child seat to the TOP TETHER
:
- remove and stow the head restraint before
installing the child seat on this seat (refit it
after the child seat has been removed),
- open the TOP TETHER
cover by pulling its
cut-out,
- pass the child seat strap behind the seat
backrest, centred between the holes for the
head restraint rods,
- secure the upper strap fixing to the ring B
,
- tighten the upper strap.
The ISOFIX mountings are three rings for each seat:
Located on the back of the seat backrest, the
top tether is used to secure the upper strap of
child seats that have one. This device limits
for ward tipping of the child seat, in the event of
a front impact.
For information on the possibilities
for fitting ISOFIX child seats to your
vehicle, refer to the table of seating
positions.
Page 175 of 400
173Child safety

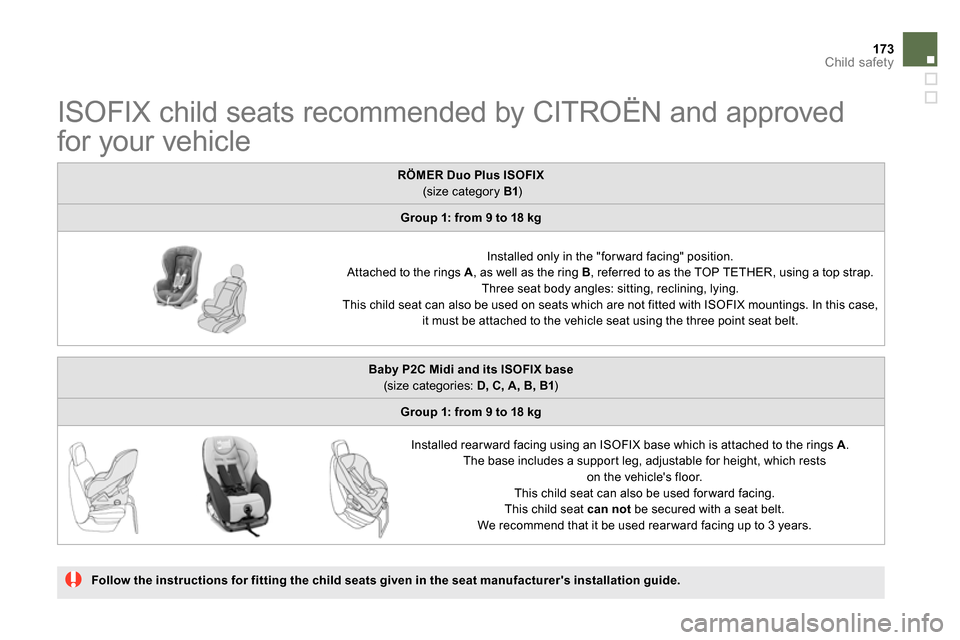

ISOFIX child seats recommended by CITROËN and approved
for your vehicle
Follow the instructions for fitting the child seats given in the seat manufacturer's installation guide.
RÖMER
Duo Plus ISOFIX
(size category B1
)
Group 1: from 9 to 18 kg
Installed only in the "for ward facing" position.
Attached to the rings A
, as well as the ring B
, referred to as the TOP TETHER, using a top strap.
Three seat body angles: sitting, reclining, lying.
This child seat can also be used on seats which are not fitted with ISOFIX mountings. In this case,
it must be attached to the vehicle seat using the three point seat belt.
Baby P2C Midi and its ISOFIX base
(size categories: D, C, A, B, B1
)
Group 1: from 9 to 18 kg
Installed rear ward facing using an ISOFIX base which is attached to the rings A
.
The base includes a support leg, adjustable for height, which rests
on the vehicle's floor.
This child seat can also be used for ward facing.
This child seat can
not
be secured with a seat belt.
We recommend that it be used rear ward facing up to 3 years.
Page 177 of 400
175Child safety

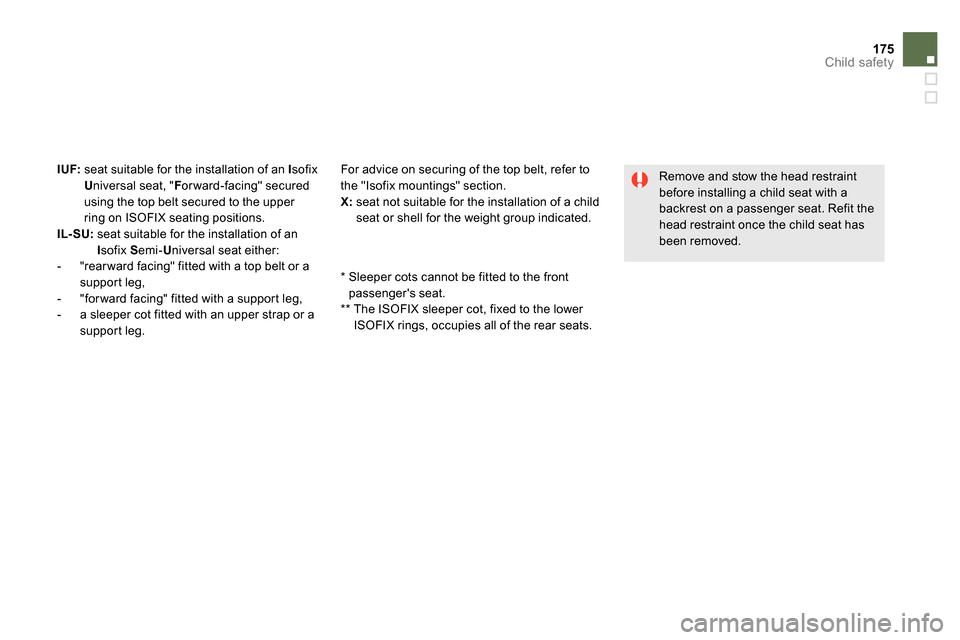

IUF:
seat suitable for the installation of an I
sofix
U
niversal seat, " F
or ward-facing" secured
using the top belt secured to the upper
ring on ISOFIX seating positions.
IL-SU:
seat suitable for the installation of an
I
sofix S
emi- U
niversal seat either:
- "rear ward facing" fitted with a top belt or a
support leg,
- "for ward facing" fitted with a support leg,
- a sleeper cot fitted with an upper strap or a
support leg.
*
Sleeper cots cannot be fitted to the front
passenger's seat.
**
The ISOFIX sleeper cot, fixed to the lower
ISOFIX rings, occupies all of the rear seats.
Remove and stow the head restraint
before installing a child seat with a
backrest on a passenger seat. Refit the
head restraint once the child seat has
been removed. For advice on securing of the top belt, refer to
the "Isofix mountings" section.
X:
seat not suitable for the installation of a child
seat or shell for the weight group indicated.
Page 178 of 400

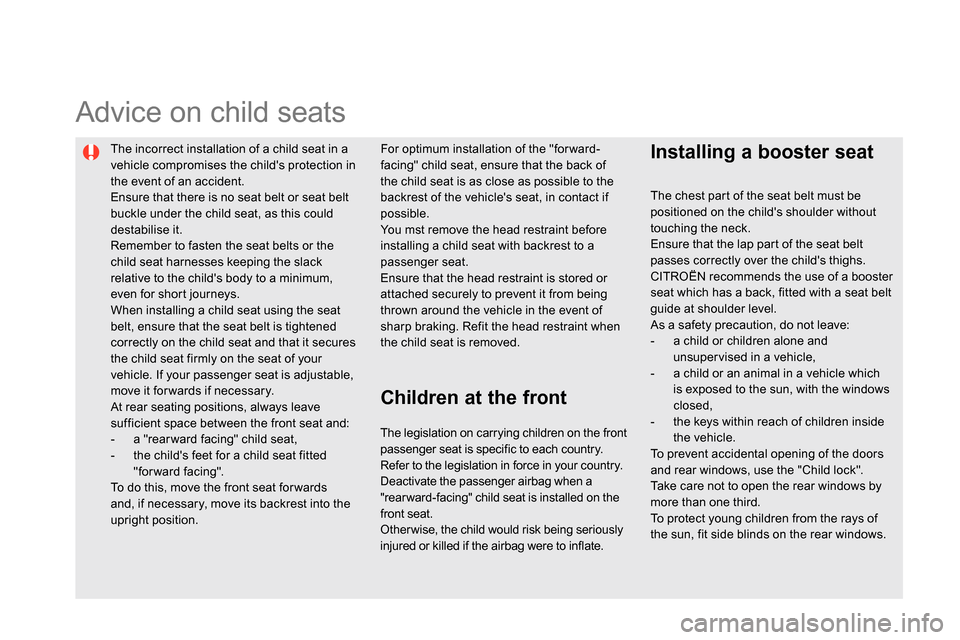

The incorrect installation of a child seat in a
vehicle compromises the child's protection in
the event of an accident.
Ensure that there is no seat belt or seat belt
buckle under the child seat, as this could
destabilise it.
Remember to fasten the seat belts or the
child seat harnesses keeping the slack
relative to the child's body to a minimum,
even for short journeys.
When installing a child seat using the seat
belt, ensure that the seat belt is tightened
correctly on the child seat and that it secures
the child seat firmly on the seat of your
vehicle. If your passenger seat is adjustable,
move it for wards if necessary.
At rear seating positions, always leave
sufficient space between the front seat and:
- a "rear ward facing" child seat,
- the child's feet for a child seat fitted
"forward facing".
To do this, move the front seat for wards
and, if necessary, move its backrest into the
upright position.
Advice on child seats
For optimum installation of the "for ward-
facing" child seat, ensure that the back of
the child seat is as close as possible to the
backrest of the vehicle's seat, in contact if
possible.
You mst remove the head restraint before
installing a child seat with backrest to a
passenger seat.
Ensure that the head restraint is stored or
attached securely to prevent it from being
thrown around the vehicle in the event of
sharp braking. Refit the head restraint when
the child seat is removed.
Children at the front
Installing a booster seat
The chest part of the seat belt must be
positioned on the child's shoulder without
touching the neck.
Ensure that the lap part of the seat belt
passes correctly over the child's thighs.
CITROËN recommends the use of a booster
seat which has a back, fitted with a seat belt
guide at shoulder level.
As a safety precaution, do not leave:
- a child or children alone and
unsuper vised in a vehicle,
- a child or an animal in a vehicle which
is exposed to the sun, with the windows
closed,
- the keys within reach of children inside
the vehicle.
To prevent accidental opening of the doors
and rear windows, use the "Child lock".
Take care not to open the rear windows by
more than one third.
To protect young children from the rays of
the sun, fit side blinds on the rear windows.
The legislation on carrying children on the front
passenger seat is specific to each country.
Refer to the legislation in force in your country.
Deactivate the passenger airbag when a
"rear ward-facing" child seat is installed on the
front seat.
Other wise, the child would risk being seriously
injured or killed if the airbag were to inflate.
Page 190 of 400

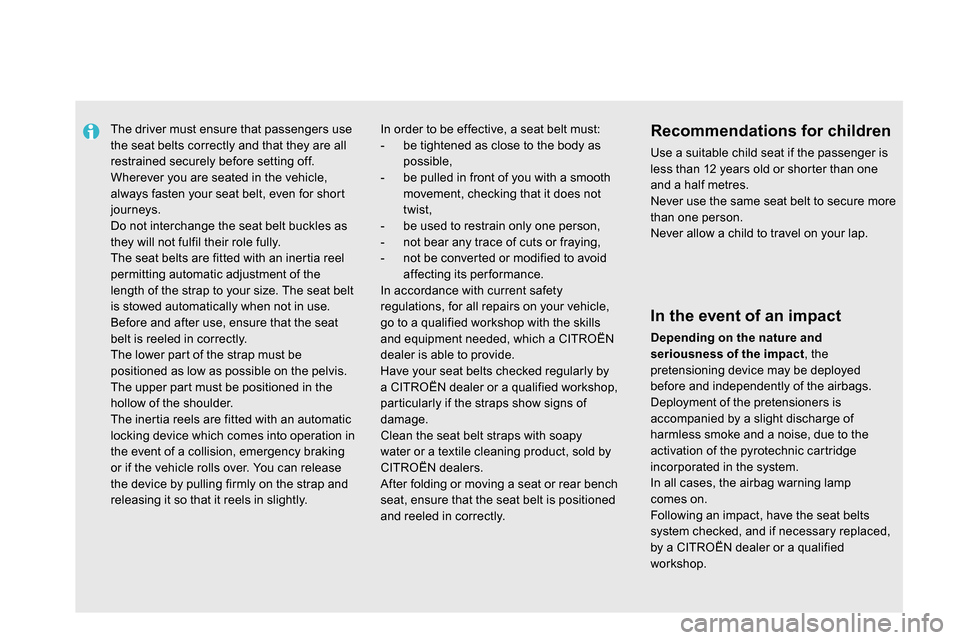

The driver must ensure that passengers use
the seat belts correctly and that they are all
restrained securely before setting off.
Wherever you are seated in the vehicle,
always fasten your seat belt, even for short
journeys.
Do not interchange the seat belt buckles as
they will not fulfil their role fully.
The seat belts are fitted with an inertia reel
permitting automatic adjustment of the
length of the strap to your size. The seat belt
is stowed automatically when not in use.
Before and after use, ensure that the seat
belt is reeled in correctly.
The lower part of the strap must be
positioned as low as possible on the pelvis.
The upper part must be positioned in the
hollow of the shoulder.
The inertia reels are fitted with an automatic
locking device which comes into operation in
the event of a collision, emergency braking
or if the vehicle rolls over. You can release
the device by pulling firmly on the strap and
releasing it so that it reels in slightly.
Recommendations for children
Use a suitable child seat if the passenger is
less than 12 years old or shorter than one
and a half metres.
Never use the same seat belt to secure more
than one person.
Never allow a child to travel on your lap. In order to be effective, a seat belt must:
- be tightened as close to the body as
possible,
- be pulled in front of you with a smooth
movement, checking that it does not
twist,
- be used to restrain only one person,
- not bear any trace of cuts or fraying,
- not be converted or modified to avoid
affecting its per formance.
In accordance with current safety
regulations, for all repairs on your vehicle,
go to a qualified workshop with the skills
and equipment needed, which a CITROËN
dealer is able to provide.
Have your seat belts checked regularly by
a CITROËN dealer or a qualified workshop,
particularly if the straps show signs of
damage.
Clean the seat belt straps with soapy
water or a textile cleaning product, sold by
CITROËN dealers.
After folding or moving a seat or rear bench
seat, ensure that the seat belt is positioned
and reeled in correctly.
In the event of an impact
Depending on the nature and
seriousness of the impact
, the
pretensioning device may be deployed
before and independently of the airbags.
Deployment of the pretensioners is
accompanied by a slight discharge of
harmless smoke and a noise, due to the
activation of the pyrotechnic cartridge
incorporated in the system.
In all cases, the airbag warning lamp
comes on.
Following an impact, have the seat belts
system checked, and if necessary replaced,
by a CITROËN dealer or a qualified
workshop.
