bulb Citroen DS5 RHD 2014 1.G Owner's Manual

005005006006007007008008SAFETY
PR ACTICAL
INFORMATION CHILD SAFETY VISIBILITY
14 4 Lighting controls
147 Daytime running lamps
14 8 Automatic illumination of
headlamps
14 9 Automatic headlamp dipping
152 Headlamp adjustment
15 3 Directional lighting
155 Wiper controls
157 Automatic rain sensitive
wipers
15 9 Courtesy lamps
160 Interior mood lighting164 Child seats
166 Deactivating the passenger's
front airbag
172 ISOFIX mountings
17 7 Child lock180 Direction indicators
181 Emergency or assistance
call
181 Horn
182 ESC system
186 Seat belts
189 Airbags196 Temporary puncture repair
kit
202 Changing a wheel
210 Snow chains
211 Changing a bulb
219 Changing a fuse
222 12 V battery
225 Energy economy mode
226 Changing a wiper blade
227 Towing the vehicle
228 Towing a trailer
230 Fitting roof bars
231 Accessories

Manual adjustment
of halogen
headlamps







Automatic adjustment of xenon headlamps


To avoid causing a nuisance to other road
users, the height of the halogen headlamps
should be adjusted according to the load in the
vehicle.

0.
1 or 2 people in the front seats.

-.
Intermediate setting.

1.
5 people + maximum authorised load.

-.
Intermediate setting.

2.
Driver + maximum authorised load.

-.
Intermediate setting.

3.
5 people + maximum load in the boot.

The initial setting is position "0"
.

If a fault occurs, this
warning lamp is displayed
in the instrument panel,
accompanied by an audible signal and a
message in the instrument panel screen.
The system then places your headlamps in the
lowest position. In order to avoid causing a nuisance to other
road users, this system corrects the height of the
xenon headlamps beam automatically and when
stationary, in relation to the load in the vehicle.
If a fault occurs, do not touch the xenon
bulbs. Contact a CITROËN dealer or a
qualified workshop.

211Practical information

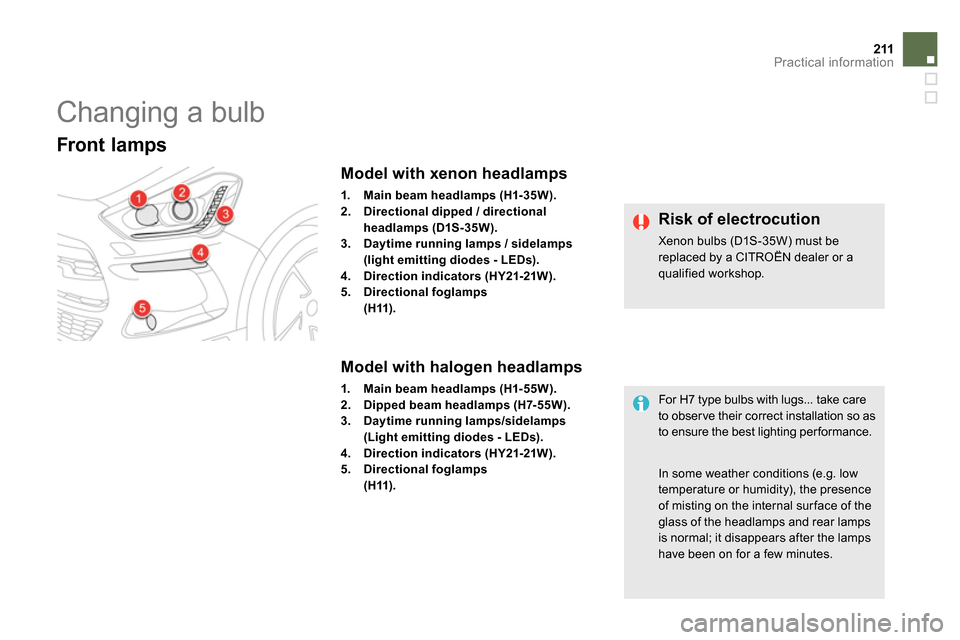

Changing a bulb


Front lamps
























Model with xenon headlamps



1.

Main beam headlamps (H1-35W).

2. Directional dipped / directional
headlamps

(D1S-35W).

3. Daytime running lamps / sidelamps
(light emitting diodes - LEDs).

4. Direction indicators (HY21-21W).

5. Directional foglamps
(H11).




























Model with halogen headlamps



1.

Main beam headlamps (H1- 55W).

2. Dipped beam headlamps (H7- 55W).

3. Daytime running lamps/sidelamps
(Light emitting diodes - LEDs).

4. Direction indicators (HY21-21W).

5. Directional foglamps
(H11).
For H7 type bulbs with lugs... take care
to obser ve their correct installation so as
to ensure the best lighting per formance.

In some weather conditions (e.g. low
temperature or humidity), the presence
of misting on the internal sur face of the
glass of the headlamps and rear lamps
is normal; it disappears after the lamps
have been on for a few minutes.



Risk of electrocution

Xenon bulbs (D1S-35W) must be
replaced by a CITROËN dealer or a
qualified workshop.

Main beam headlamps
(xenon model)



Remove the protective plastic cover by
pulling on the tab.


Remove the connector with the bulb by
pressing on the lug at the bottom.


Remove the bulb and change it.
For reassembly, carry out these operations in
reverse order.

The headlamps are fitted with
polycarbonate glass with a protective
coating:



do not clean them using a dr y
or abrasive cloth, nor with a
detergent or solvent product,



use a sponge and soapy water or a
pH neutral product,


when using a high pressure washer
on persistent marks, do not keep
the lance directed towards the
lamps or their edges for too long,
so as not to damage their protective
coating and seals.
Changing a bulb should only be done
after the headlamp has been switched
off for a few minutes (risk of serious
burns).



Do not touch the bulb directly with
your fingers, use a lint-free cloth.
It is imperative to use only anti-
ultraviolet (UV) type bulbs to avoid
damaging the headlamp.
Always replace a failed bulb with a
new bulb with the same type and
specification.










Dipped beam headlamps
(xenon model)
D1S xenon bulbs must be changed
by a CITROËN dealer or a qualified
workshop, as there is a risk of
electrocution.
It is recommended that the D1S bulbs
are changed at the same time when
one of them fails.

213Practical information

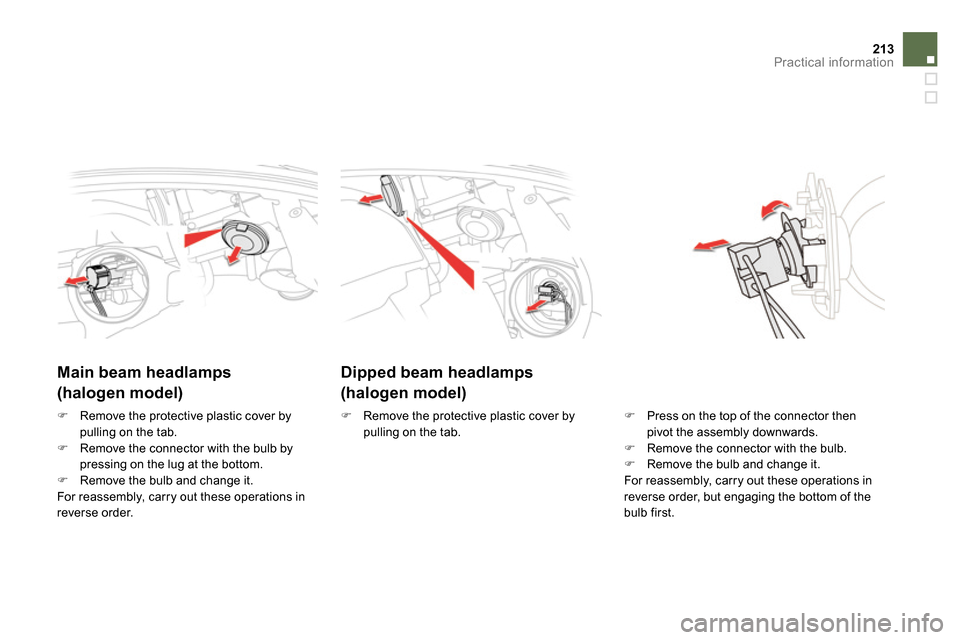

Dipped beam headlamps
(halogen model)





Main beam headlamps
(halogen model)


Press on the top of the connector then
pivot the assembly downwards.


Remove the connector with the bulb.


Remove the bulb and change it.
For reassembly, carry out these operations in
reverse order, but engaging the bottom of the
bulb first.



Remove the protective plastic cover by
pulling on the tab.


Remove the protective plastic cover by
pulling on the tab.


Remove the connector with the bulb by
pressing on the lug at the bottom.


Remove the bulb and change it.
For reassembly, carry out these operations in
reverse order.

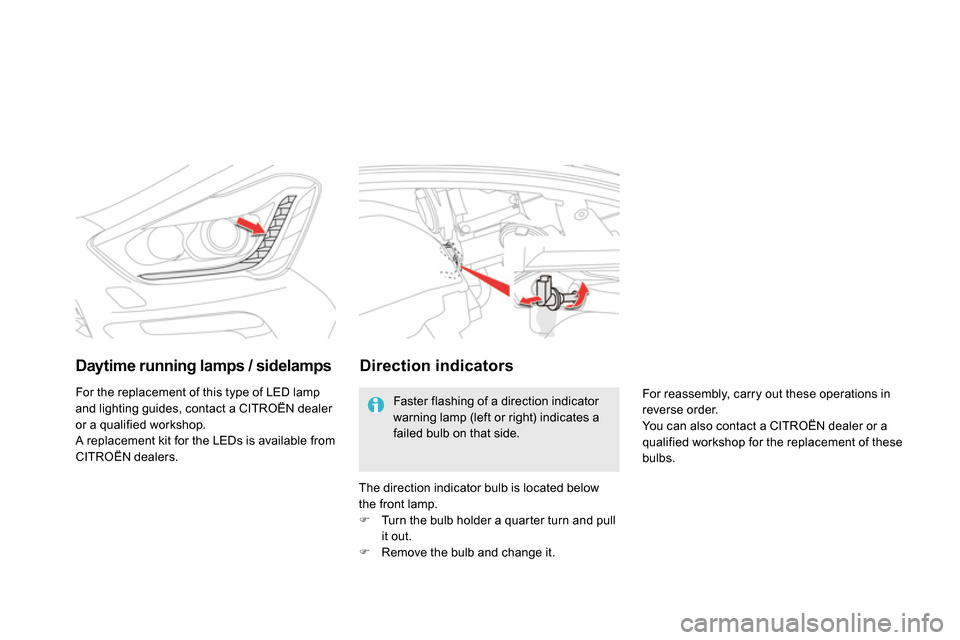

Daytime running lamps / sidelamps

For the replacement of this type of LED lamp
and lighting guides, contact a CITROËN dealer
or a qualified workshop.
A replacement kit for the LEDs is available from
CITROËN dealers.








Direction indicators

Faster flashing of a direction indicator
warning lamp (left or right) indicates a
failed bulb on that side.
The direction indicator bulb is located below
the front lamp.



Turn the bulb holder a quarter turn and pull
it out.


Remove the bulb and change it. For reassembly, carry out these operations in
reverse order.
You can also contact a CITROËN dealer or a
qualified workshop for the replacement of these
bulbs.

215Practical information

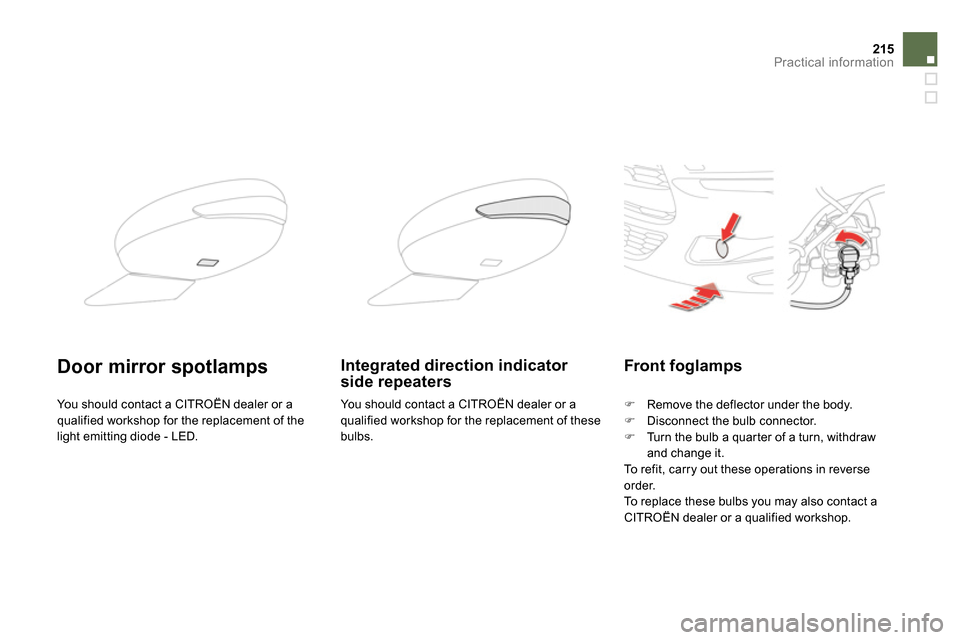

Front foglamps




Remove the deflector under the body.


Disconnect the bulb connector.


Turn the bulb a quarter of a turn, withdraw
and change it.
To refit, carry out these operations in reverse
order.
To replace these bulbs you may also contact a
CITROËN dealer or a qualified workshop.

















Integrated direction indicator
side repeaters





Door mirror spotlamps

You should contact a CITROËN dealer or a
qualified workshop for the replacement of these
bulbs.
You should contact a CITROËN dealer or a
qualified workshop for the replacement of the
light emitting diode - LED.

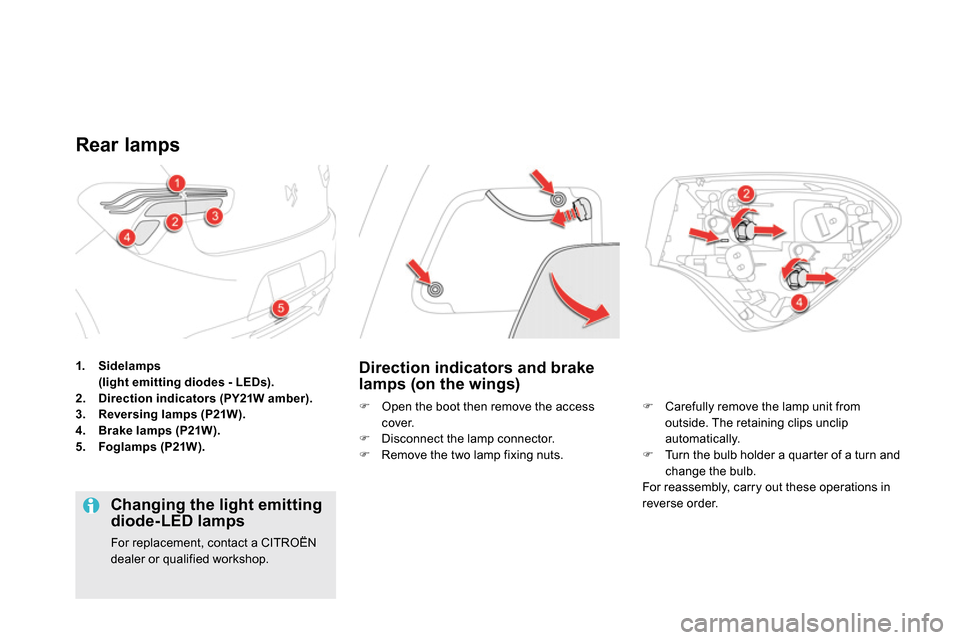

1. Sidelamps
(light emitting diodes - LEDs).

2. Direction indicators (PY21W amber).

3. Reversing lamps (P21W).

4. Brake lamps (P21W).

5. Foglamps (P21W).























Rear lamps























Direction indicators and brake
lamps (on the wings)



Open the boot then remove the access
cover.


Disconnect the lamp connector.


Remove the two lamp fixing nuts.

Carefully remove the lamp unit from
outside. The retaining clips unclip
automatically.


Turn the bulb holder a quarter of a turn and
change the bulb.
For reassembly, carry out these operations in
reverse order.



Changing the light emitting
diode-LED lamps
For replacement, contact a CITROËN
dealer or qualified workshop.

217Practical information

Reversing lamp (tailgate)



Carefully remove the lamp from the
outside. The retaining clips unclip
automatically.


Turn the bulb holder a quarter of a turn and
replace the bulb.
For reassembly, carry out these operations in
reverse order.









Foglamp




Open the tailgate.


Unclip the skirt of the lamp.


Remove the access cover and the lamp
fixing nut. Access is by passing a hand under the bumper.



Turn the bulb holder a quarter of a turn and
pull it out.


Change the bulb.
To refit, carry out these operations in reverse
order.
You can also contact a CITROËN dealer or a
qualified workshop for the replacement of these
bulbs.

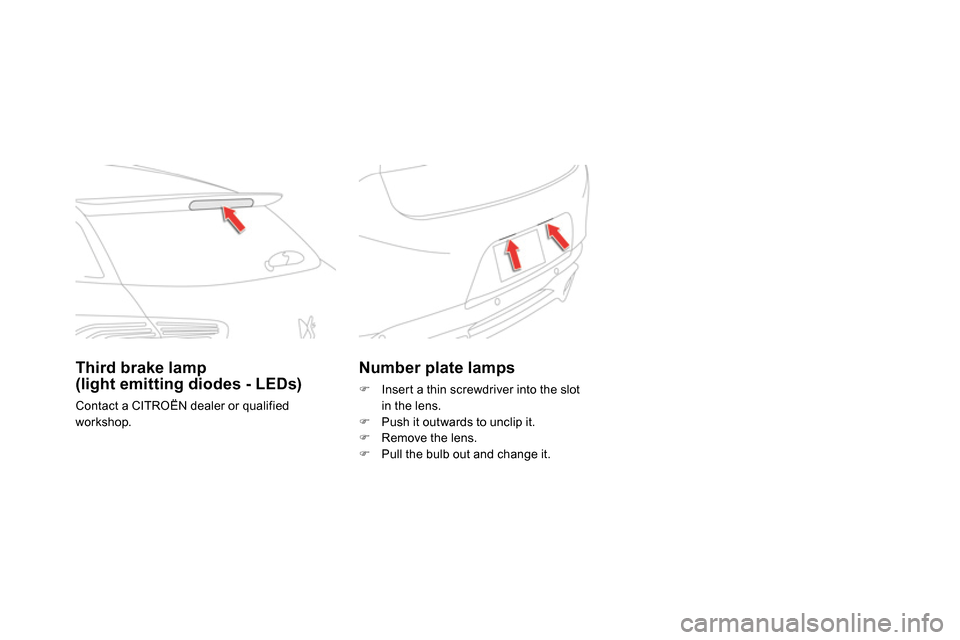

Number plate lamps




Insert a thin screwdriver into the slot
in the lens.


Push it outwards to unclip it.


Remove the lens.


Pull the bulb out and change it.
















Third brake lamp
(light emitting diodes - LEDs)
Contact a CITROËN dealer or qualified
workshop.
