window Citroen DS5 RHD 2014 1.G Owner's Manual

001001002002003003004004 COMFORT ACCESS MONITORINGDRIVING
30 Instrument panel
31 Indicator and warning lamps
42 Gauges and indicators
46 Adjustment buttons
48 Setting the date and time
48 Clock
50 Tr i p c o m p u t e r54 Electronic key - remote
control
56 "Keyless Entry and Starting"
64 Boot
65 Alarm
68 Electric windows
70 Cockpit glass roof
72 Fuel tank
73 Misfuel prevention (Diesel)78 Front seats
83 Rear seats
86 Mirrors
87 Steering wheel adjustment
88 Interior fi ttings
92 Boot fi ttings
93 Triangle (stowing)
94 Heating and Ventilation
96 Dual-zone digital air
conditioning
100 Rear screen demist - defrost104 Starting-switching off the
engine
107 Electric parking brake
114 Hill start assist
115 Manual gearbox
116 Automatic gearbox
120 Electronic gearbox
124 Gear effi cency indicator
125 Ty r e u n d e r- i nfl ation detection
127 Stop & Start
130
Lane departure warning system
131 Head-up display
13 4 Speed limiter
136 Cruise control
138 Parking sensors
14 0 Reversing camera

14 .
Controls for electric windows / electric child
lock / central locking.

15.
eMyWay controls.

16.
Gear lever.

17.
Heating / air conditioning controls.

18.
Audio system.

19.
Hazard warning lamps.

20.
Multifunction screen.

21.
Central adjustable air vents.

22.
Clock.

23.
Starting with the START/STOP button.

24.
Electronic key reader.

25.
Wiper / screenwash / trip computer stalk.

26.
Audio equipment steering wheel controls.

Instruments and controls



1.
Bonnet release lever.

2.
Headlamp height adjustment.

3.
Side adjustable air vents.

4.
Front door window demisting/defrosting
vents.

5.
Quarter light demisting windows.

6.
Head-up display.

7.
Windscreen demisting/defrosting vent.

8.
Passenger's airbag.

9.
Glove box / Passenger's airbag
deactivation inside.

10.
12 V accessory socket.

11.
Rear electric window controls.

12 .
Central armrest with storage.
USB port / auxiliary socket.

13.
Electric parking brake.
27.
Driver's airbag.
Horn.

28.
Cruise control / speed limiter controls.

29.
Switch panel (see previous page).

30.
Door mirror adjustment.

31.
Lighting and direction indicator stalk .

32.
Instrument panel.

33.
Seat belt and airbag warning lamps.

34.
Courtesy lamp.

35.
Head-up display controls.

36.
Controls for glass roof panel blind.

37.
CITROËN Localised Emergency Call -
CITROËN Localised Assistance Call
(depending on country of sale).

25Familiarisation

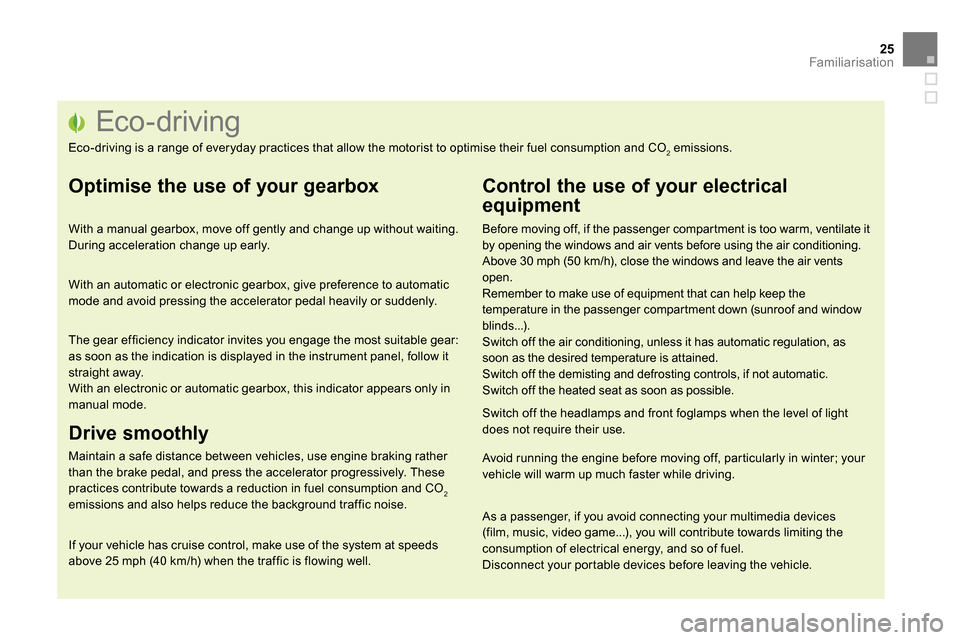

Eco-driving

Eco-driving is a range of everyday practices that allow the motorist to optimise their fuel consumption and CO2 emissions.


Optimise the use of your gearbox


With a manual gearbox, move off gently and change up without waiting.
During acceleration change up early.

With an automatic or electronic gearbox, give preference to automatic
mode and avoid pressing the accelerator pedal heavily or suddenly.

The gear efficiency indicator invites you engage the most suitable gear:
as soon as the indication is displayed in the instrument panel, follow it
straight away.
With an electronic or automatic gearbox, this indicator appears only in
manual mode.



Drive smoothly


Maintain a safe distance between vehicles, use engine braking rather
than the brake pedal, and press the accelerator progressively. These
practices contribute towards a reduction in fuel consumption and CO
2
emissions and also helps reduce the background traffic noise.

If your vehicle has cruise control, make use of the system at speeds
above 25 mph (40 km/h) when the traffic is flowing well.



Control the use of your electrical
equipment

Before moving off, if the passenger compartment is too warm, ventilate it
by opening the windows and air vents before using the air conditioning.
Above 30 mph (50 km/h), close the windows and leave the air vents
open.
Remember to make use of equipment that can help keep the
temperature in the passenger compartment down (sunroof and window
blinds...).
Switch off the air conditioning, unless it has automatic regulation, as
soon as the desired temperature is attained.
Switch off the demisting and defrosting controls, if not automatic.
Switch off the heated seat as soon as possible.

Switch off the headlamps and front foglamps when the level of light
does not require their use.

Avoid running the engine before moving off, particularly in winter; your
vehicle will warm up much faster while driving.

As a passenger, if you avoid connecting your multimedia devices
(film, music, video game...), you will contribute towards limiting the
consumption of electrical energy, and so of fuel.
Disconnect your portable devices before leaving the vehicle.

55Access











Unlocking the boot










Locking the vehicle


Locking is confirmed by fixed
lighting of the direction indicators for
approximately two seconds.
The door mirrors fold at the same time.



Press the closed padlock to lock
the vehicle completely.
Hold the button down until the
windows close completely.




Press this button until you hear
the boot unlock. The vehicle is
completely unlocked.



Be aware of children when operating
the windows.














If one of the doors or the boot is not fully
closed, locking does not take place.
When the vehicle is locked, if it is
unlocked inadvertently, it will relock
automatically after about thirty seconds
unless a door is opened.
If the alarm was previously activated, it
will not be reactivated automatically.

57Access













Locking the vehicle





With the electronic key in the recognition
zone A
, press with a finger on one of the
door handles (at the markings) to lock the
vehicle
.
Maintain pressure with your finger until the
windows close completely.


Locking is confirmed by fixed
lighting of the direction indicators for
approximately two seconds.
The door mirrors fold at the same time.
















If one of the doors or the boot is still
open or if the key for Keyless Entry and
Starting system has been left inside
the vehicle or if the ignition is on, the
central locking does not take place.
When the vehicle is locked, if it is
unlocked inadvertently, it will lock itself
again automatically after about thirty
seconds unless a door is opened.
If the alarm was previously activated, it
will not be reactivated automatically.
The folding and unfolding of the door
mirrors by the remote control can be
deactivated by a CITROËN dealer or a
qualified workshop.
As a safety measure (children on
board), never leave the vehicle without
taking the key for the Keyless Entry and
Star ting system, even for a shor t period.
Guard against theft when the key for the
Keyless Entry and Starting system is
in the recognition zone with the vehicle
unlocked.
In order to preser ve the charge of the
cell battery in the remote control, the
"hands-free" functions go into extended
stand-by after 21 days of non-use. To
restore these functions, press one of
the remote control buttons or start the
engine with the electronic key in the
reader.

Ensure that no one prevents the correct
operation of the windows.
Be aware of children when operating
the windows.
This function allows you to identify
your vehicle from a distance,
particularly in poor light. Your vehicle
must be locked.






Locating your vehicle




Press the closed padlock on the remote
control.
This will switch on the courtesy lamps and
the direction indicators will flash for around
ten seconds.

Deadlocking


Deadlocking renders the exterior and
interior door controls inoperative.
It also deactivates the manual central
control button.
Therefore, never leave anyone inside
the vehicle when it is deadlocked.

Using the remote control




Press the closed padlock to lock
the vehicle completely.
Maintain pressure with your
finger for more than two seconds
to close the windows.

With the Keyless Entry and
Starting system
By the doors:



With the electronic key in the recognition
zone A
, press a finger on the door handle
(at the markings) to lock the vehicle.


Within five seconds, press the door handle
again to deadlock the vehicle.


Ensure that no one is preventing the
correct closing of the windows.
Be aware of children when operating
the windows.

Press the closed padlock again within
five seconds to deadlock the vehicle.

OFF
65Access
System which protects and provides a deterrent
against theft and break-ins. It provides the
following types of monitoring:






Alarm


- Exterior perimeter

The system checks for opening of the vehicle.
The alarm is triggered if anyone tries to open a
door, the boot or the bonnet...




- Interior volumetric

The system checks for any variation in the
volume in the passenger compartment.
The alarm is triggered if anyone breaks a
window, enters the passenger compartment or
moves inside the vehicle.




- Tilt

The system checks for any change in the
attitude of the vehicle.
The alarm is triggered if the vehicle is lifted,
moved or knocked.




Self-protection function

The system checks for the putting out of
ser vice of its components.
The alarm is triggered if the battery, the
button or the wires of the siren are put
out of service or damaged.
For all work on the alarm system,
contact a CITROËN dealer or a
qualified workshop.


Locking the vehicle with full
alarm system

Activation




Switch off the ignition and get out of the vehicle.



Press the locking button on the
remote control or lock the vehicle
using the Keyless Entry and
Starting system. The monitoring system is active: the indicator
lamp in the button flashes once per second.
After the locking button on the remote control
is pressed or the vehicle locked using the
Keyless Entry and Starting system, the exterior
perimeter monitoring is activated after a delay
of 5 seconds, the interior volumetric monitoring
after 45 seconds and the anti-tilt after
one minute and 30 seconds.
If an opening (door, boot...) is not closed
fully, the vehicle is not locked but the exterior
perimeter monitoring will be activated after
a delay of 45 seconds.



Press the unlocking button on
the remote control or unlock the
vehicle using the Keyless Entry
and Starting system.


Deactivation of the volumetric
monitoring
The volumetric protection system is
deactivated: the indicator lamp in the
button goes off.

OFF

Locking the vehicle
with exterior perimeter
monitoring only
Deactivate the interior volumetric and anti-lift
monitoring to avoid unwanted triggering of the
alarm in certain cases such as:


- leaving a window partially open,

- washing your vehicle,

- changing a wheel,

- having your vehicle towed,

- transpor tation by sea.

Deactivation of the interior
volumetric and anti-tilt monitoring



Switch of the ignition and within
ten seconds, press this button
until the indicator lamp is on
continuously.


Get out of the vehicle.


Press the locking button on
the remote control immediately
or lock the vehicle using the
Keyless Entry and Starting
system.
The exterior perimeter monitoring alone is
activated: the indicator lamp in the button
flashes once per second.
To be effective, this deactivation must be carried
out each time the ignition is switched off.
Where the vehicle locks itself again
automatically (occurs 30 seconds after
unlocking, if a door or the boot is not
opened), the monitoring system is not
reactivated automatically.
To reactivate it, the vehicle must be
unlocked and locked again, using the
remote control or the "Keyless Entry
and Starting" system.

Electric windows



1.
Left hand front electric window switch.


2.
Right hand front electric window switch.

3.
Right hand rear electric window switch.

Manual operation

To open or close the window, press or pull the
switch gently. The window stops as soon as the
switch is released.

Automatic operation

To open or close the window, press or pull
switch fully: the window opens or closes
completely when the switch is released.
Pressing the switch again stops the movement
of the window.
The electric window switches remain
operational for approximately 45 seconds after
switching off the ignition.
Once this time has elapsed, the electric
windows will not operate. To reactivate them,
switch the ignition on again.
4.
Left hand rear electric window switch.


5.
Deactivating the rear electric window
switches,

locking the rear doors

(child lock).

69Access

Safety anti-pinch

When the window rises and meets an obstacle,
it stops and immediately partially lowers again.
In the event of unwanted opening of the
window on closing, press the switch until the
window opens completely, then pull the switch
immediately until the window closes. Continue
to hold the switch for approximately one second
after the window has closed.
The safety anti-pinch function is not active
during this operation.


Deactivating the rear window
controls

Reinitialisation of the
electric windows

In the event of contact during operation
of the windows, you must reverse the
movement of the window. To do this,
press the switch concerned.
When operating the passenger electric
window switches, the driver must
ensure that no one is preventing correct
closing of the windows.
The driver must ensure that the
passengers use the electric windows
correctly.
Be aware of children when operating
the windows.
Be aware of passengers or other
persons present when closing the
windows using the the electronic key
or the "Keyless Entry and Starting"
system.
Following reconnection of the battery, the
safety anti-pinch function must be reinitialised.
The safety anti-pinch function is not active
during these operations:


- lower the window completely, then raise
it, it will rise in steps of a few centimetres
each time the switch is pressed. Repeat
the operation until the window closes
completely,

- continue to press the switch for at least
one second after reaching this position,
window closed.
For the safety of your children, press
switch 5
to prevent operation of the
rear windows irrespective of their
position.
The warning lamp in the button comes on,
accompanied by a message confirming
activation. It remains on, as long as the child
lock is activated.
The interior controls for the rear doors are also
deactivated.
Opening the doors from the outside and
operation of the rear electric windows from the
driver's controls remain possible.
