Do not cover the rain sensor, linked with
the sunshine sensor and located in the
centre of the windscreen behind the rear
view mirror.
Switch off the automatic rain sensitive
wipers when using an automatic car wash.
In winter, it is advisable to wait until the
windscreen is completely clear of ice
before activating the automatic rain
sensitive wipers.
Operating fault
If a fault occurs with the automatic rain
sensitive wipers, the wipers will operate in
intermittent mode.
Have it checked by CITROËN dealer or a
qualified workshop.

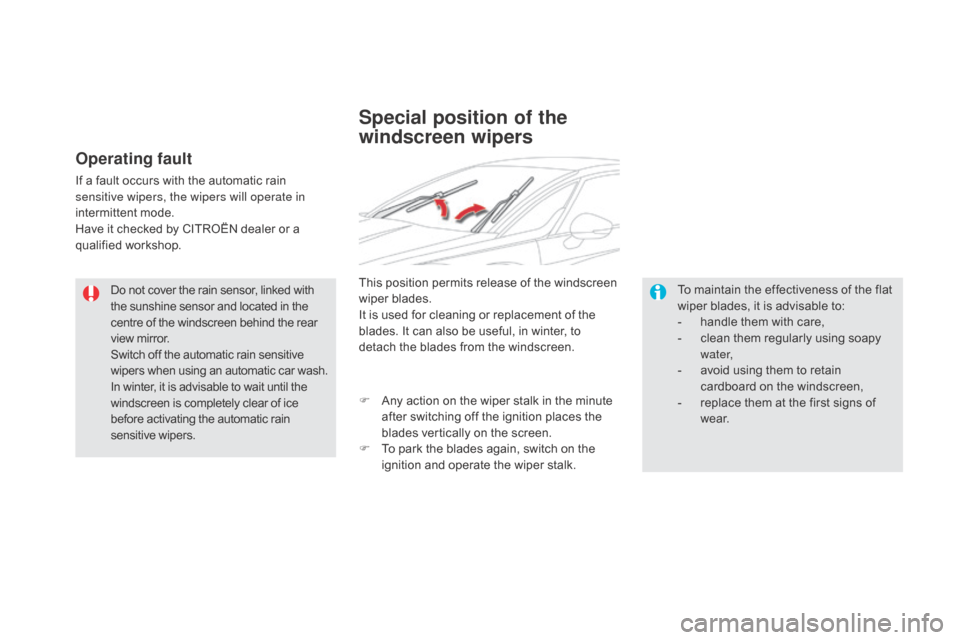

Special position of the
windscreen wipers
This position permits release of the windscreen
wiper blades.
It is used for cleaning or replacement of the
blades. It can also be useful, in winter, to
detach the blades from the windscreen.To maintain the effectiveness of the flat
wiper blades, it is advisable to:
-

h
andle them with care,
-

c
lean them regularly using soapy
water,
-

a
void using them to retain
cardboard on the windscreen,
-

r
eplace them at the first signs of
w e a r.
F

A
ny action on the wiper stalk in the minute
after switching off the ignition places the
blades vertically on the screen.
F

T
o park the blades again, switch on the
ignition and operate the wiper stalk.

205
List of tools*
Access to the spare wheel
The spare wheel is supported by a winch
carrier system underneath the vehicle.
Tyre under-inflation detection
The spare wheel is not fitted with a
sensor. The punctured wheel must be
repaired by a CITROËN dealer or a
qualified workshop.
All of these tools are specific to your
vehicle and can vary according to the level
of equipment. Do not use them for other
purposes.
1.
W

heelbrace.
F

or removing the wheel trim and removing
the wheel bolts.
2.
J

ack with integral handle.
F

or raising the vehicle.
3.
W

heel bolt cover tool.
F

or removing the bolt head finishers (caps)
on alloy wheels.
4.
W

heel trim remover.
F

or removing the alloy wheel finishers.
5.
S

ocket for the security bolts (located in the
glove box). F
or adapting the wheelbrace to the special
"security" bolts.
6.
Ch

ock.
F

or blocking the vehicle's wheels.
7.
W

heelbrace extension.
F

or slackening/tightening the spare wheel
carrier nut.
8.
R

emovable towing eye.
See the "Towing the vehicle" section.
* According to country of sale.
Practical information

driving advice
distribution of loads
F Distribute the load in the trailer so that the heaviest items are as close as possible to
the axle and the nose weight approaches
the maximum permitted without
exceeding
it.
Air density decreases with altitude, thus
reducing engine per formance. Above
1
000 metres, the maximum towed load must
be reduced by 10
% for every 1 000 metres of
altitude.
Side wind
F Take into account the increased sensitivity to side wind.
cooling
Towing a trailer on a slope increases the
temperature of the coolant.
As the fan is electrically controlled, its cooling
capacity is not dependent on the engine speed.
F

T
o lower the engine speed, reduce your
speed.
The maximum towed load on a long incline
depends on the gradient and the ambient
temperature.
In all cases, keep a check on the coolant
temperature.
F

I
f the warning lamp and
the
STOP warning lamp come
on, stop the vehicle and switch
off the engine as soon as
possible.
Braking
Towing a trailer increases the braking distance.
To avoid overheating of the brakes on a long
mountain type of descent, the use of engine
braking is recommended.
Ty r e s
F Check the tyre pressures of the towing vehicle and of the trailer, observing the
recommended pressures.
Lighting
F Check the electrical lighting and signalling on the trailer.
Refer to the "Technical data" section for details
of the weights and towed loads which apply to
your vehicle.
The rear parking sensors will be
deactivated automatically if a genuine
CITROËN towbar is used.

235
Accessories
A wide range of accessories and genuine parts is available from the CITROËN dealer network.
These accessories and parts are all suitable for your vehicle and benefit from CITROËN's
recommendation and warranty.
"comfort":
door deflectors, side window blinds, rear
screen blind, isotherm module, coat hanger
fixed to head restraint, mobile reading lamp,
mirror for caravan, parking sensors, scented air
freshener, cigarette lighter, ...
"Transport systems":
child seats and booster cushions, boot carpet,
boot liner, boot net, boot spacers, transverse
roof bars, bicycle carrier, ski carrier, roof boxes,
towbars, wiring harnesses...
"Styling":
aluminium pedals, aluminium foot rest, alloy
wheels, chrome mirror shells, ...
*

T
o avoid any risk of jamming the pedals:
-

e
nsure that mats are correctly positioned
and secured,
-

n
ever fit one mat on top of another.
"Security and safety":
anti-intrusion alarm, anti-tilt unit, stolen vehicle
tracking system, child seats and booster
cushions, dog guard, breathalyser, first aid
kit, fire extinguisher, warning triangle, belt
cutter/glass breaker, high visibility vest, wheel
security bolts, snow chains, snow socks, ...
"Protection":
mats*, mud flaps, bumper protection strips,
boot sill protector, vehicle cover...
If a towbar and wiring harness are fitted
outside the CITROËN dealer network,
the installation must be done using
the vehicle's electrical pre-equipment
and fitted following the manufacturer's
recommendations. The rear bodywork has been designed
to avoid spray.
Practical information

Accessories ..................................................235
Accessory position ....................................... 10
0
Accessory socket, 12V

............................. 8
2, 83
Additive, AdBlue
.............................. 2

9, 255 -263
Adjusting headlamps
.................................... 15

2
Adjusting head restraints

.......................... 7
2, 75
Adjusting seat belt height

.............................18

9
Adjusting the steering wheel

..........................81
A

dvice on care and maintenance
.................23

4
Advice on driving

..............................
..............98
Airbags
...............

..................................... 31, 191
Airbags, curtain
..................................... 19

3, 19 4
Airbags, front......................................... 191, 19 4
Airbags, lateral
...................................... 19

3, 19 4
Air conditioning, automatic

....................... 9
0, 91
Air filter

...............
........................................... 253
Air flow

..............................
..............................14
Air vents
..............................

............................89
Alarm
............................................................... 63
A

nti-lock braking system
(A BS)
...............

........................................... 18 4
Anti-pinch
.................................................. 6

7, 68
Anti-theft immobiliser
.................................... 10

0
Apple
® player ................................................ 31 6
Armrest, front ............................................ 8 2, 85
Armrest, rear

............................................. 8
2, 86
Ashtray
...............

............................................. 82
Assistance call
...............................

....... 183, 282
Assistance, emergency braking
..................................... 18

4
Audible warning
............................................ 18

3
Audio cable

........................................... 3
14, 355
Audio streaming (Bluetooth)
..............................

............ 316, 359
Audio system

...............................
............ 39, 349
Automatic headlamps
............................. 2

0, 149
Automatic illumination of headlamps

...................................... 14

5, 148Automatic operation of hazard
warning lamps
............................................ 18
2
Automatic rain sensitive windscreen wipers
...............
..................................
155, 157
Auxiliary sockets
............................. 8
5, 314, 359
Battery
...............................
............ 224-226, 252
Battery, charging
...............................
.... 225, 226
Battery, remote control
............................. 5
9, 60
Black panel ...................................................... 38
Blind spot sensors
........................................
12
6
BlueHDi
...............................
.................. 118, 255
Bluetooth connection
............3
28, 336, 337, 360
Bluetooth (hands-free)
.................. 3
36, 337, 360
Bluetooth (telephone)
............................3
36, 360
Boot ........ .........................................................
62
Boot (opening) ............................... ..................
53
Brake discs ....................................................25
4
Brake lamps

...............................
...................218
Brake pads
...............................

.....................254
Braking assistance system

...........................18

4
Braking system warning lamp

.........................2

7
Capacity, fuel tank ........................................2 41
CD .............................. ........................... 314, 355
CD MP3

................
................................. 314, 357
Central locking

.......................................... 5
3, 55
Changing a bulb
..................................... 2

13 -2 20
Changing a fuse
..................................... 2

21-223
Changing a wheel

...............................
...2 0 3 - 2 11
Changing a wiper blade

........................ 1
58, 228
Changing the date

..................................... 4
2, 47
Changing the remote control battery

..............59
C

hanging the time
......................... 3
8, 39, 42, 47
Checking levels

...................................... 2

4 8 - 2 51
Checking the engine oil level

.................. 3
6, 248
Checking tyre pressures (using the kit)

........20

3
Checks
...............

................... 245, 246, 252-254
Children
...............................

... 162-178, 190, 192
Child lock

...............................
........................178
Child seats

..............................
..............16 4 -17 7
Child seats, conventional

.......................17

0, 171
Child seats, ISOFIX

...............................17

3 -175
Cigarette lighter............................................... 83
C
ITROËN
L
ocalised Emergency Call........... 282
Cleaning (advice)
.......................................... 23

4
Clock
...............

................................................ 38
Closing the boot

...............................
...............62
Closing the doors

...............................
....... 53, 55
Cockpit glass roof

........................................... 68
C

onnectors, audio
...................8
5, 314, 358, 359
Coolant level
..............................

............. 32, 250
Coolant temperature indicator

........................32
C

ourtesy lamps
............................................. 15

9
Cruise control
........................................ 13

1, 13 6
Cup holder

...............................
........................82
Customising stickers
..................................... 23

4

381
Paint colour code ..........................................2 78
Parking brake, electric ............ 2 6, 102, 107, 254
Parking lamps
............................................... 15

0
Parking sensors, front

...................................14

0
Parking sensors, rear.................................... 13 9
Particle filter
.......................................... 2

51, 253
Passenger compartment
filter
........

..................................................... 253
Player, CD MP3

............................. 3
14, 356, 357
Port, USB

........................................ 8
5, 314, 358
Priming the fuel system

................................2

47
Protecting children

................. 1
62-178, 190, 192
Puncture
................

........................................ 198
Radio
...............

.............................. 310, 342, 353
RDS
................

............................................... 311
Rear foglamp ................................................. 218
Rear screen (demisting)
............................ 8

0, 95
Recharging the battery

......................... 2
25, 226Reduction of electrical load

..........................
2
27
Regeneration of the particle filter
........
.....................................................
253
Reinitialising the remote control
.....................
59
R
emote control
.................................... 5
2-55, 60
Removing a wheel
..............................
..........
208
Removing the mat
...............................
............
84
Repair kit, puncture
.......................................
19
8
Replacing bulbs
..............................
.......
213 -2 20
Replacing fuses
..............................
.......
221-223
Replacing the air filter
...................................
25
3
Replacing the oil filter
...................................
25
3
Replacing the passenger
compartment filter ......................................
25 3
Replacing wiper blades......................... 158, 228 Resetting the service indicator

.......................35
R

esetting the trip recorder
..............................37
R

eversing camera
...............................
..........141
Reversing lamp
............................................. 2

18
Risk areas (update)

.......................................3

01
Roof bars
....................................................... 23

3
Routine checks

......................................2

52-254
Running out of fuel (Diesel)

..........................2

47
Safety for children .................. 162-178, 190, 192
Screen, instrument panel
...............................

...... 18, 48
Screen menu map

....... 2
90, 292, 296, 304, 306,
308, 318, 320, 322, 332, 334, 369, 370
Screen, monochrome
.....................3

9, 352, 369
Screenwash fluid level

..................................25

0
Screenwash, front
......................................... 15

6
Oil change

...............................

......................
248
Oil consumption

............................................
24

8
Oil filter
...............

...........................................
253
Oil level .................................................... 36, 248
Opening the boot

..............................

.. 52-54, 62
Opening the doors

...............................

..... 52, 54
Operation indicator lamps

.........................
1

9 - 31
SCR (Selective Catalytic
Reduction)
.................................................. 25
5
Seat adjustment
...............................
......... 72, 73
Seat belts
....................................... 1
70, 188 -190
Seats, rear
................................................. 7
7, 79
Serial number, vehicle
..................................
2
78
Service indicator
............................................. 33
S
ervice warning lamp
.....................................
25
S
ervicing
...............................
..........................
14
Settings (Menus)
...............................
.....
318-325
Setting the clock
....................................... 4
2, 47
Sidelamps
.....................................1
44, 147, 150,

213 -215, 217, 218
Side repeater
..............................
..................
217
Ski flap
..............................
..............................
86
Snow chains
.................................................. 2
12
Spare wheel
...............................
...........204, 205
Speed limiter
...............................
..........
131, 13 3
Spotlamps, side
.....................................1
51, 217
Starting the vehicle
.................. 9
9, 101, 111, 115
Starting using another battery
......................
2
25
Steering mounted controls, audio
...............
.................................... 288, 351
Stickers, expressive
......................................
23
4
Stopping the vehicle
................ 9
9, 101, 111, 115
Stop & Start
................................ 4
9, 92, 95, 121,
224, 241, 244, 252
Storage
................
................................ 82, 85 - 87
Storing a speed
.............................................
13
1
Storing driving positions .................................
74
S towing rings .............................. .................... 87
Synchronising the remote control
...................59
S
ystem settings
.............................................325
Alphabetical index
