27 Audio and Telematics


Select a radio station or frequency (refer to the
corresponding section).
Press on Radio Media
to display the
primary page.

Press on the secondary page.

Select " Settings
".

Select " Radio
".

Activate/deactivate " RDS
options
".
Press on Radio Media
to display the
primary page.

Press on the secondary page.
Press on " Save
" (preset).

Select a number in the list to preset the
previously chosen radio station.
A long press on a number presets (memorises)
the station.
Press on Frequency
.

Enter the frequency in full
(e.g.: 92.10 MHz) using the keypad
then " Confirm
".


Changing radio station

Pressing the name of the current radio station
brings up a list.
To change radio station press the name of the
desired station.

Or

Press on Radio Media
to display the
primary page.

Select " Save
" (preset).








Preset a station











Activate/ Deactivate RDS



OR




THEN



A press on this button presets all of
the stations one after the other.


Recall pre-set stations


RDS, if activated, allows you to continue
listening to the same station by automatic
retuning to alternative frequencies.
However, in certain conditions, coverage
of an RDS station may not be assured
throughout the entire country as radio
stations do not cover 100 % of the
territory. This explains the loss of
reception of the station during a journey.

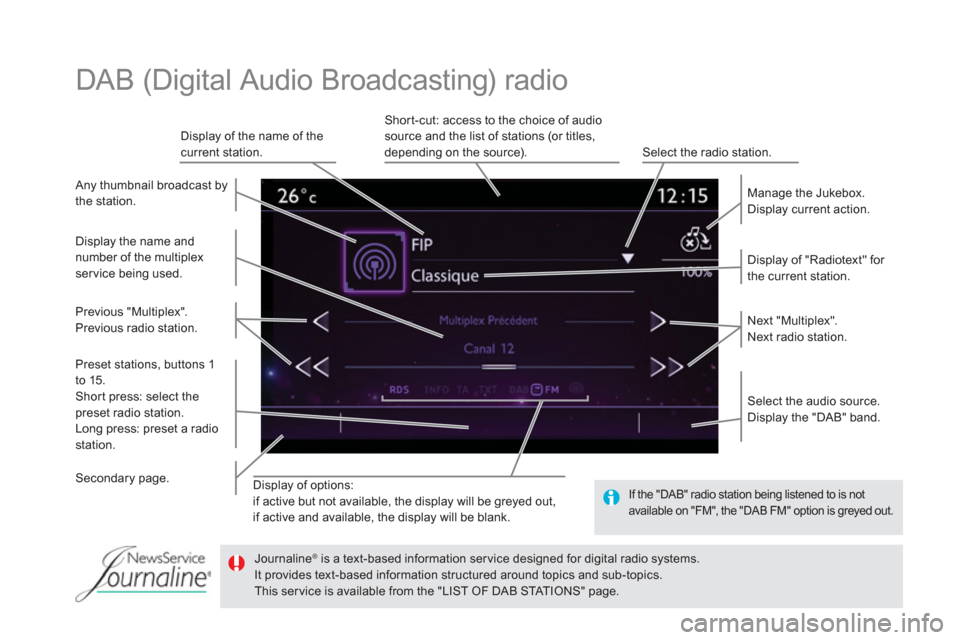

Display of options:
if active but not available, the display will be greyed out,
if active and available, the display will be blank.
Display of "Radiotext" for
the current station.
Manage the Jukebox.
Display current action.

Select the audio source.
Display the "DAB" band.









Display of the name of the
current station.
Short-cut: access to the choice of audio
source and the list of stations (or titles,
depending on the source).
Select the radio station.

Any thumbnail broadcast by
the station.


Preset stations, buttons 1
to 15.
Short press: select the
preset radio station.
Long press: preset a radio
station.
Next "Multiplex".
Next radio station.

Secondary page.
Display the name and
number of the multiplex
ser vice being used.

Previous "Multiplex".
Previous radio station.

DAB (Digital Audio Broadcasting) radio


If the "DAB" radio station being listened to is not
available on "FM", the "DAB FM" option is greyed out.


Journaline ®
is a text-based information ser vice designed for digital radio systems.
It provides text-based information structured around topics and sub-topics.
This ser vice is available from the "LIST OF DAB STATIONS" page.

31
20
29 Audio and Telematics


Select change of source.
Press on Radio Media
to display the
primary page.

Select " DAB Radio
".

Select " List
" in the primary page.

Select the radio station from the list offered.

Press on Radio Media
to display the
primary page.

Press on the secondary page.

Select " Settings
".

Select " Radio
".

Select " Digital/FM auto
tracking
" then " Confirm
".










DAB / FM auto tracking

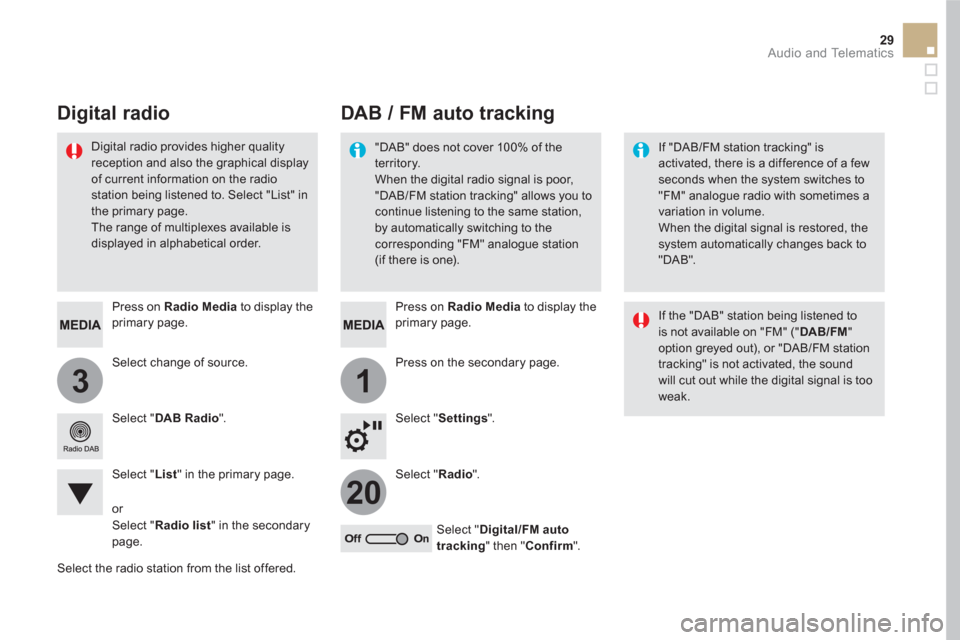

Digital radio


"DAB" does not cover 100% of the
territory.
When the digital radio signal is poor,
"DAB/FM station tracking" allows you to
continue listening to the same station,
by automatically switching to the
corresponding "FM" analogue station
(if there is one).
If "DAB/FM station tracking" is
activated, there is a difference of a few
seconds when the system switches to
"FM" analogue radio with sometimes a
variation in volume.
When the digital signal is restored, the
system automatically changes back to
"DAB".
Digital radio provides higher quality
reception and also the graphical display
of current information on the radio
station being listened to. Select "List" in
the primary page.
The range of multiplexes available is
displayed in alphabetical order.

If the "DAB" station being listened to
is not available on "FM" (" DAB/FM
"
option greyed out), or "DAB/FM station
tracking" is not activated, the sound
will cut out while the digital signal is too
weak.


or

Select " Radio list
" in the secondary
page.

3

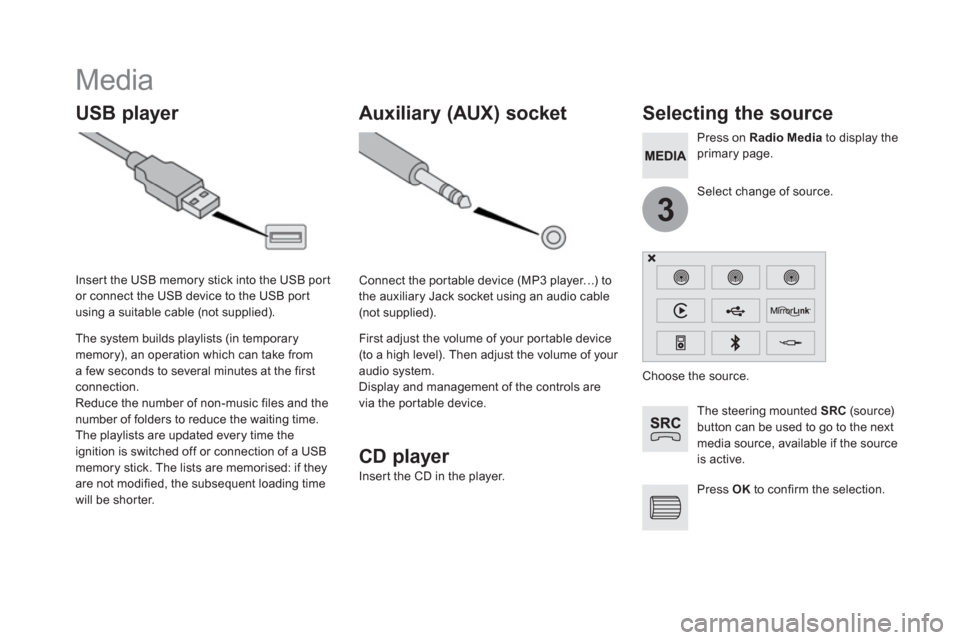

Media












USB player




















Selecting the source


The steering mounted SRC
(sourc e)
button can be used to go to the next
media source, available if the source
is active.


Press OK
to confirm the selection.

Select change of source.
Press on Radio Media
to display the
primary page.

The system builds playlists (in temporary
memory), an operation which can take from
a few seconds to several minutes at the first
connection.
Reduce the number of non-music files and the
number of folders to reduce the waiting time.
The playlists are updated every time the
ignition is switched off or connection of a USB
memory stick. The lists are memorised: if they
are not modified, the subsequent loading time
will be shorter.

Insert the USB memory stick into the USB port
or connect the USB device to the USB port
using a suitable cable (not supplied).





















Auxiliary (AUX) socket










CD player


Insert the CD in the player.

Connect the portable device (MP3 player…) to
the auxiliary Jack socket using an audio cable
(not supplied).

First adjust the volume of your portable device
(to a high level). Then adjust the volume of your
audio system.
Display and management of the controls are
via the portable device.

Choose the source.

31 Audio and Telematics


The audio equipment will only play audio
files with ".wma, .aac, .flac, .ogg and. mp3"
file extensions and with a bit rate of between
32 Kbps and 320 Kbps.
It also supports VBR (Variable Bit Rate) mode.
No other type of file (.mp4, ...) can be played.
".wma" files must be of the standard wma 9 type.
The sampling rates supported are 32, 44 and
48 KHz.
In order to be able to play a recorded CDR or
CDRW, when recording it is preferable to select
the ISO 9660 level 1, 2 or Joliet standard.
If the disc is recorded in another format it may
not be played correctly.
It is recommended that the same recording
standard is always used for an individual disc,
with as low a speed as possible (4x maximum)
for optimum sound quality.
In the particular case of a multi-session CD, the
Joliet standard is recommended.

It is advisable to restrict file names to
20 characters, without using of special
characters (e.g.: " " ? ; ù) to avoid any playing
and displaying problems.


Information and advice


Use only USB memory sticks formatted FAT32
(file allocation table).

The system supports USB mass
storage devices, BlackBerry
® devices
or Apple ® players via USB ports. The
adaptor cable not supplied.
Control of the peripheral device is with
the audio system controls.
Other peripherals, not recognised on
connection, must be connected to the
auxiliary socket using a Jack cable (not
supplied).
It is recommended that the USB cable
for the portable device is used.

The system does not support the
simultaneous connection of two
identical devices (two memory sticks,
two Apple
® players) but it is possible
to connect one memory stick and one
Apple
® player at the same time.

2
3
4
5
6
7
35 Audio and Telematics


Level 1
Level 2
Level 3
Comments

Settings



Audio settings

Ambience
Choose the sound ambience.

Balance
Sound distribution using the Arkamys
®
system.

Sound effects
Set the volume or activate the link to vehicle
speed.

Ringtones
Set the telephone ringtone and volume.

Voice
Set the volume and voice for speaking street
names

Confirm
Save your settings.

Settings



Turn off screen
Function that turns off the display.
Pressing the screen reactivates it.

Settings



Color schemes

Confirm
Choose the color scheme, then confirm to save
the setting.

1
8
8
9
9
10
10


Units



Display screen


Configuration



Adjust date and time


Factor y settings














Level 1


Level 2

1
8
9
10
1
1
37 Audio and Telematics



Level 1


Level 2


Comments



Settings


Secondary page


System Settings


Units

Set the units used to display distance, fuel
consumption and temperature.


Delete data

Select the desired data in the list then press
Delete.


Factor y settings

Return to factory settings.


Confirm

Save the settings.


Settings


Secondary page


Time/Date


Confirm

Set the date and time then confirm.


Settings


Secondary page


Screen settings


Activate automatic text scrolling


Activate or deactivate the setting then confirm.


Activate animations




Confirm

3
4
5
6
7

Audio settings


Press Settings
to display the primary
page.

Select " Audio settings
".

Select " Ambience
"

Or

" Balance
"

Or

" Sound effects
"

Or

" Ringtones
"

Or

" Voice
".

On-board audio: Arkamys ©
Sound
Staging optimises sound distribution in
the the passenger compartment.

The distribution (or spatialisation using
the Arkamys ® system) of sound is an
audio process that allows the audio
quality to be adapted to the number of
passengers in the vehicle.
Available only with the 6 -speaker
configuration.

The audio settings ( Ambience
, Bass:
,
Tr e b l e:
and Loudness
) are different
and independent for each sound
source.
The settings for Distribution
and
Balance
are common to all sources.



- " Ambience
" (choice of 6 musical
ambiences)

- " Bass:
"

- " Tr e b l e:
"

- " Loudness
" (Activate/Deactivate)

- " Distribution
" (" Driver
", " All
passengers
", " Front only
" )

- " Audible response from touch
screen
"

- " Volume linked to speed
"
(Activate/Deactivate)




Color schemes


Press on Settings
to display the
primary page.

Select " Color schemes
".

Select the color scheme in the list
then " Confirm
".

At each change of color scheme the
system restarts, showing a black
screen for a few moments.

As a safety measure, the procedure
for changing the color scheme is only
possible with the vehicle stationary.

11
1
8
9
10
41 Audio and Telematics


Press on Settings
to display the
primary page.

Press on "Settings" to display the
primary page.
Press on Settings
to display the
primary page.

Press on the secondary page.

Press on the secondary page
Press on the secondary page.

Select " System Settings
".

Select " Time/Date
" to change the
time zone, synchronisation with GPS,
the time and its format, then the date.
Select " Screen settings
".

Select " Units
" to change the units
of distance, fuel consumption and
temperature.
Select " Languages
" to change
language.



)
Select the " Settings
" menu.

Activate or deactivate " Activate
automatic text scrolling
" and
" Activate animations
".

Select " Delete data
" to delete the
list of recent destinations, personal
points of interest, contacts in the list.
Select " Calculator
" to display a
calculator.



)
In the secondary page, press on
" Time/Date
".


Choose the item then select " Delete
".
Select " Calendar
" to display a
calendar.




)
Modify the settings using the
number keypad, then confirm.

)
Press " Confirm
" to save and
quit.



)
Select " Adjust time
" or " Adjust
date
".


Select " Factor y settings
" to return
to the original settings.







Modifying system settings























Setting the date and time


When setting the time, you can select
" Satellite synchronisation
", so that the time is
adjusted automatically by satellite reception.
