Citroen DS5 RHD 2015.5 1.G Owner's Manual

259
Never store bottles of AdBlue® in your
vehicle. Before topping-up, ensure that the vehicle is
parked on a flat and level sur face.
In wintry conditions, ensure that the
temperature of the vehicle is above -11°C.
Otherwise the AdBlue
® may be frozen and
so cannot be poured into its tank. Park your
vehicle in a warmer area for a few hours to
allow the top-up to be carried out.
Procedure
F Press the START/STOP button to switch off the engine. F

R
aise the boot floor for access to the
AdBlue
® tank. Use an object, such as a
bag, to keep the left part up.
Recommendations on storage
AdBlue® freezes at about -11°C and
deteriorates above 25°C. It is recommended
that bottles be stored in a cool area and
protected from direct sunlight.
Under these conditions, the additive can be
kept for at least a year.
If the additive has frozen, it can be used once it
has completely thawed out.
checks

F Unclip the black plastic blanking plug using a lever. F
I nsert your fingers into the aperture and
turn the blue cap a 6th of a turn anti-
clockwise.
F

C

arefully lift off the cap, without dropping it. F
O btain a bottle of AdBlue
®. After first
checking the use-by date, read carefully
the instructions on use on the label before
pouring the contents of the bottle into your
vehicle's AdBlue
® tank.

261
F After emptying the bottle, wipe away any spillage around the tank filler using a damp
cloth.
F

R
efit the blue cap to the tank and turn it a
6
th of a turn clockwise, to its stop.
F
R
efit the black plastic blanking plug,
clipping it in place.
F

L

ower the boot floor and close the tailgate.
Important: if your vehicle's
AdBlue
® tank is completely empty -
w
hich is confirmed by the alert
messages and the impossibility of
starting the engine - you must add at
least 3.8 litres, so two 1.89 litre bottles. If any additive is split or splashed, wash
immediately with cold water or wipe
with a damp cloth.
If the additive has crystallised, clean it
off using a sponge and hot water.Important:
when topping up after
running out of additive , signalled
by the message "Top up emissions
additive: Starting prevented", you must
wait for approximately 5 minutes before
switching on the ignition, without
opening the driver's door, unlocking
the vehicle, placing the key of the
"Keyless Entr y and Star ting" system
inside the vehicle or inser ting the
electronic key in the reader.
Switch on the ignition, wait for
10
seconds, then start the engine.
Never dispose of AdBlue
® additive
bottles in the household waste. Place
them in a special container provided
this purpose or take them to your
dealer.
checks

Technical data
01

Petrol engineTHP 15 0THP 160 THP 165 S&S THP 210 S&S
ge

arbox Automatic

(6- speed) Automatic

(6- speed) EAT6 automatic

(6- speed) Manual
(6- speed)
Model code 5FEA5FMA -Y -A /
d5gZ

T/S -T/1S -T/2S5
gMM/

S
Cubic capacity (cc) 1 5981 5981 5981 598
Bore x stroke (mm) 77 x 85.877 x 85.877 x 85.877 x 85.8
Max power*: EU standard (kW) 11 0120 121155
Max power engine speed (rpm) 6 0506 000 6 0006 000
Max torque: EU standard (Nm) 240240240285
Max torque engine speed (rpm) 1 4001 4001 400 1 750
Fuel UnleadedUnleadedUnleadedUnleaded
Catalytic converter Ye sYe sYe sYe s
Engine oil capacity
(with filter replacement) (in litres) 4.25
4.254.254.25

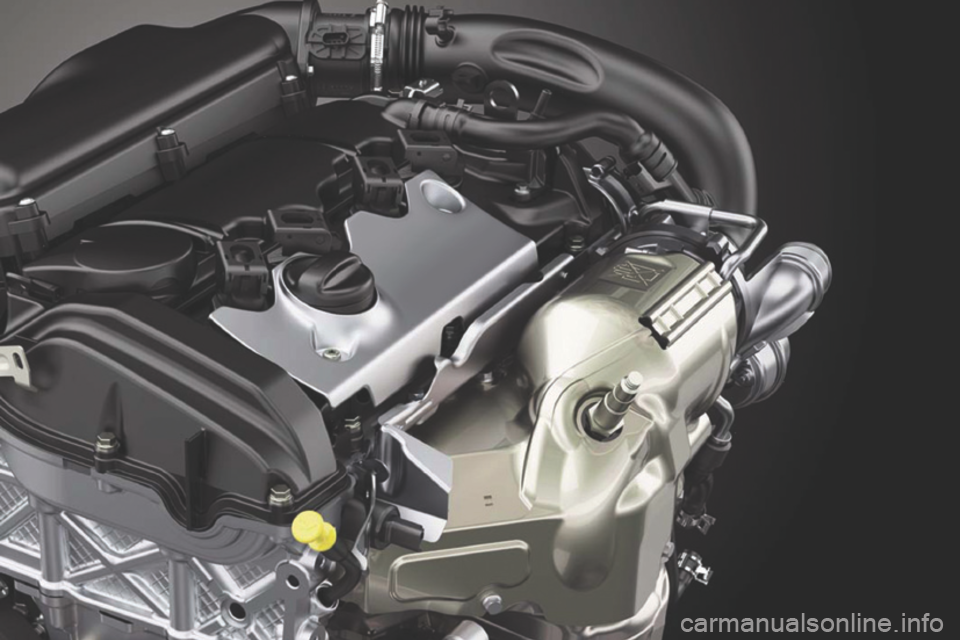

Petrol engines and gearboxes
* The maximum power corresponds to the value type-approved on a test bed, under conditions defined in European legislation (Directive 1999/99/EC).
.../S: model fitted with Stop & Start.
.../1: model fitted with low rolling resistance tyres.
.../2: model fitted with very low rolling resistance tyres.

265
Petrol weights and towed loads (in kg)
Petrol engineTHP 15 0THP 160 THP 165 S&S THP 210 S&S
ge

arbox Automatic

(6- speed) Automatic

(6- speed) EAT6 automatic

(6- speed) Manual
(6- speed)
Model code 5FEA5FMA -Y -A /
d5gZ

T/S -T/1S -T/2S5
gMM/

S
-

U
nladen weight 1 4951 495 1 4291 430
-

K
erb weight* 1 5701 5701 504 1 505
-

G
ross vehicle weight (GV W) 2 0302 030 2 0172 010
-

G
ross train weight (GTW)
o

n a 12 % gradient 2 830
2 830 3 1172 760
-

B
raked trailer (within GTW limit)
o

n a 10 % or 12 % gradient 800
8001 100 750
-

B
raked trailer** (with load transfer within the
GTW limit) 800
8001 400 1 050
-

U
nbraked trailer 74 574 5750 750
-

R
ecommended nose weight 75757575
* The kerb weight is equal to the unladen weight + driver (75 kg).
**

T
he weight of the braked trailer can be increased, within the GTW limit, if the GV W of the towing vehicle is reduced by an equal amount; warning,
towing using a lightly loaded towing vehicle may have an adverse effect on its road holding.
The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned must be reduced by 10 % for
each additional 1 000 metres of altitude.
When towing the maximum authorised speed is reduced (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the per formance of the vehicle to protect the engine; if the ambient temperature is above 37 °C,
limit the towed load.
Technical data

* The kerb weight is equal to the unladen weight + driver (75 kg).Petrol engine
THP 165 S&STHP 210 S&S
ge
arbox
EAT6 automatic

(6- speed) Manual
(6- speed)
Model code 5
gZ
T/S -T/1S -T/2S
5
gMM/
S
-
U
nladen weight
1 5391 539
-
K
erb weight*
1 6141 614
-
G
ross vehicle weight (GV W)
2 2252 160
-
G
ross train weight (GTW)
o

n a 12% gradient
3 225
2 910
-
B
raked trailer (within the GTW limit)
o

n a 10% or 12% gradient
1 000
750
-
U
nbraked trailer
750750
-
R
ecommended nose weight
7575
The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned must be reduced by 10 % for
each additional 1 000 metres of altitude.
When towing the maximum authorised speed is reduced (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the per formance of the vehicle to protect the engine; if the ambient temperature is above 37 °C,
limit the towed load.
Petrol weights and towed loads (in kg) - Commercial versions

267
Diesel engines and gearboxes
* The maximum power corresponds to the value type-approved on a test bed, under conditions defined in European legislation (Directive 1999/99/EC).
di
esel engine
BlueH d i 115
S&S BlueH d i 120 S&S
ge

arbox
Manual

(6- speed) EAT6 automatic
(6- speed) Manual

(6- speed) EAT6 automatic
(6- speed)
Model code BHXM/S -M/1S -M/2SBHX T/S -T/1S -T/2SBHZM/S -M/1S -M/2S BHZT/S -T/1S -T/2S
Cubic capacity (cc) 1 5601 560
Bore x stroke (mm) 75 x 88.375 x 88.3
Max power*: EU standard (kW) 8588
Max power engine speed (rpm) 3 7503 750
Max torque: EU standard (Nm) 300300
Max torque engine speed (rpm) 1 7501 750
Fuel DieselDiesel
Catalytic converter Ye sYe s
Particle filter Ye sYe s
Engine oil capacity
(with filter replacement) (in litres) 3.75
3.75
.../S: model fitted with Stop & Start.
.../1: model fitted with low rolling resistance tyres.
.../2: model fitted with very low rolling resistance tyres.
Technical data

* The maximum power corresponds to the value type-approved on a test bed, under conditions defined in European legislation (Directive 1999/99/EC).
di
esel engine
BlueH d i 135 S&S
BlueH d i 150 S&S
BlueH d i 180 S&S
ge

arbox
Manual

(6- speed) Manual

(6- speed) EAT6 automatic
(6- speed)
Model code AHV AHSM/S - M/1S - M/2SAHX AHRM/S -M/1S -M/2S AHW T/S -T/1S -T/2S
Cubic capacity (cc) 1 9971 9971 997
Bore x stroke (mm) 85 x 8885 x 8885 x 88
Max power*: EU standard (kW) 10 011 0132
Max power engine speed (rpm) 4 0004 000 3 750
Max torque: EU standard (Nm) 320370400
Max torque engine speed (rpm) 2 0002 0002 000
Fuel DieselDieselDiesel
Catalytic converter Ye sYe sYe s
Particle filter Ye sYe sYe s
Engine oil capacity
(with filter replacement) (in litres) 6 .1
6 .15 .1
Diesel engines and gearboxes
.../S: model fitted with Stop & Start.
.../1: model fitted with low rolling resistance tyres.
.../2: model fitted with very low rolling resistance tyres.
