Citroen DS5 RHD 2015.5 1.G Manual Online

79

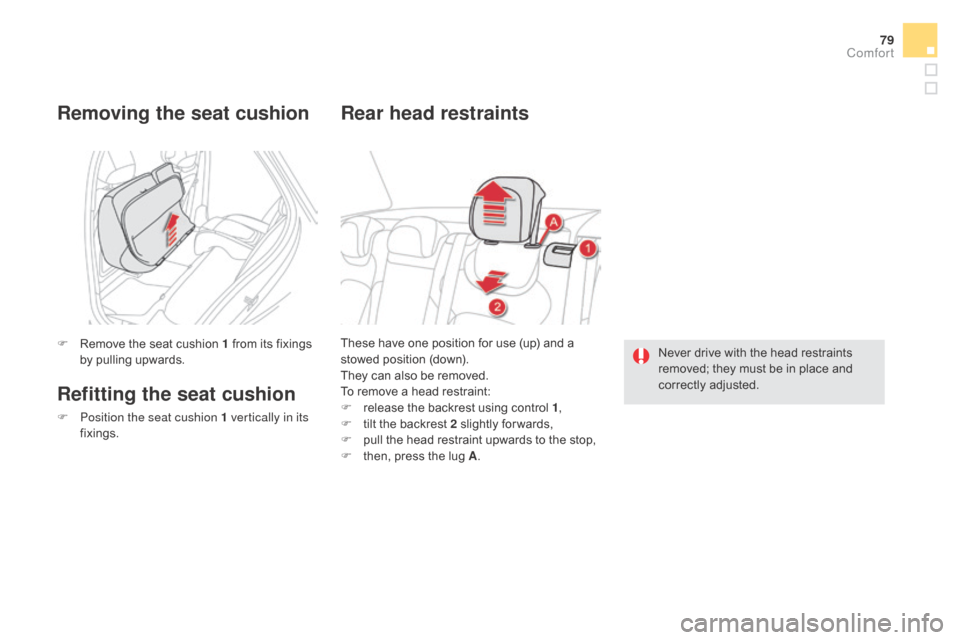

These have one position for use (up) and a
stowed position (down).
They can also be removed.
To remove a head restraint:
F
r
elease the backrest using control 1 ,
F

t
ilt the backrest 2 slightly for wards,
F

p
ull the head restraint upwards to the stop,
F

t
hen, press the lug A .
Rear head restraints
Never drive with the head restraints
removed; they must be in place and
correctly adjusted.
F
R
emove the seat cushion 1 from its fixings
by pulling upwards.
Removing the seat cushion
Refitting the seat cushion
F Position the seat cushion 1 vertically in its fixings.
comfort

Mirrors
As a safety measure, the mirrors should
be adjusted to reduce the blind spot.
door mirrors
If the mirrors are folded using control A,
they will not unfold when the vehicle is
unlocked.
The folding and unfolding of the door
mirrors using the electronic key can be
deactivated by a CITROËN dealer or a
qualified workshop.
Fold the mirrors when putting your
vehicle through an automatic car wash.
The objects observed are, in reality,
closer than they appear.
Take this into account in order to
correctly judge the distance of vehicles
approaching from behind.
demisting -
def rosting Adjustment
F Turn control A to the right or to the left to
select the corresponding mirror.
F

M
ove control A in all four directions to
adjust.
F

R
eturn control A to the central position.
Folding
Automatic: lock the vehicle using the
electronic k ey.
Unfolding
Automatic: unlock the vehicle using the
electronic key.Manual: with the ignition on, move
control A downwards.
Manual: with the ignition on, move
control A upwards.
Demisting-defrosting of the door
mirrors operates by switching on
the heated rear screen.
The rear screen demist - defrost
can only operate when the engine is
running. The mirrors can be folded manually if
necessary.
For more information, refer to the "Rear screen
and door mirrors demist-defrost" section.

81
Automatic day/night model
By means of a sensor, which measures the
light from the rear of the vehicle, this system
automatically and progressively changes
between the day and night uses. Adjustable mirror providing a central rear ward
view.
Equipped with an anti-dazzle system, which
darkens the mirror glass and reduces the
nuisance to the driver caused by the sun,
headlamps from other vehicles...
Rear view mirror
In order to ensure optimum visibility
during your manoeuvres, the mirror
lightens automatically when reverse
gear is engaged.
Steering wheel adjustment
F When stationary, pull the control lever to
release the adjustment mechanism.
F

A
djust the height and reach to suit your
driving position.
F

P
ush the control lever to lock the
adjustment mechanism.
As a safety measure, these operations
should only be carried out with the
vehicle stationary.
Seeing clearly
For better rear vision, align the bottom of the
rear view mirror with the bottom of the rear
screen.
comfort

Front fittings
1. glove box
2. Sto
rage
3.
Sto

rage (according to version)
4.
T

icket holder (according to version)
5.
R

emovable ashtray / 12 V accessor y
socket (120 W)
P

ress the lid to open the ashtray.
T

o empty the ashtray, remove it by pulling it
upwards.
6.
ce

ntre armrest and storage
I

t is illuminated, cooled and contains
storage spaces (1.5 litre bottle, ...).
7.
U

SB Player
8.
1 2

V accessory socket (120 W )
O

bserve the maximum power rating to
avoid damaging your device.
9.
do

or panel with cup holder

83
F To use the cigarette lighter, press it in and wait a few seconds until it pops out
automatically.
F

T
o connect a 12 V accessory (max power:
120 W), remove the cigarette lighter and
connect a suitable adaptor.
cigarette lighter /
12

V

accessory socket
The connection of an electrical device
not approved by CITROËN, such as a
USB charger, may adversely affect the
operation of vehicle electrical systems,
causing faults such as poor telephone
reception or inter ference with displays
in the screens.
You can use this socket to connect a telephone
charger, a bottle warmer...
After use, put the cigarette lighter

back into
place straight away.
comfort

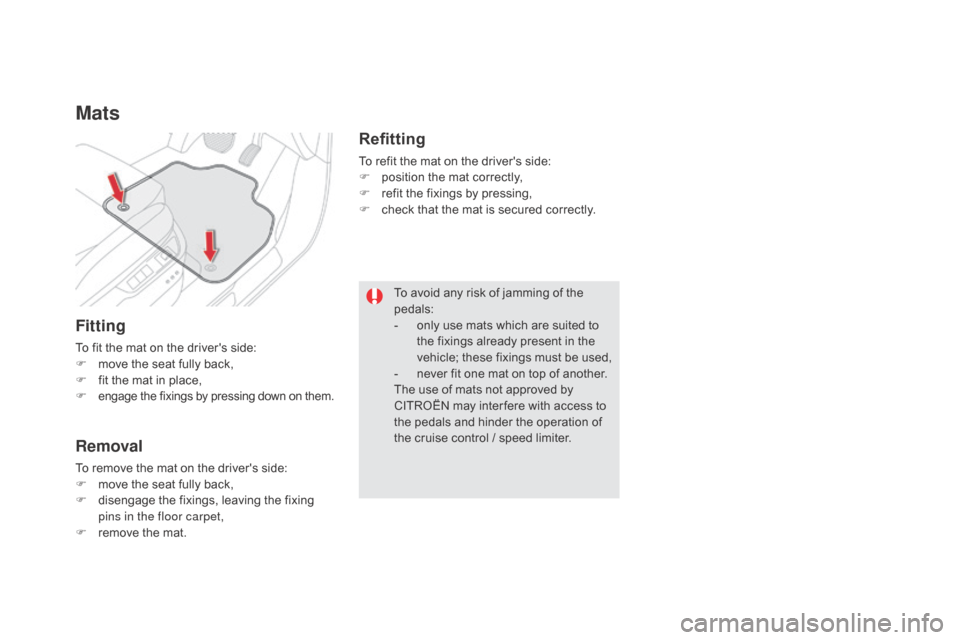

Mats
Fitting
To fit the mat on the driver's side:
F m ove the seat fully back,
F

f
it the mat in place,
F

engage the fixings by pressing down on them.
Removal
To remove the mat on the driver's side:
F m ove the seat fully back,
F

d
isengage the fixings, leaving the fixing
pins in the floor carpet,
F

r
emove the mat.
Refitting
To refit the mat on the driver's side:
F p osition the mat correctly,
F

r
efit the fixings by pressing,
F

c
heck that the mat is secured correctly.
To avoid any risk of jamming of the
pedals:
-

o
nly use mats which are suited to
the fixings already present in the
vehicle; these fixings must be used,
-

n
ever fit one mat on top of another.
The use of mats not approved by
CITROËN may inter fere with access to
the pedals and hinder the operation of
the cruise control / speed limiter.

85
USB Player
This connection box comprises a USB port and
a Jack auxiliary socket.
Jack auxiliary socket
The Jack auxiliary socket allows the connection
of a portable device, such as a digital audio
player, so that your audio files can be heard
through the vehicle's speakers.
The management of these files is from the
portable device.
It contains two storage compartments.
centre armrest
Storage compartments
F For access to the large compartment,
press button 1 then raise the cover.
F

F
or access to the small compartment
(below the armrest cover) press button 2
then raise the cover.
The large compartment houses a USB port and
a Jack auxiliary socket. It also houses an air
vent (adjustable for flow) that delivers cooled
a i r. For more information, refer to the
corresponding part of the "Audio and
telematics" section.
USB port
The USB port allows the connection of a
portable device, such as a digital audio player
of the iPod
® type or a USB memory stick.
The USB player reads your audio files, which
are transmitted to your audio system and
played via the vehicle's speakers.
The management of these files is from the
steering mounted controls or the audio system. When connected to the USB port, the
portable device charges automatically.
While charging, a message is displayed
if the power consumption of the
portable device exceeds the current
delivered by the vehicle.
The USB port also allows a telephone to be
connected by MirrorLink™ or CarPlay
®, so that
certain applications on the telephone can be
used in the touch screen.
comfort

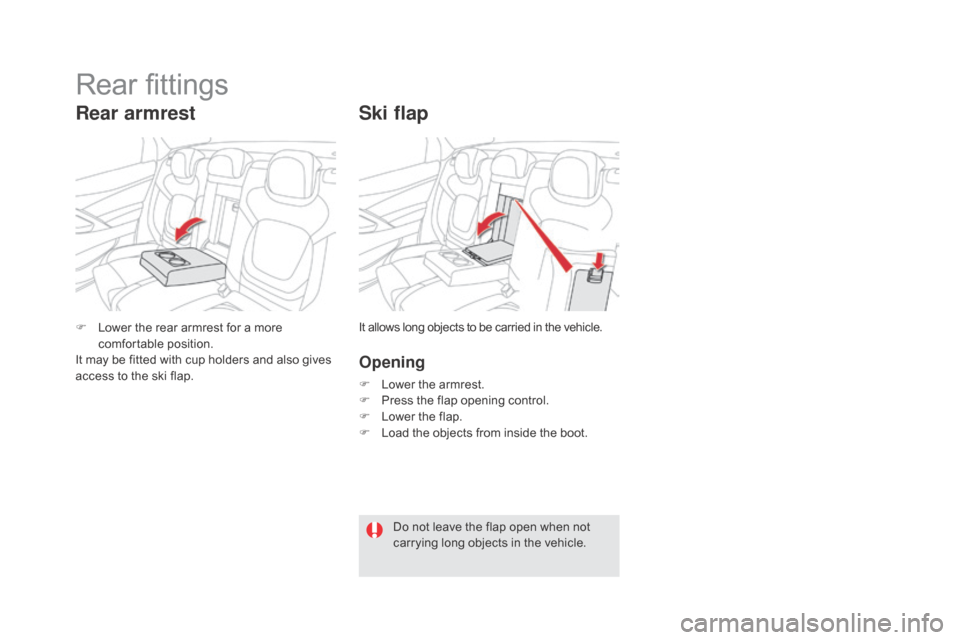

Ski flap
Opening
F Lower the armrest.
F P ress the flap opening control.
F

L
ower the flap.
F

L
oad the objects from inside the boot.
F

L

ower the rear armrest for a more
comfortable position.
It may be fitted with cup holders and also gives
access to the ski flap.
Rear armrest
Do not leave the flap open when not
carrying long objects in the vehicle.
It allows long objects to be carried in the vehicle.
Rear fittings

87

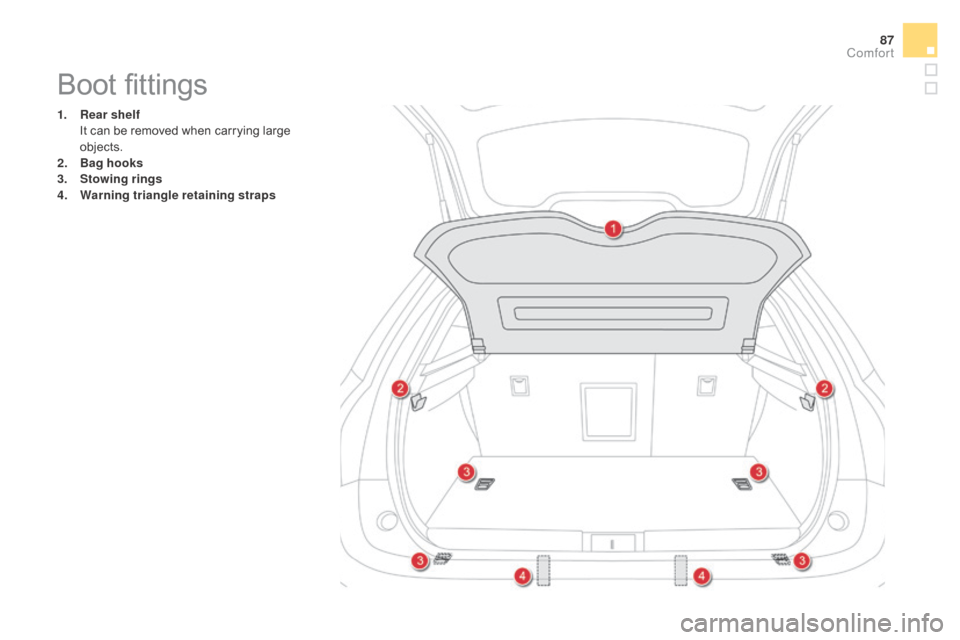

Boot fittings
1. Rear shelf I
t can be removed when carrying large
objects.
2.
Bag

hooks
3.
S

towing rings
4.
W

arning triangle retaining straps
comfort

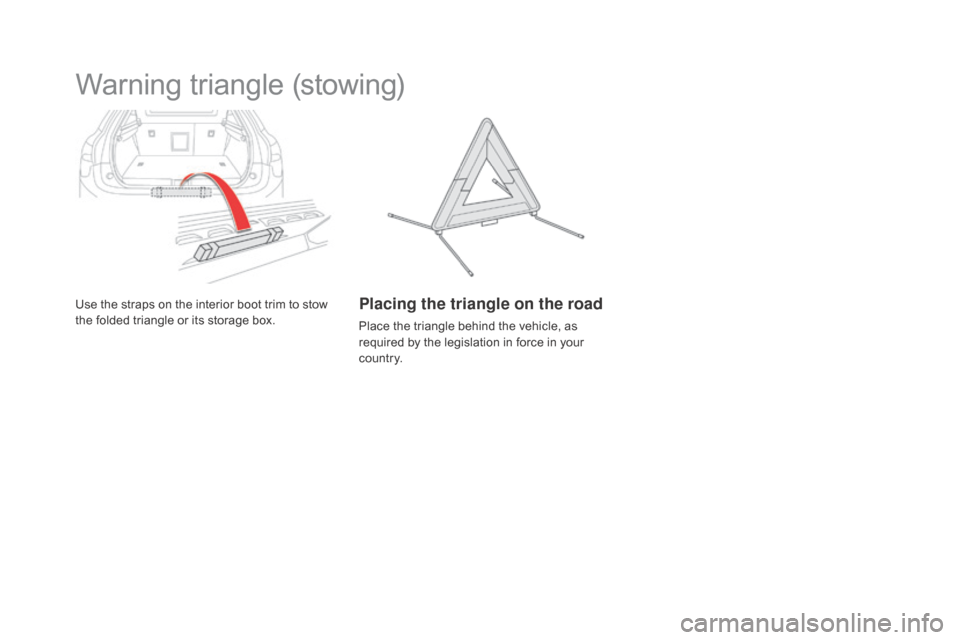

Warning triangle (stowing)
Use the straps on the interior boot trim to stow
the folded triangle or its storage box.Placing the triangle on the road
Place the triangle behind the vehicle, as
required by the legislation in force in your
c o unt r y.
