sensor Citroen DS5 RHD 2016 1.G Owner's Guide

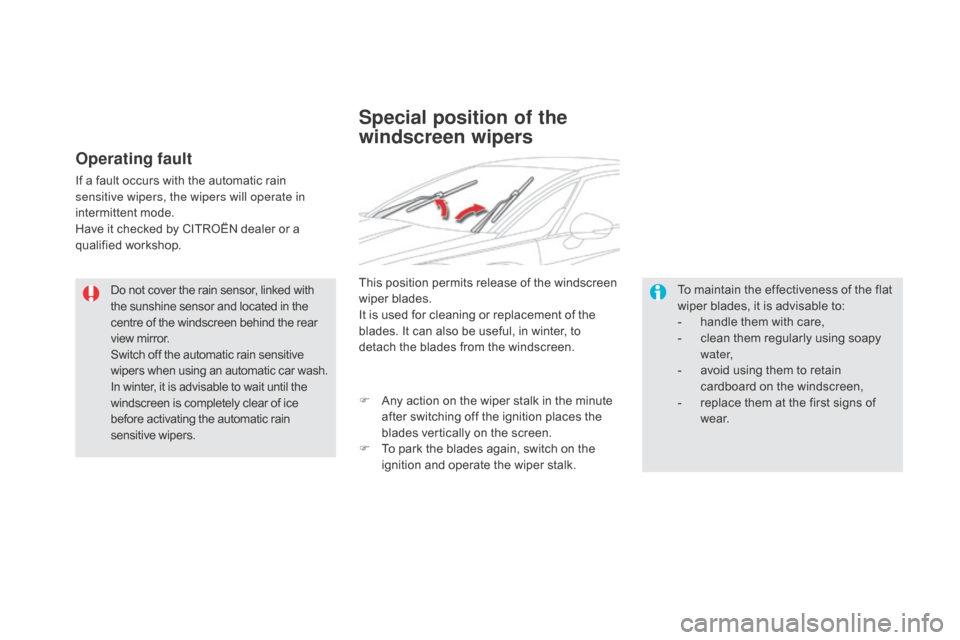

Do not cover the rain sensor, linked with
the sunshine sensor and located in the
centre of the windscreen behind the rear
view mirror.
Switch off the automatic rain sensitive
wipers when using an automatic car wash.
In winter, it is advisable to wait until the
windscreen is completely clear of ice
before activating the automatic rain
sensitive wipers.
Operating fault
If a fault occurs with the automatic rain
sensitive wipers, the wipers will operate in
intermittent mode.
Have it checked by CITROËN dealer or a
qualified workshop.
Special position of the
windscreen wipers
This position permits release of the windscreen
wiper blades.
It is used for cleaning or replacement of the
blades. It can also be useful, in winter, to
detach the blades from the windscreen.To maintain the effectiveness of the flat
wiper blades, it is advisable to:
-

h
andle them with care,
-

c
lean them regularly using soapy
water,
-

a
void using them to retain
cardboard on the windscreen,
-

r
eplace them at the first signs of
w e a r.
F

A
ny action on the wiper stalk in the minute
after switching off the ignition places the
blades vertically on the screen.
F

T
o park the blades again, switch on the
ignition and operate the wiper stalk.

203
List of tools*
Access to the spare wheel
The spare wheel is supported by a winch
carrier system underneath the vehicle.
Tyre under-inflation detection
The spare wheel is not fitted with a
sensor. The punctured wheel must be
repaired by a CITROËN dealer or a
qualified workshop.
1.
W

heelbrace.
F

or removing the wheel trim and removing
the wheel bolts.
2.
J

ack with integral handle.
F

or raising the vehicle.
3.
W

heel bolt cover removal tool.
F

or removing the bolt head protectors on
alloy wheels.
4.
W

heel trim remover.
F

or removing the alloy wheel finishers.
5.
S

ocket for the security bolts (located in the
glove box).
F

or adapting the wheelbrace to the special
"security" bolts.
6.
Ch

ock.
F

or blocking the vehicle's wheels.
7. W
heelbrace extension. F
or slackening/tightening the spare wheel
carrier nut.
8.
R

emovable towing eye.
* Depending on country of sale. For more information on towing the vehicle,
refer to the corresponding section.
All of these tools are specific to your
vehicle and can vary according to
equipment.
Do not use them for any other
purposes.
Practical information

Accessories
A wide range of accessories and genuine parts is available from the CITROËN dealer network.
These accessories and parts are all suitable for your vehicle and benefit from CITROËN's recommendation and warranty.
"comfort":
door deflectors, side window blinds, rear
screen blind, isotherm module, coat hanger
fixed to head restraint, mobile reading lamp,
mirror for caravan, parking sensors, scented air
freshener, cigarette lighter, ...
"Transport systems":
child seats and booster cushions, boot carpet,
boot liner, boot net, boot spacers, transverse
roof bars, bicycle carrier, ski carrier, roof boxes,
towbars, wiring harnesses...
"Styling":
aluminium pedals, aluminium foot rest, alloy
wheels, chrome mirror shells, ...*

T
o avoid any risk of jamming the pedals:
-

e
nsure that mats are correctly positioned
and secured,
-

n
ever fit one mat on top of another.
"Security and safety":
anti-intrusion alarm, anti-tilt unit, stolen vehicle
tracking system, child seats and booster
cushions, dog guard, breathalyser, first aid
kit, fire extinguisher, warning triangle, belt
cutter/glass breaker, high visibility vest, wheel
security bolts, snow chains, snow socks, ...
"Protection":
mats*, mud flaps, bumper protection strips,
boot sill protector, vehicle cover...
If a towbar and wiring harness are fitted
outside the CITROËN dealer network,
the installation must be done using
the vehicle's electrical pre-equipment
and fitted following the manufacturer's
recommendations. The rear bodywork has been designed
to avoid spray.

A
Accessories ................................................. 234
Accessory position ....................................... 10
1
Additive, AdBlue
.............................. 2

9, 253 -261
Additive, Diesel
...............................

...... 250, 251
Adjusting headlamps
.................................... 15

0
Adjusting head restraints

.......................... 7
2, 75
Adjusting seats
.......................................... 7

2, 73
Adjusting the date

..................................... 3
9, 42
Adjusting the height and reach of the steering wheel

.................................... 81
A

djusting the seat belt height
.......................18

7
Adjusting the time

............................... 3
8, 39, 42
Advice on care and maintenance
............................................... 23

3
Advice on driving

..............................
........ 98, 99
Airbags
...............

..................................... 31, 189
Airbags, curtain
..................................... 19

1, 192
Airbags, front......................................... 189, 192
Airbags, lateral
...................................... 19

1, 192
Air conditioning, automatic

....................... 9
0, 91
Air vents
..............................

............................89
Alarm
............................................................... 63
A

nti-lock braking system (ABS)
....................18

2
Anti-pinch
........................................................ 68
A

nti-theft
..............................
.........................101
Armrest, front

............................................ 8
2, 85
Armrest, rear

............................................. 8
2, 86
Ashtray
...............

............................................. 82
Assistance call
...............................

....... 181, 278
Assistance, emergency braking
..................................... 18

2
Audible warning
............................................ 18

1
Audio streaming (Bluetooth)

................. 2
91, 293
Audio system

...............................
............ 39, 281
Automatic headlamps
............................. 2

0, 147Battery ...............................
............. 223 -227, 251
Battery, charging ...............................
............225
Battery, remote control

............................. 5
9, 60
Black panel ...................................................... 38
Blind spot sensors

........................................12

3
BlueHDi
...............................

.......... 246, 253 -261
Bluetooth (hands-free)

..................................2

92
Boot
........

.........................................................62
Boot (opening)

...............................
..................53
Brake discs

....................................................2

52
Brake lamps

...............................
...................216
Brake warning lamp

........................................2

7
Braking assistance system

...........................18

2
Braking, dynamic emergency
............... 10

3, 107
Bulbs (changing)
...............................

.....211-218
Capacity, fuel tank

..............................
..........239
Cap, fuel filler

................................................23

9
CD
..............................

................................... 287
CD, MP3

................................................ 2
88, 289
Central locking

.......................................... 5
3, 55
Changing a bulb
..................................... 21

1-218
Changing a fuse
..................................... 2

19-222
Changing a wheel

...............................
...202-209
Changing a wiper blade

........................ 1
56, 228
Changing the remote control battery

..............59
C

hecking the engine oil level
.................. 3
6, 247
Checking the levels

................................2

47-25 0
Checking tyre pressures (using the kit)

........2

01
Checks
...............

................... 244, 245, 251, 252Date (setting)

...............................
.............. 39, 42
Daytime running lamps

..................1
45, 211, 212
Deactivating ESC

..........................................18

4
Deactivating the passenger airbag
............... 19

0
Deadlocking
...............................

.....................56
Demisting, defrosting
...................................... 95
D

emisting, defrosting the mirrors
...................80
c
B
d
Checks, routine ..................................... 2 51, 252
Child lock ............................... ................ 169, 176
Children
...............................

...160 -176, 188, 190
Child seats

..............................
..............16 2-18 8
Child seats, conventional

......................16

8, 169
Child seats, ISOFIX

...............................17

0 -173
Cigarette lighter............................................... 83
C
ITROËN
L
ocalised Emergency Call........... 278
Cleaning (advice)
.......................................... 23

3
Clock
...............

................................................ 38
Closing the boot

...............................
...............62
Closing the doors

...............................
....... 53, 55
Configuration, vehicle
............................... 3

9, 45
Control, emergency boot release

...................62
C

ontrol, emergency door
................................ 57
C

ontrol, heated seats
...................................... 76
C

ontrol stalk, lighting
............................14

2, 148
Control stalk, wipers

..............................15

3 -155
Courtesy lamps

............................................. 15

7
Cruise control
........................................ 1

28, 133
Cup holder

...............................
........................82

313
Radio ............................................................. 285
Range, AdBlue ............................... ....... 254, 255
Rear screen, demisting
............................. 8

0, 95
Recharging the battery

.................................2

25
Reduction of electrical load

..........................2

27
Regeneration of the particle filter
........

..................................................... 2 51
Reinitialising the remote control

.....................59
R

emote control
.................................... 5
2-55, 60
Removing a wheel

..............................
..........206
Removing the mat

...............................
............84
Replacing bulbs
..............................

.......211-218
Replacing fuses
..............................

.......219-222
Replacing the air filter

................................... 2

51
Replacing the oil filter

................................... 2

51 Table of weights

....................................2
65, 269
Tables of engines

...............................
... 264, 267
Tables of fuses

..............................................2

19
Tank, AdBlue
® additive ......................... 2 53, 258
Tank, fuel
............................... ................ 239, 242
Technical data
....................................... 2

64-276
Temperature, coolant
...................................... 32
T

hird brake lamp
........................................... 2

18
Three flashes (direction indicators)

..............18

0
Time (setting)

..............................
........ 38, 39, 42
To o l s
................

...................................... 202, 203
Topping-up the AdBlue
® additive ................. 25 8
Replacing the passenger

compartment filter

......................................
2

51
Resetting the service indicator

.......................
35
R

esetting the trip recorder

.................. 3

7, 46, 47
Reversing camera
...............................

..........
13 8
Reversing lamp
............................................. 2

16
Roof bars
....................................................... 2

32
Roof, Cockpit glass

.........................................
68
R

unning out of fuel (Diesel)

..........................
24

6
P
R
T
S
Safety, children ......................1
60 -176, 188, 190
Saturation of the particle filter (Diesel) .........2
51
Screen, instrument panel

.......................... 1
8, 46
Screen menu map

................................. 3
01, 302
Screen, monochrome
.....................3

9, 284, 301
Screenwash reservoir
................................... 24

9
Screenwash, front
......................................... 15

4
Screenwash, rear
...............................

...........15 4
SCR (Selective Catalytic Reduction)

............25

3
Seat belts
....................................... 1

68, 18 6 -188
Seats, front
...............................

..................7 2 -74
Seats, heated
...............................

...................76
Seats, rear
................................................. 7

7, 79
Serial number, vehicle

..................................2

74
Service indicator
............................................. 33
S

ervicing
...............................
..........................14
Settings, equipment
.................................. 3

9, 45
Sidelamps
.............. 1

42, 145, 148, 211-213, 216
Side repeater
..............................

..................215
Ski flap

..............................
..............................86
Pads, brake
...................................................
2

52
Paint colour code

..........................................
2

74
Parking brake, electric

............ 2

6, 103, 107, 252
Parking sensors, front

...................................
13

7
Parking sensors, rear.................................... 13 6
Petrol

...............................

..............................
240
Plates, identification ...................................... 2 74
Player, MP3 CD

...............................

...... 288, 289
Port, USB

................................................8

5, 290
Pressures, tyres
.....................................1

97, 274
Pre-tensioning seat belts

..............................
18

8
Priming the fuel system

................................
24

6
Protecting children

.................1

60 -176, 188, 190
Puncture
................

........................................
19 6 Snow chains
..................................................
2
10
Socket, 12 V accessory
............................ 8
2, 83
Sockets, audio
................................8
5, 290, 291
Speed limiter
...............................
.......... 128, 130
Spotlamps, side
.................................... 1
49, 215
Starting the engine
....................... 1
00, 102, 111
Starting using another battery
......................
2
24
Steering mounted controls, audio
................
28
3
Steering wheel, adjustment
............................
81
S
tickers, expressive
......................................
23
3
Stop & Start
.......................... 2
2, 48, 92, 95, 118,

223, 226, 239, 243, 251
Storage
................
................................ 82, 85 - 87
Storing driving positions
.................................
74
S
towing rings
..............................
.................... 87
Switching off the engine
............... 1
00, 102, 111
Synchronising the remote control
...................
59
Alphabetical index

DS5_ Additif_en_Chap03_confort_ed03-2015
6Comfort
DS5_ Additif_en_Chap03_confort_ed03-2015

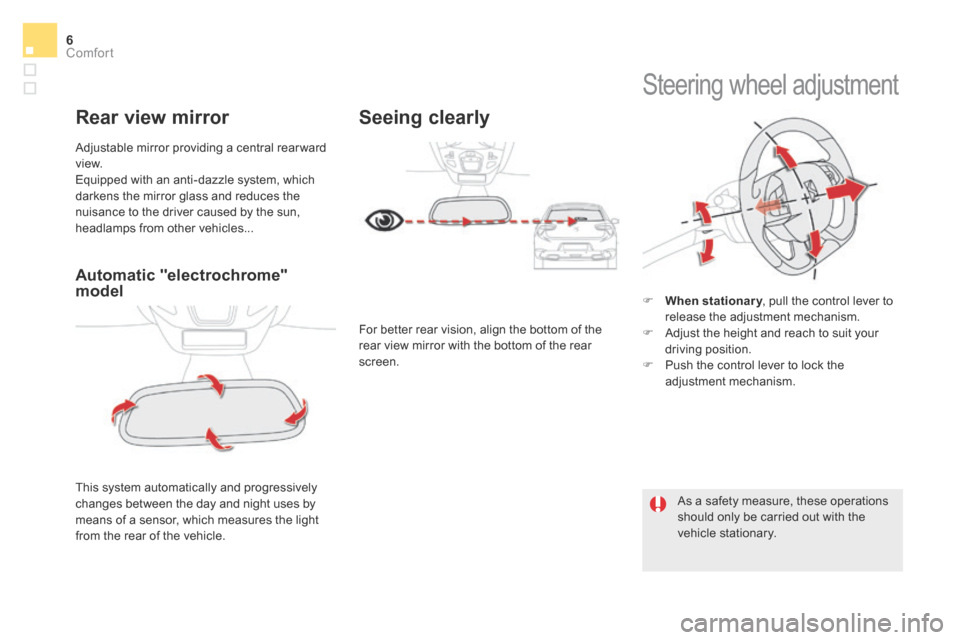

Automatic "electrochrome" model
This system automatically and progressively changes between the day and night uses by means of a sensor, which measures the light from the rear of the vehicle.
Adjustable mirror providing a central rearward view. Equipped with an anti-dazzle system, which darkens the mirror glass and reduces the nuisance to the driver caused by the sun, headlamps from other vehicles...
Rear view mirror
Steering wheel adjustment
 When stationary , pull the control lever to When stationary , pull the control lever to When stationaryrelease the adjustment mechanism.  Adjust the height and reach to suit your driving position.  Push the control lever to lock the adjustment mechanism.
As a safety measure, these operations should only be carried out with the
vehicle stationary.
Seeing clearly
For better rear vision, align the bottom of the rear view mirror with the bottom of the rear screen.

Comfort
DS5_ Additif_en_Chap03_confort_ed03-2015
777Comfort
DS5_ Additif_en_Chap03_confort_ed03-2015

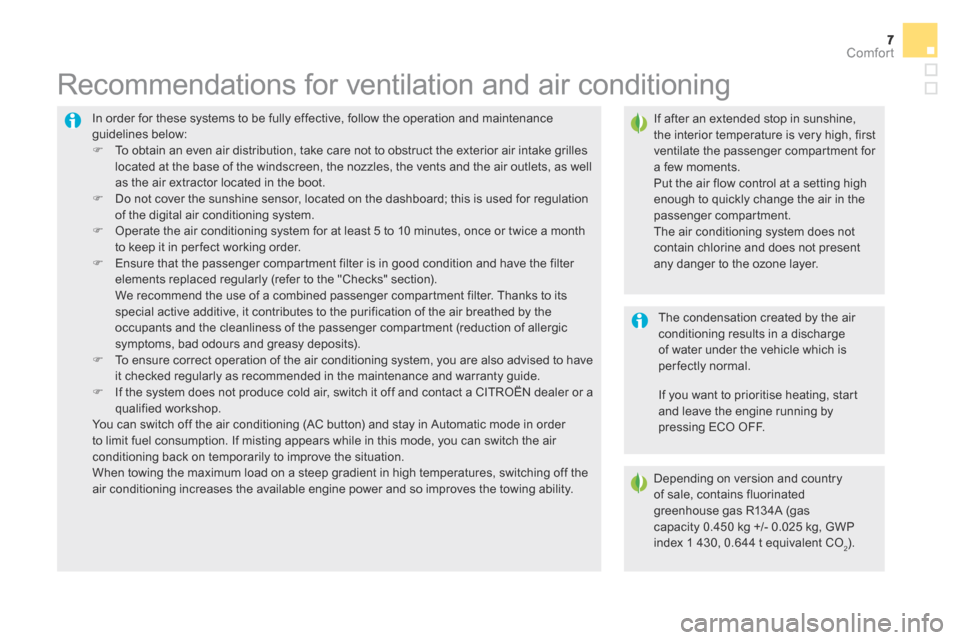

In order for these systems to be fully effective, follow the operation and maintenance guidelines below:  To obtain an even air distribution, take care not to obstruct the exterior air intake grilles located at the base of the windscreen, the nozzles, the vents and the air outlets, as well as the air extractor located in the boot.  Do not cover the sunshine sensor, located on the dashboard; this is used for regulation of the digital air conditioning system.
 Operate the air conditioning system for at least 5 to 10 minutes, once or twice a month to keep it in per fect working order.  Ensure that the passenger compartment filter is in good condition and have the filter elements replaced regularly (refer to the "Checks" section). We recommend the use of a combined passenger compartment filter. Thanks to its special active additive, it contributes to the purification of the air breathed by the occupants and the cleanliness of the passenger compartment (reduction of allergic symptoms, bad odours and greasy deposits).  To ensure correct operation of the air conditioning system, you are also advised to have it checked regularly as recommended in the maintenance and warranty guide.  If the system does not produce cold air, switch it off and contact a CITROËN dealer or a qualified workshop. You can switch off the air conditioning (AC button) and stay in Automatic mode in order to limit fuel consumption. If misting appears while in this mode, you can switch the air conditioning back on temporarily to improve the situation. When towing the maximum load on a steep gradient in high temperatures, switching off the air conditioning increases the available engine power and so improves the towing ability.
Recommendations for ventilation and air conditioning
If after an extended stop in sunshine, the interior temperature is very high, first ventilate the passenger compartment for a few moments. Put the air flow control at a setting high enough to quickly change the air in the passenger compartment. The air conditioning system does not contain chlorine and does not present any danger to the ozone layer.
The condensation created by the air conditioning results in a discharge of water under the vehicle which is per fectly normal.
If you want to prioritise heating, start and leave the engine running by pressing ECO OFF.
Depending on version and country of sale, contains fluorinated greenhouse gas R134A (gas capacity 0.450 kg +/- 0.025 kg, GWP index 1 430, 0.644 t equivalent CO2).
