Citroen DS5 RHD 2016 1.G Owner's Manual

1
69 Audio and Telematics


Press on Te l e p h o n e
to display the
primary page.

Select " Bluetooth connection
" to
display the list of paired devices.
On return to the vehicle, if the last
telephone connected is present again,
it is automatically recognised and
within about 30 seconds of switching
on the ignition, the connection is
established without any action on your
part (Bluetooth activated).

The ser vices available depend on
the network, the SIM card and the
compatibility of the Bluetooth devices
used. Check in your telephone's
manual and with your service provider
for the services available to you.
The ability of the system to connect
with just one profile depends on the
telephone.
All three profiles may connect by default.

Go to the brand's website for more information
(compatibility, additional help, ...).


To modify the connection profile
:















Automatic reconnection


Press on the "details" button.
Press the " OPTIONS
" button to go to
the secondary page.

Press on " Confirm
".
Select one or more profiles.

The profiles compatible with the system
are HFP, OPP, PBAP, A 2DP, AVRCP,
MAP and PAN.

1






Receiving a call


An incoming call is announced by a ring and a
superimposed display in the screen.

Make a short press on the steering
mounted TEL
button to accept an
incoming call.

Make a long press.

on the steering mounted TEL
button
to reject the call.

Or
And

Select " End call
".

Press on the name of the telephone
chosen in the list to disconnect it.
Press again to connect it.


Select the basket at top right of the
screen to display a basket alongside
the telephone chosen.

Press on the basket alongside the
telephone chosen to delete it.












Managing paired telephones


This function allows the connection or
disconnection of a peripheral device as
well as the deletion of a pairing.

Press on Te l e p h o n e
to display the
primary page.

Press on the " OPTIONS
" button to
go to the secondary page.

Select " Bluetooth connection
" to
display the list of paired peripheral
devices.


Deleting a telephone

2
3
71 Audio and Telematics


on the steering mounted button.
Using the telephone is not
recommended while driving.
Park the vehicle.
Make the call using the steering
mounted controls.







Making a call

Calling a new number


Press on Te l e p h o n e
to display the
primary page.

Enter the phone number using the
digital keypad.

Press on " Call
" to start the call.








Calling a contact


Press on Te l e p h o n e
to display the
primary page.

Or make a long press

on the steering mounted TEL
button.

Select " Contact
".

Select the desired contact from the list offered.

Select " Call
".








Calling a recently used number


Press on Te l e p h o n e
to display the
primary page.

Make a long press

Select " Calls
".

Select the desired contact from the list offered.

It is always possible to make a call
directly from the telephone; as a safety
measure, first park the vehicle.

Or

2
12
13
14
1

The access to " Messages
" depends on
the compatibility of the smartphone and
the integral system.
Depending on the smartphone, access
to your messages or email may be
slow.









Managing messages


The " Email
" function allows email
addresses to be entered for a contact,
but the system is not able to send
emails.










Managing contacts / entries


Press Te l e p h o n e
to display the
primary page.

Select " Contact
".

Select " Create
" to add a new contact.

In the " Te l e p h o n e
" tab, enter the
telephone numbers for the contact.

In the " Address
" tab, enter the
adresses for the contact.

In the " Email
" tab, enter the email
addresses for the contact.
Press on " Answer
" to send a quick
message stored in the system.
Press on Te l e p h o n e
to display the
primary page.

Press on the " OPTIONS
" button to
go to the secondary page.

Select " Messages
" to display the list
of messages.

Select the " All
" or " Received
" or
" Sent
" tab.

Select the detail of the message
chosen in one of the lists

Press on " Call
" to start the call.

Press on " Play
" to hear the message.
The ser vices available depend on
the network, the SIM card and the
compatibility of the Bluetooth devices
used.
Check in the manual for your telephone
and with your ser vice provider for the
services available to you.

11
73 Audio and Telematics







Managing email


Press on this button to " Modify
" the
new quick message(s) created.
Press Te l e p h o n e
to display the
primary page.

Press the " OPTIONS
" button to go to
the secondary page.

Select " Email
" to display the list of
messages.

Select the " Received
" or " Sent
" or
" Not read
" tab.

Select the email chosen in the list.

Press " Play
" to hear the email.
The " Modify
" function does not apply
to quick messages already present in
the system.


Access to " Email
" depends on the
compatibility of the smartphone and the
integral system.










Managing quick messages


Press on Te l e p h o n e
to display the
primary page.

Press on the " OPTIONS
" button to
go to the secondary page.

Select " Messages
" to display the list
of messages.

Select the " Delayed
" or " My arrival
"
or " Not available
" or " Other
" with
the possibility of creating new
messages.

Select the message chosen in one of
the lists.
Press on " Create
" to write a new
message.

Press on " Tr a n s f e r
" to select the
addressee(s).

Press on " Play
" to play the message.

12:13 23 °C
123
4
4
5
5
6
6
7
7
8
8
45678



Audio settings



Audio settings












Level 1



Settings



Level 2




Choice of color scheme



Audio settings

2
3
5
8
6
7
4
75 Audio and Telematics


Level 1

Level 2

Comments


Settings



Profile (1, 2, 3)
Activate the profile selected.

Settings



Audio settings

Ambience
Select the sound ambience.

Distribution
Sound distribution by the Arkamys
©
system.

Sound
Adjust the volume or activate linked to speed.

Voice
Adjust the voice volume.

Ringtone
Adjust the ringtone volume.

Confirm
Save the settings.

Settings



Turn off screen
Function allowing the display to be switched off.
Pressing the screen reactivates it.

Settings



Color schemes
Having chosen the color scheme, save the
setting.

1
910
910
121113
14151617











Level 1



Level 2



Level 3




Settings and tools



Screen configuration




System settings




Information




Languages



Screen configuration

1
9
10
1
1
14
15
16
17
12
11
13
77 Audio and Telematics


Level 1

Level 2

Level 3

Comments


Settings



Secondary page



Screen
configuration

Animation
Activate or deactivate settings.

Brightness
Adjust the level of brightness.

Confirm
Save the settings.

Settings



Secondary page



System
settings

Units
Distance and fuel
consumption
Set the units used for distance, fuel consumption
and temperature.
Te m p e r a t u r e

Factor y settings
Reinitialize Return to the factory settings.

System info
View View the versions of the different modules
(system, mapping, risk areas) installed in the
system as well as the updates available.

Confirm
Save the settings.

Settings



Secondary page



Languages

All

Select the language then confirm.
Europe


Asia


America


Confirm
Having selected the language, save the setting.

1
1819
20212223











Level 1



Level 2

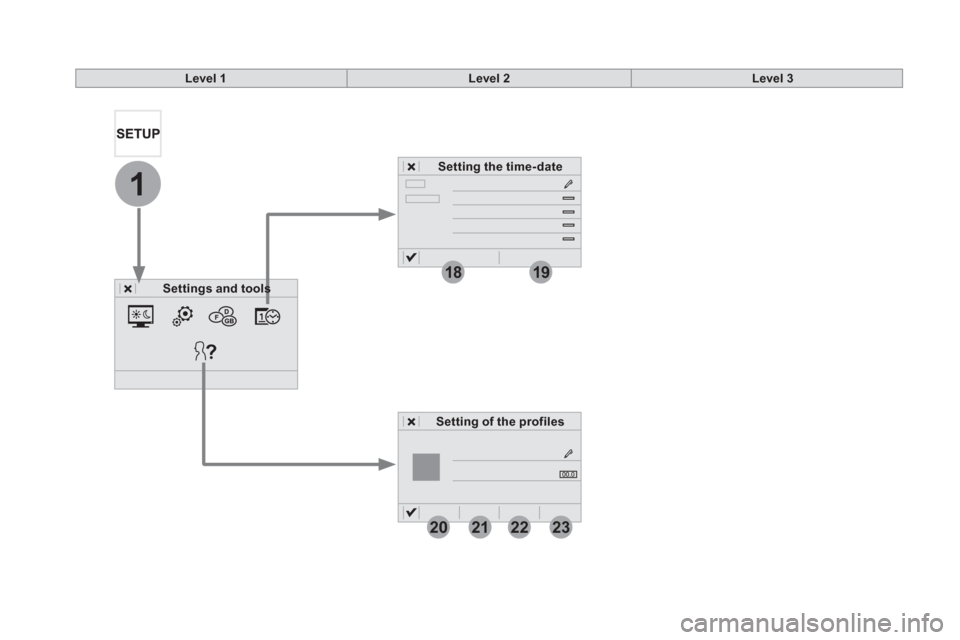

Settings and tools



Setting the time- date




Setting of the profiles



Level 3
