Use the hazard warning lamps only to
signal unusual action on your part and
only if your vehicle presents a safety
risk to other drivers: an emergency stop
because of a
vehicle failure, the need to
drive abnormally slowly, etc...
While the hazard warning lamps are on,
your E-MEHARI's direction indicators can
no longer be used to indicate changes of
direction.
Horns and audible
warnings
" Standard " horn
To use the "standard" horn: press the central
hub of the steering wheel.
Horn for pedestrians
Operation
Your E-MEHARI produces no noise from its
electric motor.
It has a
special horn for warning pedestrians of
your approach.
This horn sounds when the vehicle's speed is
between approximately 0.6
and 18 mph (1 and
30


km/h).
Deactivation
In certain driving conditions you can deactivate
the system.
Make a
short press on the end of the wiper
control stalk.
Another press reactivates the system.
Before deactivating the system, make
sure that you are not driving in an area
frequented by pedestrians. The system is reactivated automatically at
every new start.
Audible warning emergency
services
Your E-MEHARI has an audible warning
system should there be a
problem with the
LMP
® battery fitted to the vehicle. A message
also appears on the dashboard instrument
panel.
For more information on the Instruments and
indicators on your E-MEHARI , refer to the
corresponding section.
If operation of this system is triggered (the
audible warning cannot be switched off), you
must stop the vehicle as soon as it is safe to do
so, get out of the vehicle, and call CITROËN
ASSISTANCE.
Please tell the call handler that your
vehicle is an electric vehicle.
Stay at least ten metres away from your
vehicle when an LMP
® battery warning
has been triggered.
An LMP
® battery is an energy storage
device.
5
Safety

50

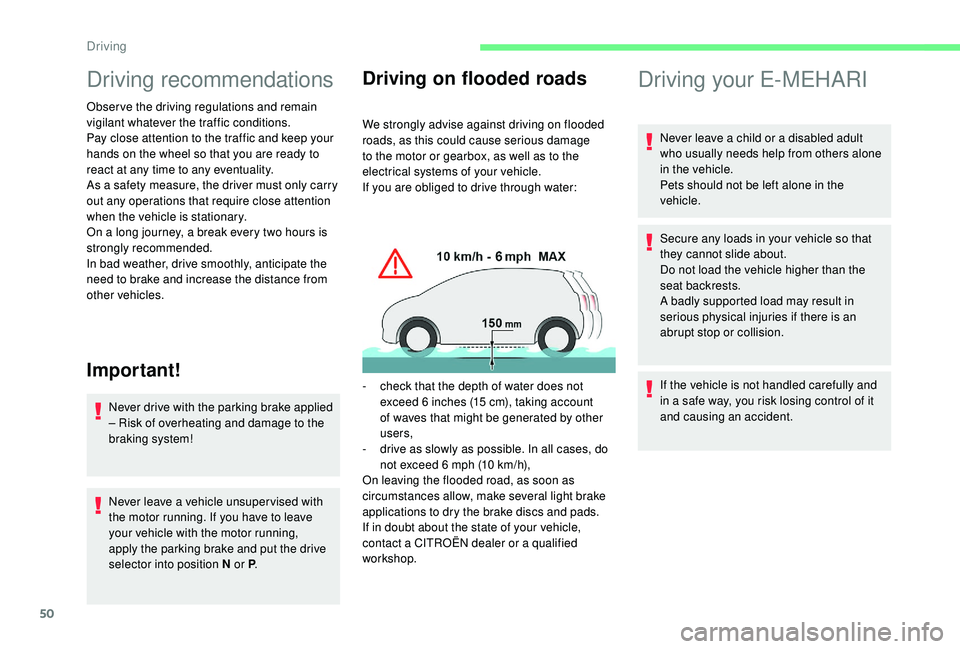

Driving recommendations
Observe the driving regulations and remain
vigilant whatever the traffic conditions.
Pay close attention to the traffic and keep your
hands on the wheel so that you are ready to
react at any time to any eventuality.
As a safety measure, the driver must only carry
out any operations that require close attention
when the vehicle is stationary.
On a
long journey, a break every two hours is
strongly recommended.
In bad weather, drive smoothly, anticipate the
need to brake and increase the distance from
other vehicles.
Important!
Never drive with the parking brake applied
– Risk of overheating and damage to the
braking system!
Never leave a
vehicle unsuper vised with
the motor running. If you have to leave
your vehicle with the motor running,
apply the parking brake and put the drive
selector into position N or P .
Driving on flooded roads
We strongly advise against driving on flooded
roads, as this could cause serious damage
to the motor or gearbox, as well as to the
electrical systems of your vehicle.
If you are obliged to drive through water:
-

c
heck that the depth of water does not
exceed 6
inches (15 cm), taking account
of waves that might be generated by other
users,
-

d
rive as slowly as possible. In all cases, do
not exceed 6
mph (10 km/h),
On leaving the flooded road, as soon as
circumstances allow, make several light brake
applications to dry the brake discs and pads.
If in doubt about the state of your vehicle,
contact a
CITROËN dealer or a qualified
workshop.
Driving your E-MEHARI
Never leave a child or a disabled adult
w ho usually needs help from others alone
in the vehicle.
Pets should not be left alone in the
vehicle.
Secure any loads in your vehicle so that
they cannot slide about.
Do not load the vehicle higher than the
seat backrests.
A badly supported load may result in
serious physical injuries if there is an
abrupt stop or collision.
If the vehicle is not handled carefully and
in a
safe way, you risk losing control of it
and causing an accident.
Driving

51
The following actions may increase the
risk of losing control of the vehicle if
the tyres are not properly inflated:
-
s
udden harsh application of the
brakes,
-

r
eleasing the accelerator pedal
suddenly,
-

t
urning the steering wheel too quickly.
Note: The vehicle generally moves
towards or pulls in the direction of the
under-inflated tyre.
Never drive under the influence of alcohol
or drugs.
The presence of alcohol or drugs in your
bloodstream reduces coordination, slows
reaction and impairs judgement.
Driving after taking alcohol or drugs
increases the risk of being involved in
an accident causing injuries, suffered by
yourself or inflicted on others.
Note also that, in the event of an accident,
there is a
risk that the alcohol or drugs
will increase the severity of the injuries
suffered.
Never take medicines that might affect
your ability to drive and control the vehicle
before setting off. Never leave the starting switch in the
"MAR" position for a
long period when the
vehicle is not being used.
This can reduce the range of the vehicle.
When you stop your vehicle on a
rising
slope, do not hold the vehicle by pressing
the accelerator.
Always use the brake pedal for this.
Starting/Switching off the
vehicle
The starting switch is located on the right-hand
side under the steering wheel. Before moving off, check that the position
of the drive selector agrees with your
intention.
The drive direction is indicated on the
drive selector by illumination of the green
ring.
Starting switch
(1)
STOP position: your E-MEHARI is
stationary.
(2) MAR position: the 12
V battery is
connected and the accessories can be
used.
(3) AV V position: switching on the electric
motor.
6
Driving

52
Starting the vehicle
To start your E-MEHARI, you should:
1.Unlock your E-MEHARI using your
personal RFID key ring.
2. Insert the key in the starting switch then
turn it to the MAR position. The welcome
screen appears.
3. When you are invited to do so, turn
the key to the AV V position, holding it
until you hear an audible signal (beep).
Release the key, the switch automatically
returns to the MAR position. The
message "Ready to move off, Select D
or R" appears in the instrument panel
screen. 4.
Press the brake pedal.
5. Put the drive selector to position "D"
(Drive) or "R" (Reverse).
6. Release the manual parking brake.
Your E-MEHARI is a silent electric vehicle.
Your E-MEHARI does not generate any
noise when its electrical motor is started.
When performing any manoeuvre:
please pay increased attention to your
environment, especially to pedestrians,
cyclists and other vehicles moving on the
road.
Switching off the vehicle
To park your E-MEHARI, you should:
1. Place the vehicle in a
secure area
suitable for parking.
2. Immobilise the vehicle.
3. Put the drive selector to position "N".
4. Apply the manual parking brake.
5. Switch off and remove the key from the
starting switch.
Control pedals
Your E-MEHARI has two control pedals:
(1) Accelerator pedal.
(2) Brake pedal.
Ensure that the pedals are always freely
accessible.
Driving

53

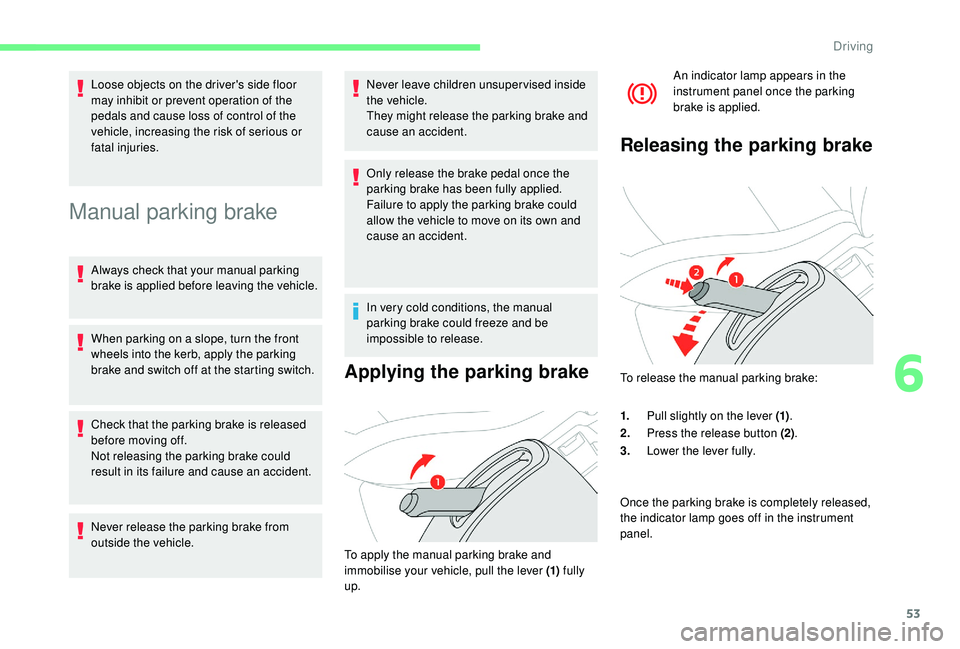

Manual parking brake
Always check that your manual parking
brake is applied before leaving the vehicle.
When parking on a slope, turn the front
wheels into the kerb, apply the parking
brake and switch off at the starting switch.
Check that the parking brake is released
before moving off.
Not releasing the parking brake could
result in its failure and cause an accident.
Never release the parking brake from
outside the vehicle. Never leave children unsuper vised inside
the vehicle.
They might release the parking brake and
cause an accident.
Only release the brake pedal once the
parking brake has been fully applied.
Failure to apply the parking brake could
allow the vehicle to move on its own and
cause an accident.
In very cold conditions, the manual
parking brake could freeze and be
impossible to release.
Applying the parking brake
To apply the manual parking brake and
immobilise your vehicle, pull the lever (1)
fully
up. An indicator lamp appears in the
instrument panel once the parking
brake is applied.
Releasing the parking brake
Loose objects on the driver's side floor
may inhibit or prevent operation of the
pedals and cause loss of control of the
vehicle, increasing the risk of serious or
fatal injuries.
To release the manual parking brake:
1.Pull slightly on the lever (1) .
2. Press the release button (2) .
3. Lower the lever fully.
Once the parking brake is completely released,
the indicator lamp goes off in the instrument
panel.
6
Driving

54

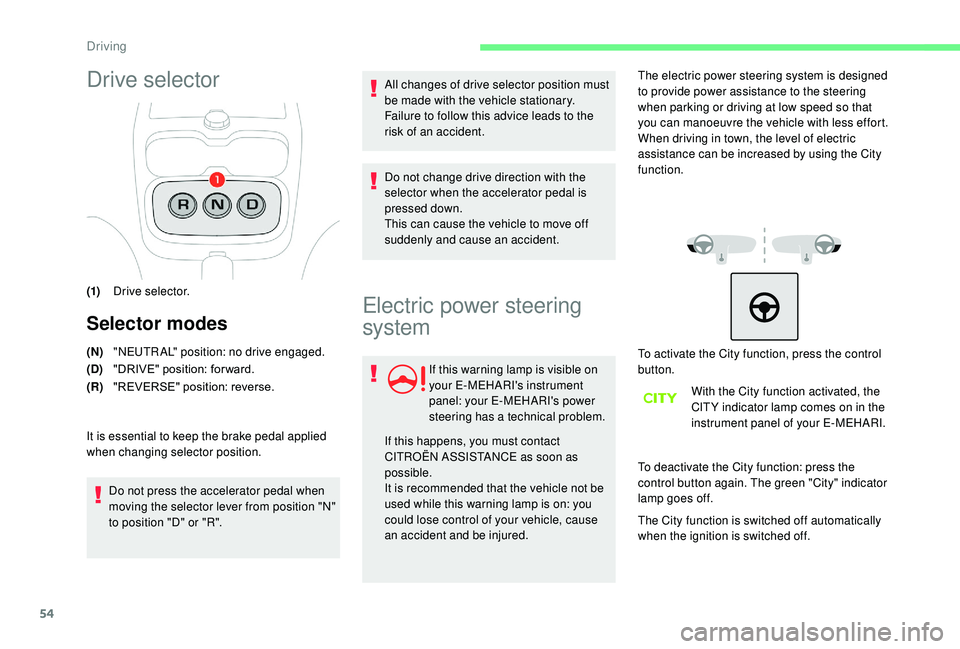

Drive selector
(1)Drive selector.
Selector modes
(N)"NEUTRAL" position: no drive engaged.
(D) "DRIVE" position: for ward.
(R) "REVERSE" position: reverse.
It is essential to keep the brake pedal applied
when changing selector position. Do not press the accelerator pedal when
moving the selector lever from position "N"
to position "D" or "R". All changes of drive selector position must
be made with the vehicle stationary.
Failure to follow this advice leads to the
risk of an accident.
Do not change drive direction with the
selector when the accelerator pedal is
pressed down.
This can cause the vehicle to move off
suddenly and cause an accident.
Electric power steering
system
If this warning lamp is visible on
your E-MEHARI's instrument
panel: your E-MEHARI's power
steering has a


technical problem.
If this happens, you must contact
CITROËN ASSISTANCE as soon as
possible.
It is recommended that the vehicle not be
used while this warning lamp is on: you
could lose control of your vehicle, cause
an accident and be injured. The electric power steering system is designed
to provide power assistance to the steering
when parking or driving at low speed so that
you can manoeuvre the vehicle with less effort.
When driving in town, the level of electric
assistance can be increased by using the City
function.
To activate the City function, press the control
button.
With the City function activated, the
CIT Y indicator lamp comes on in the
instrument panel of your E-MEHARI.
To deactivate the City function: press the
control button again. The green "City" indicator
lamp goes off.
The City function is switched off automatically
when the ignition is switched off.
Driving

55

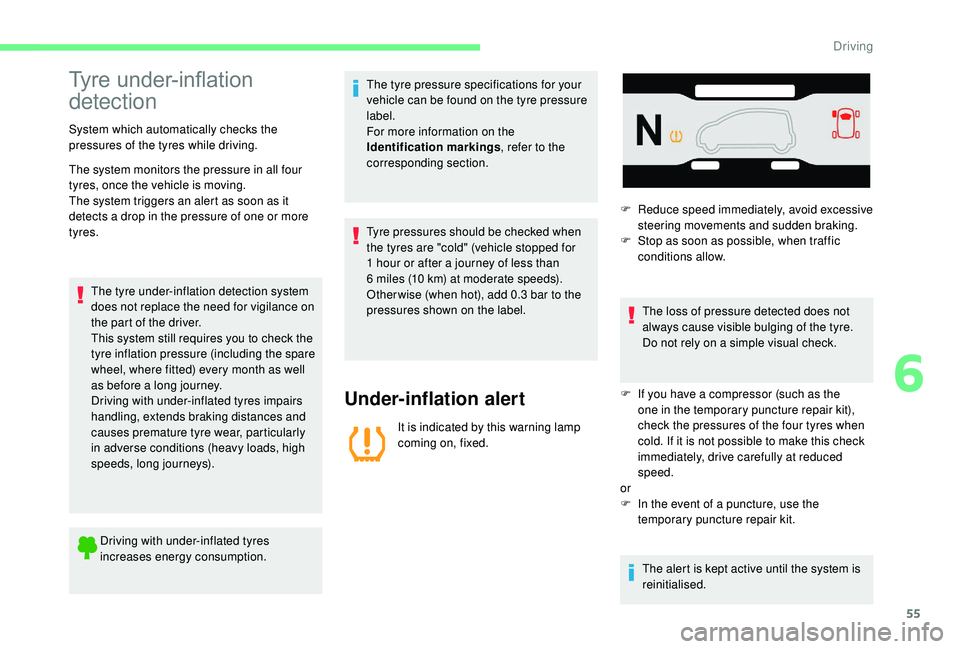

Tyre under-inflation
detection
System which automatically checks the
pressures of the tyres while driving.
The system monitors the pressure in all four
tyres, once the vehicle is moving.
The system triggers an alert as soon as it
detects a drop in the pressure of one or more
tyres.
The tyre under-inflation detection system
does not replace the need for vigilance on
the part of the driver.
This system still requires you to check the
tyre inflation pressure (including the spare
wheel, where fitted) every month as well
as before a
long journey.
Driving with under-inflated tyres impairs
handling, extends braking distances and
causes premature tyre wear, particularly
in adverse conditions (heavy loads, high
speeds, long journeys).
Driving with under-inflated tyres
increases energy consumption. The tyre pressure specifications for your
vehicle can be found on the tyre pressure
label.
For more information on the
Identification markings
, refer to the
corresponding section.
Tyre pressures should be checked when
the tyres are "cold" (vehicle stopped for
1
hour or after a journey of less than
6
miles (10 km) at moderate speeds).
Other wise (when hot), add 0.3
bar to the
pressures shown on the label.
Under-inflation alert
It is indicated by this warning lamp
coming on, fixed. F
Reduce speed immediately, avoid excessive
steering movements and sudden braking.
F Stop as soon as possible, when traffic
conditions allow.
The loss of pressure detected does not
always cause visible bulging of the tyre.
Do not rely on a simple visual check.
F If you have a compressor (such as the
one in the temporary puncture repair kit),
check the pressures of the four tyres when
cold. If it is not possible to make this check
immediately, drive carefully at reduced
speed.
or
F In the event of a
puncture, use the
temporary puncture repair kit.
The alert is kept active until the system is
reinitialised.
6
Driving

56

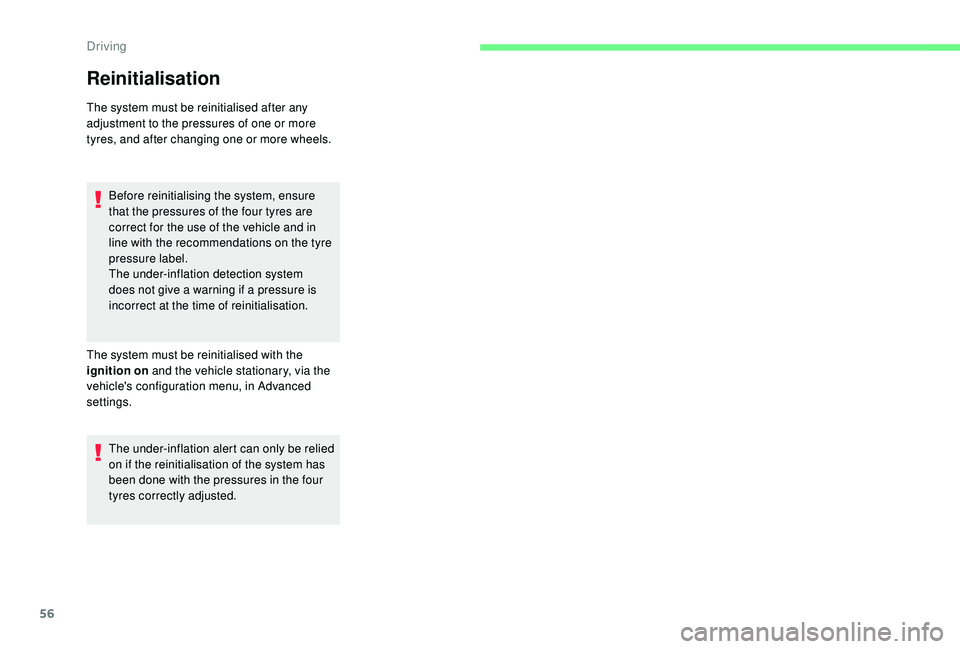

Reinitialisation
The system must be reinitialised after any
adjustment to the pressures of one or more
tyres, and after changing one or more wheels.Before reinitialising the system, ensure
that the pressures of the four tyres are
correct for the use of the vehicle and in
line with the recommendations on the tyre
pressure label.
The under-inflation detection system
does not give a
warning if a pressure is
incorrect at the time of reinitialisation.
The system must be reinitialised with the
ignition on and the vehicle stationary, via the
vehicle's configuration menu, in Advanced
settings.
The under-inflation alert can only be relied
on if the reinitialisation of the system has
been done with the pressures in the four
tyres correctly adjusted.
Driving

57

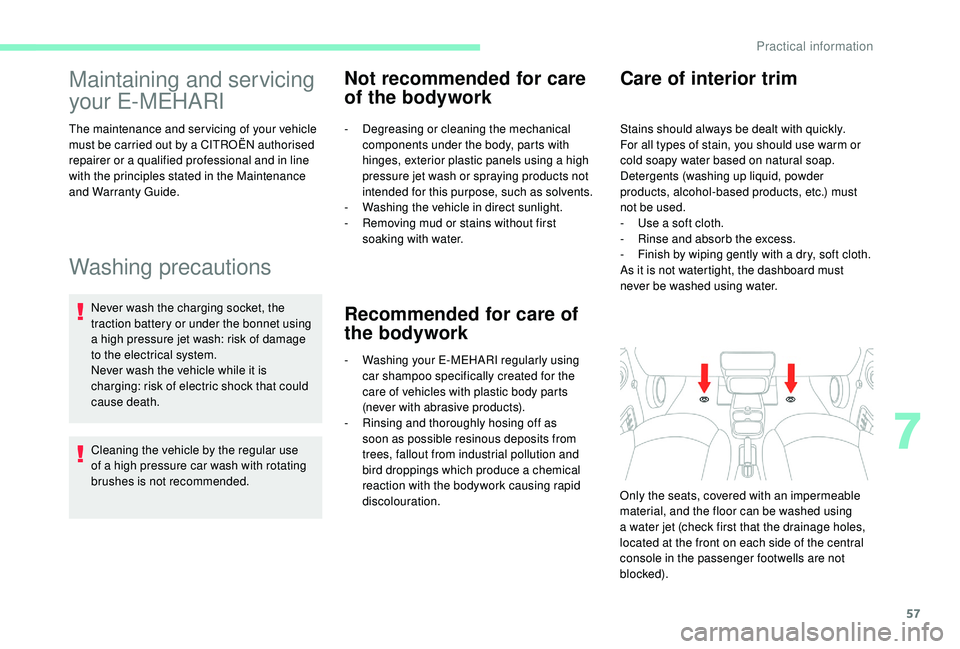

Maintaining and servicing
your E-MEHARI
The maintenance and servicing of your vehicle
must be carried out by a CITROËN authorised
repairer or a


qualified professional and in line
with the principles stated in the Maintenance
and Warranty Guide.
Washing precautions
Never wash the charging socket, the
traction battery or under the bonnet using
a
high pressure jet wash: risk of damage
to the electrical system.
Never wash the vehicle while it is
charging: risk of electric shock that could
cause death.
Cleaning the vehicle by the regular use
of a
high pressure car wash with rotating
brushes is not recommended.
Not recommended for care
of the bodywork
- Degreasing or cleaning the mechanical components under the body, parts with
hinges, exterior plastic panels using a
high
pressure jet wash or spraying products not
intended for this purpose, such as solvents.
-

W
ashing the vehicle in direct sunlight.
-

R
emoving mud or stains without first
soaking with water.
Recommended for care of
the bodywork
- Washing your E-MEHARI regularly using car shampoo specifically created for the
care of vehicles with plastic body parts
(never with abrasive products).
-

R
insing and thoroughly hosing off as
soon as possible resinous deposits from
trees, fallout from industrial pollution and
bird droppings which produce a


chemical
reaction with the bodywork causing rapid
discolouration. Only the seats, covered with an impermeable
material, and the floor can be washed using
a
water jet (check first that the drainage holes,
located at the front on each side of the central
console in the passenger footwells are not
blocked).
Care of interior trim
Stains should always be dealt with quickly.
For all types of stain, you should use warm or
cold soapy water based on natural soap.
Detergents (washing up liquid, powder
products, alcohol-based products, etc.) must
not be used.
-

U
se a soft cloth.
-

R
inse and absorb the excess.
-

F
inish by wiping gently with a dry, soft cloth.
As it is not watertight, the dashboard must
never be washed using water.
7
Practical information

58

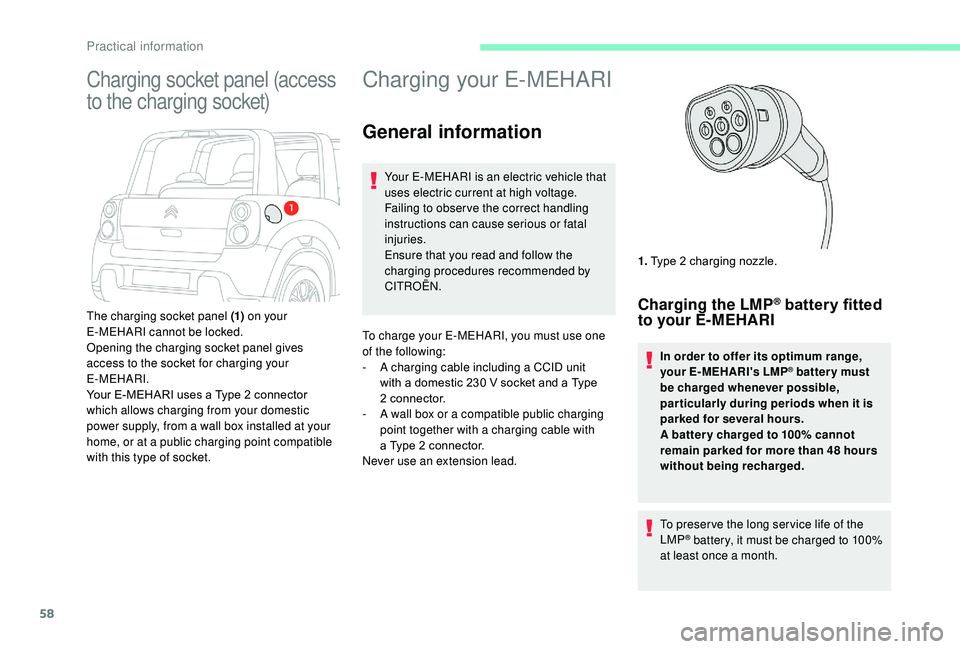

Charging your E-MEHARI
General information
Your E-MEHARI is an electric vehicle that
uses electric current at high voltage.
Failing to obser ve the correct handling
instructions can cause serious or fatal
injuries.
Ensure that you read and follow the
charging procedures recommended by
CITROËN.
To charge your E-MEHARI, you must use one
of the following:
-
A

charging cable including a

CCID unit
with a
domestic 230 V socket and a Type
2
connector.
-

A w
all box or a compatible public charging
point together with a


charging cable with
a
Type 2 connector.
Never use an extension lead. 1.
Type 2
charging nozzle.
Charging the LMP® battery fitted
to your E-MEHARI
In order to offer its optimum range,
your E-MEHARI's LMP® batter y must
be charged whenever possible,
par ticularly during periods when it is
parked for several hours.
A batter y charged to 100% cannot
remain parked for more than 48
hours
without being recharged.
To preser ve the long ser vice life of the
LMP
® battery, it must be charged to 100%
at least once a month.
Charging socket panel (access
to the charging socket)
The charging socket panel (1) on your
E-MEHARI cannot be locked.
Opening the charging socket panel gives
access to the socket for charging your
E-MEHARI.
Your E-MEHARI uses a
Type 2 connector
which allows charging from your domestic
power supply, from a
wall box installed at your
home, or at a
public charging point compatible
with this type of socket.
Practical information
