High voltage safety
This symbol identifies electric
components in the vehicle that
could present a risk to your safety.
Presentation
Your E-MEHARI has an LMP® battery operating
at voltages that can reach 450 V supplying
continuous current.

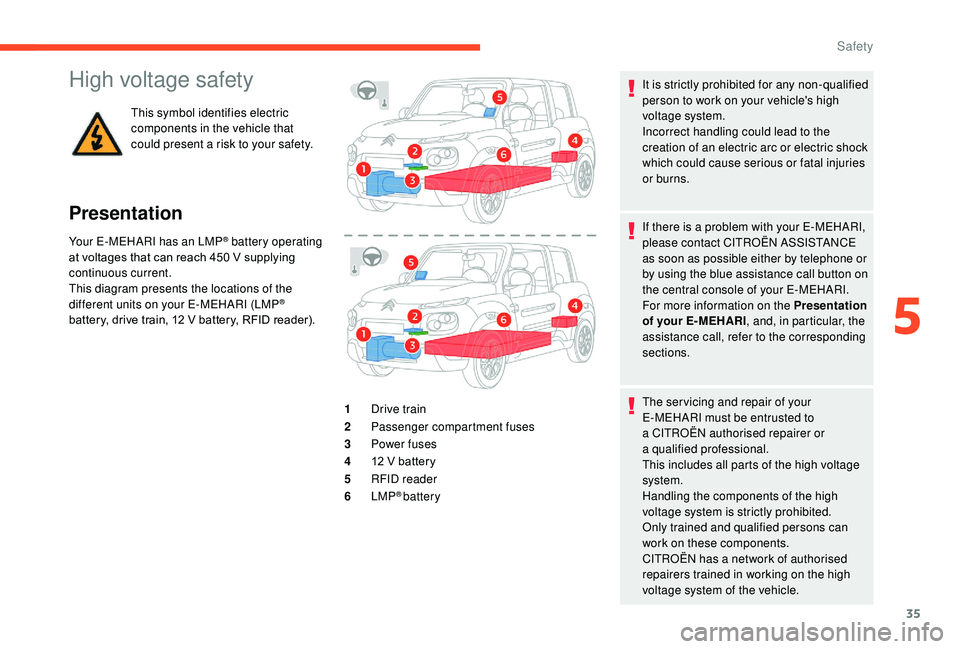

This diagram presents the locations of the
different units on your E-MEHARI (LMP
®
battery, drive train, 12 V battery, RFID reader).
1Drive train
2 Passenger compartment fuses
3 Power fuses
4 12 V battery
5 RFID reader
6 LMP
® battery It is strictly prohibited for any non-qualified
person to work on your vehicle's high
voltage system.
Incorrect handling could lead to the
creation of an electric arc or electric shock
which could cause serious or fatal injuries
or burns.
If there is a
problem with your E-MEHARI,
please contact CITROËN ASSISTANCE
as soon as possible either by telephone or
by using the blue assistance call button on
the central console of your E-MEHARI.
For more information on the Presentation
of your E-MEHARI , and, in particular, the
assistance call, refer to the corresponding
sections.
The servicing and repair of your
E-MEHARI must be entrusted to
a CITROËN authorised repairer or
a

qualified professional.
This includes all parts of the high voltage
system.
Handling the components of the high
voltage system is strictly prohibited.
Only trained and qualified persons can
work on these components.
CITROËN has a
network of authorised
repairers trained in working on the high
voltage system of the vehicle.
