service indicator Citroen GRAND C4 PICASSO 2017 2.G User Guide

42
C4-Picasso-II_en_Chap01_instruments-bord_ed02-2016
Engine oil level indicator*
On versions fitted with an electric oil level
indicator, the state of the engine oil level is
displayed in the instrument panel for a few
seconds, after the servicing information.The level read will only be correct if
the vehicle is on level ground and the
engine has been off for more than
30
m

inutes.Oil level correct
This is indicated by the display of the message
"Oil level incorrect" in the instrument panel
screen, accompanied by the service warning
lamp and an audible signal.
If the low oil level is confirmed by a check using
the dipstick, the level must be topped up to
avoid damage to the engine.
For more information on Checking levels,
refer to the corresponding section. This is signalled by the display of the message
"Oil level measurement invalid" in the
instrument panel.
Contact a CITROËN dealer or a qualified
workshop.
In the event of a fault with the electric indicator,
the oil level is no longer monitored.
If the system is faulty, you must check the
engine oil level using the manual dipstick
located under the bonnet.
For more information on Checking
levels,
refer to the corresponding section.
* Depending on version.
Oil level incorrect Oil level indicator fault
Instruments

137
C4-Picasso-II_en_Chap04_conduite_ed02-2016
Emergency braking
In the event of a failure of the main service
brake or in an exceptional situation (e.g. driver
taken ill, under instruction, etc.) a continuous
pull on the control lever will brake the vehicle.
Braking takes place while the control lever is
being pulled. It is interrupted if the control lever
is released.
The ABS and DSC systems provide stability of
the vehicle during emergency braking.
If the emergency braking malfunctions, the
message "Parking brake control faulty" will be
displayed.
If a failure of the ABS and DSC systems occurs,
signalled by the illumination of one or both
warning lamps in the instrument panel, then
stability of the vehicle is no longer guaranteed.
In this event, stability must be assured by the
driver by repeating alternate "pull-release"
actions on the control lever until the vehicle is
immobilised.The emergency braking should only be
used in an exceptional situation.
Repeat this procedure to reactivate automatic
operation.
Reactivation of automatic operation is
confirmed by the indicator lamp in the
instrument panel going off.
Deactivating automatic operation
In some situations, such as very cold weather
or towing (caravan, recovery), it may be
necessary to deactivate automatic operation of
the system.
F

S
tart the engine.
F

A
pply the parking brake with the control
lever, if it is released.
F

T
ake your foot off the brake pedal.
F

P
ush and hold the control lever in the
release direction for at least 10 seconds
and no more than 15 seconds.
F

R
elease the control lever.
F

P
ress and hold the brake pedal.
F

P
ull the control lever in the apply direction
for 2 seconds.
Deactivation of the automatic functions
is confirmed by illumination of this
indicator lamp in the instrument panel.
F

R
elease the control lever and the brake
pedal. From this point the parking brake can only
be applied and released manually using the
control lever.
4
Driving

181
C4-Picasso-II_en_Chap04_conduite_ed02-2016
Special features of the function
The speed of the vehicle must be between
3 mph (5 km/h) and 87 mph (140 km/h) when a
moving vehicle is detected.
The speed of the vehicle must not be higher
than 50 mph (80 km/h) when a stationary
vehicle is detected.
The speed of the vehicle must not be higher
than 37 mph (60 km/h) when a pedestrian is
detected.
The ESC system must not be faulty.
The ASR function must not be deactivated.
The seat belts of all occupants must be
fastened.
Driving at a steady speed on fairly straight
roads is required.
Following an impact, the function is put
out of service automatically, consult
a CITROËN dealer or a qualified
workshop to have the system checked.
Intelligent emergency
braking assistance
If the driver brakes, but not sufficiently to
avoid a collision, this system will complete the
braking, within the limits of the laws of physics.
This assistance will only be provided if you
press the brake pedal.
Deactivation / Activation
By default, the system is automatically
activated at every engine start.
The system can be deactivated or activated in
the vehicle settings menu in the screen. Deactivation of the system is
signalled by the illumination of this
indicator lamp, accompanied by the
display of a message.
4
Driving

189
C4-Picasso-II_en_Chap04_conduite_ed02-2016
In the event of a fault, this warning
lamp flashes for a few moments in
the instrument panel, accompanied
by illumination of the Service warning
lamp and the display of a message.
Operating fault
Contact a CITROËN dealer or a qualified
workshop to have the system checked.The system may suffer temporary
interference in certain weather
conditions (rain, hail, etc.).
In particular, driving on a wet sur face
or moving from a dry area to a wet area
can cause false alerts (for example, the
presence of a fog of water droplets in
the blind spot angle is interpreted as a
vehicle).
In bad or wintry weather, ensure that
the sensors are not covered by mud, ice
or snow.
Take care not to cover the warning zone
in the door mirrors or the detection
zones on the front and rear bumpers
with adhesive labels or other objects;
they may hamper the correct operation
of the system.
High pressure jet wash
When washing your vehicle, direct the
lance at least 30 cm away from the
sensors.In addition to the fixed warning lamp in the door
mirror on the side in question, a correction of
trajectory will be felt if you cross a lane marking
with the direction indicators on, to help you
avoid a collision.
Conditions for operation
The following systems must be activated:
-
B lind Spot Monitoring System,
-

A
ssisted Lane Departure Warning System.
Assisted Blind Spot
Monitoring System*
For more information on the Blind Spot
Monitoring System and the Assisted Lane
Departure Warning System , refer to the
corresponding sections.
* Depending on version.
4
Driving

232
C4-Picasso-II_en_Chap06_securite_ed02-2016

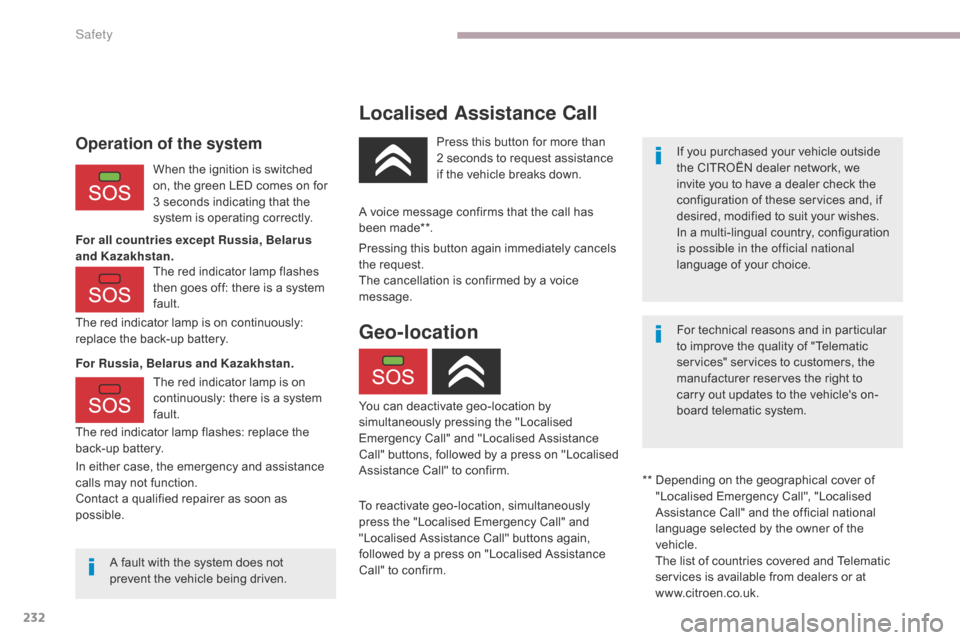

Localised Assistance Call
If you purchased your vehicle outside
the CITROËN dealer network, we
invite you to have a dealer check the
configuration of these services and, if
desired, modified to suit your wishes.
In a multi-lingual country, configuration
is possible in the official national
language of your choice.
A fault with the system does not
prevent the vehicle being driven. For technical reasons and in particular
to improve the quality of "Telematic
services" services to customers, the
manufacturer reserves the right to
carry out updates to the vehicle's on-
board telematic system.
A voice message confirms that the call has
been made**.
**

D

epending on the geographical cover of
"Localised Emergency Call", "Localised
Assistance Call" and the official national
language selected by the owner of the
vehicle.
The list of countries covered and Telematic
services is available from dealers or at
www.citroen.co.uk.Operation of the system
When the ignition is switched
on, the green LED comes on for
3 seconds indicating that the
system is operating correctly.
The red indicator lamp flashes
then goes off: there is a system
fault.
For all countries except Russia, Belarus
and Kazakhstan.
The red indicator lamp is on continuously:
replace the back-up battery.
For Russia, Belarus and Kazakhstan.
The red indicator lamp is on
continuously: there is a system
fault.
The red indicator lamp flashes: replace the
back-up battery.
In either case, the emergency and assistance
calls may not function.
Contact a qualified repairer as soon as
possible. Press this button for more than
2
seconds to request assistance
if the vehicle breaks down.
Pressing this button again immediately cancels
the request.
The cancellation is confirmed by a voice
message.
Geo-location
You can deactivate geo-location by
simultaneously pressing the "Localised
Emergency Call" and "Localised Assistance
Call" buttons, followed by a press on "Localised
Assistance Call" to confirm.
To reactivate geo-location, simultaneously
press the "Localised Emergency Call" and
"Localised Assistance Call" buttons again,
followed by a press on "Localised Assistance
Call" to confirm.
Safety

277
C4-Picasso-II_en_Chap07_info-pratiques_ed02-2016
Checking levels
Take care when working under the bonnet, as certain areas of the engine may be extremely hot (risk of burns) and the cooling fan could start at
any time (even with the ignition off).
Engine oil level
The check is carried out either when
the ignition is switched on using the
oil level indicator in the instrument
panel for vehicles so equipped, or
using the dipstick.Checking using the dipstick
The location of the dipstick is shown in the
corresponding underbonnet layout view.
F
T
ake the dipstick by its coloured grip and
remove it completely.
F

W
ipe the end of the dipstick using a clean
non-fluffy cloth.
F

R
efit the dipstick and push fully down, then
pull it out again to make the visual check:
the correct level is between the marks A
and B .
It is normal to top-up the oil level between
two services (or oil changes). CITROËN
recommends that you check the level,
and top-up if necessary, every 3 000 miles
(5 000 kms). Check all of these levels regularly, in line with the manufacturer's service schedule. Top them up if necessary, unless other wise indicated.
If a level drops significantly, have the corresponding system checked by a CITROËN dealer or a qualified workshop.
To ensure that the reading is correct,
your vehicle must be parked on a level
sur face with the engine having been off
for more than 30 minutes. A = MA X
B = MIN
If you find that the level is above the A mark or
below the B mark, do not star t the engine .
-

I
f the level is above the MAX mark (risk
of damage to the engine), contact a
CITROËN dealer or a qualified workshop.
-

I
f the level is below the MIN mark, you
must top-up the engine oil.
7
Practical information

278
C4-Picasso-II_en_Chap07_info-pratiques_ed02-2016

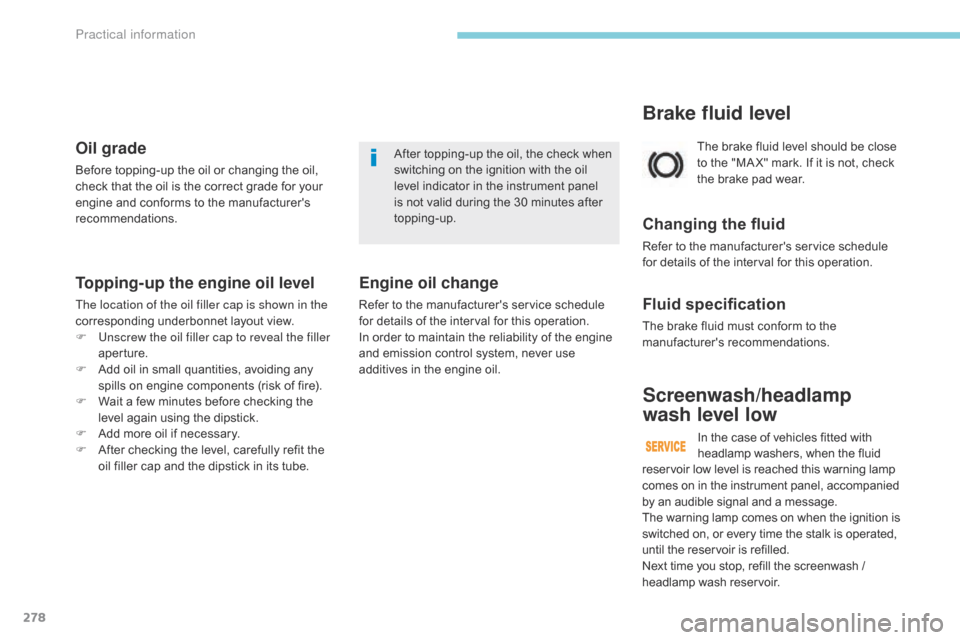

The brake fluid level should be close
to the "MA X" mark. If it is not, check
the brake pad wear.
Brake fluid level
Changing the fluid
Refer to the manufacturer's service schedule
for details of the interval for this operation.
Fluid specification
The brake fluid must conform to the
manufacturer's recommendations.
Topping-up the engine oil level
The location of the oil filler cap is shown in the
corresponding underbonnet layout view.
F
U
nscrew the oil filler cap to reveal the filler
aperture.
F

A
dd oil in small quantities, avoiding any
spills on engine components (risk of fire).
F

W
ait a few minutes before checking the
level again using the dipstick.
F

A
dd more oil if necessary.
F

A
fter checking the level, carefully refit the
oil filler cap and the dipstick in its tube.
Engine oil change
Refer to the manufacturer's service schedule
for details of the interval for this operation.
In order to maintain the reliability of the engine
and emission control system, never use
additives in the engine oil. After topping-up the oil, the check when
switching on the ignition with the oil
level indicator in the instrument panel
is not valid during the 30 minutes after
topping-up.
Oil grade
Before topping-up the oil or changing the oil,
check that the oil is the correct grade for your
engine and conforms to the manufacturer's
recommendations.
reservoir low level is reached this warning lamp
comes on in the instrument panel, accompanied
by an audible signal and a message.
The warning lamp comes on when the ignition is
switched on, or every time the stalk is operated,
until the reservoir is refilled.
Next time you stop, refill the screenwash /
headlamp wash reservoir.
Screenwash/headlamp
wash level low
In the case of vehicles fitted with
headlamp washers, when the fluid
Practical information

282
C4-Picasso-II_en_Chap07_info-pratiques_ed02-2016

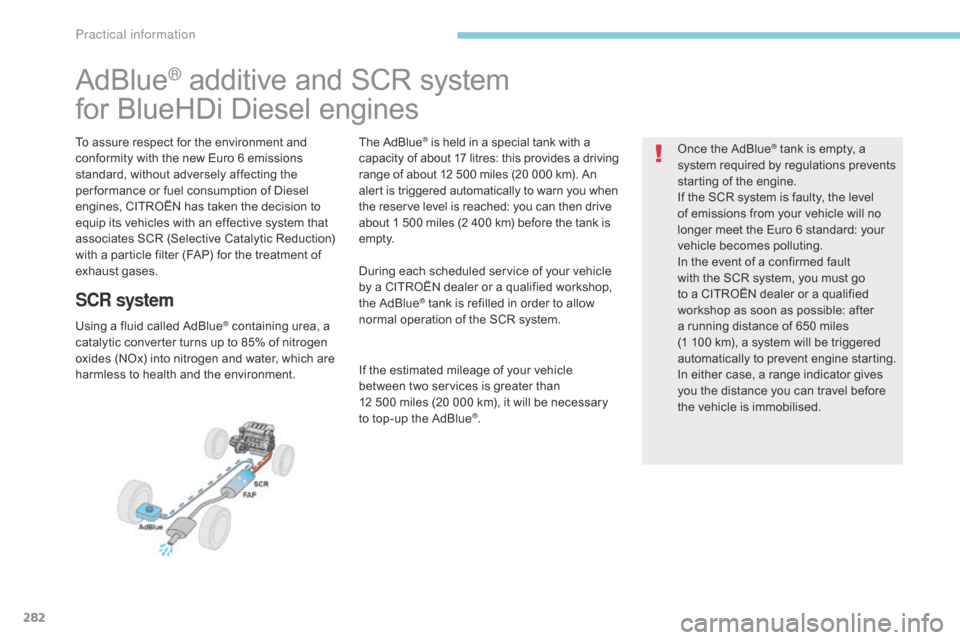

AdBlue® additive and SCR system
for BlueHDi Diesel engines
To assure respect for the environment and
conformity with the new Euro 6 emissions
standard, without adversely affecting the
per formance or fuel consumption of Diesel
engines, CITROËN has taken the decision to
equip its vehicles with an effective system that
associates SCR (Selective Catalytic Reduction)
with a particle filter (FAP) for the treatment of
exhaust gases.
SCR system
Using a fluid called AdBlue® containing urea, a
catalytic converter turns up to 85% of nitrogen
oxides (NOx) into nitrogen and water, which are
harmless to health and the environment. The AdBlue
® is held in a special tank with a
capacity of about 17 litres: this provides a driving
range of about 12 500 miles (20 000 km). An
alert is triggered automatically to warn you when
the reserve level is reached: you can then drive
about 1 500 miles (2 400 km) before the tank is
e m pt y.
During each scheduled service of your vehicle
by a CITROËN dealer or a qualified workshop,
the AdBlue
® tank is refilled in order to allow
normal operation of the SCR system.
If the estimated mileage of your vehicle
between two services is greater than
12 500 miles (20 000 km), it will be necessary
to top-up the AdBlue
®. Once the AdBlue
® tank is empty, a
s
ystem required by regulations prevents
starting of the engine.
If the SCR

system is faulty, the level
of emissions from your vehicle will no
longer meet the Euro 6 standard: your
vehicle becomes polluting.
In the event of a confirmed fault
with the SCR system, you must go
to a CITROËN dealer or a qualified
workshop as soon as possible: after
a running distance of 650 miles
(1

100 km), a system will be triggered
automatically to prevent engine starting.
In either case, a range indicator gives
you the distance you can travel before
the vehicle is immobilised.
Practical information

338
C4-Picasso-II_en_Chap10_index-alpha_ed02-2016
Net .................................................................120
Number plate lamps ...................................... 3
12
Safety, children

....................2
42, 245, 246, 250,
252, 255, 256, 258, 260
Scented air freshener

...................................10

5
Screen, cold climate

.....................................26

6
Screenwash, front
......................................... 2

25
Screenwash, rear
...............................

...........224
SCR (Selective Catalytic Reduction) system

................
.........................................282
Seat belts
......................2

36, 237, 239, 240, 251
Seats, electric
................................................. 78
Se

ats, front
...............................
...........76, 78, 79
Seats, heated
...............................

...................82
Seats, rear
.................................... 8

4, 86, 88, 89
Selector, gear
................................................ 14

2
Serial number, vehicle

..................................33

4
Service indicator
............................................. 38
S

ervicing
...............................
............................ 9
Settings, equipment
.................................. 1

1, 13
Range
................

..............................................51
Range, AdBlue
® ............................... ...............43
Reading lamps, rear ...................................... 11
3
Rear screen, demisting
................................. 10

4
Recharging the battery

................................. 32

0
Recirculation, air
...............................

........96, 99
Reduction of electrical load

.......................... 2

70
Regeneration of the particle filter

.................28

0
Reinitialisation of the under-inflation detection system

......................................... 20

6
Reinitialising the remote control

.....................59
R

emote control

.................................... 5
3 -57, 60
Removing a wheel

..............................
..........300
Removing the mat

...............................
..........112
Pads, brake
...................................................
2

81
Paint colour code

.......................................... 33

4
Oil change

...............................

......................
277
Oil consumption

............................................
2

77
OIl, engine
...............................

......................
277
Opening the bonnet

......................................
2

74
Opening the boot
..............................
. 53, 55, 64
Opening the doors
...............................
.....53, 55
Opening the panoramic sunroof blind

.......... 2

28 Panoramic glass sunroof

..............................
2
28
Parcel shelf, rear
................................... 11
3 , 118
Park Assist

............................ 1
97, 199, 201, 202
Parking brake

................................................
2
81
Parking brake, electric
..........................
13
3, 13 8
Parking sensors, front
...................................
19
3
Parking sensors, rear.................................... 192
Plates, identification ...................................... 334
Port, USB

......................................................
111
P

ressures, tyres
................... 2
88, 293, 303, 334
Pre-tensioning seat belts
..............................
24
0
Priming pump
...............................
.................
324
Priming the fuel system
................................
3
24
Protecting children
....................... 2
42, 245, 246,

250, 252, 255, 256, 258, 260
Puncture
................
........................287, 294, 296
N
S
R
P
O
Mountings, Isofix ...............................
............254
Multimedia, rear ............................... .............115 Replacing bulbs ............................
3 04, 308-311
Replacing fuses .............................. ..............313
Replacing the air filter

...................................28

0
Replacing the oil filter

...................................28

0
Replacing the passenger compartment
filter
........

.....................................................280
Resetting the service indicator

.......................40
R

esetting the trip recorder
..............................46
R

eversing camera
...............................
..........19 4
Reversing lamp
..................................... 3

08-311
Roof bars
....................................................... 2

72
Running out of fuel (Diesel)

..........................3

24
Alphabetical index

339
C4-Picasso-II_en_Chap10_index-alpha_ed02-2016
Sidelamps .............211, 215, 304, 306, 308, 310
Side repeater .............................. ..................308
Snow chains
.................................................. 26

5
Socket, 12 V accessory

................. 1
07, 111, 114
Socket, JACK

...............................
.................111
Sockets, audio

.............................................. 111
Spe

ed limiter
...............................
.. 151, 154, 156
Speed limit recognition
................................. 15

2
Spotlamps, side
....................................2

19, 308
Stability control (ESC) ...................................233
Starting the vehicle

....................... 1
27, 129, 130
Starting using another battery

.............. 1
30, 319
Stay, bonnet
...............................

...................2 74
Steering wheel, adjustment

............................93
St

op
...............
.................................................. 28
Stopping the vehicle

..................... 1
27, 129, 130
Stop & Start
........................ 2

6, 51, 95, 104, 148,
149, 262, 274, 280, 318, 321
Stop (warning lamp)

........................................ 28
St

orage
................
.......................................... 108
Storage boxes
....................................... 11

2 , 114
Storing driving positions

.................................79
S

un visor
....................................................... 10

8
Sun visor flap

...............................
.................108
Synchronising the remote control

...................59
T
Tables of engines ......................... 3 25, 329, 330
Tables of fuses .............................................. 3
13
Tables of weights

.......................... 3
27, 331, 332
Tailgate
................

......................................64, 66
W
V
Warning and indicator lamps .............. 2 2, 27, 28
Warning lamp, braking system .......................3
0
Warning lamp, Diesel engine pre-heater

.......25
W

arning lamps
....................................2
5, 28, 31
Warning lamp, SCR emissions control system

................
........................................... 37
Warning lamp, Service.................................... 29
Warning lamp, Stop

........................................ 28
W

ashing (advice) ........................................... 281
Weights
...............

.......................... 327, 331, 332
Wheel, spare
......................................... 29

4-297
Window controls

............................................. 74
W

iper blades (changing)
....................... 2
27, 271
Wiper, rear ..................................................... 224
Wipers
............................................ 2

6, 223, 226
Wipers, automatic rain sensitive

.......... 2
23, 226
Under-inflation (detection)
............................ 20

5
Unlocking
..............................

....................53, 55
Unlocking from the inside

............................... 61
U

nlocking the boot

.......................................... 53
U

nlocking the doors

........................................ 61
U

pdating the date

............................................ 52
U

pdating the time

............................................ 52
U
Tank, AdBlue® additive .................................28 2
Tank, fuel
............................... ................262, 263
Technical data
....................... 325

, 327, 329-332
Temperature, coolant
...................................... 41
T

hree flashes (direction indicators)
..............2

20
Time (setting)

..............................
....................52
To o l s
................

...................................... 294-297
To r c h
..............................

............................... 12 2
Total distance recorder

................................... 46
T

ouch screen ............................................. 11, 13
Touch screen tablet
.................................. 1

1, 13
To w b a r
................

...................................126, 269
Towed loads

.................................. 3
27, 331, 332
Towing another vehicle

................................. 32

2
Traction control (ASR)
................... 3

2, 233, 235
Tr a i l e r
...............

.....................................126, 269
Triangle, warning ........................................... 286
Trip computer

............................................ 4

9 - 51
Trip distance recorder

..................................... 46
T

y r e s
..............................................................
.... 9
Tyre under-inflation detection
...............

................35, 205, 207, 293 Ventilation ..............................
.........9, 94, 95, 97
Visibility ............................... ..........................104
Vision 360

.....................................................19

5
.
Alphabetical index
