Rear view mirror
Equipped with an anti-dazzle system, which darkens the mirror glass and reduces the nuisance to
the driver caused by the sun, headlamps from other vehicles...
Manual model
Adjustment
F A djust the mirror so that the glass is
directed correctly in the "day" position.
In order to ensure optimum visibility
during your manoeuvres, the mirror
lightens automatically when reverse
gear is engaged.
Day / night position
F

P
ull the lever to change to the "night" anti-
dazzle position.
F

P
ush the lever to change to the normal
"day" position.
Automatic "electrochrome"
model
This system automatically and progressively
changes between the day and night uses by
means of a sensor, which measures the light
from the rear of the vehicle.
Automatic tilting in reverse
gear
With the engine running, on engaging reverse
gear, the mirror glasses tilt downwards.
They return to their initial position:
-

a f
ew seconds after coming out of reverse
g e a r,
-

o
nce the speed of the vehicle exceeds
6
mph (10 km/h),
-

o
n switching off the engine.
System which provides a view of the ground
during parking manoeuvres in reverse gear.
This function can be activated or deactivated in
the Driving
menu of the touch screen.
F

Sel
ect the " Vehicle settings " tab then
" Comfort " and "Mirror adaptation in
reverse ".
5
Lighting and visibility

210
C4-Picasso-II_en_Chap05_eclairage-visibilite_ed02-2016
Child surveillance
mirror
A child surveillance mirror is fitted above the
rear view mirror. This allows you to monitor the
vehicle’s rear passengers, or it can facilitate
conversation between the front and rear
passengers without the need to move the rear
view mirror.
It can be folded away to eliminate dazzle.
Lighting and visibility

211
C4-Picasso-II_en_Chap05_eclairage-visibilite_ed02-2016

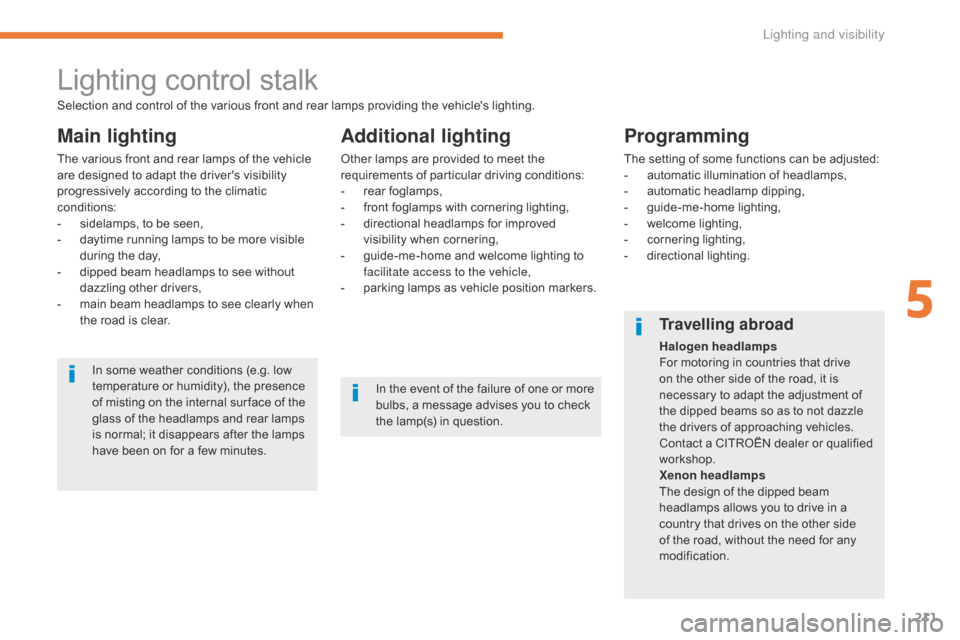

Lighting control stalk
Main lighting
The various front and rear lamps of the vehicle
are designed to adapt the driver's visibility
progressively according to the climatic
conditions:
-
s
idelamps, to be seen,
-

d
aytime running lamps to be more visible
during the day,
-

d
ipped beam headlamps to see without
dazzling other drivers,
-

m
ain beam headlamps to see clearly when
the road is clear.
Additional lighting
Other lamps are provided to meet the
requirements of particular driving conditions:
-
r

ear foglamps,
-

f
ront foglamps with cornering lighting,
-

d
irectional headlamps for improved
visibility when cornering,
-

g
uide-me-home and welcome lighting to
facilitate access to the vehicle,
-

p
arking lamps as vehicle position markers.
Programming
The setting of some functions can be adjusted:
- a utomatic illumination of headlamps,
-

a
utomatic headlamp dipping,
-

g
uide-me-home lighting,
-

w
elcome lighting,
-

c
ornering lighting,
-
d

irectional lighting.
In some weather conditions (e.g. low
temperature or humidity), the presence
of misting on the internal sur face of the
glass of the headlamps and rear lamps
is normal; it disappears after the lamps
have been on for a few minutes.
Travelling abroad
Halogen headlamps
For motoring in countries that drive
on the other side of the road, it is
necessary to adapt the adjustment of
the dipped beams so as to not dazzle
the drivers of approaching vehicles.
Contact a CITROËN dealer or qualified
workshop.
Xenon headlamps
The design of the dipped beam
headlamps allows you to drive in a
country that drives on the other side
of the road, without the need for any
modification.
In the event of the failure of one or more
bulbs, a message advises you to check
the lamp(s) in question.
Selection and control of the various front and rear lamps providing the vehicle's lighting.
5
Lighting and visibility

212
C4-Picasso-II_en_Chap05_eclairage-visibilite_ed02-2016
Displays
Illumination of the corresponding indicator
lamp in the instrument panel confirms that the
lighting selected is on.The rear sidelamps and direction
indicators are located on the tailgate.
When they are on, opening the tailgate
automatically transfers illumination to
the lamps located in the rear bumper, to
maintain the safety of the vehicle.

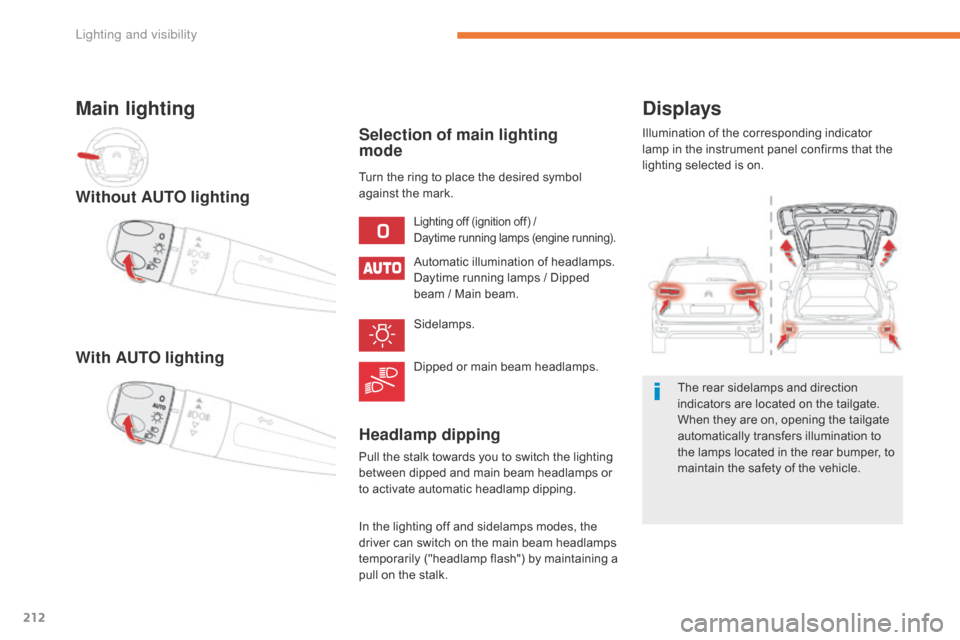

Main lighting
Lighting off (ignition off) /
Daytime running lamps (engine running).
Automatic illumination of headlamps.
Daytime running lamps / Dipped
beam / Main beam.
Sidelamps.
Dipped or main beam headlamps.
Turn the ring to place the desired symbol
against the mark.
Selection of main lighting
mode
Without AUTO lighting
With AUTO lighting
Headlamp dipping
Pull the stalk towards you to switch the lighting
between dipped and main beam headlamps or
to activate automatic headlamp dipping.
In the lighting off and sidelamps modes, the
driver can switch on the main beam headlamps
temporarily ("headlamp flash") by maintaining a
pull on the stalk.
Lighting and visibility

213
C4-Picasso-II_en_Chap05_eclairage-visibilite_ed02-2016

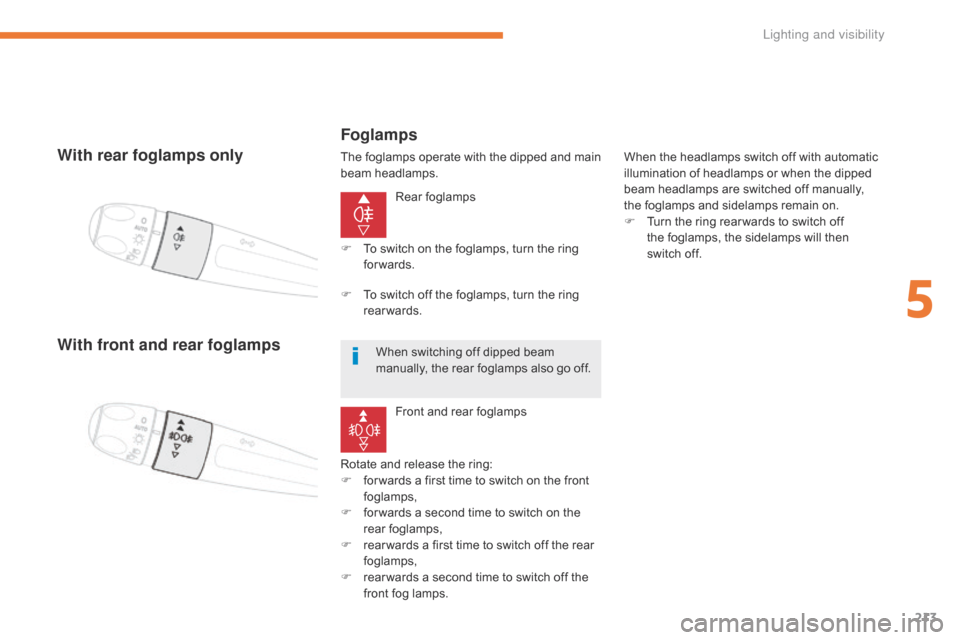

With rear foglamps only
Rear foglamps
Rotate and release the ring:
F

f

or wards a first time to switch on the front
foglamps,
F

f

or wards a second time to switch on the
rear foglamps,
F

r

ear wards a first time to switch off the rear
foglamps,
F

r

ear wards a second time to switch off the
front fog lamps.
With front and rear foglamps Foglamps
F To switch on the foglamps, turn the ring
forwards.
Front and rear foglamps
F

T
o switch off the foglamps, turn the ring
rearwards. When the headlamps switch off with automatic
illumination of headlamps or when the dipped
beam headlamps are switched off manually,
the foglamps and sidelamps remain on.
F

T
urn the ring rear wards to switch off
the foglamps, the sidelamps will then
switch off.
When switching off dipped beam
manually, the rear foglamps also go off.
The foglamps operate with the dipped and main
beam headlamps.
5
Lighting and visibility

214
C4-Picasso-II_en_Chap05_eclairage-visibilite_ed02-2016

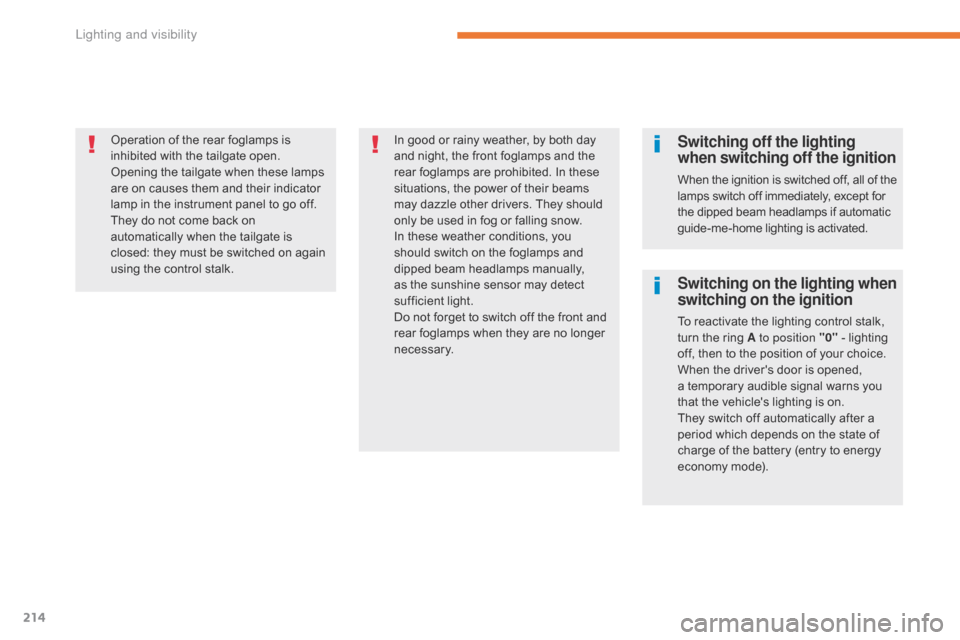

Operation of the rear foglamps is
inhibited with the tailgate open.
Opening the tailgate when these lamps
are on causes them and their indicator
lamp in the instrument panel to go off.
They do not come back on
automatically when the tailgate is
closed: they must be switched on again
using the control stalk.In good or rainy weather, by both day
and night, the front foglamps and the
rear foglamps are prohibited. In these
situations, the power of their beams
may dazzle other drivers. They should
only be used in fog or falling snow.
In these weather conditions, you
should switch on the foglamps and
dipped beam headlamps manually,
as the sunshine sensor may detect
sufficient
light.
Do not forget to switch off the front and
rear foglamps when they are no longer
necessary.Switching off the lighting
when switching off the ignition
When the ignition is switched off, all of the
lamps switch off immediately, except for
the dipped beam headlamps if automatic
guide-me-home lighting is activated.
Switching on the lighting when
switching on the ignition
To reactivate the lighting control stalk,
turn the ring A to position "0" - lighting
off, then to the position of your choice.
When the driver's door is opened,
a
temporary audible signal warns you
that the vehicle's lighting is on.
They switch off automatically after a
period which depends on the state of
charge of the battery (entry to energy
economy mode).
Lighting and visibility

215
C4-Picasso-II_en_Chap05_eclairage-visibilite_ed02-2016

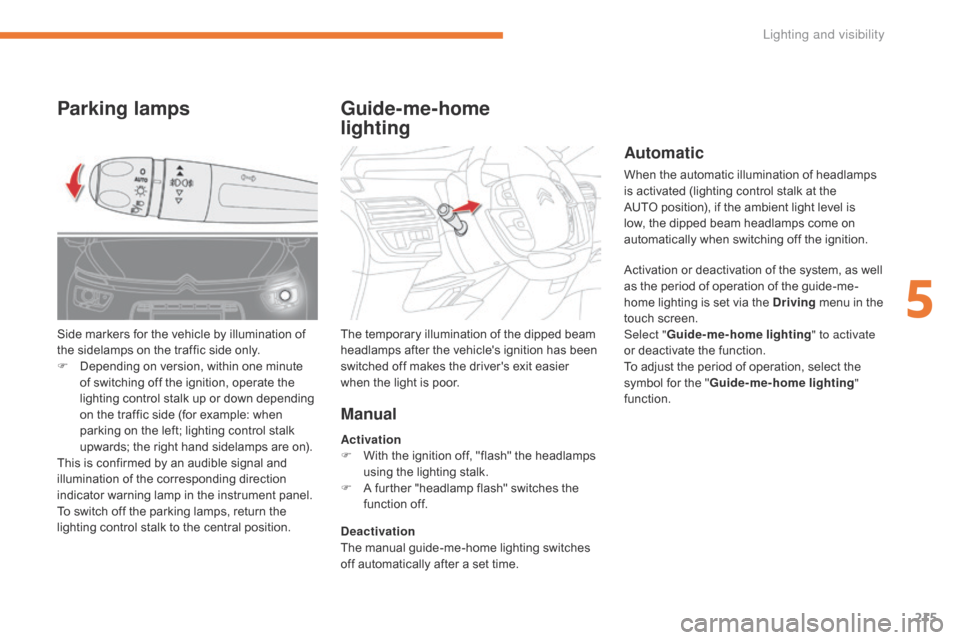

Automatic
When the automatic illumination of headlamps
is activated (lighting control stalk at the
AUTO position), if the ambient light level is
low, the dipped beam headlamps come on
automatically when switching off the ignition.
Activation or deactivation of the system, as well
as the period of operation of the guide-me-
home lighting is set via the Driving menu in the
touch screen.
Select " Guide-me-home lighting " to activate
or deactivate the function.
To adjust the period of operation, select the
symbol for the " Guide-me-home lighting "
function.
Parking lamps Guide-me-home
lighting
Manual
Deactivation
The manual guide-me-home lighting switches
off automatically after a set time. The temporary illumination of the dipped beam
headlamps after the vehicle's ignition has been
switched off makes the driver's exit easier
when the light is poor.
Side markers for the vehicle by illumination of
the sidelamps on the traffic side only.
F

D

epending on version, within one minute
of switching off the ignition, operate the
lighting control stalk up or down depending
on the traffic side (for example: when
parking on the left; lighting control stalk
upwards; the right hand sidelamps are on).
This is confirmed by an audible signal and
illumination of the corresponding direction
indicator warning lamp in the instrument panel.
To switch off the parking lamps, return the
lighting control stalk to the central position. Activation
F

W
ith the ignition off, "flash" the headlamps
using the lighting stalk.
F
A f
urther "headlamp flash" switches the
function off.
5
Lighting and visibility

216
C4-Picasso-II_en_Chap05_eclairage-visibilite_ed02-2016

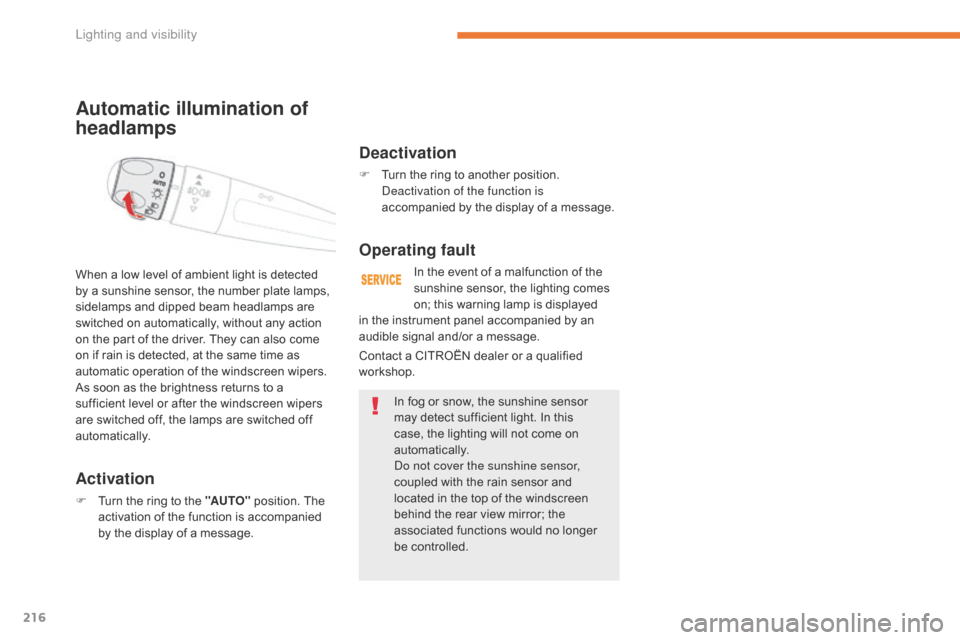

Automatic illumination of
headlamps
Activation
F Turn the ring to the "AUTO" position. The
activation of the function is accompanied
by the display of a message.
When a low level of ambient light is detected
by a sunshine sensor, the number plate lamps,
sidelamps and dipped beam headlamps are
switched on automatically, without any action
on the part of the driver. They can also come
on if rain is detected, at the same time as
automatic operation of the windscreen wipers.
As soon as the brightness returns to a
sufficient level or after the windscreen wipers
are switched off, the lamps are switched off
automatically.
Deactivation
F Turn the ring to another position.
Deactivation of the function is
accompanied by the display of a message.
Operating fault
In the event of a malfunction of the
sunshine sensor, the lighting comes
on; this warning lamp is displayed
In fog or snow, the sunshine sensor
may detect sufficient light. In this
case, the lighting will not come on
automatically.
Do not cover the sunshine sensor,
coupled with the rain sensor and
located in the top of the windscreen
behind the rear view mirror; the
associated functions would no longer
be controlled.
Contact a CITROËN dealer or a qualified
workshop. in the instrument panel accompanied by an
audible signal and/or a message.
Lighting and visibility

217
C4-Picasso-II_en_Chap05_eclairage-visibilite_ed02-2016

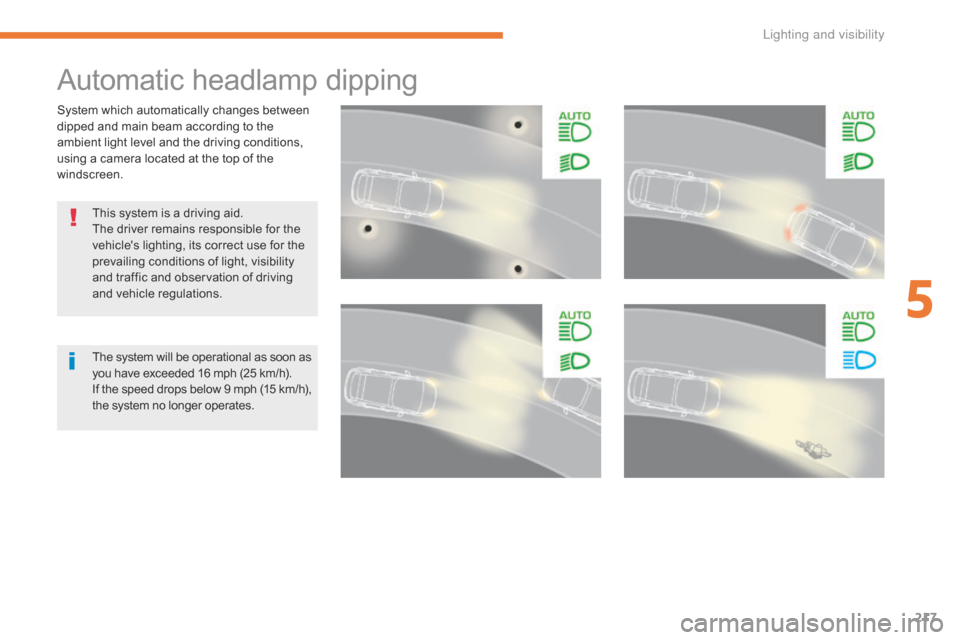

System which automatically changes between
dipped and main beam according to the
ambient light level and the driving conditions,
using a camera located at the top of the
windscreen.This system is a driving aid.
The driver remains responsible for the
vehicle's lighting, its correct use for the
prevailing conditions of light, visibility
and traffic and observation of driving
and vehicle regulations.
The system will be operational as soon as
you have exceeded 16 mph (25
km/h).
If the speed drops below 9 mph (15 km/h),
the system no longer operates.
Automatic headlamp dipping
5
Lighting and visibility

218
C4-Picasso-II_en_Chap05_eclairage-visibilite_ed02-2016
The system may suffer inter ference or
not work correctly:
-
u
nder conditions of poor visibility
(falling snow, heavy rain or thick
fog, etc.),
-

i
f the windscreen is dirty, misted or
obscured (by a sticker, etc.) in front
of the camera,
-

i
f the vehicle is facing highly
reflective signs.
The system is not able to detect:
-

r
oad users that do not have their
own lighting, such as pedestrians,
-

r
oad users whose lighting is
obscured, such as vehicles running
behind a safety barrier (on a
motor way, for example),
-

r
oad users at the top or bottom of a
steep slope, on winding roads, on
crossroads.

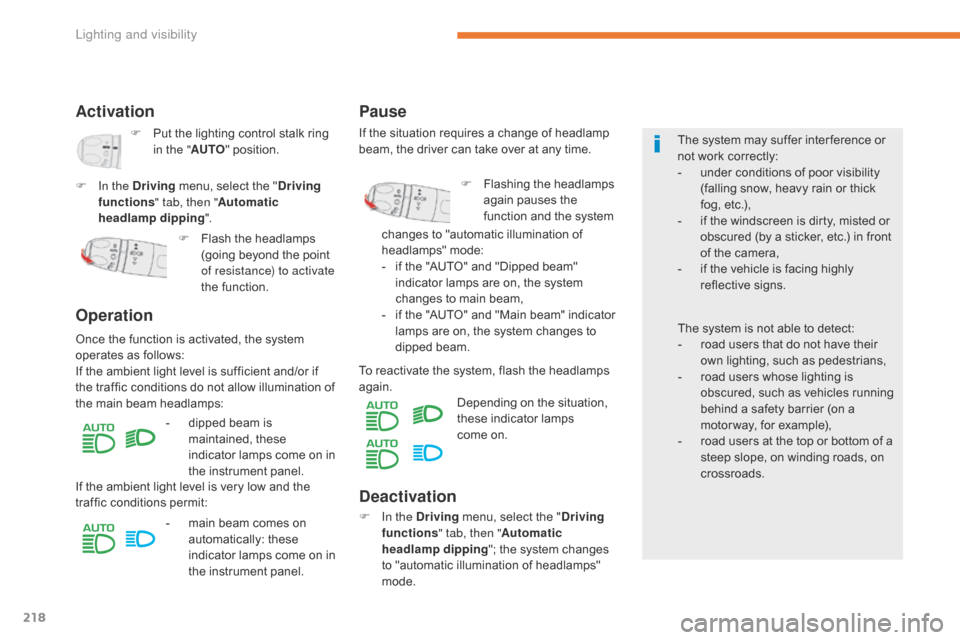

Deactivation
F In the Driving menu, select the " Driving
functions " tab, then " Automatic
headlamp dipping "; the system changes
to "automatic illumination of headlamps"
mode.
To reactivate the system, flash the headlamps
again.
Depending on the situation,
these indicator lamps
come on.
Activation
F Put the lighting control stalk ring
in the " AUTO" position.
F

I

n the Driving menu, select the " Driving
functions " tab, then " Automatic
headlamp dipping ".
Operation
- dipped beam is
maintained, these
indicator lamps come on in
the instrument panel.
F

F
lash the headlamps
(going beyond the point
of resistance) to activate
the function.
Once the function is activated, the system
operates as follows:
If the ambient light level is sufficient and/or if
the traffic conditions do not allow illumination of
the main beam headlamps:
If the ambient light level is very low and the
traffic conditions permit: -

m
ain beam comes on
automatically: these
indicator lamps come on in
the instrument panel.
Pause
If the situation requires a change of headlamp
beam, the driver can take over at any time.
F

F
lashing the headlamps
again pauses the
function and the system
changes to "automatic illumination of
headlamps" mode:
-

i
f the "AUTO" and "Dipped beam"
indicator lamps are on, the system
changes to main beam,
-

i
f the "AUTO" and "Main beam" indicator
lamps are on, the system changes to
dipped beam.
Lighting and visibility
