Screen configuration Citroen GRAND C4 PICASSO 2017 2.G Owner's Manual

12
C4-Picasso-II_en_Chap01_instruments-bord_ed02-2016
MenusUpper bar
Certain information is always present in the
upper bar of the touch screen:
-
R
epeat of the air conditioning information,
and access to the simplified menu
(temperature and air flow adjustment only).
-

R
epeat of information from the Radio
Media and Telephone menus and
navigation instructions*.
-

N
otifications zone (SMS and email)*.
* Depending on equipment.
Air conditioning.
Allows control of the settings for
temperature, air flow, etc.
Connected navigation or Mirror
Scre en*.
See more in "Audio and telematics".
Radio Media.
See more in "Audio and telematics".
Telephone.
See more in "Audio and telematics".
Driving.
Allows the activation, deactivation and
adjustment of settings for certain functions.
Applications.
Allows the display of the trip
computer, with the monochrome
digital instrument panel.Volume / mute.
See more in "Audio and telematics".
- A ccess to Configuration
.
For more information on Heating
, Manual
air conditioning and Automatic air
conditioning , refer to the corresponding
sections.
The functions accessible from this menu are
arranged under two tabs: "Vehicle settings"
and " Driving functions ".
See more in "Audio and telematics".
Instruments

16
C4-Picasso-II_en_Chap01_instruments-bord_ed02-2016
ButtonComments
Turn off the screen.
Adjustment of brightness.
Choice and settings for three personalised profiles and one shared profile.
Settings for the touch screen and instrument panel...
Activation and adjustment of Wi-Fi settings.
Configuration
The functions available through the upper bar are detailed in the table below. Certain adjustments are accessible in the secondary page.
Instruments

20
C4-Picasso-II_en_Chap01_instruments-bord_ed02-2016
You can modify the appearance of the
instrument panel, by choosing:
-
a c
olour scheme,
-

a d
isplay mode.
Choosing the language
This depends on the setting in the touch
screen.
Certain languages are not available for this
instrument panel; English is selected by default. Each mode corresponds to the type of
information displayed in the configurable area.
F

T
urn the thumbwheel on the left of the
steering wheel to display and run through
the different modes in the right-hand part
of the instrument panel,
F

O
nce the display mode required has been
selected, press the thumbwheel to confirm.
Personalisation of the 12 inch colour instrument panel
Choice of display mode
or
Display zones
Whatever the display mode or colour scheme
chosen, the instrument panel contains:
-

a f
ixed display zone A with:
●

t
he speedometer,
●

t
he warning lamps,
●

t
he fuel gauge,
●

t
he various repeated information and
alert messages.
-

a c
onfigurable display zone B .
Most of the warning lamps do not have a fixed
position.
The warning and indicator lamps are displayed
from left to right in order of importance.
For certain functions that have indicator lamps
for both on and off, there is just one dedicated
location.
Choosing the colour scheme
To modify it, with the vehicle stationary:
F
P
ress the end of the lighting control stalk
to display and run through the different
modes in the right-hand part of the
instrument panel,
F

O
nce the display mode required has been
selected, it is applied automatically after
a few moments without any action on the
control.
F

P
ress this button in the
" Configuration " menu of the
touch screen.
The system restarts to take account of the
modifications to the touch screen and the
instrument panel.
Instruments

27
C4-Picasso-II_en_Chap01_instruments-bord_ed02-2016
Warning / indicator lampStateCause Action / Observations
Passenger's
airbag system fixed.
The control switch, located at the
right hand end of the dashboard is
set to the OFF position.
The passenger's front airbag is
deactivated.
You can install a rear ward facing
child seat, unless there is an
operating fault with the airbags
(Airbag warning lamp on). Turn the control switch to the "
ON" position to activate
the passenger's front airbag.
In this case, do not fit a child seat in the rear ward
facing position on the front passenger seat.
Collision Risk
Alert / Active
Safety Brake fixed, accompanied by
a message.
The system has been deactivated,
via the vehicle configuration menu in
the screen. For more information on the Collision Risk
Alert
/ Active Safety Brake system, refer to the
corresponding section.
Stop & Star t fixed. The Stop & Start
has been
deactivated. Reactivate the function in the Driving
menu.
Deactivation indicator lamps
If one of the following indicator lamps comes on, this confirms that the corresponding system has been switched off intentionally.
This is may be accompanied by an audible signal and the display of a message.
1
Instruments

46
C4-Picasso-II_en_Chap01_instruments-bord_ed02-2016

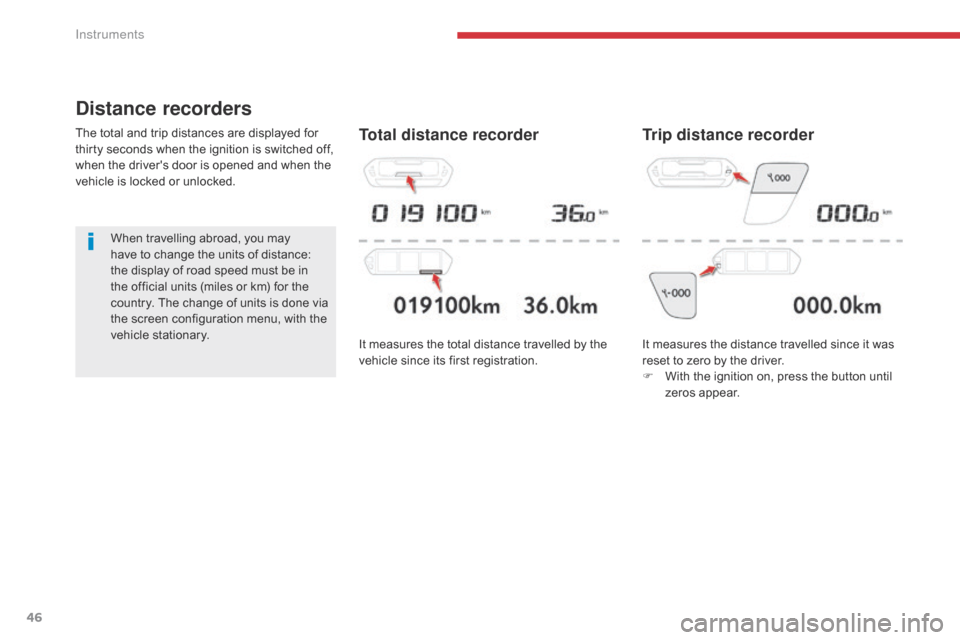

Distance recorders
The total and trip distances are displayed for
thirty seconds when the ignition is switched off,
when the driver's door is opened and when the
vehicle is locked or unlocked.When travelling abroad, you may
have to change the units of distance:
the display of road speed must be in
the official units (miles or km) for the
country. The change of units is done via
the screen configuration menu, with the
vehicle stationary. It measures the distance travelled since it was
reset to zero by the driver.
F

W
ith the ignition on, press the button until
zeros appear.
It measures the total distance travelled by the
vehicle since its first registration.Total distance recorder
Trip distance recorder
Instruments

47
C4-Picasso-II_en_Chap01_instruments-bord_ed02-2016

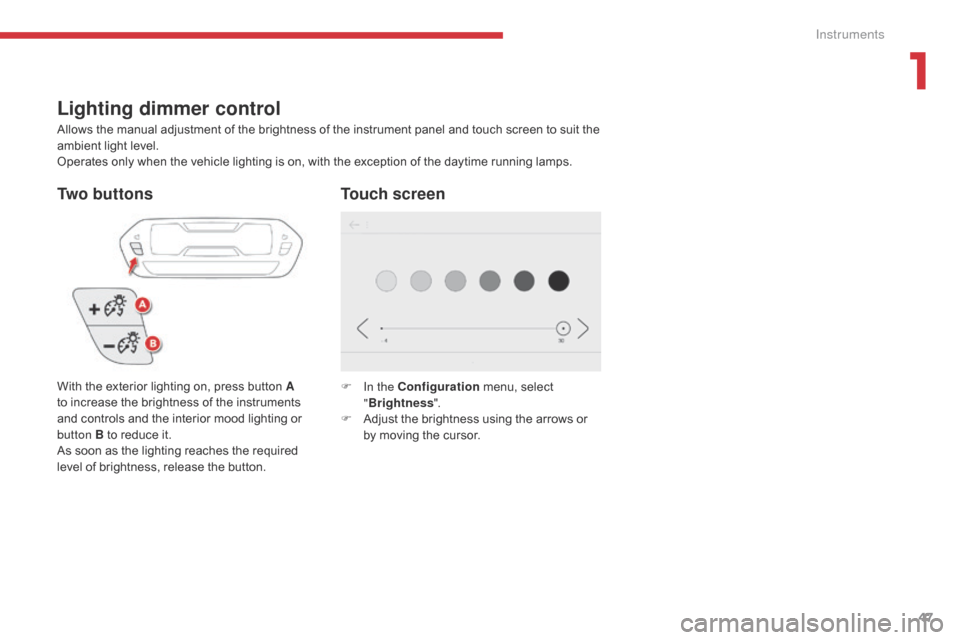

Lighting dimmer control
Allows the manual adjustment of the brightness of the instrument panel and touch screen to suit the
ambient light level.
Operates only when the vehicle lighting is on, with the exception of the daytime running lamps.
With the exterior lighting on, press button A
to increase the brightness of the instruments
and controls and the interior mood lighting or
button B to reduce it.
As soon as the lighting reaches the required
level of brightness, release the button. F

I
n the Configuration menu, select
" Brightness ".
F

A
djust the brightness using the arrows or
by moving the cursor.
Tw o b u t t o n s Touch screen
1
Instruments

48
C4-Picasso-II_en_Chap01_instruments-bord_ed02-2016

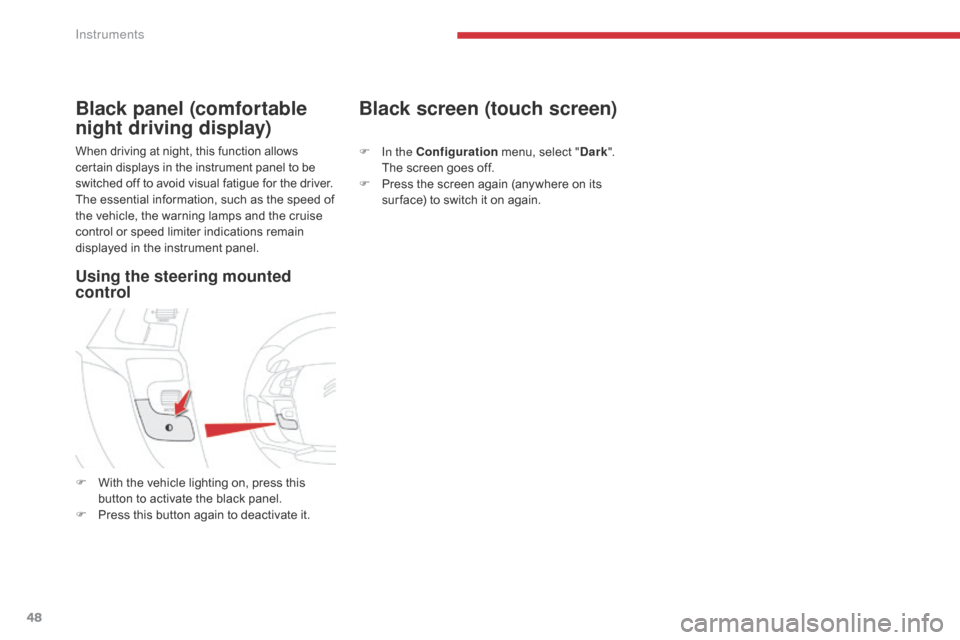

When driving at night, this function allows
certain displays in the instrument panel to be
switched off to avoid visual fatigue for the driver.
The essential information, such as the speed of
the vehicle, the warning lamps and the cruise
control or speed limiter indications remain
displayed in the instrument panel.
F
W
ith the vehicle lighting on, press this
button to activate the black panel.
F

P
ress this button again to deactivate it.
Black screen (touch screen)
Black panel (comfortable
night driving display)
F In the Configuration menu, select "Dark".
The screen goes off.
F

P
ress the screen again (anywhere on its
sur face) to switch it on again.
Using the steering mounted
control
Instruments

179
C4-Picasso-II_en_Chap04_conduite_ed02-2016
Limits of operation
In the following cases, it is recommended
that the system be deactivated in the vehicle
configuration menu:
-
w
hen towing a trailer or caravan,
-

w
hen carrying long objects on roof bars or
a roof rack,
-

b
efore using an automatic car wash, with
the engine running,
-

b
efore placing the vehicle on a rolling road
in a workshop,
-

w
hen the vehicle is being towed, with the
engine running,
-

w
hen a "space-saver" type spare wheel is
fitted (depending on version),
-

f
ollowing impact damage to the windscreen
close to the detection camera,
-

i
f the front bumper has been damaged,
-

i
f the brake lamps are not working.Because of limits in the operation of the
system, it is possible that warnings are
not given, are given too late or seem
unjustified.
Consequently, the driver must always
remain attentive and able to react at any
time to avoid an accident. Where the speed of your vehicle is too
high approaching another vehicle, the
first level of alert may not be displayed:
the level 2 alert may be displayed
di r e c t l y.
Important
: the level 1 alert is never
displayed if the " Close" threshold has
been selected.
Collision Risk Alert
Depending on the degree of risk of collision
detected by the system and the alert threshold
chosen by the driver, different levels of alert can be
triggered and displayed in the instrument panel.
Level 1: visual alert only, signalling
to you that the vehicle in front is very
close.
The message " Vehicle close" is
displayed.
This level of alert is based on the inter-vehicle
time between your vehicle and the vehicle in
front.
Level 2: visual and audible alert,
warning you that a collision is
imminent.
The message " Brake!" is displayed.
This level of alert is based on the time before
collision. It takes account of the vehicle
dynamics, the speed of your vehicle and the
one in front, the environmental conditions, the
operation of the vehicle (cornering, pedals
pressed, etc.) to trigger the alert at the best
moment.
Modifying the alert trigger
threshold
This threshold determines how you wish to be
warned of the presence of a vehicle moving
or stationary in front of you, or a pedestrian
present in your traffic lane.
The current threshold can be modified only via
the Driving menu in the touch screen.
You can select one of three thresholds:
-
"Distant ",
-
"Normal ",
-
"Close ".
The last threshold selected is kept in memory
when the ignition is switched off.
4
Driving

335
C4-Picasso-II_en_Chap10_index-alpha_ed02-2016
Accessories ..........................................132, 229
Accessory position ....................................... 13
2
Access to the 3rd row

..................................... 88
A

ctive Safety Brake................... 27, 32, 178, 180
AdBlue
® additive ................ 1 9, 36, 43, 282, 283
Adjusting head restraints ................................ 80
A
djusting the air distribution
.....................9
6, 99
Adjusting the air flow

.................................9
6, 99
Adjusting the date

........................................... 52
A

djusting the height and reach of
the steering wheel

...............................
.........93
Adjusting the seat

........................ 7
6, 78, 84, 86
Adjusting the seat belt height

.......................23

6
Adjusting the temperature

........................9
6, 99
Adjusting the time

........................................... 52
A

dvice on care and maintenance
.................2

81
Advice on driving

..............................
....125, 126
Airbags
...............

..................................... 33, 241
Airbags, curtain
.....................................2

43, 244
Airbags, front.........................................242, 244
Airbags, lateral
......................................2

43, 244
Air conditioning
...............................

............9, 98
Air conditioning, automatic

.......................9
5, 99
Air conditioning, manual
...........................9

5, 97
Air intake

...............
.......................................... 99
Air vents
..............................

............................94
Alarm
............................................................... 71
A

nti-lock braking system (ABS)
....................23

3
Anti-pinch
...................................................... 2

28
Anti-slip regulation (ASR)

............................. 23

3
Anti-theft
..............................

.........................132
Armrest, front

..........................................8
3, 107
Assistance call
...............................

...............231
Assistance, emergency braking
........... 1

81, 233
Automatic headlamps
..................................... 24B

attery
...............................
.... 270, 280, 318 -321
Battery, charging
...............................
............
320
Battery, remote control
.............................5
9, 60
Black panel ...................................................... 48
Black screen .............................. .....................
48
Blanking screen (snow shield) ......................26
6
Blind, panoramic sunroof

..............................2

28
Blind spot monitoring system

.......... 2
5, 187, 189
Blind spot monitoring system, assisted

...2
5, 189
Blind spot sensors

.................................. 2
5, 187
Blinds, side

............................................ 1
08, 114
BlueHDi
...............................

..................282, 324
Bonnet
...............

............................................2 74
Boot
........

.........................................................64
Boot (fittings)

...............................
..................11 9
Boot (opening)

...............................
..................53
Bottle holder

...............................
...................107
Brake discs

....................................................2

81
Brake lamps

...............................
...........308-311
Brakes
...............................................3

0, 35, 281
Braking, automatic emergency
.............................. 2

7, 32, 178, 180
Braking, dynamic emergency
............... 13

3, 13 8
Bulbs (changing)
........................... 3

04, 308-311Changing a bulb
............................
3
04, 308-311
Changing a fuse
............................................ 3
13
Changing a wheel
...............................
..
294-297
Changing a wiper blade ........................ 2 27, 271
Changing the remote control battery ..............
59
C hecking the engine oil level ..........................42
C
hecking the levels
................................2

77-279
Checking tyre pressures (using the kit)

..............................
................ 287
Checks
...............

...................275, 276, 280, 281
Child lock

...............................
........................261
Children
...............................

. 252, 255, 256, 258
Children (safety)
...............................

.............261
Child seats

...........2
40, 245, 246, 250 -252, 260
Child seats, conventional

..............................2

51
Child seats, ISOFIX

......................25

4-256, 258
C
ITROËN
C
onnect Box
...............................2

31
C
ITROËN
L
ocalised Emergency Call...........231
Closing the boot

...............................
...............64
Closing the doors

............................... 5
4, 56, 57
Collision Risk Alert

.................... 2
7, 32, 178, 179
Configurations, seats
...................................... 91
C

onfiguration, vehicle
............................... 1
1, 13
Control, emergency boot release

...................68
C

ontrol, emergency door
................................63
C

ontrol, heated seats
......................................8

2
Control stalk, lighting

...................... 2
4, 211, 215
Control stalk, wipers

.................... 2
23, 224, 226
Courtesy lamps

.............................................12

3
Cruise control
........................ 1

51, 154, 159, 169
Cruise control, dynamic

................................16

2
Cruise control by speed limit recognition
.................................................. 15

4
Cruise control, dynamic with Stop function
............................................... 16

9
Cup holder

...............................
......................107
AB
Capacity, fuel tank .............................. ..........262
Cap, fuel filler ................................................ 2
62
Cartridge, fragrance
..................................... 10

5
Central locking

................................... 5
4, 56, 57
C
.
Alphabetical index

81
.
1
15
16
1
1
11
12
13
14
9
8
10

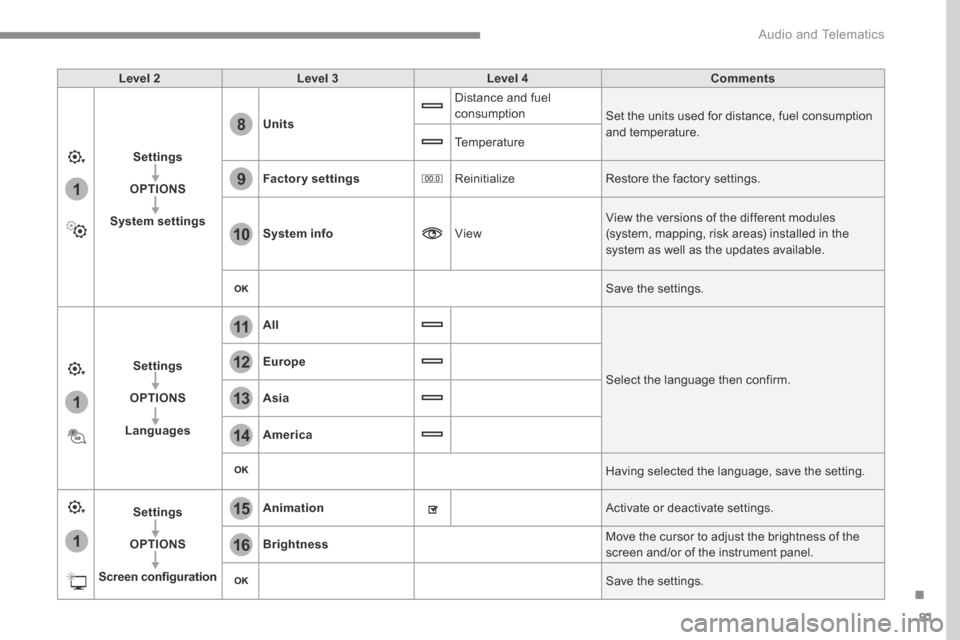

Audio and Telematics
Level 2Level 3Level 4Comments
Settings
OPTIONS
System settings
Units
Distance and fuel consumption Set the units used for distance, fuel consumption and temperature. Temperature
Factory settings Reinitialize Restore the factory settings.
System info View
View the versions of the different modules
(system, mapping, risk areas) installed in the system as well as the updates available.
Save the settings.
Settings
OPTIONS
Languages
All
Select the language then confirm.
Europe
Asia
America
Having selected the language, save the setting.
Settings
OPTIONS
Screen configuration
Animation Activate or deactivate settings.
Brightness Move the cursor to adjust the brightness of the screen and/or of the instrument panel.
Save the settings.
