tow bar Citroen GRAND C4 PICASSO RHD 2017 2.G User Guide

265

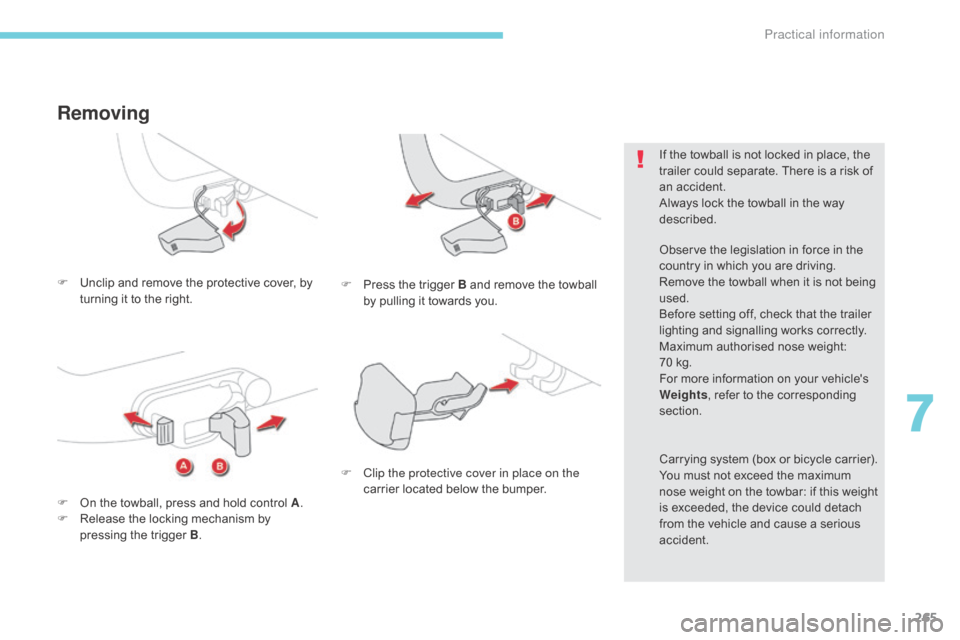

F Unclip and remove the protective cover, by turning it to the right.
Removing
F Press the trigger B and remove the towball by pulling it towards you.
F

O

n the towball, press and hold control A .
F

R

elease the locking mechanism by
pressing the trigger B . If the towball is not locked in place, the
trailer could separate. There is a risk of
an accident.
Always lock the towball in the way
described.
Observe the legislation in force in the
country in which you are driving.
Remove the towball when it is not being
used.
Before setting off, check that the trailer
lighting and signalling works correctly.
Maximum authorised nose weight:
70
kg.
For more information on your vehicle's
Weights , refer to the corresponding
section.
Carrying system (box or bicycle carrier).
You must not exceed the maximum
nose weight on the towbar: if this weight
is exceeded, the device could detach
from the vehicle and cause a serious
accident.
F

C
lip the protective cover in place on the
carrier located below the bumper.
7
Practical information

266

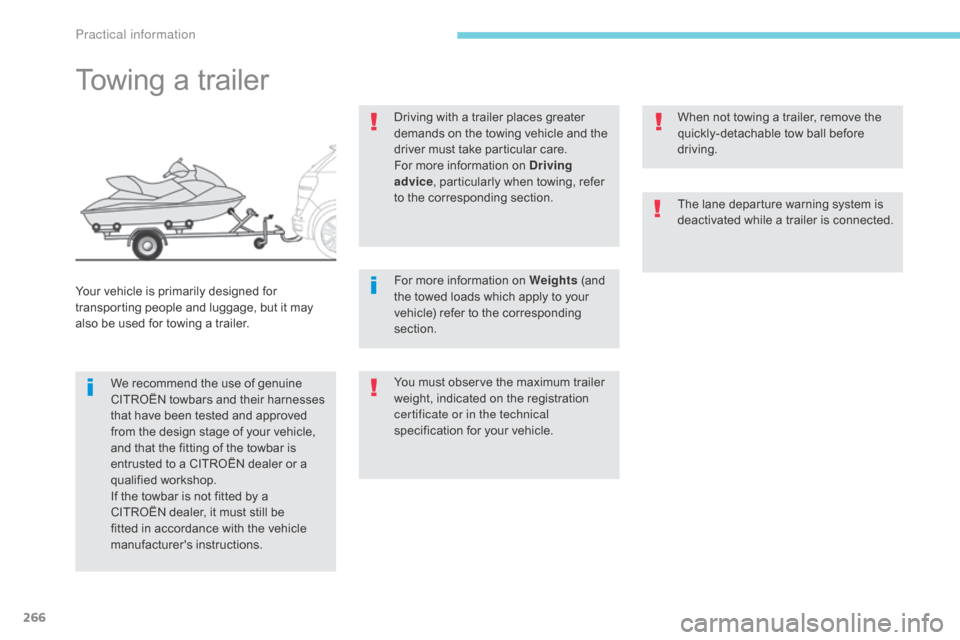

Towing a trailer
We recommend the use of genuine
CITROËN towbars and their harnesses
that have been tested and approved
from the design stage of your vehicle,
and that the fitting of the towbar is
entrusted to a CITROËN dealer or a
qualified workshop.
If the towbar is not fitted by a
CITROËN dealer, it must still be
fitted in accordance with the vehicle
manufacturer's instructions.
Your vehicle is primarily designed for
transporting people and luggage, but it may
also be used for towing a trailer.
Driving with a trailer places greater
demands on the towing vehicle and the
driver must take particular care.
For more information on Driving
advice
, particularly when towing, refer
to the corresponding section.
For more information on Weights (and
the towed loads which apply to your
vehicle) refer to the corresponding
section.
You must observe the maximum trailer
weight, indicated on the registration
certificate or in the technical
specification for your vehicle. When not towing a trailer, remove the
quickly-detachable tow ball before
driving.
The lane departure warning system is
deactivated while a trailer is connected.
Practical information

320
Towing another vehicle
F On the rear bumper, unclip the cover by pressing at the bottom.
F

S
crew the towing eye in fully.
F

I
nstall the towing bar.
F

S
witch on the hazard warning lamps on
both vehicles.
F

M
ove off gently, drive slowly and for a short
distance.
F
O
n the front bumper, unclip the cover using
the tool fixed on the towing eye.
F

S

crew the towing eye in fully.
F

I

nstall the towing bar.
F

P

lace the gear lever in neutral (position N
with an automatic gearbox).
Towing your vehicle
Failure to observe this instruction could
result in damage to certain components
(braking, transmission, etc.) and the
absence of braking assistance the next
time the engine is started.
F

U

nlock the steering by turning the key
in the ignition one notch and release the
parking brake.
F

S

witch on the hazard warning lamps on
both vehicles.
F

M

ove off gently, drive slowly and for a short
distance.
In the event of a breakdown

324
* The weight values are calculated with a towbar.
** The kerb weight is equal to the unladen weight + driver (75 kg).
***
T
he weight of the braked trailer can be increased, within the GTW limit, if the GV W of the towing vehicle is reduced by an equal amount; warning,
towing using a lightly loaded towing vehicle may have an adverse effect on its road holding.
Petrol engine
PureTech 110 S&S*PureTech 130 S&S*
Gearbox Manual (6-speed)Manual (6-speed)EAT6 automatic (6 -speed)
Model code 3D
3D... 3E... 3A... 3D... 3E... 3A...
HNX...
M/1S - M/2SM HNY…
M/1S - M/2SM HNY…
T/1S - T/2S
Unladen weight 1 2801 280 - 1 295 - 1 297 1 298 - 1 315 - 1 317
Kerb weight** 1 3551 355 - 1 370 - 1 372 1 373 - 1 390 - 1 392
Gross vehicle weight (GV W) 1 9051 905 - 2 075 - 2 125 1 918 -1 957 - 2 136
Gross train weight (GTW)
on a 12% gradient 3 035
3 175 - 3 125 - 3 175 3 188 - 3 007 - 3 186
Braked trailer (within the GTW limit)
on a 10% or 12% gradient 1 130
1 270 - 1 050 - 1 050 1 270 - 1 050 - 1 050
Braked trailer*** (with load transfer within the
GTW limit) 1 330
1 470 - 1 350 - 1 350 1 470 - 1 350 - 1 350
Unbraked trailer 640640 - 647 - 648 640 - 647 - 648
Recommended nose weight 707070
Petrol weights and towed loads (in kg)
The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned must be reduced by 10 % for
each additional 1 000 metres of altitude.
When towing, the speed must never exceed 60 mph (100 km/h) (comply with the legislation in force in your country).
High exterior temperatures may result in a reduction in the per formance of the vehicle to protect the engine; if the exterior temperature is above 37 °C,
limit the towed load.
Technical data

328
Diesel weights and towed loads (in kg)
The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned must be reduced by 10 % for
each additional 1 000 metres of altitude.
When towing, the speed must never exceed 60 mph (100 km/h) (comply with the legislation in force in your country).
High exterior temperatures may result in a reduction in the per formance of the vehicle to protect the engine; if the exterior temperature is above 37 °C,
limit the towed load.Diesel engine
HDi 115BlueHDi 100 S&S*
Gearbox Manual (6-speed)Manual (6-speed)
Model code 3D... 3E... 3A...
3D... 3E... 3A...3D... 3E... 3A...
9HC8 9HC8/1 BHY...
6/1S - 6/2SM
Unladen weight 1290 - 1 310 - 1 3121 298 - 1 318 - 1 320 1 296 - 1 318 - 1 320
Kerb weight** 1 365 - 1 385 - 1 3871 373 - 1 393 - 1 395 1 371 - 1 393 - 1 395
Gross vehicle weight (GV W) 1 940 - 2 110 - 2 1501 940 - 2 110 - 2 1501 950 - 2 120 - 2 175
Gross train weight (GTW)
on a 12% gradient 3 340 - 3 350 - 3 350
2 740 - 2 910 - 2 9503 150 - 3 120 - 3 175
Braked trailer (within the GTW limit)
on a 10% or 12% gradient 1 400 - 1240 - 1 200
8001 200 - 1 000 - 1 000
Brakes trailer***
(with load transfer within the GTW limit) 1 600 - 1 540 - 1 500
8001 400 - 1 300 - 1 300
Unbraked trailer 680 - 690 - 690685 - 695 - 695645 - 659 - 660
Recommended nose weight 707070
* The weights are calculated with a towbar fitted.
** The kerb weight is equal to the unladen weight + driver (75 kg).
***
T
he weight of the braked trailer can be increased, within the GTW limit, if the GV W of the towing vehicle is reduced by an equal amount; warning,
towing using a lightly loaded towing vehicle may have an adverse effect on its road holding.
Technical data
