Over view

11
Touch screen
The touch screen gives access to:
- t he heating/air conditioning controls,
-

t
he menus for adjusting settings for vehicle
functions and systems,
-

t
he audio system and telephone controls
and the display of associated information,
For safety reasons, the driver must
only carry out operations that
require close attention with the
vehicle stationary.
Some functions are not accessible
when driving.General operation
Recommendations
Use is possible in all temperatures.
Do not use pointed objects on the touch
screen.
Do not touch the touch screen with wet hands.
Use a soft clean cloth to clean the touch
screen.
Use this button to return to the
previous page.
Use this button to confirm.
Principles
Use the buttons on either side of the touch
screen for access to the menus, then press the
virtual buttons in the touch screen.
Certain functions may be displayed over 1 or
2 pages.
To deactivate/activate a function, press OFF/ON.
To modify a setting (lighting duration, etc.) or
access additional information, press the symbol
for the function.After a few moments with no action on
the secondary page, the primary page
is displayed automatically.
and, depending on equipment, allows:
-

t

he display of alert messages and the
visual parking sensors information,
-

t

he permanent display of the time and the
exterior temperature (a blue warning lamp
appears when there is a risk of ice),
-

a

ccess to the controls for the navigation
system and Internet services, and the
display of associated information.
1
Instruments

15
Driving function tab
Corresponding functionComments
Adjusting Speeds Memorisation of speed settings for the speed limiter, cruise control or dynamic cruise control.
Under-inflation initialization Reinitialisation of the under-inflation system.
Diagnostic List of current alerts.
Help with changing lane Activation/deactivation of the "active lane departure warning" function.
Parking sensors Activation/deactivation of the function.
Automatic headlamp dipping Activation/deactivation of the "Automatic headlamps" function.
Stop & Star t Activation/deactivation of the function.
Blind spot sensors Activation/deactivation of the function.
Panoramic visual aid Activation/deactivation of the function then choice of options.
Cruise control active Choice of the standard cruise control or the dynamic cruise control.
Traction control Activation/deactivation of the function.
For more information on one of these functions, refer to the corresponding section.
1
Instruments

94

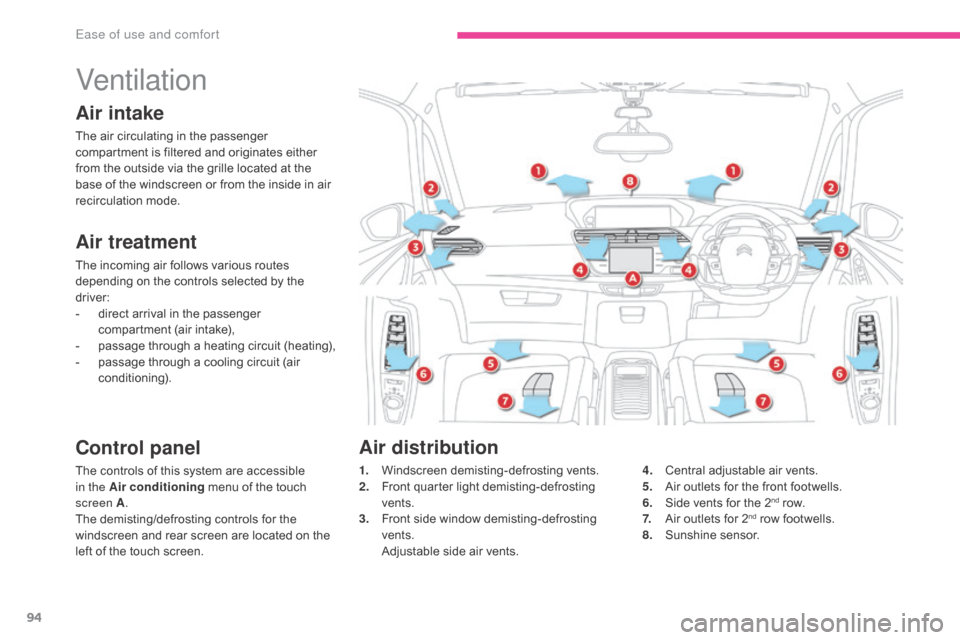

Ventilation

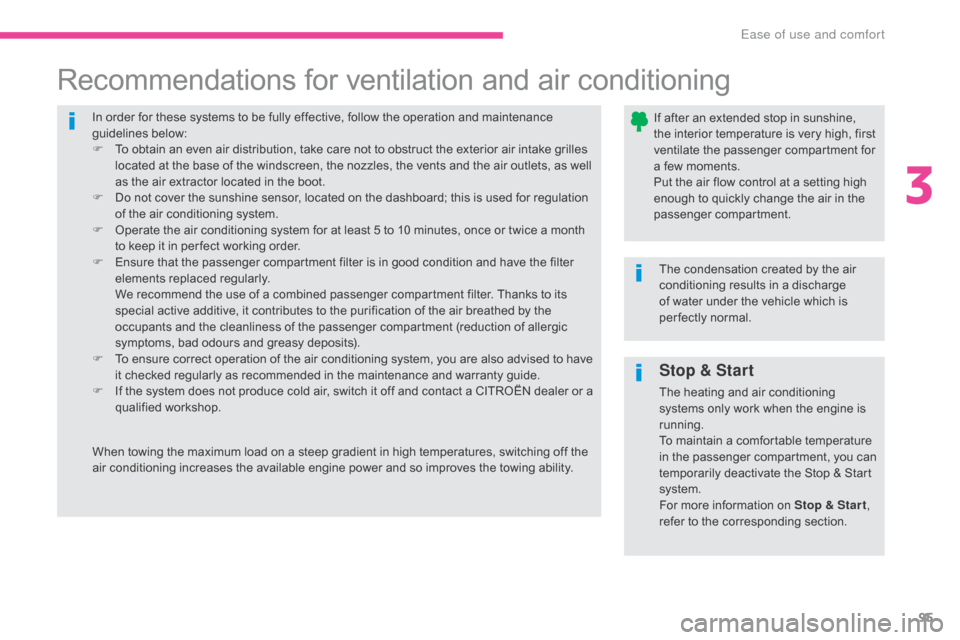

Air intake
The air circulating in the passenger
compartment is filtered and originates either
from the outside via the grille located at the
base of the windscreen or from the inside in air
recirculation mode.
Air treatment
The incoming air follows various routes
depending on the controls selected by the
driver:
-
d
irect arrival in the passenger
compartment (air intake),
-

p
assage through a heating circuit (heating),
-

p
assage through a cooling circuit (air
conditioning).
Control panel
The controls of this system are accessible
in the Air conditioning menu of the touch
screen


A.
The demisting/defrosting controls for the
windscreen and rear screen are located on the
left of the touch screen. 1. W
indscreen demisting-defrosting vents.
2. F ront quarter light demisting-defrosting
vents.
3.
F

ront side window demisting-defrosting
vents.
A

djustable side air vents.4. C
entral adjustable air vents.
5. A ir outlets for the front footwells.
6.
S

ide vents for the 2
nd row.
7. A
ir outlets for 2nd row footwells.
8. S
unshine sensor.
Air distribution
Ease of use and comfort

95
In order for these systems to be fully effective, follow the operation and maintenance
guidelines below:
F
T
o obtain an even air distribution, take care not to obstruct the exterior air intake grilles
located at the base of the windscreen, the nozzles, the vents and the air outlets, as well
as the air extractor located in the boot.
F

D
o not cover the sunshine sensor, located on the dashboard; this is used for regulation
of the air conditioning system.
F

O
perate the air conditioning system for at least 5 to 10 minutes, once or twice a month
to keep it in per fect working order.
F

E
nsure that the passenger compartment filter is in good condition and have the filter
elements replaced regularly.
W

e recommend the use of a combined passenger compartment filter. Thanks to its
special active additive, it contributes to the purification of the air breathed by the
occupants and the cleanliness of the passenger compartment (reduction of allergic
symptoms, bad odours and greasy deposits).
F

T
o ensure correct operation of the air conditioning system, you are also advised to have
it checked regularly as recommended in the maintenance and warranty guide.
F

I
f the system does not produce cold air, switch it off and contact a CITROËN dealer or a
qualified workshop.
Recommendations for ventilation and air conditioning
If after an extended stop in sunshine,
the interior temperature is very high, first
ventilate the passenger compartment for
a few moments.
Put the air flow control at a setting high
enough to quickly change the air in the
passenger compartment.
The condensation created by the air
conditioning results in a discharge
of water under the vehicle which is
per fectly normal.
When towing the maximum load on a steep gradient in high temperatures, switching off the
air conditioning increases the available engine power and so improves the towing ability.
Stop & Start
The heating and air conditioning
systems only work when the engine is
running.
To maintain a comfortable temperature
in the passenger compartment, you can
temporarily deactivate the Stop & Start
system.
For more information on Stop & Star t ,
refer to the corresponding section.
3
Ease of use and comfort

123
When towing
Distribution of loads
F Distribute the load in the trailer so that the heaviest items are as close as possible to
the axle and the nose weight approaches the
maximum permitted without exceeding it.
Air density decreases with altitude, thus
reducing engine per formance. Above
1
000 metres, the maximum towed load must
be reduced by 10
% for every 1 000 metres of
altitude.
Side wind
F Take into account the increased sensitivity to side wind.For more information on Weights
, refer
to the corresponding section.
The rear parking sensors will be
deactivated automatically to avoid the
audible signal if a genuine CITROËN
towbar is used.
Cooling
Towing a trailer on a slope increases the
temperature of the coolant.
As the fan is electrically controlled, its cooling
capacity is not dependent on the engine speed.
F
T
o lower the engine speed, reduce your
speed.
The maximum towed load on a long incline
depends on the gradient and the exterior
temperature.
In all cases, keep a check on the coolant
temperature.
F

I
f the warning lamp and the
STOP warning lamp come on,
stop the vehicle and switch off
the engine as soon as possible.
Braking
Towing a trailer increases the braking distance.
To avoid overheating of the brakes, the use of
engine braking is recommended.
Ty r e s
F Check the tyre pressures of the towing vehicle and of the trailer, observing the
recommended pressures.
Lighting
F Check the electrical lighting and signalling on the trailer and the headlamp beam
height of your vehicle.
For more information on Adjusting the
headlamp beam height , refer to the
corresponding section.
4
Driving

179

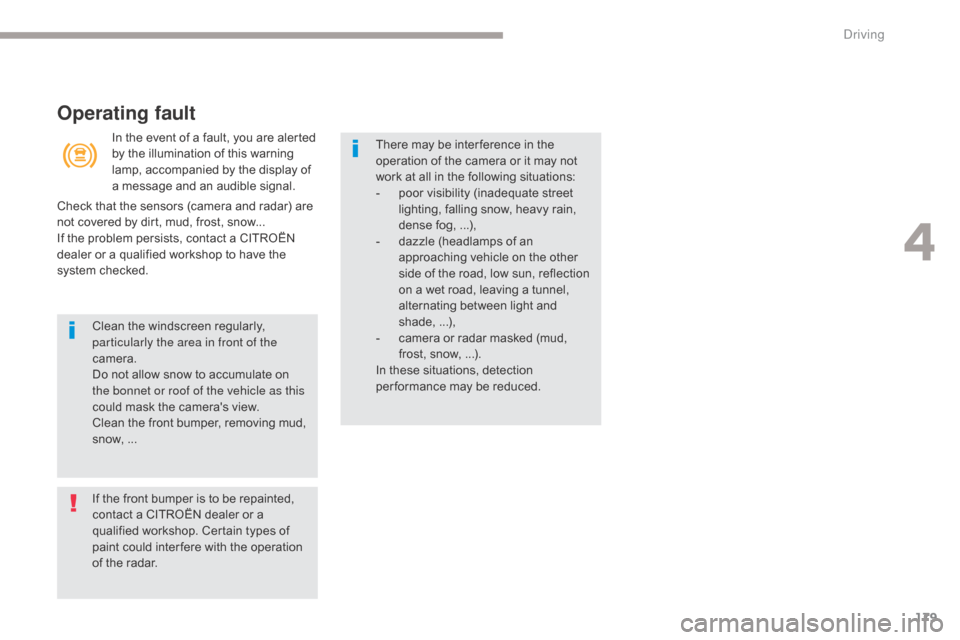

Operating fault
In the event of a fault, you are alerted
by the illumination of this warning
lamp, accompanied by the display of
a message and an audible signal.
If the front bumper is to be repainted,
contact a CITROËN dealer or a
qualified workshop. Certain types of
paint could inter fere with the operation
of the radar. Clean the windscreen regularly,
particularly the area in front of the
camera.
Do not allow snow to accumulate on
the bonnet or roof of the vehicle as this
could mask the camera's view.
Clean the front bumper, removing mud,
snow, ... There may be inter ference in the
operation of the camera or it may not
work at all in the following situations:
-

p
oor visibility (inadequate street
lighting, falling snow, heavy rain,
dense fog, ...),
-

d
azzle (headlamps of an
approaching vehicle on the other
side of the road, low sun, reflection
on a wet road, leaving a tunnel,
alternating between light and
shade, ...),
-

c
amera or radar masked (mud,
frost, snow, ...).
In these situations, detection
per formance may be reduced.
Check that the sensors (camera and radar) are
not covered by dirt, mud, frost, snow...
If the problem persists, contact a CITROËN
dealer or a qualified workshop to have the
system checked.
4
Driving

184

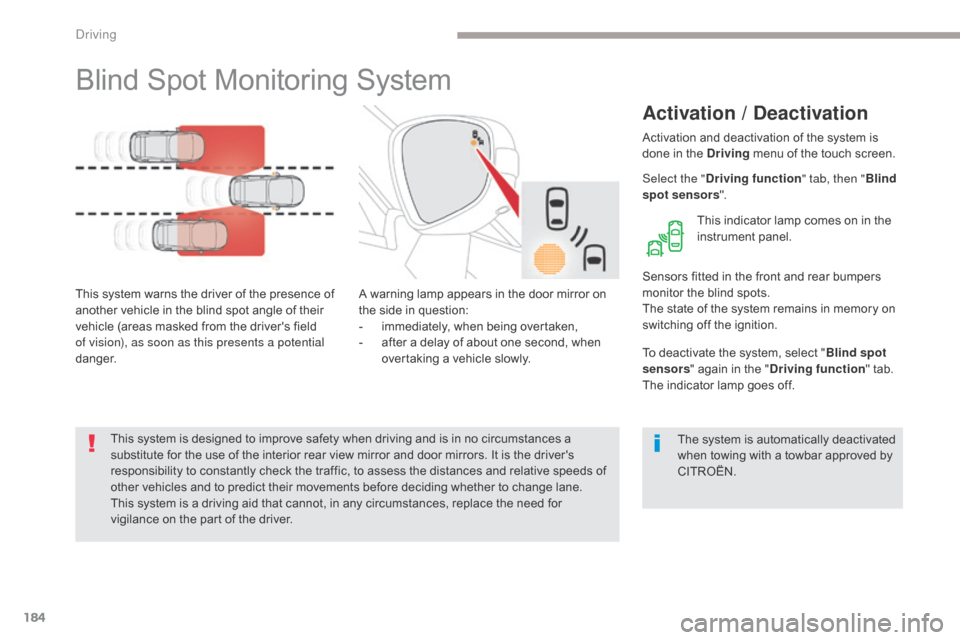

Blind Spot Monitoring System
Activation / Deactivation
A warning lamp appears in the door mirror on
the side in question:
-
i
mmediately, when being overtaken,
-

a
fter a delay of about one second, when
overtaking a vehicle slowly.
This system warns the driver of the presence of
another vehicle in the blind spot angle of their
vehicle (areas masked from the driver's field
of vision), as soon as this presents a potential
danger. Sensors fitted in the front and rear bumpers
monitor the blind spots.
The state of the system remains in memory on
switching off the ignition.
This system is designed to improve safety when driving and is in no circumstances a
substitute for the use of the interior rear view mirror and door mirrors. It is the driver's
responsibility to constantly check the traffic, to assess the distances and relative speeds of
other vehicles and to predict their movements before deciding whether to change lane.
This system is a driving aid that cannot, in any circumstances, replace the need for
vigilance on the part of the driver. Activation and deactivation of the system is
done in the Driving
menu of the touch screen.
Select the " Driving function " tab, then "Blind
spot sensors ".
This indicator lamp comes on in the
instrument panel.
To deactivate the system, select " Blind spot
sensors " again in the " Driving function " tab.
The indicator lamp goes off.
The system is automatically deactivated
when towing with a towbar approved by
CITROËN.
Driving

186

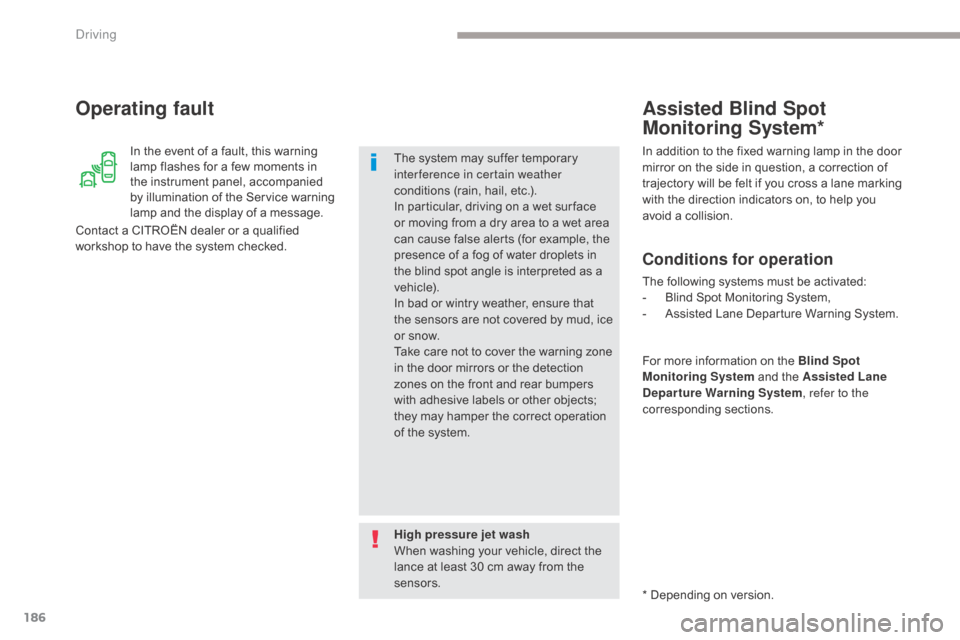

In the event of a fault, this warning
lamp flashes for a few moments in
the instrument panel, accompanied
by illumination of the Service warning
lamp and the display of a message.
Operating fault
Contact a CITROËN dealer or a qualified
workshop to have the system checked.The system may suffer temporary
interference in certain weather
conditions (rain, hail, etc.).
In particular, driving on a wet sur face
or moving from a dry area to a wet area
can cause false alerts (for example, the
presence of a fog of water droplets in
the blind spot angle is interpreted as a
vehicle).
In bad or wintry weather, ensure that
the sensors are not covered by mud, ice
or snow.
Take care not to cover the warning zone
in the door mirrors or the detection
zones on the front and rear bumpers
with adhesive labels or other objects;
they may hamper the correct operation
of the system.
High pressure jet wash
When washing your vehicle, direct the
lance at least 30 cm away from the
sensors.In addition to the fixed warning lamp in the door
mirror on the side in question, a correction of
trajectory will be felt if you cross a lane marking
with the direction indicators on, to help you
avoid a collision.
Conditions for operation
The following systems must be activated:
-
B lind Spot Monitoring System,
-

A
ssisted Lane Departure Warning System.
Assisted Blind Spot
Monitoring System*
For more information on the Blind Spot
Monitoring System and the Assisted Lane
Departure Warning System , refer to the
corresponding sections.
* Depending on version.
Driving
