Contents

8
Maintenance - Technical data
Petrol weights 324-325
Diesel weights 3 28 -329
Running out of fuel, Diesel
(priming

pump)

3

21
Checking levels

2

74-276
-

oil
-

b

rake fluid
-


coolant
-

s

creenwash fluid
Checking components

2

77-278
-

a

ir filter
-
p

assenger compartment filter
-

o

il filter
-

e

lectric parking brake
-

b

rake pads / discs
Changing bulbs
3

01-309
-

front
-

rear Opening the bonnet

2

71
Under the bonnet, petrol

2

72
Under the bonnet, Diesel

2

73
Petrol engines

3

22-323
Diesel engines

3

26 -327 Identification markings
3

31
Dimensions
3

30
12V battery

3

15 -318
Load reduction, economy mode

2

67
Engine compartment fuses 310 - 311, 314
Over view

322
Petrol enginePureTech 110 S&SPureTech 130 S&S
Gearbox Manual (6-speed)Manual (6-speed)EAT6 automatic (6 -speed)
Model code 3D
3D... 3E... 3A... 3D... 3E... 3A...
HNX...
M/1S - M/2SM HNY…
M/1S - M/2SM HNY…
T/1S - T/2S
Cubic capacity (cc) 1 199
Bore x stroke (mm) 75 x 90.5
Max power*: EU standard (kW) 96
Max power engine speed (rpm) 5 500
Max torque: EU standard (Nm) 230
Max torque engine speed (rpm) 1 750
Fuel Unleaded
Catalytic converter yes
Engine oil capacity (in litres)
(with filter replacement) 4.25

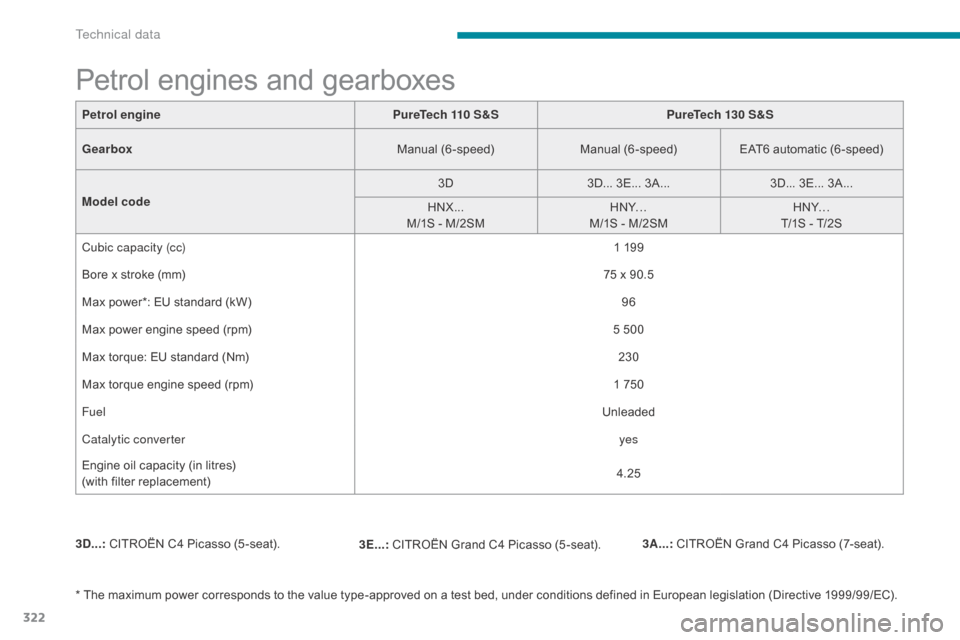

Petrol engines and gearboxes
3D...:
CITROËN C4 Picasso (5 -seat). 3A...: CITROËN Grand C4 Picasso (7-seat).
3E...: CITROËN Grand C4 Picasso (5 -seat).
* The maximum power corresponds to the value type-approved on a test bed, under conditions defined in European legislation (Directive 1999/99/EC).
Technical data

323
3D...: CITROËN C4 Picasso (5 -seat). 3A...: CITROËN Grand C4 Picasso (7-seat).
3E...: CITROËN Grand C4 Picasso (5 -seat).
* The maximum power corresponds to the value type-approved on a test bed, under conditions defined in European legislation (Directive 1999/99/EC).
** For Israel. Petrol engine
THP 150 / 160THP 165 S&S THP 165 S&S**
Gearbox EAT6 automatic (6 -speed) EAT6 automatic (6 -speed) EAT6 automatic (6 -speed)
Model code 3D... 3E... 3A...
3D... 3E... 3A...3D... 3E... 3A...
5GX - 5GY...
A-A/1-A/2-A/D- A/1D- A/2D- Y-Y/1-Y/ 2 5G Z T/S
5GY...
A /S - A /1S - A /2S
Cubic capacity (cc) 1 5981 5981 598
Bore x stroke (mm) 77 x 85.877 x 85.877 x 85.8
Max power*: EU standard (kW) 110 / 121121121
Max power engine speed (rpm) 6 0006 0006 000
Max torque: EU standard (Nm) 240240240
Max torque engine speed (rpm) 1 4001 4001 400
Fuel UnleadedUnleadedUnleaded
Catalytic converter yesyesyes
Engine oil capacity (in litres) (with filter
replacement) 4.25
4.254.25
9
Technical data

324
* The weight values are calculated with a towbar.
** The kerb weight is equal to the unladen weight + driver (75 kg).
***
T
he weight of the braked trailer can be increased, within the GTW limit, if the GV W of the towing vehicle is reduced by an equal amount; warning,
towing using a lightly loaded towing vehicle may have an adverse effect on its road holding.
Petrol engine
PureTech 110 S&S*PureTech 130 S&S*
Gearbox Manual (6-speed)Manual (6-speed)EAT6 automatic (6 -speed)
Model code 3D
3D... 3E... 3A... 3D... 3E... 3A...
HNX...
M/1S - M/2SM HNY…
M/1S - M/2SM HNY…
T/1S - T/2S
Unladen weight 1 2801 280 - 1 295 - 1 297 1 298 - 1 315 - 1 317
Kerb weight** 1 3551 355 - 1 370 - 1 372 1 373 - 1 390 - 1 392
Gross vehicle weight (GV W) 1 9051 905 - 2 075 - 2 125 1 918 -1 957 - 2 136
Gross train weight (GTW)
on a 12% gradient 3 035
3 175 - 3 125 - 3 175 3 188 - 3 007 - 3 186
Braked trailer (within the GTW limit)
on a 10% or 12% gradient 1 130
1 270 - 1 050 - 1 050 1 270 - 1 050 - 1 050
Braked trailer*** (with load transfer within the
GTW limit) 1 330
1 470 - 1 350 - 1 350 1 470 - 1 350 - 1 350
Unbraked trailer 640640 - 647 - 648 640 - 647 - 648
Recommended nose weight 707070

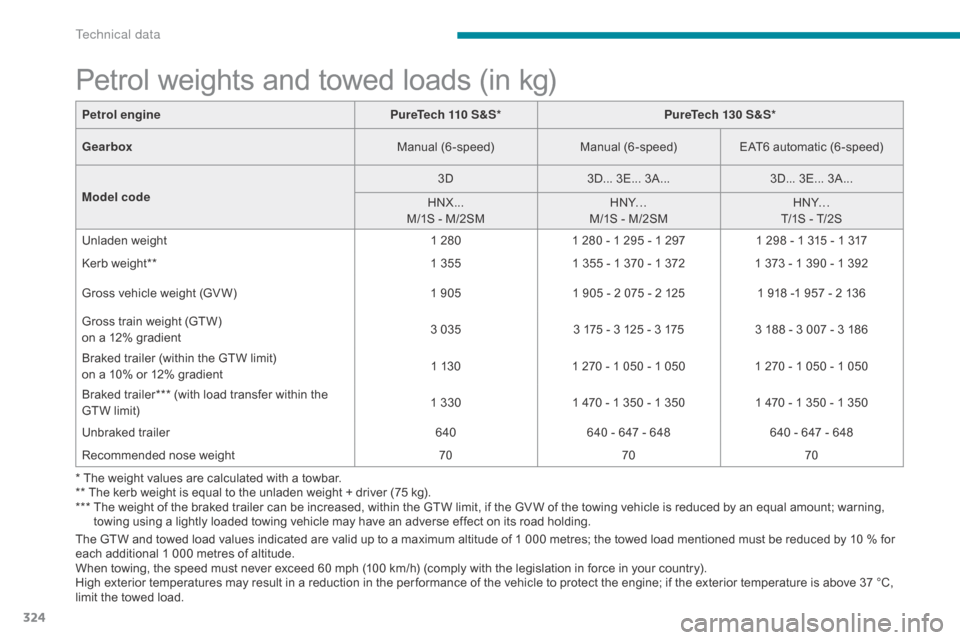

Petrol weights and towed loads (in kg)
The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned must be reduced by 10 % for
each additional 1 000 metres of altitude.
When towing, the speed must never exceed 60 mph (100 km/h) (comply with the legislation in force in your country).
High exterior temperatures may result in a reduction in the per formance of the vehicle to protect the engine; if the exterior temperature is above 37 °C,
limit the towed load.
Technical data

325
The weight of the braked trailer can be increased, within the GTW limit, if the GV W of the towing vehicle is reduced by an equal amount; warning,
towing using a lightly loaded towing vehicle may have an adverse effect on its road holding.
When towing, the speed must never exceed 60 mph (100 km/h) (comply with the legislation in force in your country).
High exterior temperatures may result in a reduction in the per formance of the vehicle to protect the engine; if the exterior temperature is above 37 °C,

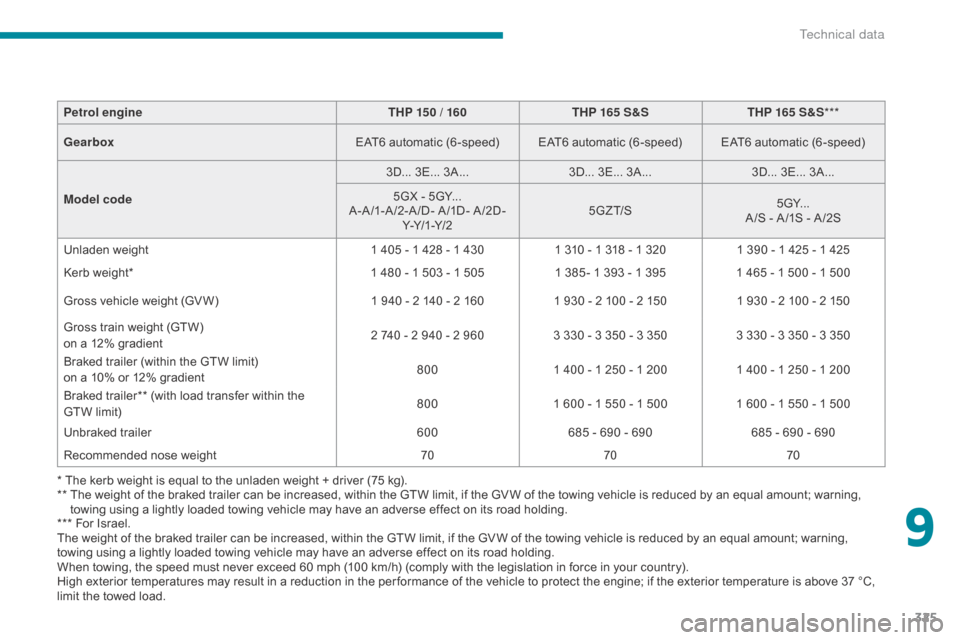

limit the towed load.Petrol engine
THP 150 / 160THP 165 S&STHP 165 S&S***
Gearbox EAT6 automatic (6 -speed) EAT6 automatic (6 -speed) EAT6 automatic (6 -speed)
Model code 3D... 3E... 3A...
3D... 3E... 3A...3D... 3E... 3A...
5GX - 5GY...
A-A/1-A/2-A/D- A/1D- A/2D- Y-Y/1-Y/ 2 5G Z T/S
5GY...
A /S - A /1S - A /2S
Unladen weight 1 405 - 1 428 - 1 4301 310 - 1 318 - 1 3201 390 - 1 425 - 1 425
Kerb weight* 1 480 - 1 503 - 1 5051 385 - 1 393 - 1 3951 465 - 1 500 - 1 500
Gross vehicle weight (GV W) 1 940 - 2 140 - 2 1601 930 - 2 100 - 2 1501 930 - 2 100 - 2 150
Gross train weight (GTW)
on a 12% gradient 2 740 - 2 940 - 2 960
3 330 - 3 350 - 3 350 3 330 - 3 350 - 3 350
Braked trailer (within the GTW limit)
on a 10% or 12% gradient 800
1 400 - 1 250 - 1 200 1 400 - 1 250 - 1 200
Braked trailer** (with load transfer within the
GTW limit) 800
1 600 - 1 550 - 1 500 1 600 - 1 550 - 1 500
Unbraked trailer 600685 - 690 - 690 685 - 690 - 690
Recommended nose weight 707070
* The kerb weight is equal to the unladen weight + driver (75 kg).
**
T
he weight of the braked trailer can be increased, within the GTW limit, if the GV W of the towing vehicle is reduced by an equal amount; warning,
towing using a lightly loaded towing vehicle may have an adverse effect on its road holding.
*** For Israel.
9
Technical data

326
Diesel engines and gearboxes
.../S: e-HDi model fitted with Stop & Start.
3D...: CITROËN C4 Picasso (5 -seat). 3E...:
CITROËN Grand C4 Picasso (5 -seat).
3A...: CITROËN Grand C4 Picasso (7-seat).
Diesel engine
HDi 115BlueHDi 100 S&S
Gearbox Manual (6-speed)Manual (6-speed)
Model code 3D... 3E... 3A...
3D... 3E... 3A...
9HC... 8 - 8/1 BHY...
6/1S - 6/2SM
Cubic capacity (cc) 1 5601 560
Bore x stroke (mm) 75 x 88.375 x 88.3
Max power*: EU standard (kW) 8573
Max power engine speed (rpm) 3 6003 750
Max torque: EU standard (Nm) 270254
Max torque engine speed (rpm) 1 7501 750
Fuel DieselDiesel
Catalytic converter yesyes
Particle filter noyes
Engine oil capacity, with filter replacement
(in litres) 3.75
3.75
* The maximum power corresponds to the value type-approved on a test bed, under conditions defined in European legislation (Directive 1999/99/EC).
Technical data

327

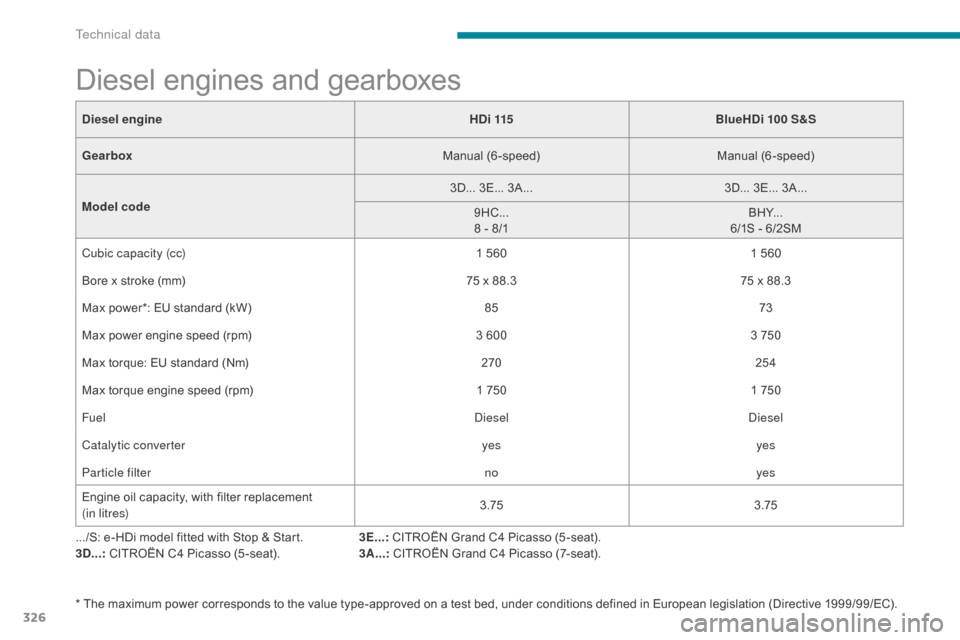

Diesel engines and gearboxes
.../S: e-HDi model fitted with Stop & Start.
3D...: CITROËN C4 Picasso (5 -seat). 3E...:
CITROËN Grand C4 Picasso (5 -seat).
3A...: CITROËN Grand C4 Picasso (7-seat).

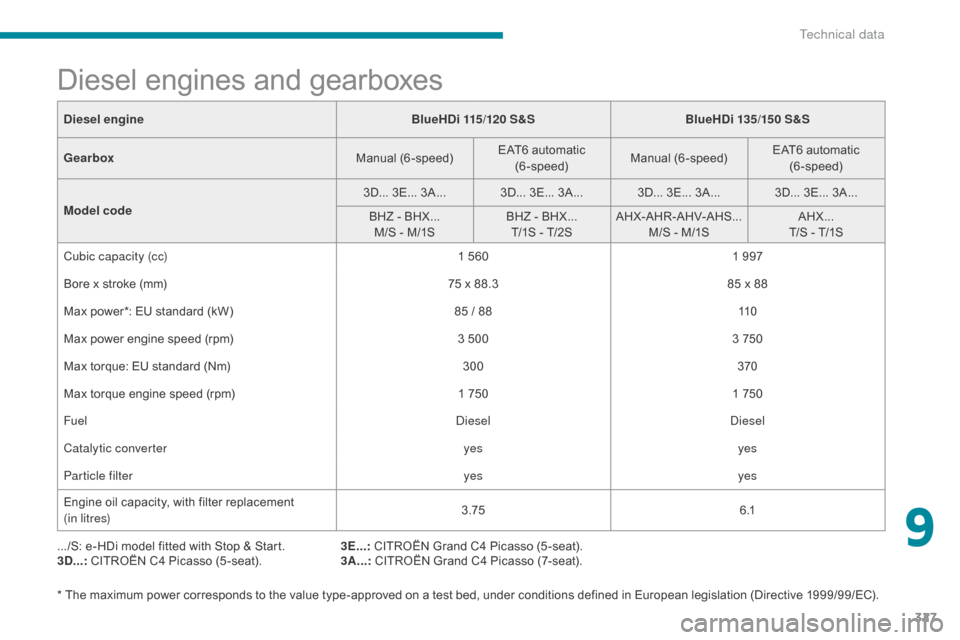

Diesel engine
BlueHDi 115/120 S&SBlueHDi 135/15 0 S&S
Gearbox Manual (6-speed)EAT6 automatic
(6-speed) Manual (6-speed) EAT6 automatic
(6-speed)
Model code 3D... 3E... 3A... 3D... 3E... 3A... 3D... 3E... 3A... 3D... 3E... 3A...
BHZ - BHX...M/S - M/1S BHZ - BHX...
T/1S - T/2S AHX-AHR-AHV-AHS...
M/S - M/1S AHX...
T/S - T/1S
Cubic capacity (cc) 1 5601 997
Bore x stroke (mm) 75 x 88.385 x 88
Max power*: EU standard (kW) 85 / 8811 0
Max power engine speed (rpm) 3 5003 750
Max torque: EU standard (Nm) 300370
Max torque engine speed (rpm) 1 7501 750
Fuel DieselDiesel
Catalytic converter yesyes
Particle filter yesyes
Engine oil capacity, with filter replacement
(in litres) 3.75
6 .1
* The maximum power corresponds to the value type-approved on a test bed, under conditions defined in European legislation (Directive 1999/99/EC).
9
Technical data

328

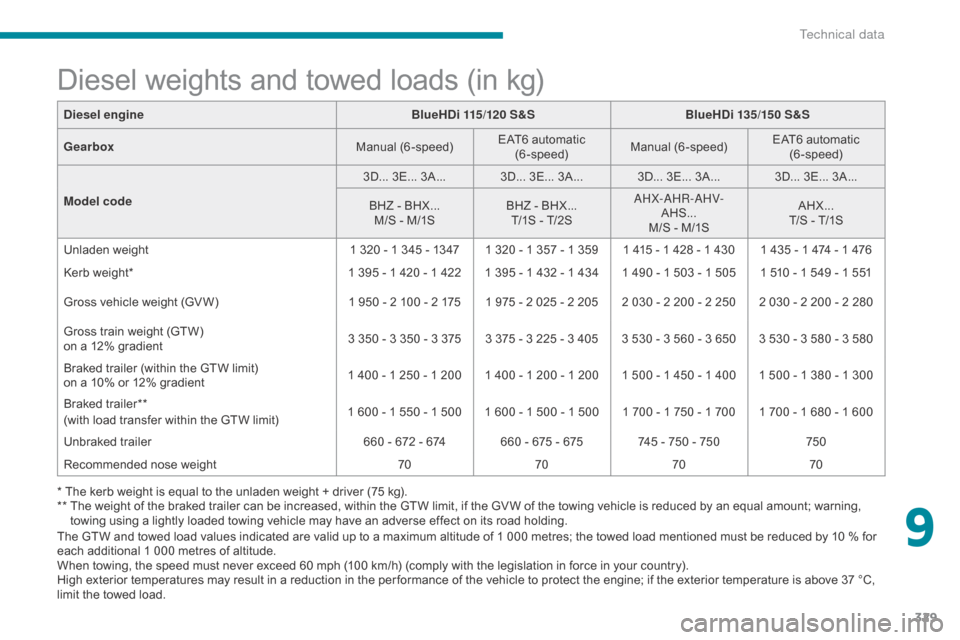

Diesel weights and towed loads (in kg)
The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned must be reduced by 10 % for
each additional 1 000 metres of altitude.
When towing, the speed must never exceed 60 mph (100 km/h) (comply with the legislation in force in your country).
High exterior temperatures may result in a reduction in the per formance of the vehicle to protect the engine; if the exterior temperature is above 37 °C,
limit the towed load.Diesel engine
HDi 115BlueHDi 100 S&S*
Gearbox Manual (6-speed)Manual (6-speed)
Model code 3D... 3E... 3A...
3D... 3E... 3A...3D... 3E... 3A...
9HC8 9HC8/1 BHY...
6/1S - 6/2SM
Unladen weight 1290 - 1 310 - 1 3121 298 - 1 318 - 1 320 1 296 - 1 318 - 1 320
Kerb weight** 1 365 - 1 385 - 1 3871 373 - 1 393 - 1 395 1 371 - 1 393 - 1 395
Gross vehicle weight (GV W) 1 940 - 2 110 - 2 1501 940 - 2 110 - 2 1501 950 - 2 120 - 2 175
Gross train weight (GTW)
on a 12% gradient 3 340 - 3 350 - 3 350
2 740 - 2 910 - 2 9503 150 - 3 120 - 3 175
Braked trailer (within the GTW limit)
on a 10% or 12% gradient 1 400 - 1240 - 1 200
8001 200 - 1 000 - 1 000
Brakes trailer***
(with load transfer within the GTW limit) 1 600 - 1 540 - 1 500
8001 400 - 1 300 - 1 300
Unbraked trailer 680 - 690 - 690685 - 695 - 695645 - 659 - 660
Recommended nose weight 707070
* The weights are calculated with a towbar fitted.
** The kerb weight is equal to the unladen weight + driver (75 kg).
***
T
he weight of the braked trailer can be increased, within the GTW limit, if the GV W of the towing vehicle is reduced by an equal amount; warning,
towing using a lightly loaded towing vehicle may have an adverse effect on its road holding.
Technical data

329

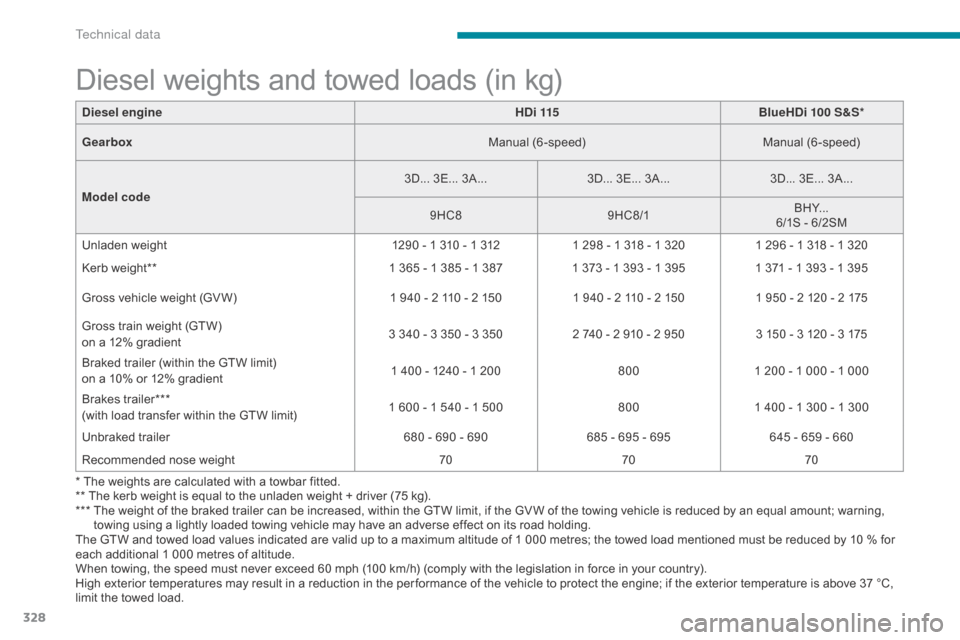

Diesel weights and towed loads (in kg)
* The kerb weight is equal to the unladen weight + driver (75 kg).
* * T he weight of the braked trailer can be increased, within the GTW limit, if the GV W of the towing vehicle is reduced by an equal amount; warning,
towing using a lightly loaded towing vehicle may have an adverse effect on its road holding.
The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned must be reduced by 10 % for
each additional 1 000 metres of altitude.
When towing, the speed must never exceed 60 mph (100 km/h) (comply with the legislation in force in your country).
High exterior temperatures may result in a reduction in the per formance of the vehicle to protect the engine; if the exterior temperature is above 37 °C,
limit the towed load. Diesel engine
BlueHDi 115/120 S&SBlueHDi 135/150 S&S
Gearbox Manual (6-speed)EAT6 automatic
(6-speed) Manual (6-speed) EAT6 automatic
(6-speed)
Model code 3D... 3E... 3A... 3D... 3E... 3A... 3D... 3E... 3A... 3D... 3E... 3A...
BHZ - BHX...M/S - M/1S BHZ - BHX...
T/1S - T/2S AHX-AHR-AHV-
AHS...
M/S - M/1S AHX...
T/S - T/1S
Unladen weight 1 320 - 1 345 - 1347 1 320 - 1 357 - 1 359 1 415 - 1 428 - 1 430 1 435 - 1 474 - 1 476
Kerb weight* 1 395 - 1 420 - 1 422 1 395 - 1 432 - 1 434 1 490 - 1 503 - 1 505 1 510 - 1 549 - 1 551
Gross vehicle weight (GV W) 1 950 - 2 100 - 2 175 1 975 - 2 025 - 2 205 2 030 - 2 200 - 2 250 2 030 - 2 200 - 2 280
Gross train weight (GTW)
on a 12% gradient 3 350 - 3 350 - 3 375 3 375 - 3 225 - 3 405 3 530 - 3 560 - 3 650 3 530 - 3 580 - 3 580
Braked trailer (within the GTW limit)
on a 10% or 12% gradient 1 400 - 1 250 - 1 200 1 400 - 1 200 - 1 200 1 500 - 1 450 - 1 400 1 500 - 1 380 - 1 300
Braked trailer**
(with load transfer within the GTW limit) 1 600 - 1 550 - 1 500 1 600 - 1 500 - 1 500 1 700 - 1 750 - 1 700 1 700 - 1 680 - 1 600
Unbraked trailer 660 - 672 - 674 660 - 675 - 675 745 - 750 - 750 750
Recommended nose weight 70707070
9
Technical data
