wiper blades Citroen GRAND C4 PICASSO RHD 2017 2.G Owner's Manual

220
Wiper control stalk
Programming
Your vehicle may also include some functions
that can be configured:
-
a
utomatic rain sensitive windscreen wipers,
-

r
ear wiping on engaging reverse gear.
Manual controls
Windscreen wipers
Fast wipe (heavy rain).
Normal wipe (moderate rain).
Intermittent wipe (proportional to the
speed of the vehicle).
Park.
Automatic wiping (press down,
then release).
Single wipe (pull the stalk briefly
towards you).
The wipers are controlled directly by the driver.
Wiping speed control stalk: raise or lower the
stalk to the desired position.
Without AUTO wiping
With AUTO wiping
Single wipe (press downwards or pull
the stalk briefly towards you, then
release).
or
In wintry conditions, remove snow, ice
or frost present on the windscreen,
around the wiper arms and blades and
the windscreen seal, before operating
the wipers.
Do not operate the wipers on a dry
windscreen. Under extremely hot or
cold conditions, ensure that the wiper
blades are not stuck to the windscreen
before operating the wipers. The front wiper system includes a
safety device which can temporarily
inhibit operation if it detects obstacles
such as ice or snow.
Lighting and visibility

224

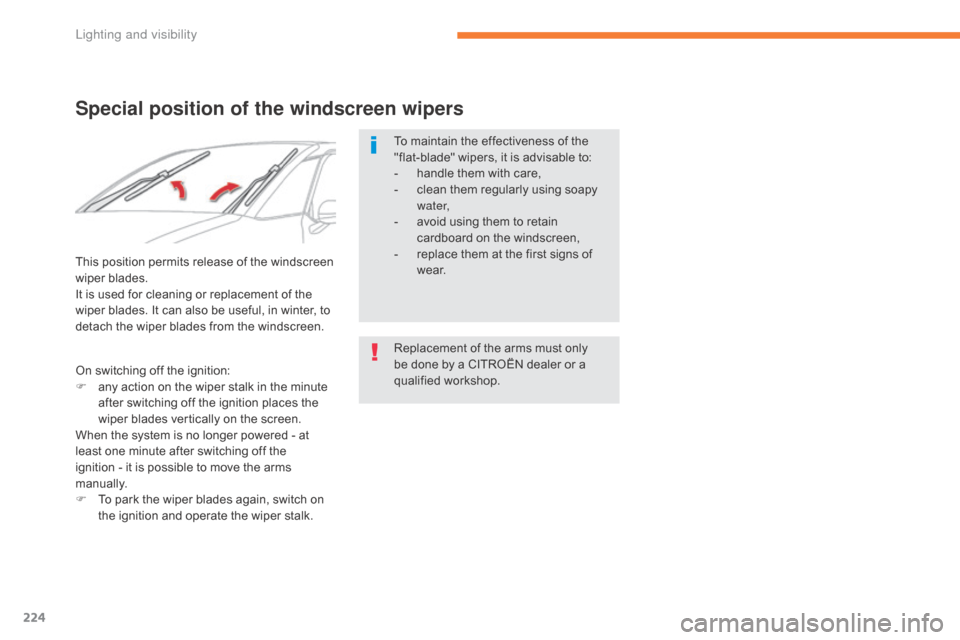

Special position of the windscreen wipers
To maintain the effectiveness of the
"flat-blade" wipers, it is advisable to:
-
h
andle them with care,
-

c
lean them regularly using soapy
water,
-

a
void using them to retain
cardboard on the windscreen,
-

r
eplace them at the first signs of
w e a r.
This position permits release of the windscreen
wiper blades.
It is used for cleaning or replacement of the
wiper blades. It can also be useful, in winter, to
detach the wiper blades from the windscreen.
On switching off the ignition:
F

a

ny action on the wiper stalk in the minute
after switching off the ignition places the
wiper blades vertically on the screen.
When the system is no longer powered - at
least one minute after switching off the
ignition

- it is possible to move the arms
manually.
F

T

o park the wiper blades again, switch on
the ignition and operate the wiper stalk. Replacement of the arms must only
be done by a CITROËN dealer or a
qualified workshop.
Lighting and visibility

268
Changing a wiper blade
F Within one minute after switching off the ignition, operate the wiper stalk to
position the wiper blades vertically on the
windscreen,


or
F

F
rom one minute after switching off the
ignition, reposition the arms manually.
Removing
F Raise the corresponding wiper arm.
F U nclip the wiper blade and remove it.
Fitting
F Put the corresponding new wiper blade in place and clip it.
F

F
old down the wiper arm carefully.
After fitting a front wiper
blade
F Switch on the ignition.
F O perate the wiper stalk again to park the
wiper blades.
Replacement of the arms must be done
by a CITROËN dealer or a qualified
workshop.
Before removing a front
wiper blade
Practical information

336

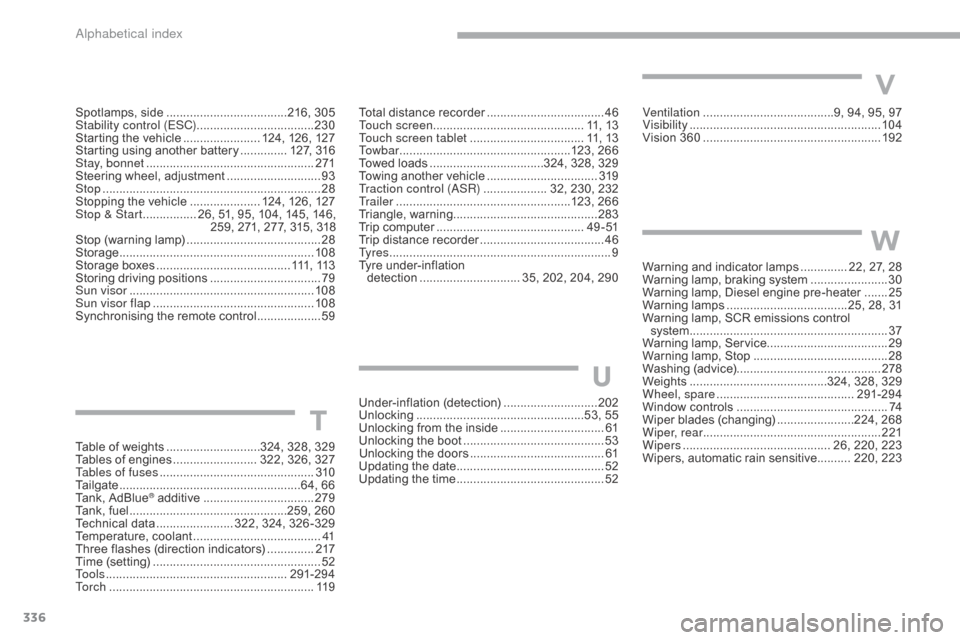

Spotlamps, side ....................................216, 305
Stability control (ESC) ...................................230
Starting the vehicle

....................... 1
24, 126, 127
Starting using another battery

.............. 1
27, 316
Stay, bonnet
...............................

...................271
Steering wheel, adjustment

............................93
St

op
...............
.................................................. 28
Stopping the vehicle

..................... 1
24, 126, 127
Stop & Start
................ 2

6, 51, 95, 104, 145, 146,
259, 271, 277, 315, 318
Stop (warning lamp)

........................................ 28
St

orage
................
.......................................... 108
Storage boxes
........................................ 111

, 113
Storing driving positions

.................................79
S

un visor
....................................................... 10

8
Sun visor flap

...............................
.................108
Synchronising the remote control

...................59
W
U
T
V
Warning and indicator lamps .............. 2 2, 27, 28
Warning lamp, braking system .......................3
0
Warning lamp, Diesel engine pre-heater

.......25
W

arning lamps
....................................2
5, 28, 31
Warning lamp, SCR emissions control system

................
........................................... 37
Warning lamp, Service.................................... 29
Warning lamp, Stop

........................................ 28
W

ashing (advice) ........................................... 278
Weights
...............

..........................324, 328, 329
Wheel, spare
......................................... 29

1-294
Window controls

............................................. 74
W

iper blades (changing)
.......................2
24, 268
Wiper, rear ..................................................... 221
Wipers
............................................ 2

6, 220, 223
Wipers, automatic rain sensitive

.......... 2
20, 223
Under-inflation (detection)
............................
2

02
Unlocking
..............................

....................53, 55
Unlocking from the inside

............................... 61
U

nlocking the boot

.......................................... 53
U

nlocking the doors

........................................ 61
U

pdating the date

............................................ 52
U

pdating the time

............................................ 52
T

able of weights

............................3

24, 328, 329
Tables of engines

......................... 3

22, 326, 327
Tables of fuses

.............................................. 3

10
Tailgate
................

......................................64, 66
Tank, AdBlue
® additive ................................. 2 79
Tank, fuel
............................... ................259, 260
Technical data
....................... 3

22, 324, 326 -329
Temperature, coolant
...................................... 41
T

hree flashes (direction indicators)
..............2

17
Time (setting)

..............................
....................52
To o l s
................

...................................... 291-294
To r c h
..............................

............................... 11 9Total distance recorder

...................................
46
T
ouch screen
............................................. 11, 13
Touch screen tablet
.................................. 1
1, 13
To w b a r
................
...................................123, 266
Towed loads
..................................3
24, 328, 329
Towing another vehicle
.................................
31
9
Traction control (ASR)
................... 3
2, 230, 232
Tr a i l e r
...............
.....................................123, 266
Triangle, warning ........................................... 283
Trip computer
............................................
4
9 - 51
Trip distance recorder
.....................................
46
T
y r e s
..............................................................
.... 9
Tyre under-inflation detection
...............
............... 35, 202, 204, 290
Ventilation
..............................
.........9, 94, 95, 97
Visibility
...............................
..........................
104
Vision 360
.....................................................
19
2
Alphabetical index
