brake pads Citroen JUMPER 2012 2.G Owner's Manual

Instruments and controls


Warning lamp
is
indicates
Solution - action
ESP flashing. that it is in operation.
on. its malfunction or failure of the
hill start assist.
Consult a CITROËN dealer.
Refer to the "Driving safety" section of chapter 5.
a fault with the Intelligent
Traction Control.
Anti-pollution on. the regeneration of the particle
emissions filter. It is recommended that you leave the engine running
until the warning lamp goes off so that regeneration can
be completed. Section 7, "Checks".
Emission control
system on. a fault with the system. Have the system checked by a CITROËN dealer without
delay.
Deactivation
of the front
passenger
airbag on. the intentional deactivation of
this airbag when a rear facing
child seat is installed. Configure via the trip computer MODE menu. Refer to
the "Mode" section of chapter 4.
Electronic
immobiliser on. the ignition key inserted is not
recognised.
The vehicle cannot be started. Use another key and have the faulty key checked by
a CITROËN dealer. Refer to the "Access" section of
chapter 2.
Front brake
pads on. brake pad wear. Have the pads replaced by a CITROËN dealer.

12
0


Checks


CHECKS
Air filter and passenger compartment filter

A clogged passenger compartment fi lter may
reduce the performance of the air conditioning
system and generate undesirable odours. The
replacement intervals for these components
are indicated in the servicing booklet.
Depending on the environment (dusty
atmosphere...) and the use of the vehicle
(urban driving...), change them twice as often
if necessary, refer to the "Under the bonnet"
section of chapter 7.


Manual gearbox

Have the level checked in accordance with
the manufacturer's servicing schedule.
To check the main levels and certain
components, in accordance with the
manufacturer's servicing schedule, refer to
the pages of the servicing booklet which
correspond to your vehicle's engine.
Only use products recommended by
CITROËN or products of equivalent quality
and specification.
In order to optimise the operation of units as
important as the braking system, CITROËN
selects and offers specific products.
In order to avoid damaging the electrical
units, high pressure washing to clean the
engine compartment is strictly prohibited.
Parking brake

Where the parking brake travel is too great
or there is a reduction in the performance
of the system, the parking brake should be
adjusted, even between services.
Have the system checked by a CITROËN
dealer.

Bleeding the water contained in
the Diesel filter
If this warning lamp comes on,
bleed the filter, otherwise bleed
regularly each time the engine oil
is changed.
To drain the water out, unscrew the bleed
screw or the water in Diesel sensor, located
at the base of the filter. Leave open until
all of the water has been drained out. Then
tighten the bleed screw or the water sensor.
HDi engines use advanced technology. All
work requires a special qualification which is
guaranteed by a CITROËN dealer.

Battery

At the start of winter, have your battery
checked by a CITROËN dealer.
Brake pads

Brake pad wear depends on the style of
driving, in particular for vehicles which are
used in town, over short distances. It may
be necessary to check the thickness of the
pads, even between services.
Unless there is a leak on the system, a drop
in the brake fluid level indicates that the
brake pads are worn.
Brake disc/drum wear status

For any information relating to checking
the brake disc/drum wear status, contact a
CITROËN dealer.


Oil filter

Change the filter regularly, in accordance
with the servicing schedule.

155

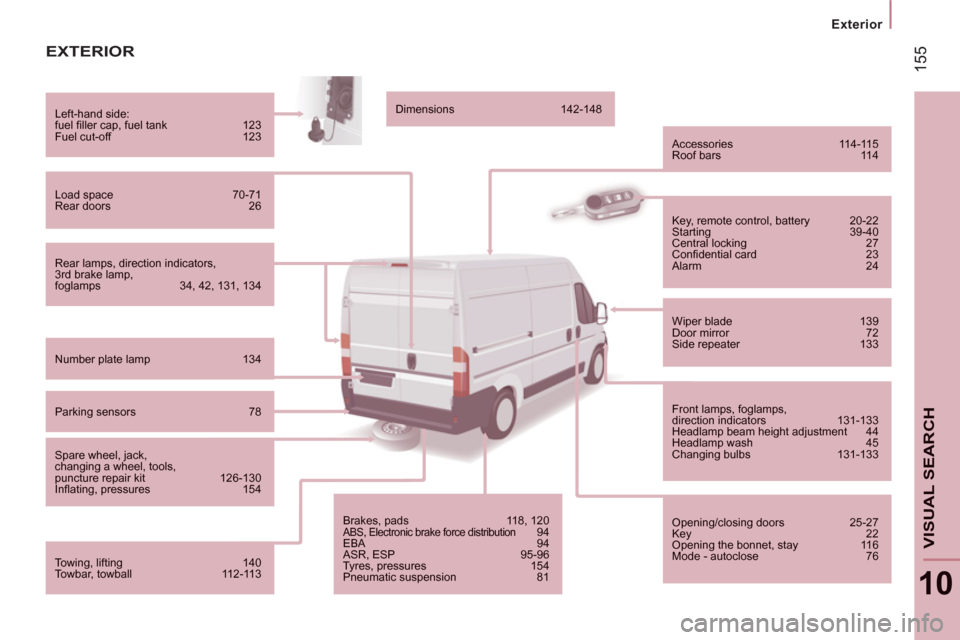

Exterior

10
VISUAL SEARCH
EXTERIOR
Rear lamps, direction indicators,3
rd brake lamp,foglamps 34, 42, 131, 134
Left-hand side:fuel fi ller cap, fuel tank 123 Fuel cut-off 123
Load space 70-71 Rear doors 26
Number plate lamp 134
Parking sensors 78
Spare wheel, jack, changing a wheel, tools, puncture repair kit 126-130 Infl ating, pressures 154
Towing, lifting 140 Towbar, towball 11 2-11 3

Dimensions 142-148

Accessories 114-11 5
Roof bars 11 4

Brakes, pads 11 8, 120ABS, Electronic brake force distribution94
EBA 94 ASR, ESP 95-96
Tyres, pressures 154
Pneumatic suspension 81

Key, remote control, battery 20-22 Starting 39-40
Central locking 27
Confi dential card 23
Alarm 24

Wiper blade 139
Door mirror 72
Side repeater 133

Front lamps, foglamps, direction indicators 131-133 Headlamp beam height adjustment 44
Headlamp wash 45 Changing bulbs 131-133
Opening/closing doors 25-27
Key 22 Opening the bonnet, stay 11 6
Mode - autoclose 76

159


Technical data - Maintenance

10
VISUAL SEARCH
Screenwash/headlamp wash, level 119
Bulbs, lighting,changing bulbs 131-133
Opening the bonnet, stay 11 6 Under the bonnet 117
Identifi cation markings,serial number, paint, tyres 154
Changing a wiper blade 139
Levels 118-119


●
dipstick,

●
power steering fluid,

●
brake fluid,

●
coolant.

Water bleed, Diesel fi lter 120
Checks 120-121


●
battery,

●
air/passenger compartment filter,

●
oil filter,

●
parking brake,

●
particle filter,

●
brake pads.
Emission control 36

Engine fuses 135, 138
TECHNICAL DATA - MAINTENANCE
Engine technical data 149 Dimensions 142-148 Weights 150-153
