Citroen JUMPER 2013 2.G Owner's Manual

QUICK HELP
8
Changing a fuse


Fuses


A (amps)

Allocation


54


-
Not used


55


15
Heated seats


56


15
Rear passenger 12 V socket


57


10
Programmable additional heating


58


10
Lateral sidelamps


59


7.5
Pneumatic suspension


60


-
Not used


61


-
Not used


62


-
Not used


63


10
Programmable additional heating switch


64


-
Not used


65


30
Programmable additional heating fan
DRIVER'S DOOR PILLAR FUSES



- Unclip the cover.

When you have finished, close the cover
carefully.

160


Changing a fuse

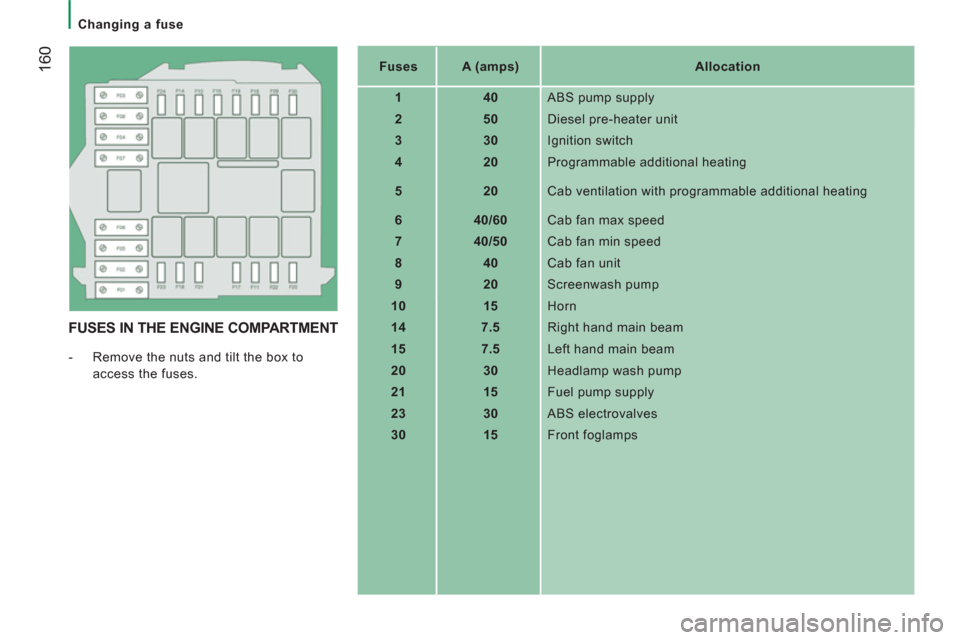

FUSES IN THE ENGINE COMPARTMENT



- Remove the nuts and tilt the box to
access the fuses.

Fuses


A (amps)

Allocation


1


40
ABS pump supply


2


50
Diesel pre-heater unit


3


30
Ignition switch


4


20
Programmable additional heating


5


20
Cab ventilation with programmable additional heating


6


40/60
Cab fan max speed


7


40/50
Cab fan min speed


8


40
Cab fan unit


9


20
Screenwash pump


10


15
Horn


14


7.5
Right hand main beam


15


7.5
Left hand main beam


20


30
Headlamp wash pump


21


15
Fuel pump supply


23


30
ABS electrovalves


30


15
Front foglamps

161
QUICK HELP
8


Changing a wiper blade

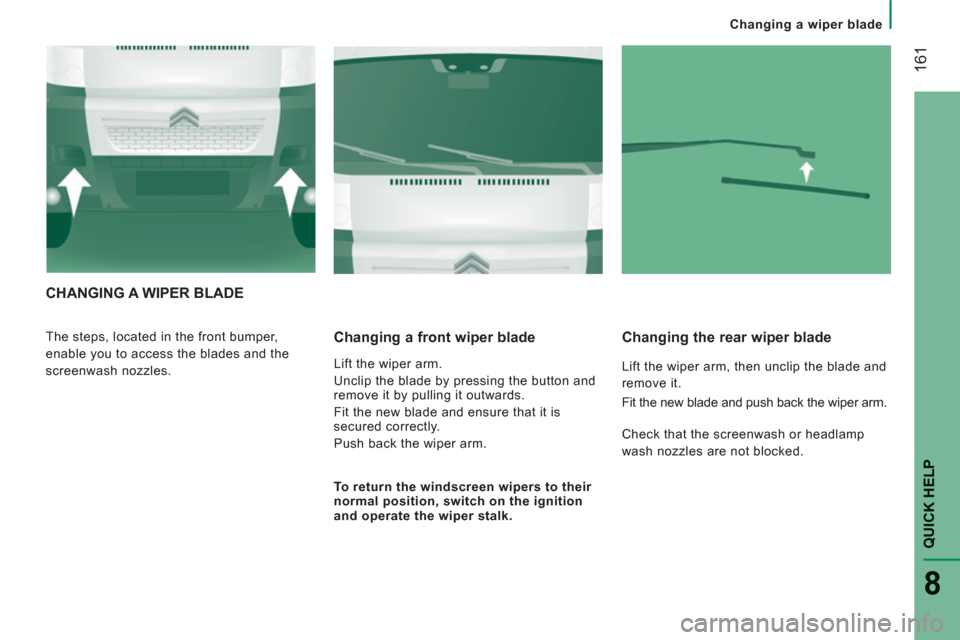

CHANGING A WIPER BLADE

The steps, located in the front bumper,
enable you to access the blades and the
screenwash nozzles.
Changing a front wiper blade

Lift the wiper arm.
Unclip the blade by pressing the button and
remove it by pulling it outwards.
Fit the new blade and ensure that it is
secured correctly.
Push back the wiper arm.
Changing the rear wiper blade

Lift the wiper arm, then unclip the blade and
remove it.
Fit the new blade and push back the wiper arm.

To return the windscreen wipers to their
normal position, switch on the ignition
and operate the wiper stalk.
Check that the screenwash or headlamp
wash nozzles are not blocked.

162


Having your vehicle towed


BEING TOWED
Without lifting (four wheels on the ground)

You must always use a towing bar.
From the rear

Hook the bar onto the rigid eye located
under the bumper.


From the front

The removable towing eye is located in the
box under the front passenger seat.
Unclip the cover using a flat tool.
Screw the removable towing eye in fully.
Place the gear lever in neutral. Failure to
observe this special condition may result in
damage to certain braking components and
the absence of braking assistance when the
engine is re-started.
With lifting(2 wheels only on the ground)

It is preferable to lift the vehicle using
professional lifting equipment.

When being towed with the engine
off, there is no braking or steering
assistance.

164


Dimensions

165
9
TECHNI
CAL DATA

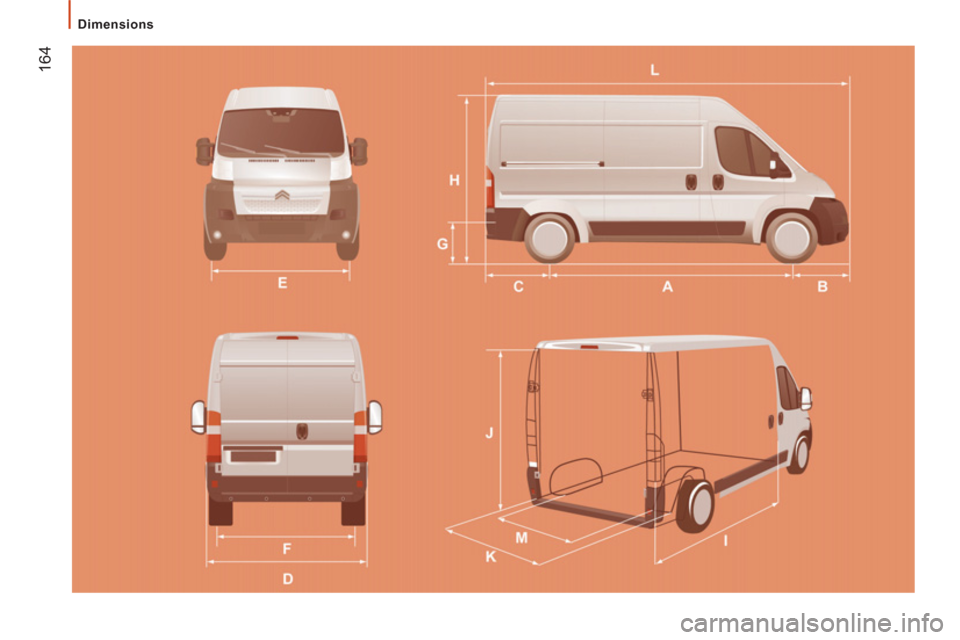

Dimensions

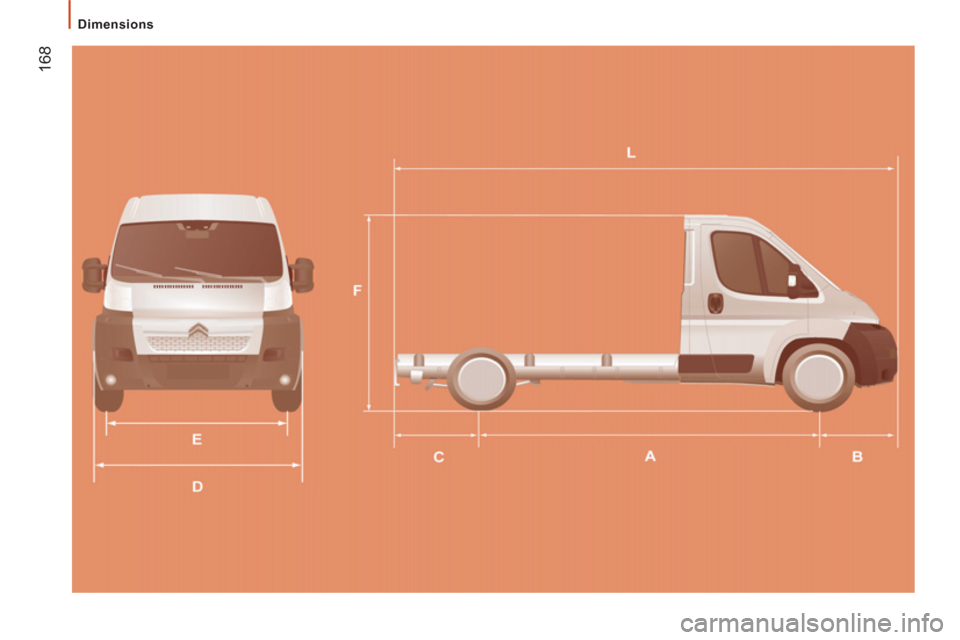

DIMENSIONS

Your vehicle is available in 4 lengths (L1..) and 3 heights (H1..), refer to the tables:






Va n






L1
L2
L3
L4





H1
H2
H1
H2
H2
H3
H2
H3

L Overall length
4 963
5 413
5 998
6 363

H Overall height
2 254
2 524
2 254
2 524
2 524
2 764
2 524
2 764

A Wheelbase
3 000
3 450
4 035

B Front overhang

948

C Rear overhang
1 015
1 380

D Overall width (excluding mirrors)
2 050

E Width of front track
1 810

F Width of rear track
1 790

G Height of load floor
535 to 565

I Length of interior floor
2 670
3 120
3 705
4 070

J Maximum interior load height
1 662
1 932
1 662
1 932
1 932
2 172
1 932
2 172

K Maximum interior width
1 870

M Interior width between wheel arches
1 422





Volume (m3)

8


9.5


10


11.5


13


15


15


17

166


Dimensions

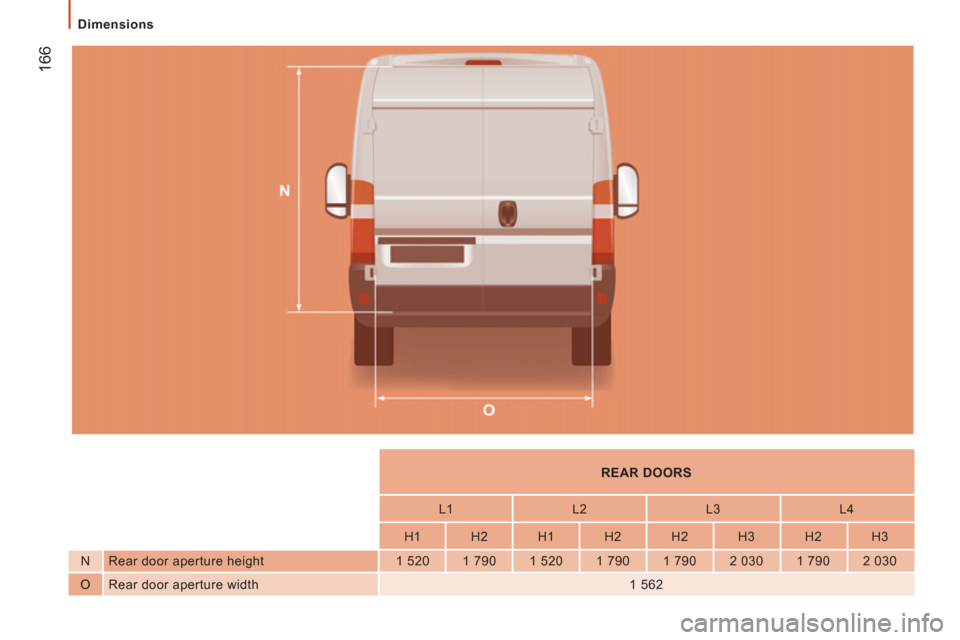

REAR DOORS






L1
L2
L3
L4





H1
H2
H1
H2
H2
H3
H2
H3

N Rear door aperture height
1 520
1 790
1 520
1 790
1 790
2 030
1 790
2 030

O Rear door aperture width
1 562

167
9
TECHNI
CAL DATA


Dimensions

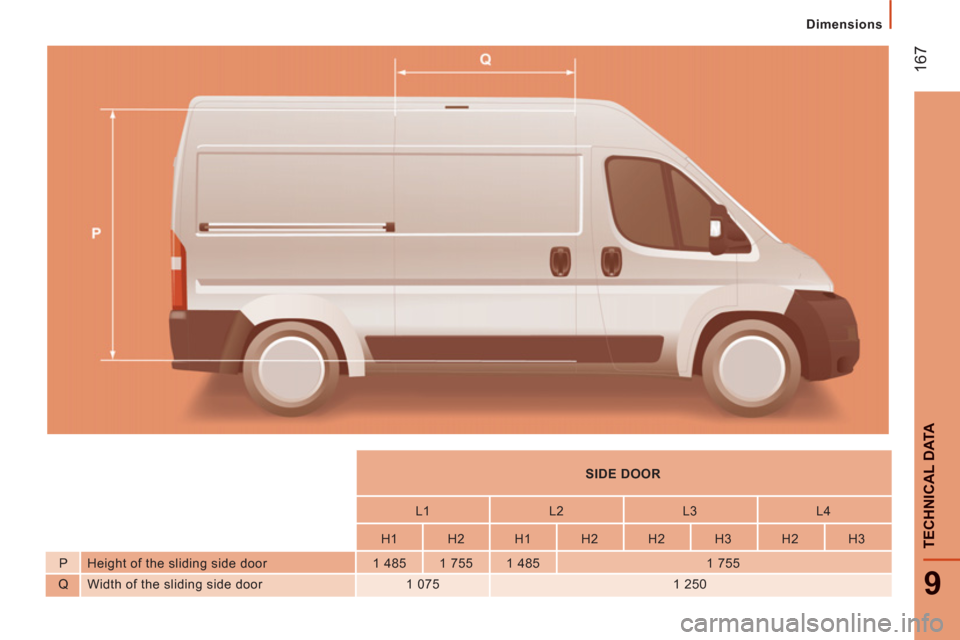

SIDE DOOR






L1
L2
L3
L4





H1
H2
H1
H2
H2
H3
H2
H3

P Height of the sliding side door
1 485
1 755
1 485
1 755

Q Width of the sliding side door
1 075
1 250

168
