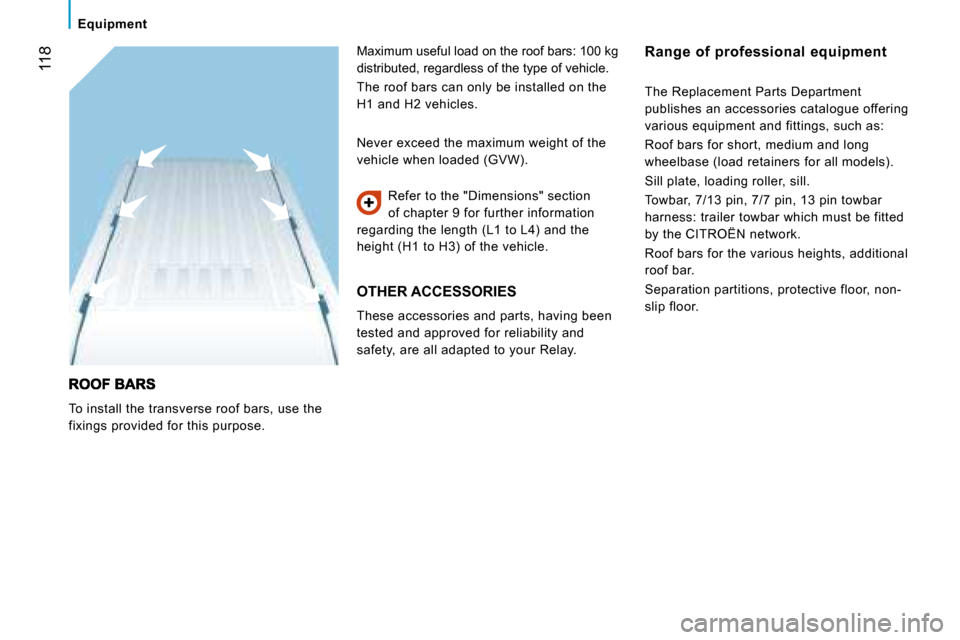

To install the transverse roof bars, use the
fixings provided for this purpose. Refer to the "Dimensions" section
of chapter 9 for further information
regarding the length (L1 to L4) and the
height (H1 to H3) of the vehicle.
Never exceed the maximum weight of the
vehicle when loaded (GVW).
Maximum useful load on the roof bars: 100 kg
distributed, regardless of the type of vehicle.
The roof bars can only be installed on the
H1 and H2 vehicles.
Equipment
118
OTHER ACCESSORIES
These accessories and parts, having been
tested and approved for reliability and
safety, are all adapted to your Relay. Range of professional equipment
The Replacement Parts Department
publishes an accessories catalogue offering
various equipment and fittings, such as:
Roof bars for short, medium and long
wheelbase (load retainers for all models).
Sill plate, loading roller, sill.
Towbar, 7/13 pin, 7/7 pin, 13 pin towbar
harness: trailer towbar which must be fitted
by the CITROËN network.
Roof bars for the various heights, additional
roof bar.
Separation partitions, protective floor, non-
slip floor.

146
Dimensions

147
9
TECHNICAL DATA
Dimensions
DIMENSIONS
The Relay is available in 4 lengths (L1..) and 3 heights (H1..), refer to the tables:

VAN
L1 L2 L3 L4
H1 H1 H2 H2 H3 H2 H3
L Overall length 4 963 5 413 5 998 6 363
H Overall height 2 254 2 254 2 524 2 524 2 764 2 52 4 2 764
A Wheelbase 3 000 3 450 4 035
B Front overhang 948
C Rear overhang 1 015 1 380
D Overall width (excluding mirrors) 2 050
E Width of front tracks 1 810
F Width of rear tracks 1 790
G Height of load sill 535 to 565
I Length of interior floor 2 670 3 120 3 705 4 070
J Maximum interior load height 1 662 1 662 1 932 1 932 2 172 1 932 2 172
K Maximum interior width 1 870
M Interior width between wheel arches 1 422

Volume (m 3
)
8 10 11.5 13 15 15 17

Dimensions

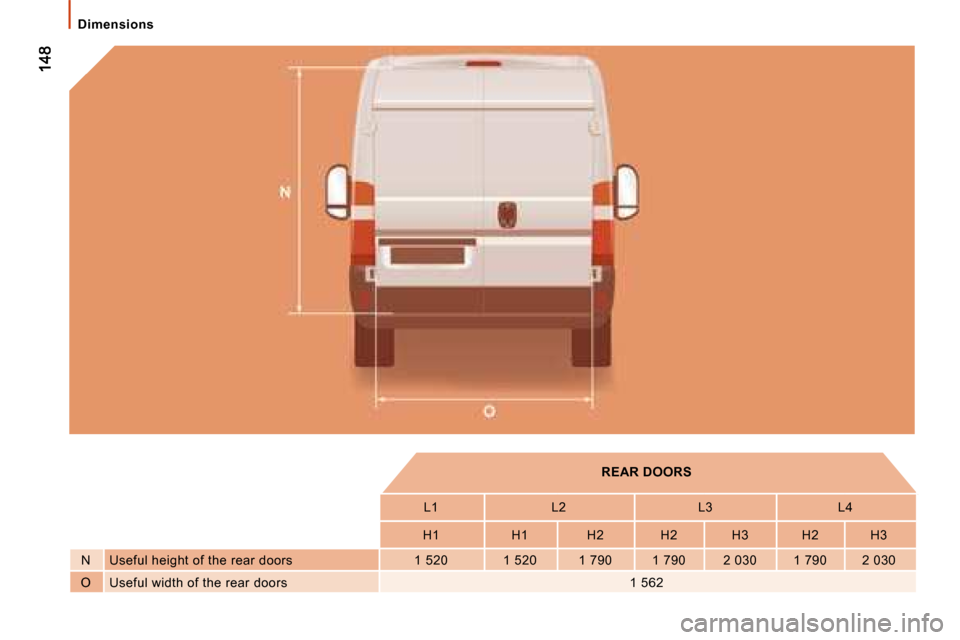

REAR DOORS
L1 L2 L3 L4
H1 H1 H2 H2 H3 H2 H3
N Useful height of the rear doors 1 520 1 5 20 1 790 1 790 2 030 1 790 2 030
O Useful width of the rear doors 1 562

9
TECHNICAL DATA
Dimensions

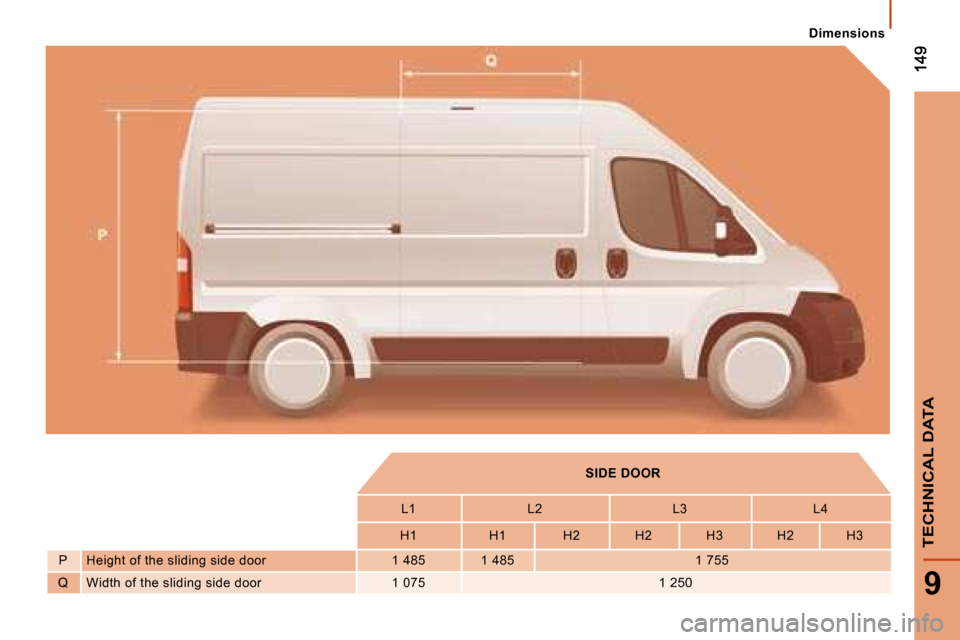

SIDE DOOR
L1 L2 L3 L4
H1 H1 H2 H2 H3 H2 H3
P Height of the sliding side door 1 485 1 4 85 1 755
Q Width of the sliding side door 1 075 1 250

150
Dimensions

9
TECHNICAL DATA
Dimensions

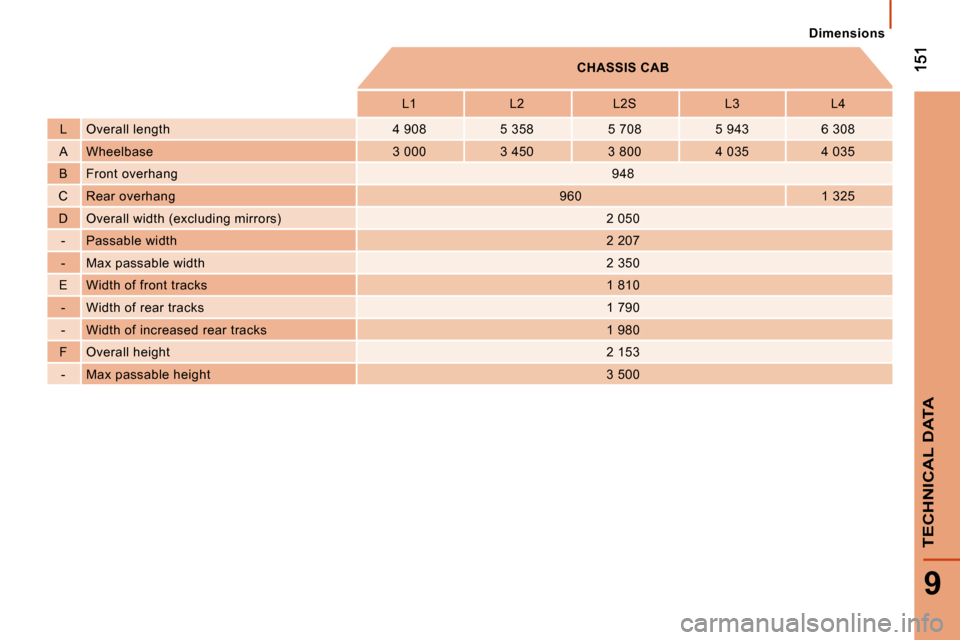

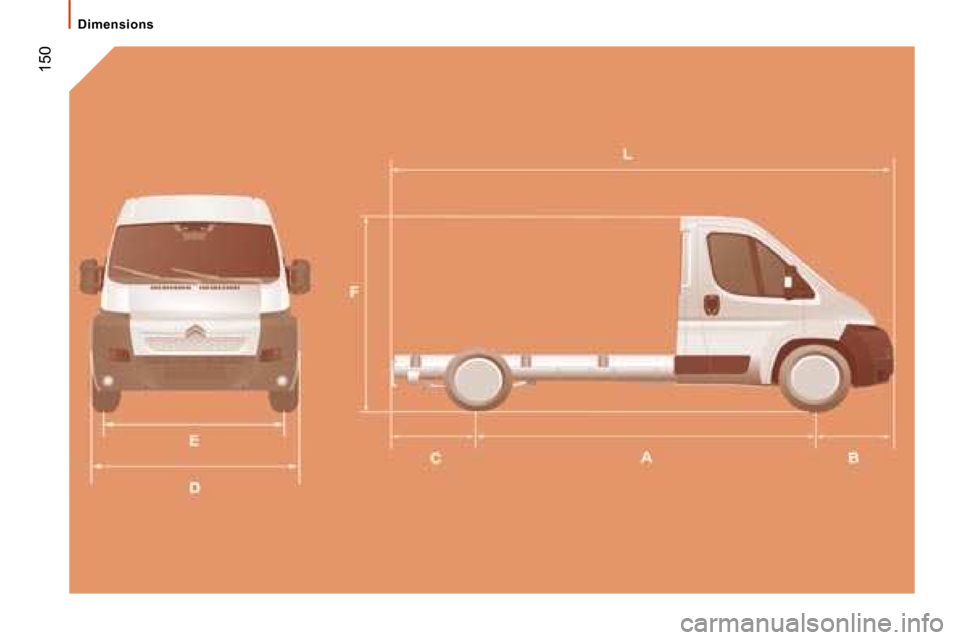

CHASSIS CAB
L1 L2 L2S L3 L4
L Overall length 4 908 5 358 5 708 5 943 6 308
A Wheelbase 3 000 3 450 3 800 4 035 4 035
B Front overhang 948
C Rear overhang 960 1 325
D Overall width (excluding mirrors) 2 050
- Passable width 2 207
- Max passable width 2 350
E Width of front tracks 1 810
- Width of rear tracks 1 790
- Width of increased rear tracks 1 980
F Overall height 2 153
- Max passable height 3 500

152

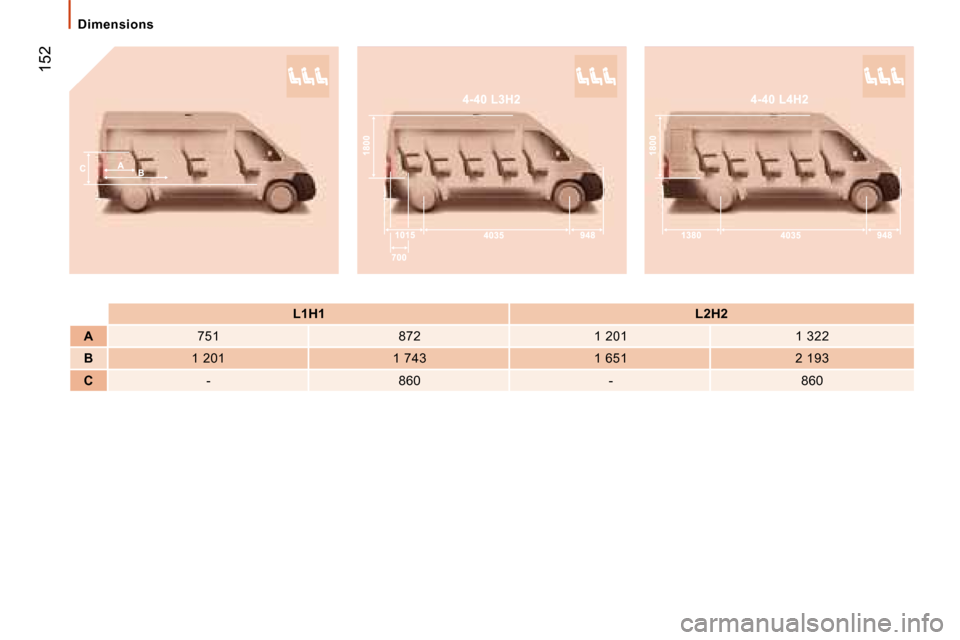

Dimensions

L1H1
L2H2

A 751 872 1 201 1 322

B 1 201 1 743 1 651 2 193

C - 860 - 860

159
9
TECHNICAL DATA
Weights

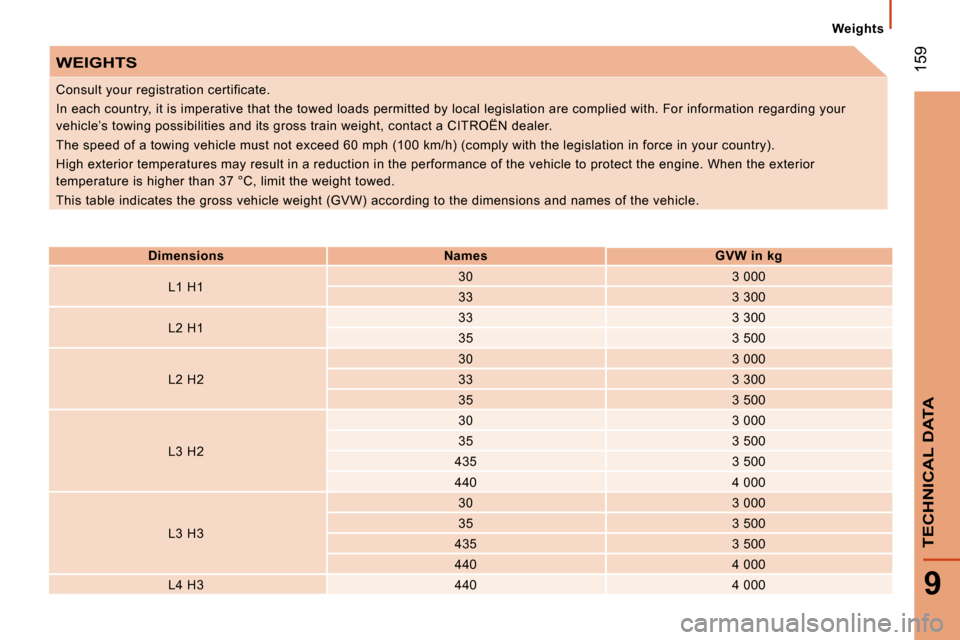

WEIGHTS

Dimensions
Names
GVW in kg
L1 H1 30
3 000
33 3 300
L2 H1 33
3 300
35 3 500
L2 H2 30
3 000
33 3 300
35 3 500
L3 H2 30
3 000
35 3 500
435 3 500
440 4 000
L3 H3 30
3 000
35 3 500
435 3 500
440 4 000
L4 H3 440 4 000
Consult your registration certificate.
In each country, it is imperative that the towed l
oads permitted by local legislation are complied wi th. For information regarding your
vehicle’s towing possibilities and its gross train weight, contact a CITROËN dealer.
The speed of a towing vehicle must not exceed 60 m ph (100 km/h) (comply with the legislation in force in your country).
High exterior temperatures may result in a reducti on in the performance of the vehicle to protect the engine. When the exterior
temperature is higher than 37 °C, limit the weight towed.
This table indicates the gross vehicle weight (GVW ) according to the dimensions and names of the vehi cle.
