8
Familiarisation
INTERIOR


Instruments and controls


1.
Fusebox.

2.
Programmable heating.

3.
Cruise control switch.
4.
MODE, configuration and
personalisation / lighting dimmer /
headlamp beam height adjustment.

5.
Lighting and direction indicator control
stalk.

6.
Instrument panel with screen.
7.
Wiper / screenwash / trip computer
control stalk.

8.
Ignition switch.

9.
Driver's airbag / horn.

138

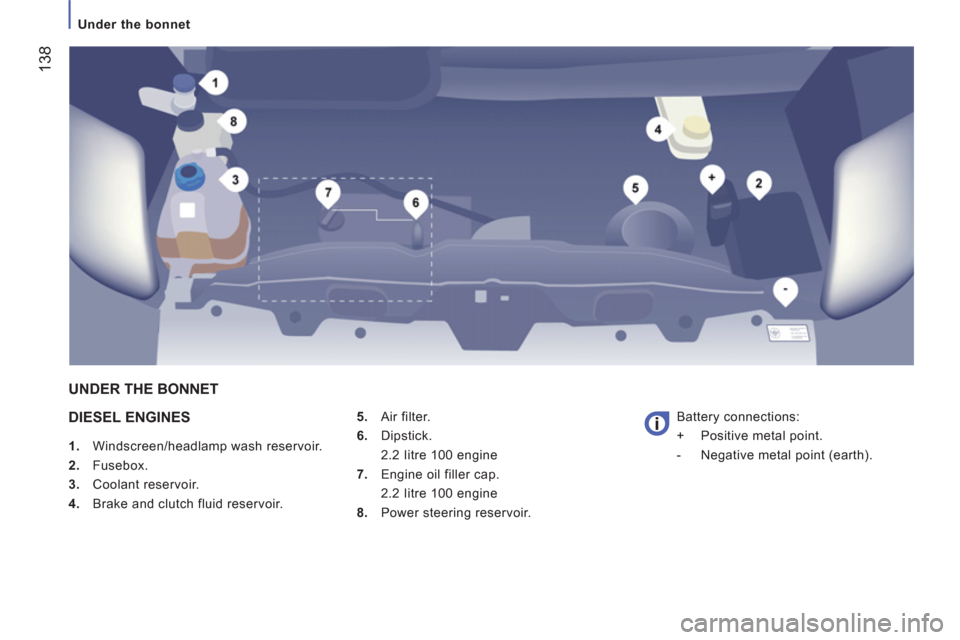

Under the bonnet

DIESEL ENGINES



1.
Windscreen/headlamp wash reservoir.

2.
Fusebox.

3.
Coolant reservoir.

4.
Brake and clutch fluid reservoir.
5.
Air filter.

6.
Dipstick.
2.2 Iitre 100 engine

7.
Engine oil filler cap.
2.2 Iitre 100 engine

8.
Power steering reservoir. Battery connections:
+ Positive metal point.
- Negative metal point (earth).

UNDER THE BONNET

157
QUICK HELP
8

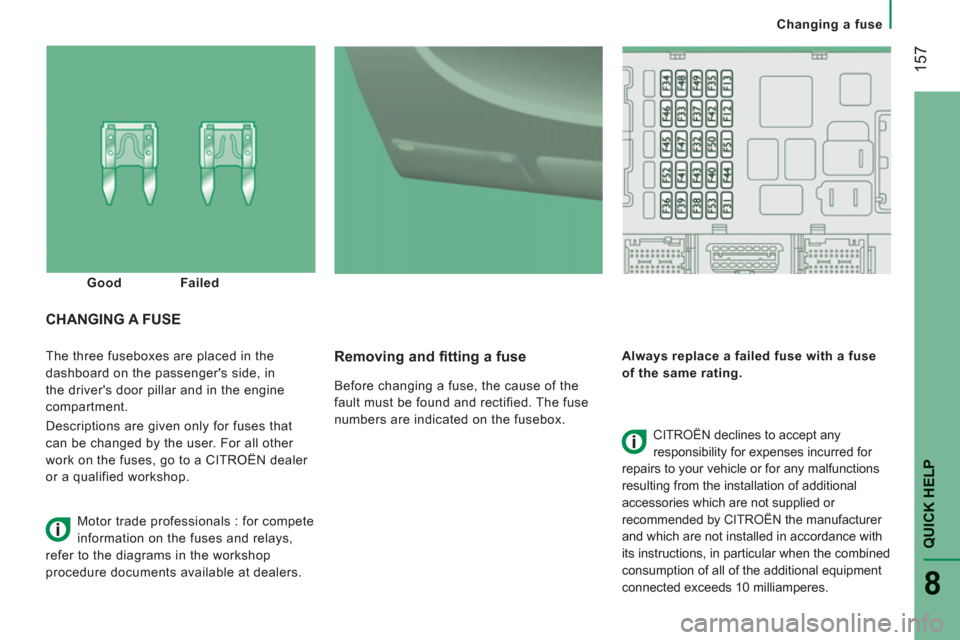

Changing a fuse
The three fuseboxes are placed in the
dashboard on the passenger's side, in
the driver's door pillar and in the engine
compartment.
Descriptions are given only for fuses that
can be changed by the user. For all other
work on the fuses, go to a CITROËN dealer
or a qualified workshop.
Removing and fitting a fuse
Before changing a fuse, the cause of the
fault must be found and rectified. The fuse
numbers are indicated on the fusebox.
Always replace a failed fuse with a fuse
of the same rating.
CHANGING A FUSE

CITROËN declines to accept any
responsibility for expenses incurred for
repairs to your vehicle or for any malfunctions
resulting from the installation of additional
accessories which are not supplied or
recommended by CITROËN the manufacturer
and which are not installed in accordance with
its instructions, in particular when the combined
consumption of all of the additional equipment
connected exceeds 10 milliamperes.


Good
Failed
Motor trade professionals : for compete
information on the fuses and relays,
refer to the diagrams in the workshop
procedure documents available at dealers.

158


Changing a fuse


PASSENGER'S SIDE DASHBOARD FUSES



- Remove the bolts and tilt the box to access the fuses.


Fuses


A (amps)

Allocation


12


7.5
Right-hand dipped beam headlamp


13


7.5
Left-hand dipped beam headlamp


31


7.5
Relay supply


32


10
Cab lighting


33


15
Rear 12 V socket


34


-
Not used


35


7.5
Reversing lamps - Water in Diesel fuel sensor


36


15
Central locking control - Battery


37


7.5
Brake lamps switch - Third brake lamp - Instrument panel


38


10
Central locking


39


10
Audio system - Diagnostic socket - Alarm siren - Programmable additional heating controls -
Air conditioning controls - Tachograph - Battery


40


15
Heated: rear screen (left hand), driver's side mirror


41


15
Heated: rear screen (right hand), passenger's side mirror


42


7.5
ABS control unit and sensor - ASR sensor - ESP sensor - Brake lamps switch


43


30
Windscreen wiper motor


44


20
Cigarette lighter - 12 V socket


45


7.5
Door controls


46


-
Not used


47


20
Driver's electric window motor


48


20
Passenger electric window motor


49


7.5
Audio system - Instrument panel controls - Driver's electric window


50


7.5
Airbags and pre-tensioners unit


51


7.5
Tachograph - Cruise control - Air conditioning controls



52


7.5
Optional relay supply


53


7.5
Instrument panel - Rear foglamp

160


Changing a fuse


FUSES IN THE ENGINE COMPARTMENT



- Remove the nuts and tilt the box to
access the fuses.

Fuses


A (amps)

Allocation


1


40
ABS pump supply


2


50
Diesel pre-heater unit


3


30
Ignition switch


4


20
Programmable additional heating


5


20
Cab ventilation with programmable additional heating


6


40/60
Cab fan max speed


7


40/50
Cab fan min speed


8


40
Cab fan unit


9


20
Screenwash pump


10


15
Horn


14


7.5
Right hand main beam


15


7.5
Left hand main beam


20


30
Headlamp wash pump


21


15
Fuel pump supply


23


30
ABS electrovalves


30


15
Front foglamps

17
5
Instruments and controls
10
VISUAL SEARCH
INSTRUMENTS AND CONTROLS

Instrument panels, screens, speedometer30r Warning lamps, indicator lamps 31-37
Indicators, gauge 38-39
Lighting controls 47
Automatic illumination of headlamps 48 Guide-me-home lighting 48 Parking lamps 49



Fuses 157-160


Mode, vehicle confi guration 79-82
Programmable additional heating 62-64 Additional heating,Rear air conditioning 60-61
Pneumatic suspension 86 Stop & Start 43-45
Headlamp beam height adjustment 49
Lighting dimmer 39 Setting the time 81


Front/rear wipers 50
Screenwash/headlamp wash 50
Trip computer - MODE 79-82


Starter, ignition switch 41
Hill start 42
Cruise control 51-53 Fixed speed limiter 118
Steering wheel, reach adjustment 40 Horn 115 Instruments and controls 8
Electric windows, mirrors 77-78 Locking the load space 29

Gearbox 40 Parking sensors 83

17
7

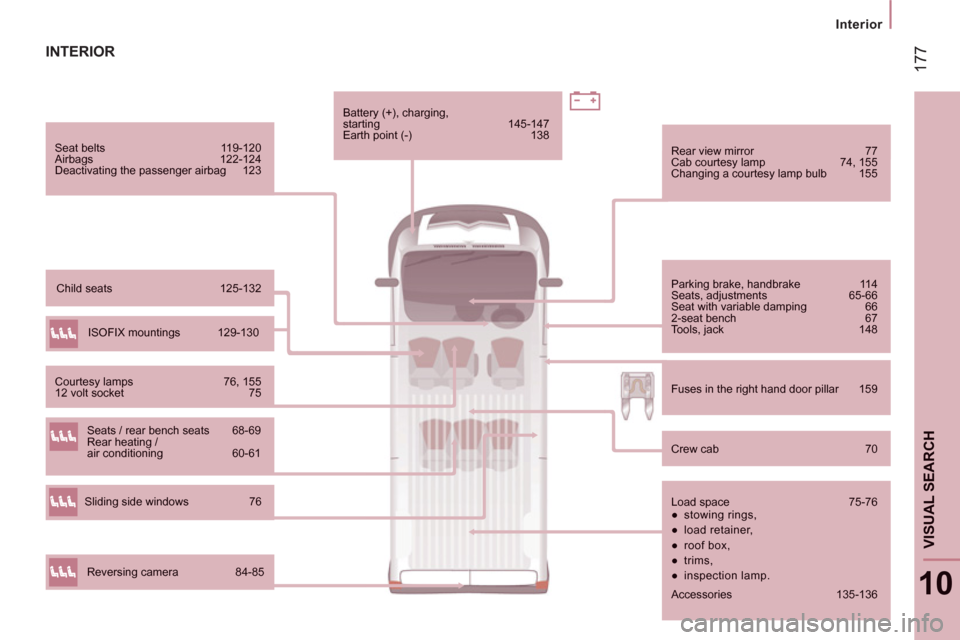

Interior

10
VISUAL SEARCH
INTERIOR


Parking brake, handbrake 114
Seats, adjustments 65-66
Seat with variable damping 66
2-seat bench 67
Tools, jack 148


Rear view mirror 77 Cab courtesy lamp 74, 155
Changing a courtesy lamp bulb 155


Battery (+), charging,starting 145-147
Earth point (-) 138


Fuses in the right hand door pillar 159


Load space 75-76


●
stowing rings,

●
load retainer,

●
roof box,

●
trims,

●
inspection lamp.



Accessories 135-136
Seat belts 119-120
Airbags 122-124 Deactivating the passenger airbag 123


ISOFIX mountings 129-130
Child seats 125-132
Courtesy lamps 76, 155 12 volt socket 75

Sliding side windows 76


Reversing camera 84-85

Seats / rear bench seats 68-69
Rear heating / air conditioning 60-61
Crew cab 70
