Page 201 of 221
9.68
01 FIRST STEPS
CD eject.
On - Off. Volume dial.
M o d e : Selection of the screen display mode. D a r k : Hide the screen display, until completely black, by successive presses. Pressing again reactivates the display.
S o u r c e : Selection of the source; radio, CD and CD changer. B a n d : Selection of the FM1, FM2, FMast and AM wavebands. : Setting the audio options: Front/rear balance, left/right balance, loudness,sound ambiences. L i s t : Displaying of the local stations, of the tracks on the CD or of the MP3 directories. - Storing of a station. - Selection of a stored radio station. - Selection of a CD in the CD changer. Updating of the stations received.
E S C : Abandon current operation. M e n u : Displaying of the general menu.
Navigator which selects the choices above or the step by step or rapid advances. Pressing the navigation dial c o n fi r m s t h e c h o i c e , b u t d o e s n o t store it.
A long press is required.
For a detailed global view of the menus available, refer to t h e " D i s p l a y fl o w c h a r t " s e c t i o n o f t h i s c h a p t e r .
Page 202 of 221
01
9.69
RADIO: selection of the next stored station. CD CHANGER: selection of the next CD. USB: selection of the next genre/artist/folder from t h e c l a s s i fi c a t i o n l i s t . Selection of the next item on a menu.
RADIO: selection of the previous stored station. CD CHANGER: selection of the previous CD. USB: selection of the previous genre/artist/folder f r o m t h e c l a s s i fi c a t i o n l i s t . Selection of the previous item on a menu.
RADIO: automatic search for a higher frequency. CD/CD CHANGER/MP3/USB: selection of the next track. CD/CD CHANGER/USB: continuous press: fast forwards play. Selection of the previous item.
RADIO: automatic search for a lower frequency. CD/CD CHANGER/MP3/USB: selection of the previous track. CD/CD CHANGER/USB: continuous press: fast backwards play. Selection of the next item.
Volume increase.
Volume decrease.
FIRST STEPS
Mute: by pressing the volume increase and decrease buttons simultaneously.
Restore the sound: by pressing one of the two volume buttons.
- Change of sound source. - C o n fi r m a t i o n o f a s e l e c t i o n . - Pick up/Hang up the telephone. - Press for more than 2 seconds: access to the telephone menu.
STEERING WHEEL CONTROLS
Page 203 of 221
9.70
9
0 2 DISPLAY AND MENU C
AUDIO FUNCTION: radio, CD, options.
PERSONALISATION - CONFIGURATION: vehicle parameters, display, languages.
TELEPHONE: hands-free kit, matching, management of a call.
> GENERAL MENU > DISPLAY C
This displays the following information, via the audio equipment control pad: - the time, - the date, - t h e e x t e r i o r t e m p e r a t u r e ( t h i s fl a s h e s i f t h e r e i s a r i s k o f i c e ) , - the audio source displays (radio, CD, ...), - the accesses check (doors, boot, ...), - the warning messages (e.g.: "Antipollution fau lt") or information messages (e.g.: "Auto lighting activated") displaye d temporarily, can be cleared by pressing the "ESC" button, - the trip computer, - the location of a faulty wheel, - the detection of a rear obstacle. TRIP COMPUTER: distance entering, warnings, status of functions.
Page 204 of 221
11
2 2
3 3
4 4
2 2
4 4
3 3
11
0 3
5 5
9.71
AUDIO
RADIO
Press the SOURCE button several times in succession and select the radio.
Press the BAND AST button to select a waveband: FM1, FM2, FMast, AM.
B r i e fl y p r e s s o n e o f t h e b u t t o n s t o carry out an automatic search of the radio stations.
Press one of the buttons to carry out a manual search of the radio stations.
Press the LIST REFRESH button to display the list of stations received locally (30 stations maximum). To update this list, press for more than two seconds.
Select ACTIVATE FREQUENCY FOLLOWING (RDS) then press OK. RDS appears on the display.
Select the FM BAND PREFERENCES function then press OK.
Select AUDIO FUNCTIONS then press OK.
Press the MENU button.
FM BAND PREFERENCES
A C T I V A T E F R E Q U E N C Y F O L L O W I N G ( R D S )
The external environment (hills, buildings, tunnels, basement car parks, ...) may block reception, including in RDS mode. This is a normal effect of the way in which radio waves are transmitted and does not indicate any failure of the audio equipment.
RDS
The RDS, if displayed, enables you to continue lis tening to the same station by means of frequency following. Howev er, in certain conditions, this RDS station is not followed throughout the country as radio stations do not cover 100 % of the territory. This explains the loss of reception of the station during a journey.
OK
OK
OK
SELECTING A STATION
Page 205 of 221
9.72
11
2 2
Insert circular compact discs only. Some anti-pirating systems, on original discs or CDs copied using a personal recorder, may cause faults w h i c h a r e n o r e fl e c t i o n o n t h e q u a l i t y o f t h e o r i g i n a l player. Without pressing the EJECT button, insert a CD in the player, play begins automatically.
To play a disc which has already been inserted, press the SOURCE button several times in succession and select CD.
Press one of the buttons to select a track on the CD. Press the LIST REFRESH button to display the list of tracks on the CD.
PLAYING A CD CD
The MP3 format, an abbreviation of MPEG 1.2 & 2.5 Audio Layer 3, is an audio compression standard which permits the recording of s e v e r a l t e n s o f m u s i c fi l e s o n a s i n g l e d i s c . In order to be able to play a recorded CDR or CDRW , when recording it is preferable to select standards ISO 9660 level 1.2 or Joliet.
If the disc is recorded in another format, it may not be played correctly. It is recommended that the same recording standard is always used for an individual disc, with as low a speed as possible (4x maximum) for optimum sound quality. In the particular case of a multi-session CD, the Joliet standard is recommended.
T h e a u d i o e q u i p m e n t w i l l o n l y p l a y fi l e s w i t h t h e e x t e n s i o n " . m p 3 " w i t h a s a m p l i n g r a t e o f 2 2 . 0 5 K H z o r 4 4 . 1 K H z . N o o t h e r t y p e o f fi l e (.wma, .mp4, .m3u...) can be played.
I t i s a d v i s a b l e t o r e s t r i c t fi l e n a m e s t o 2 0 c h a r a c t e r s w i t h o u t u s i n g special characters (e.g. " " ? ; ù) to avoid any pl aying or displaying problems.
I N F O R M A T I O N A N D A D V I C E M P 3 C D
Page 206 of 221
11
2 2
11
2 2
3 3
9.73
Insert an MP3 compilation in the player. The audio equipment searches for all of the music tracks, which may take anything between a few seconds and several tens of seconds, before play begins.
O n a s i n g l e d i s c , t h e C D p l a y e r c a n r e a d u p t o 2 5 5 M P 3 fi l e s s p r e a d over 8 directory levels. However, it is advisable to keep to a limit of two levels to reduce the access time before the CD is played.
To play a disc which has already been inserted, press the SOURCE button several times in succession and select CD.
Press one of the buttons to select a track on the CD. Press the LIST REFRESH button to display the list of directories of the MP3 compilation.
* A c c o r d i n g t o l e v e l o f fi n i s h .
P L A Y I N G A N M P 3 C O M P I L A T I O N *
CD
P L A Y I N G A C D ( M P 3 C O M P A T I B L E )
Insert the CDs in the changer one by one. Press the SOURCE button several times in succession and select CD CHANGER.
Press one of the buttons on the numeric keypad to select the corresponding CD.
Press one of the buttons to select a track on the CD. Press and hold one of the buttons for fast forward or backward play.
CD CHANGER
Page 207 of 221
9.74
11
0 4
11
2 2
3 3
U S B P l a y e r
The system puts together playlists (temporary memory) created over a period which depends on the capacity of the USB e quipment. The other sources are available during this time. The playlists are updated each time the ignition is switched off or each time a USB memory stick is connected. W h e n c o n n e c t i n g f o r t h e fi r s t t i m e , t h e c l a s s i fi c a t i o n s u g g e s t e d i s b y f o l d e r . W h e n y o u r e c o n n e c t , t h e c l a s s i fi c a t i o n s e l e c t e d p r e v i o u s l y i s retained.
Connect the memory stick to the port, directly or using a lead. If the audio equipment is switched on, the USB source is detected as soon as it is connected. Play begins automatically after a delay which depends on the capacity of the USB stick. T h e fi l e f o r m a t s r e c o g n i s e d a r e . m p 3 ( m p e g 1 layer 3 only), .wma (standard 9 only, 128 kbits/sec compression), .wav and .ogg. The playlists types accepted are m3u, .pls, .wpl.
This unit consists of a USB port and a Jack s o c k e t * . T h e a u d i o fi l e s a r e t r a n s m i t t e d f r o m portable equipment such as a digital player or a USB memory stick to your Audio system to be listened to via the vehicle’s speakers.
USB key (1.1, 1.2 and 2.0) or Ipod ® of generation ®
5 or later: - USB memory sticks should be formatted FAT or FAT 32 (NTFS not supported), - the Ipod ® lead is essential, ®
- n a v i g a t i o n t h r o u g h t h e fi l e d a t a b a s e i s b y means of the steering wheel controls, - the IPod software should be regularly updated for the best connection.
Other Ipod ® players of earlier generations and ®
players using the MTP protocol * : - play via Jack-Jack lead only (not supplied), - n a v i g a t i o n t h r o u g h t h e fi l e d a t a b a s e i s f r o m t h e portable equipment.
The list of compatible equipment and the compression rates supported are available from CITROËN dealers. USING THE USB
CONNECTING A USB MEMORY STICK
* According to vehicle.
Page 208 of 221
3 3
0 4
4 4
11
5 5
2 2
U S B P l a y e r
USING THE USB SOCKET
P r e s s L I S T b r i e fl y t o d i s p l a y t h e p r e v i o u s l y s e l e c t e d c l a s s i fi c a t i o n . Navigate through the list using the left/right and up/down buttons. C o n fi r m t h e s e l e c t i o n b y p r e s s i n g O K .
T h e l i s t s a v a i l a b l e a r e A r t i s t , G e n r e a n d P l a y l i s t ( a s d e fi n e d o n t h e iPod ® ). ®
Selection and Navigation are described in steps 1 to 5 above.
Do not connect a hard disk or USB devices other than audio equipment to the USB port. This could damage your i nstallation.
CONNECTING AN IPOD ®AN IPOD AN IPOD V I A T H E U S B P O R T ®
Press one of these buttons to gain access to the previous/next track on t h e c l a s s i fi c a t i o n l i s t c u r r e n t l y b e i n g played. Press and hold one of the buttons for fast forward or backward play.
Press one of these buttons to gain access to the previous/next Genre, Folder, Artist or Playlist on the c l a s s i fi c a t i o n l i s t c u r r e n t l y b e i n g played.
Press and hold LIST to display the d i f f e r e n t c l a s s i fi c a t i o n s . Select by Folder/Artist/Genre/Playlist, p r e s s O K t o s e l e c t t h e c l a s s i fi c a t i o n r e q u i r e d , t h e n p r e s s O K a g a i n t o c o n fi r m .
- by Folder: all folders containing audio fi l e s r e c o g n i s e d o n t h e p e r i p h e r a l d e v i c e , c l a s s i fi e d i n a l p h a b e t i c a l o r d e r w i t h o u t f o l l o w i n g t h e fl o w c h a r t . - b y A r t i s t : a l l o f t h e a r t i s t n a m e s d e fi n e d i n t h e I D 3 T a g s , c l a s s i fi e d i n a l p h a b e t i c a l order. - b y G e n r e : a l l o f t h e g e n r e s d e fi n e d i n t h e ID3 Tags. - by Playlist: in accordance with the playlists recorded on the USB device.
OK
9.75
Page 209 of 221
9.76
0 5
9
TRIP COMPUTER
Each press of the button, located at the end of the wipers stalk , permits displaying of the different trip computer data in succession, depending on the displ ay.
- the "vehicle" tab with:
Page 210 of 221
5 5
6 6
7 7
8 8
11
2 2
3 3
4 4
0 6
9.77

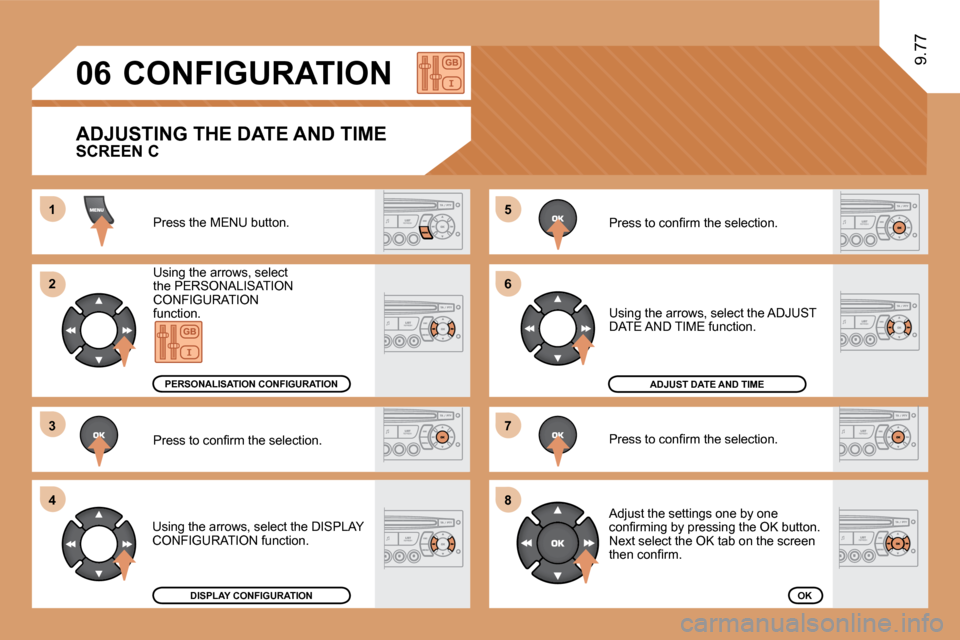

CONFIGURATION
Press the MENU button.
Using the arrows, select the PERSONALISATION CONFIGURATION function.
P r e s s t o c o n fi r m t h e s e l e c t i o n .
Using the arrows, select the DISPLAY CONFIGURATION function.
P r e s s t o c o n fi r m t h e s e l e c t i o n .
P r e s s t o c o n fi r m t h e s e l e c t i o n .
Using the arrows, select the ADJUST DATE AND TIME function.
Adjust the settings one by one c o n fi r m i n g b y p r e s s i n g t h e O K b u t t o n . Next select the OK tab on the screen t h e n c o n fi r m .
DISPLAY CONFIGURATION
ADJUST DATE AND TIME
OK
PERSONALISATION CONFIGURATION
SCREEN C
ADJUSTING THE DATE AND TIME
