Citroen JUMPY 2010 2.G Owner's Manual

124
Having your vehicle towed
Without lifting
(4 wheels on the road)
You should always use a towbar.
From the front
- Unclip the cover by pressing the bottom part.
- Screw in the removable towing eye until it locks.
BEING TOWED
Lifting (2 wheels on the road only)
It is preferable to raise the vehicle using
professional lifting equipment.
From the rear
- Unclip the cover using a coin or the flat part of the towing eye,
- Screw in the removable towing eye until it locks. When towing with the engine switched
off, there is no braking or steering
assistance.
Vehicles fitted with a manual
gearbox (diesel version)
In the case of vehicles fitted with a manual
gearbox, the gear lever must be in the
neutral position. Failure to observe this
special condition may result in damage
to certain braking components and the
absence of braking assistance the next time
the engine is started.

126

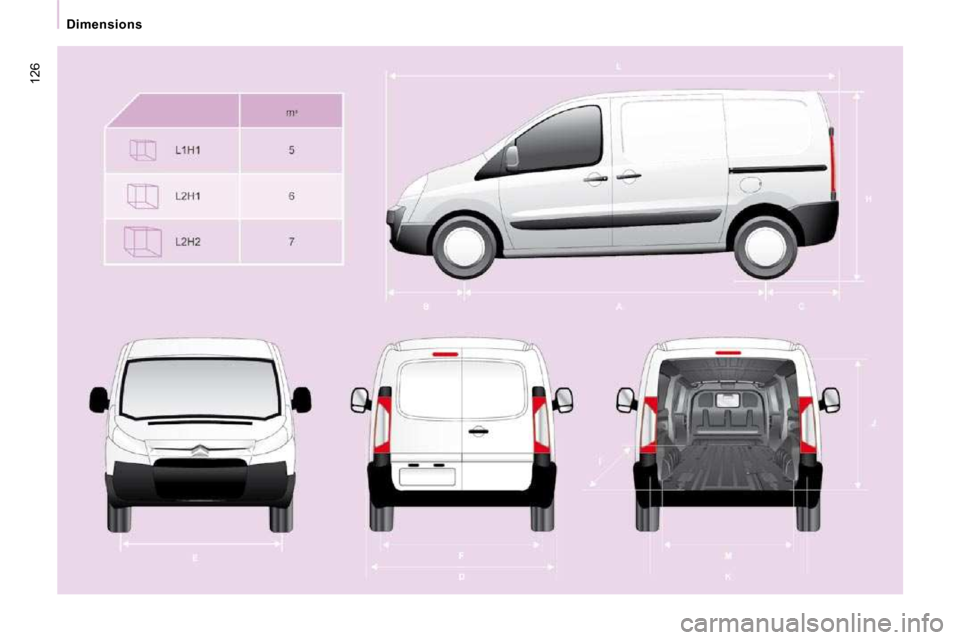

Dimensions

127
Dimensions
TECHNICAL DATA
8 * Value for rear suspension.
L1 L2
H1 H1 H2
L Overall length 4 805 to 4 813 5 135 to 5 143
H Overall height 1 894 * /1 942 2 204 * /2 276
A Wheelbase 3 000 3 122
B Front overhang 975
C Rear overhang 830 to 838 1 038 to 1 046
D Overall width:

on panel
1 870
with mouldings 1 895
with mirrors folded 1 986
with mirrors unfolded 2 194
E Width of front tracks 1 562 to 1 570
F Width of rear tracks 1 596 to 1 604
I Length of interior floor 2 254 2 584
J Maximum interior height under roof 1 449 1 750
K Maximum interior width 1 600
M Interior width between wheel arches 1 245
Turning circle pitch diameter between kerbs (m) 12.18 12.59
Maximum loads (kg)

Payload 1 000 to 1 200
On roof 170
m3
5 6 7
DIMENSIONS (MM)
The vehicle is available in 2 lengths (L1, L2) and 2 heights (H1,
H2), refer to the tables:

128
Dimensions
REAR DOORS (mm)
L1 L2
H1 H1 H2
N Useful height 1 272 1 630
O Useful width 1 237

Dimensions
TECHNICAL DATA
8

SLIDING SIDE DOOR (mm)
L1 L2
H1 H1 H2
P Height 1 293 1 301
Q Width 924

130
Dimensions

131
Dimensions
TECHNICAL DATA
8

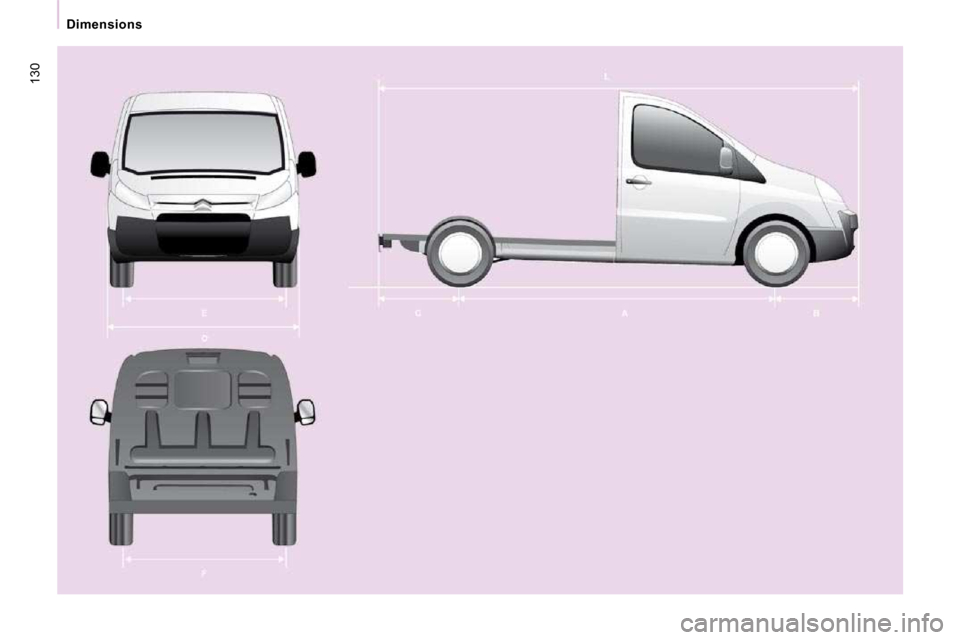

PLATFORM CAB (mm)
L2
L Overall length 5 016
A Wheelbase 3 122
B Front overhang 975
C Rear overhang 920
Max passable rear overhang 1 420
D Overall width (excluding mirrors) 1 895
E Width of front tracks 1 574
F Width of rear tracks 1 574
- Gross vehicle weight -
- Max weight at the front 1 400
- Max weight at the rear 1 700

Weights
WEIGHTS AND TOWED LOADS (KG)
For further information, refer to your registration certificate.
In each country, it is imperative that the towed l oads permitted by local legislation are complied wi th. To find out your vehicle's towing
capabilities and its gross train weight, contact a CITROËN dealer.
Load transfer
If the towing vehicle has not reached the GVW, it is possible to transfer this weight to the trailer.
In all cases, do not exceed the weight of the trai ler and the GTW, indicated on your registration cer tificate.
Comply with the towing capacities of your vehicle.

Engine Body type
Number of
seats
Kerb weight
Maximum
weight (1)
Maximum
payload
Payload
without driver
Braked towed
weight (2)
1.6 HDi 90 Short (L1-H1)
227 2 1 661 2 661 1 000 925 1 672
3 1 673 2 661 988 913 1 672
Short (L1-H1) 229 2 1 661 2 861 1 200 1 125 1 472
3 1 673 2 861 1 188 1 113 1 472
Long (L2-H1) 229 2 1 680 2 880 1 200 1 125 1 453
3 1 692 2 880 1 188 1 113 1 453
Raised
(L2-H2) 229 2 1 700 2 900 1 200 1 125 1 433
3 1 712 2 900 1 188 1 113 1 433

133
Weights
TECHNICAL DATA
8
(1) Gross vehicle weight (GVW).
(2) Braked towed weight with load transfer: this can be increased on condition that the equivalent o f this load is removed from the vehicle so
that the GTW is not exceeded.
High exterior temperatures may result in a reducti on in the performance of the vehicle to protect the engine. When the exterior temperature
is higher than 37 °C, limit the towed weight to 700 kg, without load transfer.
The speed of a towing vehicle must not exceed 60 m ph (100 km/h) (comply with the legislation in force in your country).

Engine Body type
Number of
seats
Kerb weight
Maximum
weight (1)
Maximum
payload
Payload
without driver
Braked towed
weight (2)
2.0 HDi 120 and
2.0 HDi 120 PEF Short (L1-H1)
227 2 1 702 2 702 1 000 925 2 000
3 1 714 2 702 988 913 2 000
Short (L1-H1) 229 2 1 702 2 902 1 200 1 125 1 998
3 1 714 2 902 1 188 1 113 1 998
Long (L2-H1) 229 2 1 732 2 932 1 200 1 125 1 968
3 1 744 2 932 1 188 1 113 1 968
Raised
(L2-H2)
229 2 1 763 2 963 1 200 1 125 1 937
3 1 775 2 963 1 188 1 113 1 937

134
Weights
(1) Gross vehicle weight (GVW).
(2) Braked towed weight with load transfer: this can be increased on condition that the equivalent o f this load is removed from the vehicle so
that the GTW is not exceeded.
High exterior temperatures may result in a reducti on in the performance of the vehicle to protect the engine. When the exterior temperature
is higher than 37 °C, limit the towed weight to 700 kg, without load transfer.
The speed of a towing vehicle must not exceed 60 m ph (100 km/h) (comply with the legislation in force in your country).

Engine Body type
Number of
seats
Kerb weight
Maximum
weight (1)
Maximum
payload
Payload
without driver
Braked towed
weight (2)
2.0 HDi 136 PEF Short (L1-H1)
227 2 1 717 2 717 1 000 925 2 000
3 1 729 2 717 988 913 2 000
Short (L1-H1) 229 2 1 717 2 917 1 200 1 125 2 000
3 1 729 2 917 1 188 1 113 2 000
Long (L2-H1) 229 2 1 746 2 946 1 200 1 125 2 000
3 1 758 2 946 1 188 1 113 2 000
2.0 PETROL 140 Short (L1-H1)
227 2 1 661 2 661 1 000 925 1 389
3 1 673 2 661 988 913 1 389
Short (L1-H1) 229 2 1 661 2 861 1 200 1 125 1 189
3 1 673 2 861 1 188 1 113 1 189
Long (L2-H1) 229 2 1 680 2 880 1 200 1 125 1 170
3 1 692 2 880 1 188 1 113 1 170
Raised
(L2-H2)
229 2 1 700 2 900 1 200 1 125 1 150
3 1 712 2 900 1 188 1 113 1 150
