Changing a bulb

3. Direction indicators
Type B , PY21 W - 21 W (amber)
- Turn the bulb holder a quarter turn anticlockwise.
- Remove the bulb by pressing it lightly while turning it anticlockwise.
- Change the bulb.
- Ensure that the cover is refitted
correctly over its entire periphery to
guarantee sealing.

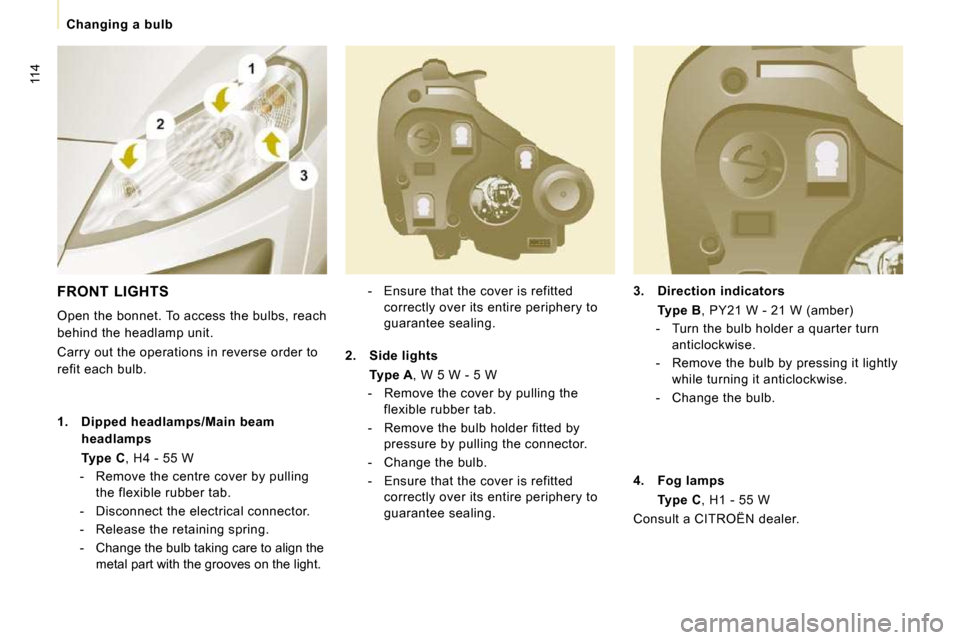

FRONT LIGHTS
Open the bonnet. To access the bulbs, reach
behind the headlamp unit.
Carry out the operations in reverse order to
refit each bulb.

1. Dipped headlamps/Main beam
headlamps
Type C , H4 - 55 W
- Remove the centre cover by pulling the flexible rubber tab.
- Disconnect the electrical connector.
- Release the retaining spring.
- Change the bulb taking care to align the metal part with the grooves on the light.
2. Side lights
Type A , W 5 W - 5 W
- Remove the cover by pulling the flexible rubber tab.
- Remove the bulb holder fitted by pressure by pulling the connector.
- Change the bulb.
- Ensure that the cover is refitted correctly over its entire periphery to
guarantee sealing.
4. Fog lamps
Type C , H1 - 55 W
Consult a CITROËN dealer.

115
Changing a bulb
QUICK HELP
7

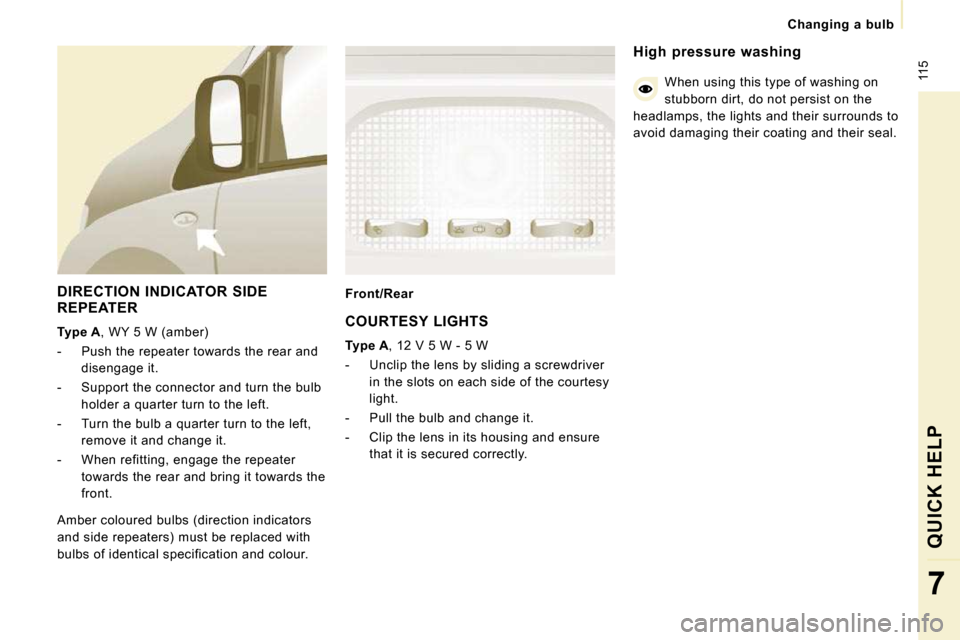

DIRECTION INDICATOR SIDE
REPEATER

Type A , WY 5 W (amber)
- Push the repeater towards the rear and disengage it.
- Support the connector and turn the bulb holder a quarter turn to the left.
- Turn the bulb a quarter turn to the left, remove it and change it.
- When refitting, engage the repeater towards the rear and bring it towards the
front.
Front/Rear
Amber coloured bulbs (direction indicators
and side repeaters) must be replaced with
bulbs of identical specification and colour. COURTESY LIGHTS

Type A , 12 V 5 W - 5 W
- Unclip the lens by sliding a screwdriver in the slots on each side of the courtesy
light.
- Pull the bulb and change it.
- Clip the lens in its housing and ensure that it is secured correctly. High pressure washing
When using this type of washing on
stubborn dirt, do not persist on the
headlamps, the lights and their surrounds to
avoid damaging their coating and their seal.

119
Changing a fuse
QUICK HELP
7
RIGHT-HAND SIDE FASCIA PANEL FUSES
- Tilt the storage compartment then pull it firmly to access the fuses.
Fuses A (amps) Allocation

1 15 Rear wiper

2 - Free

3 5 Airbag control unit

4 10 Steering wheel angle sensor, Diagnostic socket, ES
P
sensor, Manual ventilation, Clutch switch, Headlamp beam
height, Particle emission filter pump

5 30 Electric mirrors, Passenger electric window mot or

6 30 Front electric windows supply

7 5 Courtesy lights and glove box light

8 20 Multifunction display, Anti-theft alarm siren, Aud
io
equipment, Compact disc changer, Audio/telephone,
Trailer fuse box (accessory), Coachbuilder/vehicle modifier
unit (platform cab)

9 10 Load space accessories socket

10 30 Rear ride height corrector, Steering wheel switchi
ng,
Instrument panel

11 15 Diagnostic socket, Ignition switch

12 15 Hands-free kit, Airbag control unit, Parking assis
tance
control unit

13 5 Engine fuse box, Trailer fuse box

14 15 Rain sensor, Automatic air conditioning, Instru ment panel

15 30 Locking/unlocking/deadlocking of the accesses

16 - Free

17 40 Heated rear screen, Heated mirrors

17 10 Heated mirrors only

121
Changing a fuse
QUICK HELP
7
FUSES UNDER THE BONNET
- After opening the bonnet, slide the screenwash support to make access
easier.
- Unclip and tilt the box to access the fuses.
Fuses A (amps) Allocation

1 20 Engine control unit, Fuel supply and air supply sy
stems,
Fan assembly

2 15 Horn

3 10 Front and rear wash-wipe pump

4 20 Headlamp wash pump

5 15 Fuel supply system

6 10 Power steering, Secondary brake pedal switch

7 10 Braking system (ABS/ESP)

8 20 Starter control

9 10 Main brake pedal switch

10 30 Fuel supply and air supply systems, Emission contr
ol
systems

11 40 Front ventilation

12 30 Windscreen wipers

13 40 Built-in systems interface

14 30 Free
