CITROEN JUMPY 2015 Owners Manual

155
Instruments and controls
VISUAL SEARCH
10
Hazard warning lamps 85
Rear view mirror
83
Toll cards, car park tickets 75 Screens, display
Section 9
Setting the time in the screen Section 9
Courtesy lamps
75, 132

Warning lamp in the overhead storage unit 27
Heated seats 69
Controls
- central locking 20, 24
- load space locking 20, 24
- alarm 22-23
- parking sensors 86
- ASR, DSC 88
Technology on board Section 9
- Emergency or assistance call
- eMyWay
- Audio system
Gearbox 40, 41-43
Heating, ventilation
- manual ventilation 57-58, 62
- air conditioning A/C
57-58
- air recirculation 58

Air conditioning with separate adjustments 59-62
Demisting/defrosting 63-64
Additional heating 65-66
Cab fi ttings 72-74
- glove box,
- overhead storage,
- ashtray,
- sun visor,
- 12 volt socket,
- ticket holder,
- storage compartment. Passenger's front airbag
deactivation 97

156
Interior
Temporary puncture repair kit 122-123
Spare wheel, jack, changing a wheel, tools 124-128 Rear view mirror
83
Toll cards, car park tickets 75
Front courtesy lamp 75
Changing courtesy lamp bulbs 132
Rear suspension 79-81 Front, lateral airbags
94-97
Passenger's airbag deactivation 97
Front seats, adjustments,
head rests 68-69
2-seat front bench 70-71
Seat belts 91-92
Battery, charging, starting 120
Passenger compartment fuses 135, 137
INTERIOR
Opening the bonnet 109
Child seats
98-104
Rear courtesy lamp 75
Changing courtesy lamp bulbs 132
Accessories 107-108
Load space 77-78, 107
- stowing rings,
- load retainer,
- roof box,
- trim,
- 12 volt socket,
- ladder separation or partition,
- stowing rail support,
- internal rack. Towing, towbar,
converter's fuses 139
Platform cab fuses 139
Parking brake,
handbrake 85

157
Technical data - Maintenance
VISUAL SEARCH
10
TECHNICAL DATA - MAINTENANCE
Identifi cation markings, serial number, paint code, tyres 152
Snow chains 129
Engine fuses 135, 138
Windscreen / headlamp wash, levels 113
Bulbs, lighting, changing bulbs 130-134
Opening the bonnet, stay 109
Warning lamps
29-34
Changing a wiper blade 140
Under the bonnet
- Diesel 110
- petrol 111
Fuel cut-off, Diesel priming 118-119
Van dimensions 144-147
Platform cab dimensions 148-149
Weights 150 Checks
114-115
- battery,
- gearbox,
- carbon/passenger compartment fi lter,
- oil fi lter,
- particle emission fi lter,
- parking brake,
- brake pads,
- brake drums, discs.
Emissions controls (EOBD) 36 Water bleeding, Diesel fi lter 115 Levels 112-113
- Diesel additive,
- dipstick,
- power steering fl uid,
- brake fl uid,
- coolant,
- screenwash and headlamp wash fl uid.
Towing, lifting 141-142
Towed loads 150

158

159
VISUAL SEARCH
10

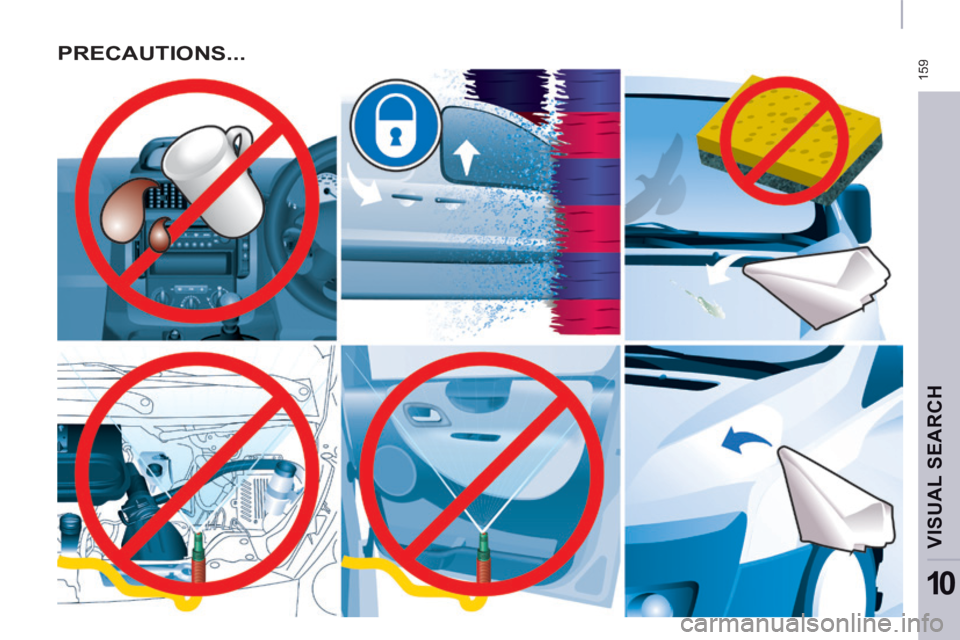

PRECAUTIONS...
