Instruments and controls
Courtesy lamps 141-142
Rear view mirror 1 45
Reversing camera on interior mirror

2
58
Emergency or assistance call

1
60, 338 -339
12 V accessory socket

1
21
USB port / JACK auxiliary socket

1
22
Deactivating the passenger front airbag

1
72, 177
5/6 -speed manual gearbox

2

07
Gear shift indicator

2

08
Automatic gearbox

2

09 -213
Electronic gearbox

2

14-217
Stop & Start

2

18 -221
Hill start assist

2

06 Heating / Ventilation

1
25
Manual air conditioning
1

26-127
Automatic dual-zone air conditioning
1

28-131
Rear heating, air conditioning

1
37
Air recirculation

1
25, 126, 131
Front demist / defrost

1
32
Rear screen demist / defrost

1
34
Parking brake

2
05
Opening the bonnet

2

76
Dashboard fuses

3

16 -318 Touch screen (CITROËN
Connect Nav)

4
3 - 45, 341- 428
Touch screen (CITROËN Connect Radio)

4
3 - 45, 429 - 482
Bluetooth
® audio system 4 6, 483 -505
Air vents

1

35
Adjusting the manual mirrors
1
43
Setting the date and time
4
6
Over view

24
Warning / indicator lampStateCause Action / Observations
Passenger's
front airbag fixed in the seat belt
and front passenger's
airbag warning lamps
display. The control switch, located at the
passenger's end of the dashboard, is
set to the "OFF"
position.
The passenger's front airbag is
deactivated.
You can install a rear ward facing
child seat, unless there is a fault with
the airbags (airbag warning lamp on). Turn the control switch to the "ON"
position to activate
the passenger's front airbag; in this case, you must
not install a child seat in the rear ward facing position
on this seat.
Airbags
on temporarily. This warning lamp comes on for a
few seconds when you turn on the
ignition, then goes off. This warning lamp should go off when the engine is
started.
If it does not go off, contact a CITROËN dealer or a
qualified workshop.
fixed. One of the airbag or seat belt
pretensioner systems has a fault. Have them checked by a CITROËN dealer or a
qualified workshop.
Passenger 's
airbag system fixed.
The control switch, located at the
passenger's end of the dashboard, is
at the "ON" position.
The passenger's front airbag is
activated.
In this case, do not install a rear ward
facing child seat on the front
passenger seat. Turn the control switch to the "
OFF" position to
deactivate the passenger's front airbag.
You can install a rear ward facing child seat, unless
there is a fault with the airbags (airbag warning
lamp
on).
Instruments

120
Jumpy _en_Chap03_ergonomie-et-confort_ed01-2016
Front door pockets
Liquids carried in an open vessel (a cup
or mug) could be spilt, presenting a risk
of damage on contact with the controls
in the dashboard and centre console.
Take care.
Glove box
It houses the passenger front airbag
deactivation switch and can hold a water bottle,
the vehicle's handbook pack...
Storage compartment
It can hold a water bottle, the vehicle's
handbook pack...
F
T
o open the storage compartment, press
the left hand end of the control and guide
the lid to its open position notch.
If it is so equipped, it is illuminated when the lid
is opened.
With air conditioning, it gives access
to the ventilation nozzle, delivering the
same air-conditioned air as the vents
in the passenger compartment.
While driving , keep the glove boxes
closed. Other wise there is a risk of
injury in the event of an accident or
sudden braking.
Ease of use and comfort

121
Jumpy _en_Chap03_ergonomie-et-confort_ed01-2016

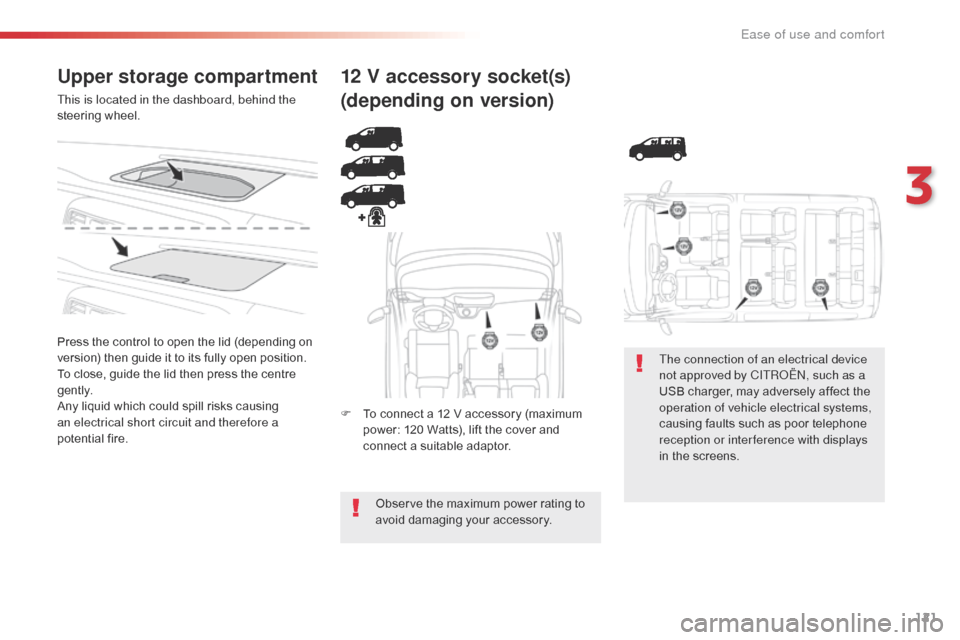

Upper storage compartment
This is located in the dashboard, behind the
steering wheel.
Press the control to open the lid (depending on
version) then guide it to its fully open position.
To close, guide the lid then press the centre
g e nt l y.
Any liquid which could spill risks causing
an electrical short circuit and therefore a
potential fire.
12 V accessory socket(s)
(depending on version)
F To connect a 12 V accessory (maximum power: 120 Watts), lift the cover and
connect a suitable adaptor.
Observe the maximum power rating to
avoid damaging your accessory. The connection of an electrical device
not approved by CITROËN, such as a
USB charger, may adversely affect the
operation of vehicle electrical systems,
causing faults such as poor telephone
reception or inter ference with displays
in the screens.
3
Ease of use and comfort

171
Jumpy _en_Chap05_securite_ed01-2016
Front airbagsDeployment
The airbags are deployed, except the
passenger front airbag if it is deactivated, in
the event of a serious front impact to all or part
of the front impact zone A, in the longitudinal
centreline of the vehicle on a horizontal plane
and directed from the front to the rear of the
vehicle.
The front airbag inflates between the thorax
and head of the front occupant of the vehicle
and the steering wheel, driver's side, and the
dashboard, passenger side to cushion their
for ward movement.
System which protects the driver and
passenger(s) in the event of a serious front
impact in order to limit the risk of injury to the
head and thorax.
The driver's airbag is fitted in the centre of the
steering wheel; the front passenger airbag is
fitted in the dashboard above the glove box. When driving
, keep the glove box
closed. Other wise there is a risk of
injury in the event of an accident or
sudden braking.
5
Safety

173
Jumpy _en_Chap05_securite_ed01-2016
Sit in a normal upright position.
Wear a correctly adjusted seat belt.
Do not leave anything between the
occupants and the airbags (a child, pet,
object...), nor fix or attach anything close to
the inflation trajectory of the airbags; this
could cause injuries during their deployment.
Never modify the original definition of your
vehicle, particularly in the area directly
around the airbags.
After an accident or if the vehicle has been
stolen or broken into, have the airbag
systems checked.
All work on the airbag system must be
carried out by a CITROËN dealer or a
qualified workshop.
Even if all of the precautions mentioned are
observed, a risk of injury or of minor burns
to the head, chest or arms when an airbag is
deployed cannot be ruled out.
Lateral airbags
Use only approved covers on the seats,
compatible with the deployment the lateral
airbags. For information on the range of seat
covers suitable for your vehicle, you can
contact a CITROËN dealer.
For more information on Accessories , refer
to the corresponding section.
Do not fix or attach anything to the seat
backs (clothing...). This could cause injury
to the chest or arms if the lateral airbag is
deployed.
Do not sit with the upper part of the body any
nearer to the door than necessary.
The bag inflates almost instantly (within
a few milliseconds) then deflates within
the same time discharging the hot gas via
openings provided for this purpose.
Front airbags
Do not drive holding the steering wheel by its
spokes or resting your hands on the centre
part of the wheel.
Passengers must not place their feet on the
dashboard.
Do not smoke as deployment of the airbags
can cause burns or the risk of injury from a
cigarette or pipe.
Never remove or pierce the steering wheel or
hit it violently.
Do not fit or attach anything to the steering
wheel or dashboard, this could cause
injuries with deployment of the airbags.
Advice
For the airbags to be fully effective, observe the safety
recommendations below:
The vehicle's front door panels include side
impact sensors.
A damaged door or any unauthorised or
incorrectly executed work (modification or
repair) on the front doors or their interior trim
could compromise the operation of these
sensors - Risk of malfunction of the lateral
airbags!
Such work must only be done by a CITROËN
dealer or a qualified workshop.
5
Safety

316
Jumpy _en_Chap08_En-cas-de-panne_ed01-2016
F Unclip the cover by pulling at the top left, then
right.
F Disengage the cover completely and turn it over,
GoodFailed
Tw e e z e r
Access to the tools
F Take the tweezer from its housing. The extraction tweezer is located behind the
fusebox cover, on the dashboard pillar. Before changing a fuse:
F
t
he cause of the failure must be identified
and rectified,
F
a
ll electrical consumers must be
switched

off,
F
t
he vehicle must be immobilised with the
ignition off,
F
i
dentify the failed fuse using the tables and
layout drawings in the following pages.
Changing a fuse
To replace a fuse, you must:
F u se the special tweezer to extract the fuse
from its housing and check the condition of
its filament.
F

a
lways replace the failed fuse with a fuse
of the same rating (same colour); using
a different rating could cause faults (risk
of
fire).
If the fuse fails again soon after replacement,
have the vehicle's electrical system checked by
a CITROËN dealer or a qualified workshop. The replacement of a fuse not shown in
the tables below may cause a serious
malfunction of your vehicle. Contact
a CITROËN dealer or a qualified
workshop.
Changing a fuse
In the event of a breakdown

317
Jumpy _en_Chap08_En-cas-de-panne_ed01-2016
CITROËN will not accept responsibility
for the cost incurred in repairing your
vehicle or for rectifying malfunctions
resulting from the installation of
accessories not supplied and not
recommended by CITROËN and
not installed in accordance with its
instructions, in particular when the
combined consumption of all of the
additional equipment connected
exceeds 10 milliamperes.
Installing electrical
accessories
Your vehicle's electrical system is
designed to operate with standard or
optional equipment.
Before installing other electrical
equipment or accessories on your
vehicle, contact a CITROËN dealer or a
qualified workshop.
For more information on installing a
towbar or equipment of the TA XI type,
contact a CITROËN dealer.
Dashboard fuses
The fusebox is placed in the lower dashboard
(left-hand side).
Access to the fuses
F Unclip the cover by pulling at top left, then right.
8
In the event of a breakdown
