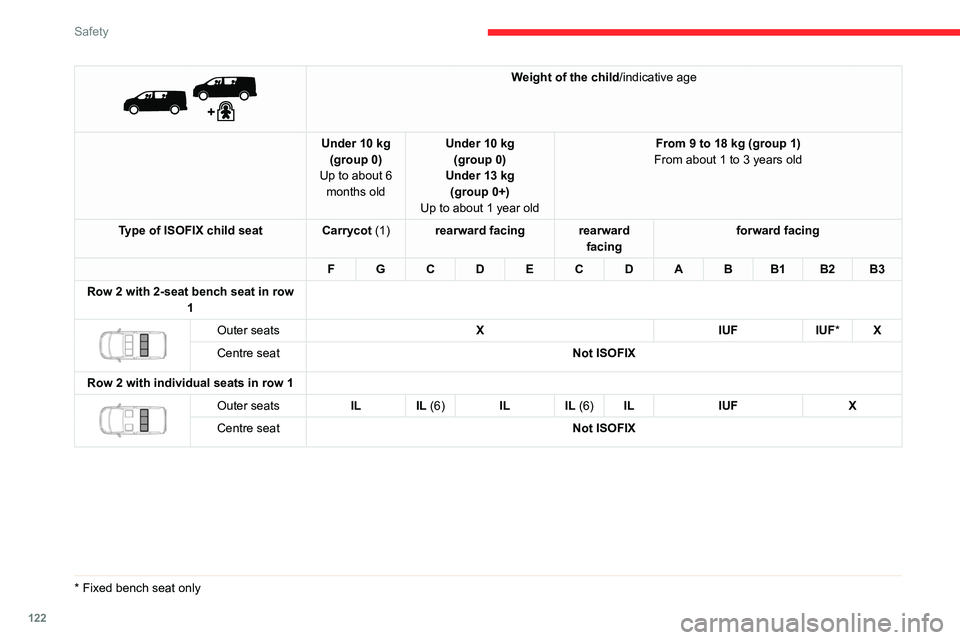

isofix CITROEN JUMPY 2021 User Guide

122
Safety


Weight of the child/indicative age
Under 10 kg (group 0)
Up to about 6 months old Under 10 kg
(group 0)
Under 13 kg (group 0+)
Up to about 1 year old From 9 to 18 kg (group 1)
From about 1 to 3 years old
Type of ISOFIX child seat Carrycot (1)rearward facing rearward
facingforward facing
F G C D E C D A B B1 B2 B3
Row 2 with 2-seat bench seat in row 1


Outer seats XIUFIUF*X
Centre seat Not ISOFIX
Row 2 with individual seats in row 1


Outer seats IL IL (6) IL IL (6)ILIUF X
Centre seat Not ISOFIX
* Fixed bench seat only

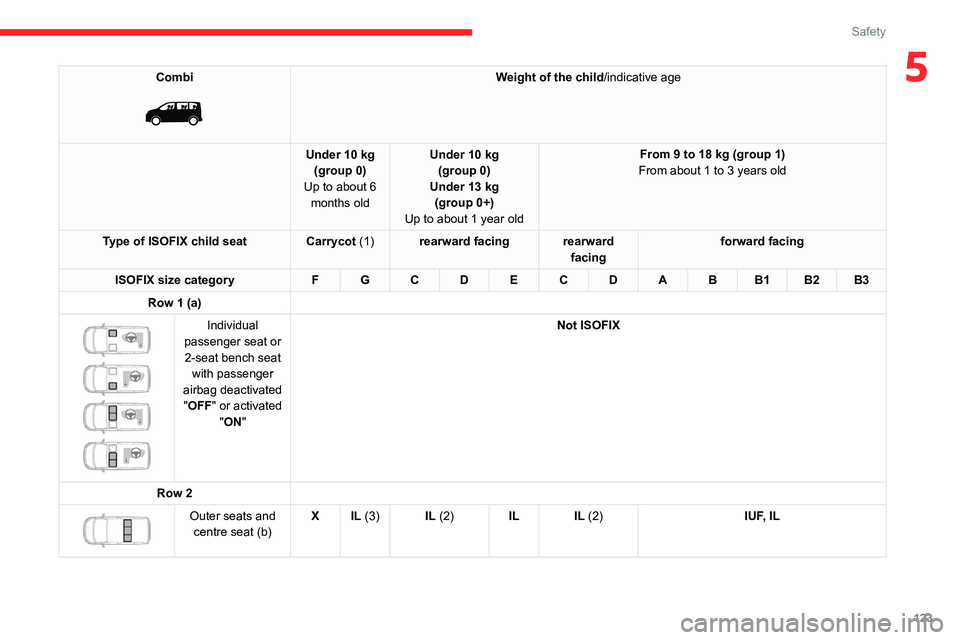

123
Safety
5Combi

Weight of the child/indicative age
Under 10 kg (group 0)
Up to about 6 months old Under 10 kg
(group 0)
Under 13 kg (group 0+)
Up to about 1 year old From 9 to 18 kg (group 1)
From about 1 to 3 years old
Type of ISOFIX child seat Carrycot (1)rearward facing rearward
facingforward facing
ISOFIX size category F G C D E C D A B B1 B2 B3
Row 1 (a)


Individual
passenger seat or 2-seat bench seat with passenger
airbag deactivated "OFF " or activated
"ON" Not ISOFIX
Row 2


Outer seats and centre seat (b) X IL (3)
IL (2)IL IL (2) IUF, IL

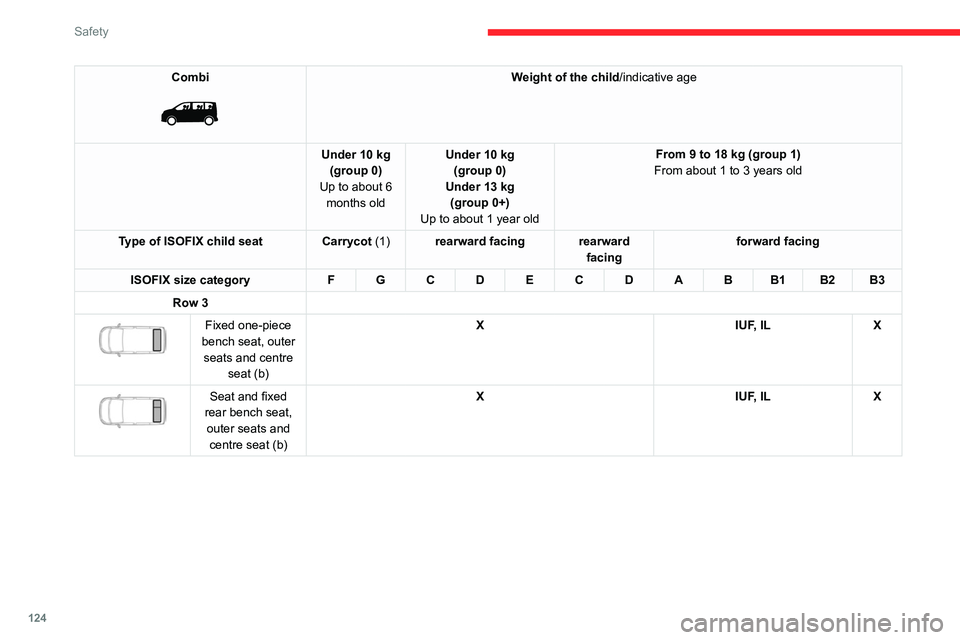

124
Safety
Combi

Weight of the child/indicative age
Under 10 kg (group 0)
Up to about 6 months old Under 10 kg
(group 0)
Under 13 kg (group 0+)
Up to about 1 year old From 9 to 18 kg (group 1)
From about 1 to 3 years old
Type of ISOFIX child seat Carrycot (1)rearward facing rearward
facingforward facing
ISOFIX size category F G C D E C D A B B1 B2 B3
Row 3


Fixed one-piece
bench seat, outer seats and centre seat (b) X
IUF, ILX


Seat and fixed
rear bench seat, outer seats and centre seat (b) X
IUF, ILX

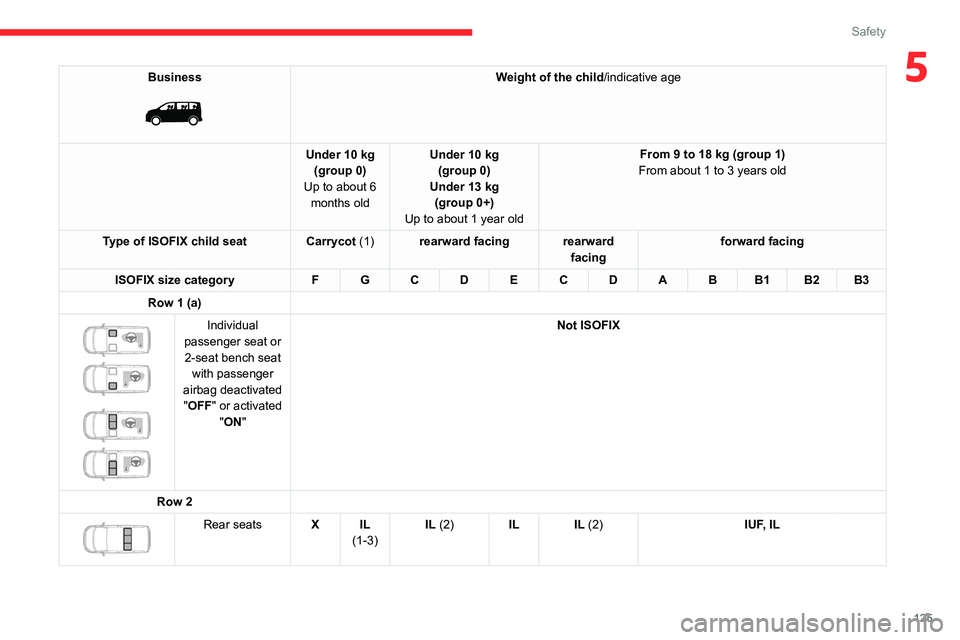

125
Safety
5Business

Weight of the child/indicative age
Under 10 kg (group 0)
Up to about 6 months old Under 10 kg
(group 0)
Under 13 kg (group 0+)
Up to about 1 year old From 9 to 18 kg (group 1)
From about 1 to 3 years old
Type of ISOFIX child seat Carrycot (1)rearward facing rearward
facingforward facing
ISOFIX size category F G C D E C D A B B1 B2 B3
Row 1 (a)




Individual
passenger seat or 2-seat bench seat with passenger
airbag deactivated "OFF " or activated
"ON" Not ISOFIX
Row 2


Rear seats X IL
(1-3) IL (2)
IL IL (2) IUF, IL

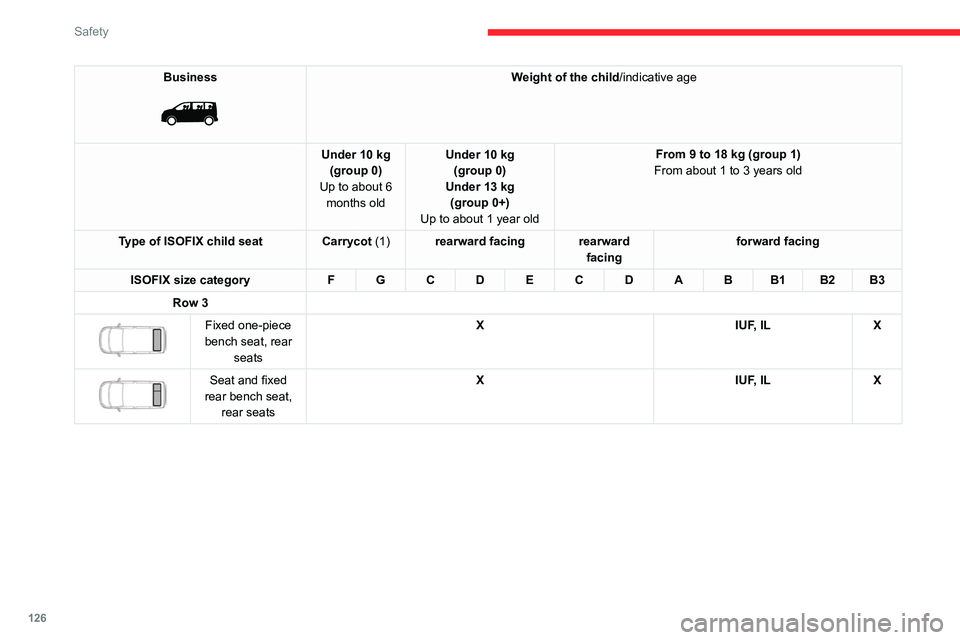

126
Safety
Business

Weight of the child/indicative age
Under 10 kg (group 0)
Up to about 6 months old Under 10 kg
(group 0)
Under 13 kg (group 0+)
Up to about 1 year old From 9 to 18 kg (group 1)
From about 1 to 3 years old
Type of ISOFIX child seat Carrycot (1)rearward facing rearward
facingforward facing
ISOFIX size category F G C D E C D A B B1 B2 B3
Row 3


Fixed one-piece
bench seat, rear seats X
IUF, ILX


Seat and fixed
rear bench seat, rear seats X
IUF, ILX

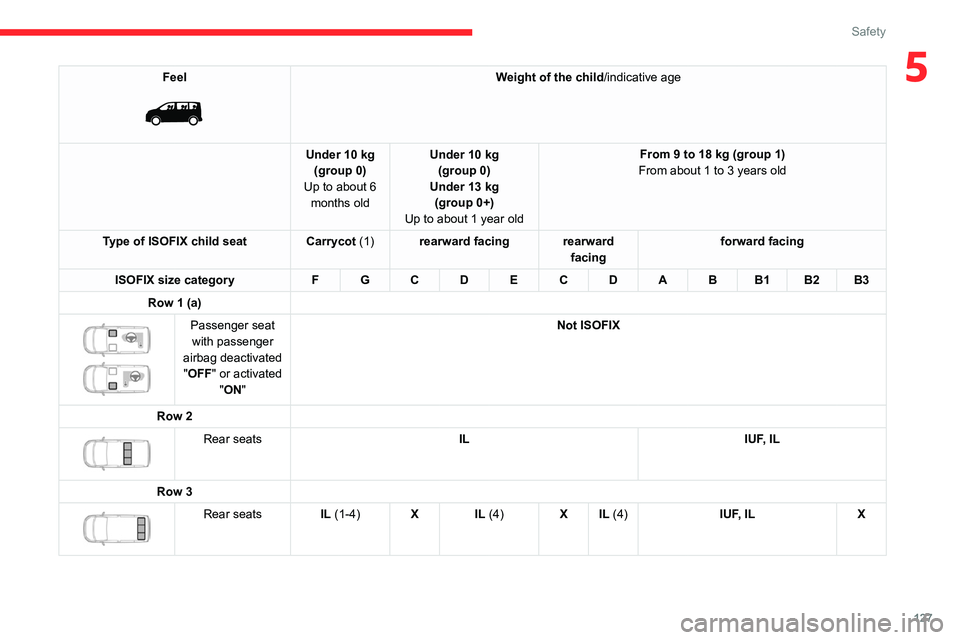

127
Safety
5Feel

Weight of the child/indicative age
Under 10 kg (group 0)
Up to about 6 months old Under 10 kg
(group 0)
Under 13 kg (group 0+)
Up to about 1 year old From 9 to 18 kg (group 1)
From about 1 to 3 years old
Type of ISOFIX child seat Carrycot (1)rearward facing rearward
facingforward facing
ISOFIX size category F G C D E C D A B B1 B2 B3
Row 1 (a)


Passenger seat with passenger
airbag deactivated "OFF " or activated
"ON" Not ISOFIX
Row 2


Rear seats IL IUF, IL
Row 3


Rear seats IL (1-4)X IL (4) X IL (4) IUF, ILX

128
Safety
Shine, Business Lounge

Weight of the child/indicative age
Under 10 kg (group 0)
Up to about 6 months old Under 10 kg
(group 0)
Under 13 kg (group 0+)
Up to about 1 year old From 9 to 18 kg (group 1)
From about 1 to 3 years old
Type of ISOFIX child seat Carrycot (1)rearward facing rearward
facingforward facing
ISOFIX size category F G C D E C D A B B1 B2 B3
Row 1 (a)


Passenger seat with passenger
airbag deactivated "OFF " or activated
"ON" Not ISOFIX
Row 2


Seat behind driver
or front passenger X IL (5)
IL IL (5)ILIUF, IL IUF*, IL


Centre seat (b) X IL (5) IL IL (5)IL IUF, IL
* Except short (XS) vehicle version.

129
Safety
5Shine, Business Lounge

Weight of the child/indicative age
Under 10 kg (group 0)
Up to about 6 months old Under 10 kg
(group 0)
Under 13 kg (group 0+)
Up to about 1 year old From 9 to 18 kg (group 1)
From about 1 to 3 years old
Type of ISOFIX child seat Carrycot (1)rearward facing rearward
facingforward facing
ISOFIX size category F G C D E C D A B B1 B2 B3


Rear seatsIL (1-5) ILIL IUF, IL
Row 3


Outer seats XIL (4)IL IL (4) IUF, IL


Centre seat (b)XIL (4)IL IL (4) IUF, IL


Rear seatsIL (1-4)X IL (4) X IL (4) IUF, ILX
IUF: Seat position suitable for the installation of
an Isofix Universal seat, "Forward facing",
secured using the upper strap.

130
Safety
IL:Seat position suitable for the installation
of an
Isofix Semi-Universa L seat which is
either:
–

"rearward facing" fitted with an upper
strap or a support leg,
–


"forward facing" fitted with a support leg,
–


a carrycot fitted with an upper strap or a
support leg.
X: Seat position not suitable for the installation
of

an ISOFIX child seat or carrycot for the
specified weight group.
(a) Refer to the current legislation in the country
in which you are driving before placing a
child in this seat position.(b)The seat can be installed centrally in the
vehicle; it then prevents the use of the outer
seats.
For information on securing the upper
strap using the ISOFIX mountings , refer
to the corresponding section.
(1) Installing a carrycot on this seat may
prevent the use of one or more of the other
seats in this row.
(2) Installation possible only behind the driver's
seat. (3)
Installation possible only behind the driver's
seat with individual passenger seat.
(4) The seat in row 2 must be adjusted so that
there is no contact between the child in row
3 and the seat immediately in front.
(5) The front seat must be adjusted so that
there is no contact between the child in row
2 and the seat immediately in front.
(6) The front seat must be adjusted so that
there is no contact between the child in row
2 and the seat immediately in front (with the
front seat adjusted to 2 notches ahead of
the centre of the slide).
i-Size child seats
i-Size child seats have two latches that are anchored to the two rings A.
These i-Size child seats also have:
–

either an upper strap that is attached to ring B

.
–

or a support leg that rests on the vehicle floor
, compatible with the approved i-Size seat position.
Their role is to prevent the child seat from tipping forward in the even\
t of a collision.
For more information on the ISOFIX mountings, refer to the corresponding section.
Locations for i-Size child seats
In accordance with the new European regulations, this table indicates the options for installing i-Size child seats on seats in the vehicle fitted with i-Size
approved ISOFIX mountings.
