sensor CITROEN JUMPY 2022 Owner's Manual

175
Driving
6Obstacles may appear further away than
they actually are.
It is important to monitor the sides of the
vehicle during the manoeuvre, using the
mirrors.
Parking sensors also provide additional
information about the area around the vehicle.
180° view

The 180° view facilitates reversing out of a
parking space, making it possible to see the
approach of vehicles, pedestrians and cyclists.
This view is not recommended for carrying out a
complete manoeuvre.
It features 3 areas: left A, centre B and right C. This view is only available via the view selection
menu.
Quick start mode

This mode displays, as quickly as possible, the
contextual view (left-hand part) and the overhead
view of the vehicle.
A message is displayed advising you to check
your vehicle's surroundings before starting the
manoeuvre.

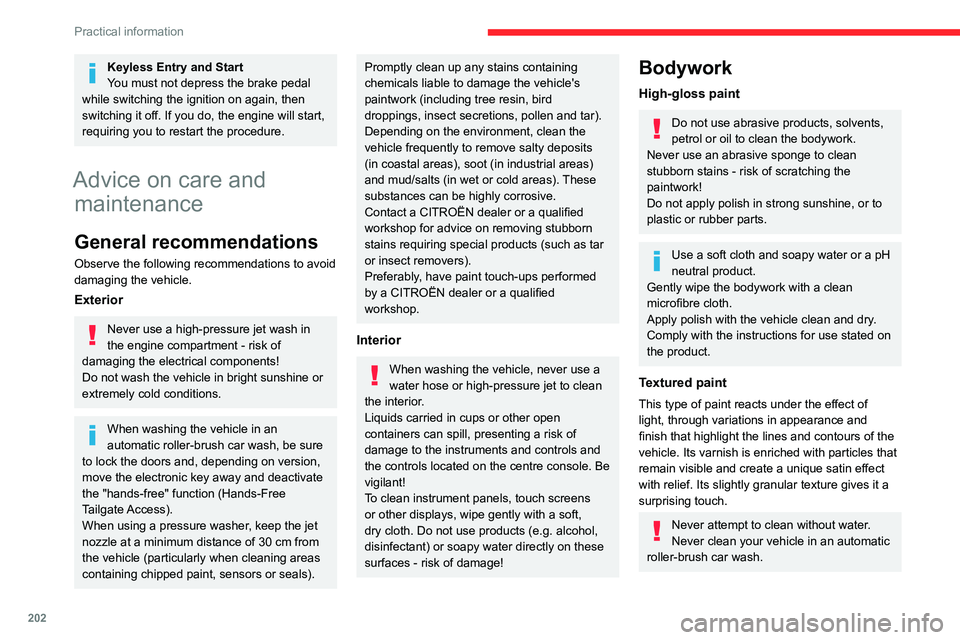

202
Practical information
Keyless Entry and Start
You must not depress the brake pedal
while switching the ignition on again, then
switching it off. If you do, the engine will start,
requiring you to restart the procedure.
Advice on care and maintenance
General recommendations
Observe the following recommendations to avoid
damaging the vehicle.
Exterior
Never use a high-pressure jet wash in
the engine compartment - risk of
damaging the electrical components!
Do not wash the vehicle in bright sunshine or
extremely cold conditions.
When washing the vehicle in an
automatic roller-brush car wash, be sure
to lock the doors and, depending on version,
move the electronic key away and deactivate
the "hands-free" function (Hands-Free
Tailgate Access).
When using a pressure washer, keep the jet
nozzle at a minimum distance of 30 cm from
the vehicle (particularly when cleaning areas
containing chipped paint, sensors or seals).
Promptly clean up any stains containing
chemicals liable to damage the vehicle's
paintwork (including tree resin, bird
droppings, insect secretions, pollen and tar).
Depending on the environment, clean the
vehicle frequently to remove salty deposits
(in coastal areas), soot (in industrial areas)
and mud/salts (in wet or cold areas). These
substances can be highly corrosive.
Contact a CITROËN dealer or a qualified
workshop for advice on removing stubborn
stains requiring special products (such as tar
or insect removers).
Preferably, have paint touch-ups performed
by a CITROËN dealer or a qualified
workshop.
Interior
When washing the vehicle, never use a
water hose or high-pressure jet to clean
the interior.
Liquids carried in cups or other open
containers can spill, presenting a risk of
damage to the instruments and controls and
the controls located on the centre console. Be
vigilant!
To clean instrument panels, touch screens
or other displays, wipe gently with a soft,
dry cloth. Do not use products (e.g. alcohol,
disinfectant) or soapy water directly on these
surfaces - risk of damage!
Bodywork
High-gloss paint
Do not use abrasive products, solvents,
petrol or oil to clean the bodywork.
Never use an abrasive sponge to clean
stubborn stains - risk of scratching the
paintwork!
Do not apply polish in strong sunshine, or to
plastic or rubber parts.
Use a soft cloth and soapy water or a pH
neutral product.
Gently wipe the bodywork with a clean
microfibre cloth.
Apply polish with the vehicle clean and dry.
Comply with the instructions for use stated on
the product.
Textured paint
This type of paint reacts under the effect of
light, through variations in appearance and
finish that highlight the lines and contours of the
vehicle. Its varnish is enriched with particles that
remain visible and create a unique satin effect
with relief. Its slightly granular texture gives it a
surprising touch.
Never attempt to clean without water.
Never clean your vehicle in an automatic
roller-brush car wash.

213
In the event of a breakdown
8► Lower the vehicle again fully.
► Fold jack 2 and remove it.


► If fitted to your vehicle, tighten the anti-theft
bolt using the wheelbrace 1 fitted with the anti-
theft socket
4.
►

T
ighten the other bolts using the
wheelbrace

1
only.
►

Stow the tools in the tool box.
Fitting a steel or "space-saver" type
spare wheel
If the vehicle is fitted with alloy wheels, the
washers A do not make contact with the steel
or "space-saver" type spare wheel. The wheel
is held in place by the conical contact surface
B of each bolt.
After changing a wheel
Stow the punctured wheel in the carrier.
Go promptly to a CITROËN dealer or a
qualified workshop.
Have the punctured tyre examined. After
inspection, the technician will advise you on
whether the tyre can be repaired or if it must
be replaced.
Some driving aid functions should be
disabled, e.g. the Active Safety Brake.
If your vehicle has tyre under-inflation
detection, check the tyre pressures and
reinitialise the system.
For more information on Tyre under-inflation
detection, refer to the corresponding section.
Tyre under-inflation detection
The steel spare wheel does not have a
sensor.
Wheel with wheel trim
When refitting the wheel, refit the wheel
trim, starting by aligning the cutout with the
valve and then pushing the trim into place all
round its edge with the palm of your hand.
Changing a bulb
In some weather conditions (e.g. low
temperature or humidity), misting on the
internal surface of the glass of the headlamps
and rear lamps is normal, and will disappear
after the lamps have been on for a few
minutes.
The headlamps have polycarbonate lenses with a protective coating:
–

Do not clean them with a dry or abrasive
cloth, nor with detergent or solvent
products.
–


Use a sponge and soapy water or a pH
neutral product.
–


When using a high-pressure washer on
persistent marks, do not keep the lance
directed towards the headlamps, lamps or
their edges for too long, so as not to damage
their protective coating and seals.
Changing a bulb must only be done with
the ignition off and after the headlamp /
lamp has been switched off for several
minutes - risk of serious burns!
Do not touch the bulb directly with your
fingers; use a lint-free cloth.
It is essential only to use anti-ultraviolet
(UV) type bulbs, so as not to damage the
headlamp.
Always replace a failed bulb with a new bulb
of the same type and specification. To avoid
lighting imbalance, replace the bulbs in pairs.

287
Event data recorders
13Recording event data
Electronic control units are installed in your
vehicle. These control units process data
received from the vehicle's sensors, for example,
or data they generate themselves or exchange
with each other. Some of these control units are
required for the correct operation of your vehicle,
some others assist you while driving (driving or
manoeuvring aids), while others provide comfort
or infotainment functions.
The following contains general information about
how data is processed within the vehicle.
You will find additional information about the
specific data which is downloaded, stored
and transmitted to third parties and what it is
used for in your vehicle under the keyword
"Data protection". This information is directly
associated with the references for the functions
in question contained in the corresponding
vehicle handbook, or in the general terms and
conditions of sale.
This information is also available online.
Vehicle operating data
The control units process the data used for the
operation of the vehicle.
This data includes, for example:
–
Information about the state of the vehicle
(e.g.

speed, travel time, lateral acceleration,
wheel rotation rate, fastened seat belts display).
–

Environmental conditions (e.g.
temperature,
rain sensor, distance sensor). As a general rule, this data is temporary, is
not stored for longer than one operating cycle
and is only used within the vehicle itself. The
control units often record this data (including the
vehicle's key). This function allows either the
temporary or permanent storage of information
about the state of the vehicle, stresses on
components, servicing requirements, as well as
events and technical errors.
Depending on the vehicle's equipment level, the
data stored is as follows:
–

Operating state of system components
(e.g.
filling level, tyre pressures, battery charge
status).
–
Faults and malfunctions in important system
components (e.g.
lamps, brakes).
–
System reactions in specific driving situations
(e.g.
deployment of an airbag, triggering of
stability control and braking systems).
–
Information about events which have
damaged the vehicle.
–

For electric and rechargeable hybrid vehicles,
the traction battery charge level and the
estimated driving range.
In particular circumstances (e.g.
if the vehicle
has detected a malfunction), it may be necessary
to record data which would otherwise simply not
be stored.
When taking your vehicle in for servicing
(e.g.
repairs, maintenance), the stored operating
data may be read along with the vehicle's
identification number and used if necessary.
The personnel working for the servicing network (e.g.
garages, manufacturers) or third parties
(e.g. roadside assistance agents) may read
the vehicle's data. This also applies to work
carried out under warranty and quality assurance
measures.
This data is generally read via the OBD
(On-Board Diagnostics) port fitted by law to
the vehicle. It is used to report on the technical
state of the vehicle or its components and
facilitates the diagnosis of malfunctions, in
compliance with warranty obligations and for
quality improvement. This data, in particular the
information relating to stress on components,
technical events, operator errors and other
malfunctions, is sent to the Manufacturer, if
necessary, along with the vehicle's identification
number. The Manufacturer's liability may also be
engaged. The Manufacturer may also use the
operating data taken from the vehicle for product
recalls. This data may also be used to check the
customer's warranty and any claims made under
warranty.
Any malfunctions stored in the vehicle may be
reset by an after-sales service company during
servicing or repair work, or at your request.
Comfort and infotainment
functions
Comfort settings and personalised settings
may be saved in the vehicle and modified or
reinitialised at any time.

290
Alphabetical index
180° rear vision 175
A
ABS 99
Accelerated charging unit (Wallbox)
182
Accessories

96
Access to the 3rd row

58, 60
Access to the spare wheel

210–211
Active Safety Brake

165, 167
AdBlue®

18, 198
AdBlue® tank

200
Additive, Diesel

196–197
Adjusting head restraints

50
Adjusting seat

48–50
Adjusting the air distribution

79–80
Adjusting the air flow

79–80
Adjusting the date

26, 260, 282
Adjusting the height and reach of
the steering wheel

52
Adjusting the lumbar support

48
Adjusting the seat angle

48, 50
Adjusting the seat belt height

104
Adjusting the temperature

79–80
Adjusting the time

26, 259, 283
Advanced Grip Control

101–102
Advice on care and maintenance

180, 202
Advice on driving

7, 134–135
Airbags

106–108, 110
Airbags, curtain

107–108
Airbags, front

106, 108, 110
Airbags, lateral 107–108
Air conditioning
77, 79, 79–80, 82
Air conditioning, digital

81
Air conditioning, dual-zone automatic

79–80
Air conditioning, manual

78–79, 81
Air intake

79–81
Air vents

77
Alarm

45–46
Android Auto connection

256, 274
Anti-lock braking system (ABS)

99
Anti-pinch

74
Antitheft / Immobiliser

29
Apple CarPlay connection

256, 273
Applications

274
Area, loading

30, 37–38, 72
Armrest, front

50
Assistance call

97
Assistance, emergency braking

99, 167
Audible warning

99
Audio streaming (Bluetooth)

243, 255, 278
B
Battery, 12 V 190, 196–197, 218–221
Battery, ancillaries
218
Battery, charging

220–221
Battery, remote control

36, 84
Bench seat, one-piece, fixed

57–59
Blind, panoramic roof

74
Blind spot monitoring system

171
Blind spot sensors

170
Blinds, side 73
BlueHDi
18, 196, 204
Bluetooth (hands-free)

243–244, 257, 279
Bluetooth (telephone)

257–258, 279–280
Bodywork

202
Bonnet

193
Boot

44
Boot lid

33–34, 35, 44
Brake discs

198
Brake lamps

216, 218
Brakes

198
Braking

148
Braking assistance system

99
Braking, automatic emergency

165, 167
Braking, dynamic emergency

141–142
Brightness

259
Bulbs

214
Bulbs (changing)

213, 216
C
Cable, audio 277
Cable, Jack
277
Capacity, fuel tank

177–178
Cap, fuel filler

177–178
Care of the bodywork

202
CD

242
CD, MP3

242
Central locking

28, 33, 37
Changing a bulb

213, 216, 218
Changing a bulb (side-hinged doors)

216

294
Alphabetical index
Minimum traction battery charge level
(Electric)
20
Mirror, rear view

53
Mirrors, door

52–53, 82, 170–171
Misfuel prevention

178
Mobile application

26, 85, 189
Moduwork

53–55
Motor, electric

138, 194, 231
Mountings, ISOFIX

118, 127, 130, 130–131
MP3 CD

242
N
Navigation 268–270
Navigation, connected
271–273
Net, cargo

53–55
Net, high load retaining

72–73
Number plate lamps

217
O
Obstacle detection 171
Oil change
194
Oil consumption

194
OIl, engine

194
On-board tools

205
Opening the bonnet

193
Opening the boot

28–29, 44
Opening the doors

28–29, 38–39
Opening to 180°

43–44
P
Pads, brake 198
Paint
202, 235
Paint colour code

235
Paint, matt

202
Panoramic glass sunroof

74
Parcel shelf, rear

69
Parking brake

140, 197
Parking brake, electric

140–142, 197
Parking sensors, audible and visual

171
Parking sensors, front

172
Parking sensors, rear

172
Passenger compartment temperature pre-
conditioning (Electric)

26, 85
Pedestrian horn (Electric)

99, 135
Plates, identification

235
Player, Apple®

243, 255, 278
Player, MP3 CD

242
Player, USB

241, 254, 277
Port, USB

70, 241, 254, 256, 273, 277
Power

20
Power indicator (Electric)

8, 20
Power mode

149
Pressures, tyres

198, 206, 209, 236
Pre-tensioning seat belts

105
Priming pump

204
Priming the fuel system

204
Profiles

259, 282
Protecting children

106, 108–110, 112,
120–121, 127, 130, 130–131
Public fast charging station

182, 188
Puncture 206–207, 209
R
Radar (warnings) 152
Radio
239–240, 252–253, 276
Radio, digital (Digital Audio
Broadcasting - DAB)

240, 254, 277
Range, AdBlue®

18, 196
RDS

253, 276
Rear screen, demisting

82
Recharging the battery

220–221
Recharging the traction battery

183
Recharging the traction battery
(Electric)

179, 186, 188–189
Recirculation, air

79–81
Recovery

222–224
Recovery of the vehicle

222–223
Reduction of electrical load

190
Regeneration of the particle filter

197
Regenerative braking (deceleration
by engine braking)

147–148
Reinitialisation of the under-inflation
detection system

151
Reinitialising the remote control

36
Reminder, key in ignition

138
Reminder, lighting on

89
Remote control

28–34, 136
Remotely operable functions
(Electric)

26, 85, 189
Removing a wheel

211–213

295
Alphabetical index
Removing the mat 68
Replacing bulbs
213–214, 216, 218
Replacing fuses

218
Replacing the air filter

197
Replacing the oil filter

197
Replacing the passenger compartment
filter

197
Reservoir, screenwash

196
Resetting the trip recorder

21–22
Reversing camera

153, 173, 175
Reversing lamp

216, 218
Roof bars

191–192
Roof rack

191
Running out of fuel (Diesel)

204
S
Safety, children 106, 108–110, 112, 120–121,
127, 130, 130–131
Saturation of the particle filter (Diesel)

197
Screen, instrument panel

22
Screen menu map

256
Screen, multifunction (with audio system)

238
Screenwash

93
Screenwash, front

93
Screenwash, rear

94
SCR (Selective Catalytic Reduction)

19, 198
Seat and bench seat, rear, fixed

57, 59–61
Seat and bench seat, rear, on rails

57, 61–63
Seat angle

48
Seat belts

102–105, 111
Seat belts, rear

104
Seat, bench front, 2-seat 50, 104
Seat, rear bench
57
Seats, electric

49–50
Seats, front

48–50
Seats, heated

51
Seat(s), individual, rear, on rails

63–65, 104
Seats, rear

57–63, 109
Selector, gear

144
Sensors (warnings)

153
Serial number, vehicle

235
Service indicator

16
Servicing

16, 196, 198
Settings, equipment

24–25
Settings, system

259, 282
Sidelamps

88, 214–216, 218
Side repeater

216
Silent vehicle warning sound (Electric)

99, 135
Sliding side door, electric

33–34, 38–41
Sliding side door, hands-free

42–43
Sliding side window

73
Smartphone

26
Snow chains

151, 190–191, 211
Snow chains, link

191, 211
Socket, 12 V accessory

69
Socket, 220 V

70
Socket, auxiliary

242, 255, 277
Socket, Jack

242, 277
Speed limiter

154–159
Speed limit recognition

155–156, 158, 160, 164–166
Speedometer

153
Sport mode

149
Stability control (ESC)

99, 101–102Starting a Diesel engine 177
Starting the engine
136, 138
Starting the vehicle

137, 139, 143–147
Starting using another battery

139, 219
Station, radio

239, 252–253, 276
Stay, bonnet

193
Steering mounted controls,
audio

238, 250, 263
Steering wheel, adjustment

52
Stickers, customising ~ Stickers,
expressive

203
Stopping the vehicle

138–139, 144–147
Stop & Start

24, 78, 149–150,
177, 192, 197, 222
Storage

50, 56–57, 65–68
Storage compartments

68–69
Storage wells

65–67, 69
Stowing rings

71
Sunshine sensor

77
Super-fast charging (Electric)

188–189, 231
Suspension

198
Switching off the engine

136, 138
Synchronising the remote control

36
T
Table of weights 226
Table position
49
Table, retractable sliding

74–76
Tables, aircraft

69
Tables of engines

231
Table top, working

56–57
