Citroen JUMPY DAG 2009.5 2.G Owner's Manual

126
Dimensions
REAR DOORS (mm)
L1 L2
H1 H1 H2
N Useful height 1 272 1 630
O Useful width 1 237

Dimensions
TECHNICAL DATA
8

SLIDING SIDE DOOR (mm)
L1 L2
H1 H1 H2
P Height 1 293 1 301
Q Width 924

128
Dimensions

129
Dimensions
TECHNICAL DATA
8

PLATFORM CAB (mm)
L2
L Overall length 5 016
A Wheelbase 3 122
B Front overhang 975
C Rear overhang 920
Max passable rear overhang 1 420
D Overall width (excluding mirrors) 1 895
E Width of front tracks 1 574
F Width of rear tracks 1 574
- Gross vehicle weight -
- Max weight at the front 1 400
- Max weight at the rear 1 700

Weights
WEIGHTS AND TOWED LOADS (KG)
For further information, refer to your registration certificate.
In each country, it is imperative that the towed l oads permitted by local legislation are complied wi th. To find out your vehicle's towing
capabilities and its gross train weight, contact a CITROËN dealer.
Load transfer
If the towing vehicle has not reached the GVW, it is possible to transfer this weight to the trailer.
In all cases, do not exceed the weight of the trai ler and the GTW, indicated on your registration cer tificate.
Comply with the towing capacities of your vehicle.

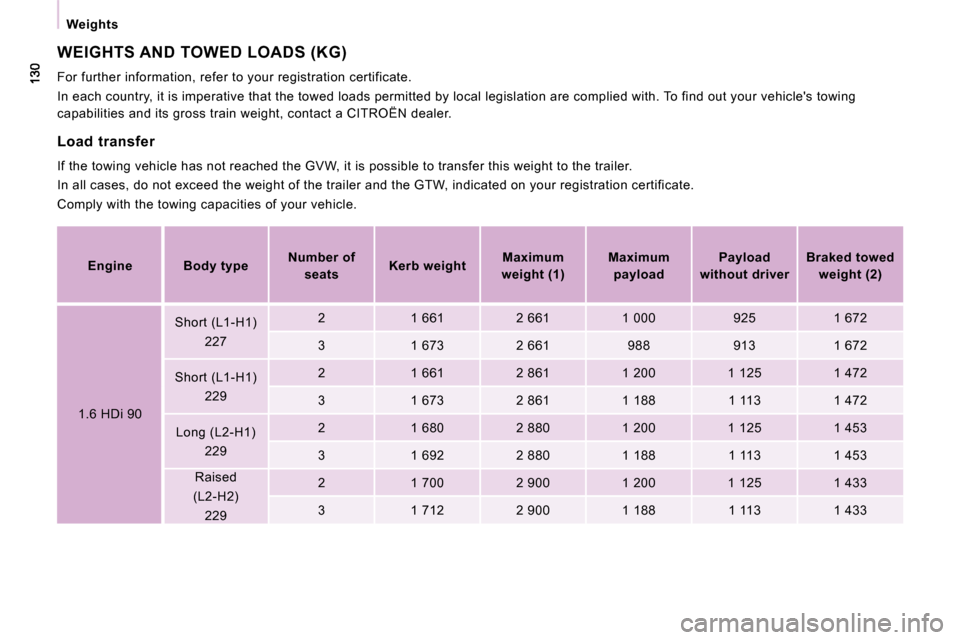

Engine Body type
Number of
seats
Kerb weight
Maximum
weight (1)
Maximum
payload
Payload
without driver
Braked towed
weight (2)
1.6 HDi 90 Short (L1-H1)
227 2 1 661 2 661 1 000 925 1 672
3 1 673 2 661 988 913 1 672
Short (L1-H1) 229 2 1 661 2 861 1 200 1 125 1 472
3 1 673 2 861 1 188 1 113 1 472
Long (L2-H1) 229 2 1 680 2 880 1 200 1 125 1 453
3 1 692 2 880 1 188 1 113 1 453
Raised
(L2-H2) 229 2 1 700 2 900 1 200 1 125 1 433
3 1 712 2 900 1 188 1 113 1 433

131
Weights
TECHNICAL DATA
8
(1) Gross vehicle weight (GVW).
(2) Braked towed weight with load transfer: this can be increased on condition that the equivalent o f this load is removed from the vehicle so
that the GTW is not exceeded.
High exterior temperatures may result in a reducti on in the performance of the vehicle to protect the engine. When the exterior temperature
is higher than 37 °C, limit the towed weight to 700 kg, without load transfer.
The speed of a towing vehicle must not exceed 60 m ph (100 km/h) (comply with the legislation in force in your country).

Engine Body type
Number of
seats
Kerb weight
Maximum
weight (1)
Maximum
payload
Payload
without driver
Braked towed
weight (2)
2.0 HDi 120 and
2.0 HDi 120 PEF Short (L1-H1)
227 2 1 702 2 702 1 000 925 2 000
3 1 714 2 702 988 913 2 000
Short (L1-H1) 229 2 1 702 2 902 1 200 1 125 1 998
3 1 714 2 902 1 188 1 113 1 998
Long (L2-H1) 229 2 1 732 2 932 1 200 1 125 1 968
3 1 744 2 932 1 188 1 113 1 968
Raised
(L2-H2) 229 2 1 763 2 963 1 200 1 125 1 937
3 1 775 2 963 1 188 1 113 1 937

132
Weights
(1) Gross vehicle weight (GVW).
(2) Braked towed weight with load transfer: this can be increased on condition that the equivalent o f this load is removed from the vehicle so
that the GTW is not exceeded.
High exterior temperatures may result in a reducti on in the performance of the vehicle to protect the engine. When the exterior temperature
is higher than 37 °C, limit the towed weight to 700 kg, without load transfer.
The speed of a towing vehicle must not exceed 60 m ph (100 km/h) (comply with the legislation in force in your country).

Engine Body type
Number of
seats
Kerb weight
Maximum
weight (1)
Maximum
payload
Payload
without driver
Braked towed
weight (2)
2.0 HDi 136 PEF Short (L1-H1)
227 2 1 717 2 717 1 000 925 2 000
3 1 729 2 717 988 913 2 000
Short (L1-H1) 229 2 1 717 2 917 1 200 1 125 2 000
3 1 729 2 917 1 188 1 113 2 000
Long (L2-H1) 229 2 1 746 2 946 1 200 1 125 2 000
3 1 758 2 946 1 188 1 113 2 000
2.0 PETROL 140 Short (L1-H1)
227 2 1 661 2 661 1 000 925 1 389
3 1 673 2 661 988 913 1 389
Short (L1-H1) 229 2 1 661 2 861 1 200 1 125 1 189
3 1 673 2 861 1 188 1 113 1 189
Long (L2-H1) 229 2 1 680 2 880 1 200 1 125 1 170
3 1 692 2 880 1 188 1 113 1 170
Raised
(L2-H2)
229 2 1 700 2 900 1 200 1 125 1 150
3 1 712 2 900 1 188 1 113 1 150

133
Diesel - Petrol engines
TECHNICAL DATA
8
Diesel Petrol
1.6 HDi 90 2.0 HDi 120 2.0 HDi 120 PEF 2 .0 HDi 136 PEF 2.0 PETROL 140
Gearbox Manual
Gears 5 6 6 5
Power (bhp) 90 120 136 138
Power (DIN) 92 122 138 143
Cubic capacity (cm 3
) 1 560 1 997 1 997 1 997
Bore x stroke (mm) 75 x 88 85 x 88 85 x 88 85 x 88
EU standard maximum power (kW) 66 88 100 103
Max power engine speed (rpm) 4 000 4 000 4 000 6 000
EU standard max torque (Nm) 180 300 320 180
Max torque engine speed (rpm) 1 750 2 000 2 000 2 500
Fuel Diesel Diesel Diesel Diesel Unleaded
Particle emission filter No No Yes Yes /
Catalytic converter Yes Yes Yes Yes -
ENGINES AND GEARBOXES
For further information, consult the internet sit e at the address: http://service.citroen.com

134
Diesel - Petrol engines
Diesel
1.6 HDi 90 2.0 HDi 120 and 2.0 HDi 120 PEF 2.0 HDi 136 PEF
Gearbox Manual
Gears 5 6 6
Power (bhp) 90 120 136
Power (DIN) 92 122 138
H1L1 H1L2 H2L2 H1L1 H1L2 H2L2 H 1L1 H1L2
Urban driving [mpg (l/100 km)] 33.6 (8.4) 33.6 (8.4) 32.8 (8.6) 31.0 (9.1) 30.7 (9.2) 30.1 (9.4) 30.7 (9.2) 30.7 (9.2)
Inter-urban driving [mpg (l/100 km)] 42.8 (6.6) 42.8 (6.6) 41.5 (6.8) 44.8 (6.3) 44.1 (6.4) 42.8 (6.6) 44.1 (6.4) 44.1 (6.4)
Mixed driving [mpg (l/100 km)] 39.2 (7.2) 39.2 (7.2) 37.6 (7.5) 39.2 (7.2) 38.1 (7.4) 37.2 (7.6) 738.1 (7.4) 38.1 (7.4)
Emission of CO 2 by weight (g/km) 191 191 198 194 196
200 196 196
Consumption values correct at time of printing. Th ese consumption values were established in accordan ce with Directive 80/1268/CEE.
They may vary depending on the style of driving, tr affic conditions, weather conditions, the load in the vehicle, the maintenance of the
vehicle and the use of the accessories.
For further information, consult the internet sit e at the address: http://service.citroen.com
CONSUMPTION

135
Diesel - Petrol engines
TECHNICAL DATA
8
Petrol
2.0 PETROL 140
Gearbox Manual
Gears 5
Power (bhp) 140
Power (DIN) 143
H1L1 H1L2 H2L2
Urban driving [mpg (l/100 km)] 21.5 (13.2) 21. 5 (13.2) 121.1 (13.4)
Inter-urban driving [mpg (l/100 km)] 35.7 (8) 35.7 (8) 33.2 (8.5)
Mixed driving [mpg (l/100 km)] 28.5 (9.9) 28.5 (9.9) 27.4 (10.3)
Emission of CO 2 by weight (g/km) 235 235 246
