Dimensions
TECHNICAL DATA
8
H1
L Overall length 4 805 5 135
H Overall height pneumatic/metal suspension 1 895/1 942
A Wheelbase 3 000 3 122
B Front overhang 975
C Rear overhang 830 1 038
Overall width:
on panel 1 870
D with mouldings 1 895
with mirrors folded 1 986
with mirrors unfolded 2 194
E Width of front tracks 1 574
F Width of rear tracks 1 574
Turning circle pitch diameter between kerbs (m) 1 2,18 12,59
Maximum loads (kg)
Payload 1 000
On roof 170
DIMENSIONS (MM)
The vehicle is available in 2 lengths (L1, L2) and 1 height (H1),
refer to the tables:

138
Dimensions

REAR DOORS (mm)
L1 L2
H1
N Useful height 1 272
O Useful width 1 237

139
Dimensions
TECHNICAL DATA
8

SLIDING SIDE DOOR (mm)
L1 L2
H1
P Height 1 203
Q Width 924

140
Weights
WEIGHTS AND TOWED LOADS (KG)
For further information, refer to your registration certificate.
In each country, it is imperative that the towed l oads permitted by local legislation are complied wi th. To find out your vehicle’s towing
capabilities and its gross train weight, contact a CITROËN dealer.
Load transfer
If the towing vehicle has not reached the GVW, it is possible to transfer this weight to the trailer.
In all cases, do not exceed the weight of the trai ler and the GTW, indicated on your registration cer tificate.
Comply with the towing capacities of your vehicle.

Engine Body type
Number of
seats
Kerb weight
Maximum
weight (1)
Maximum
payload
Payload
without driver
Braked towed
weight (2)
1.6 HDi 90 Short (L1-H1)
5 1 733 2 683 950 882 2 000
6 1 745 2 683 938 870 2 000
8 1 811 2 683 872 804 2 000
9 1 822 2 683 861 793 2 000
Long (L2-H1) 5 1 764 2 714 950 882 2 000
6 1 776 2 714 938 870 2 000
8 1 842 2 714 872 804 2 000
9 1 853 2 714 861 793 2 000
Reinforced 8 1 857 2 852 995 927 2 000
9 1 868 2 852 984 916 2 000

141
Weights
TECHNICAL DATA
8

Engine Body type
Number of
seats
Kerb weight
Maximum
weight (1)
Maximum
payload
Payload
without driver
Braked towed
weight (2)
2.0 HDi 120 and
2.0 HDi 120 PEF Short (L1-H1)
5 1 809 2 759 950 882 2 000
6 1 821 2 759 938 870 2 000
8 1 887 2 759 872 804 2 000
9 1 898 2 759 861 793 2 000
Long (L2-H1) 5 1 841 2 791 950 882 2 000
6 1 853 2 791 938 870 2 000
8 1 919 2 791 872 804 2 000
9 1 930 2 791 861 793 2 000
Reinforced 8 1 934 2 932 958 930 2 000
9 1 945 2 932 987 919 2 000
(1) Gross vehicle weight (GVW).
(2) Braked towed weight with load transfer: this c an be increased on condition that the equivalent of this load is removed from the vehicle so
that the GTW is not exceeded.
High exterior temperatures may result in a reducti on in the performance of the vehicle to protect the engine. When the exterior temperature
is higher than 37 °C, limit the towed weight to 700 kg, without load transfer.
The speed of a towing vehicle must not exceed 60 m ph (100 km/h) (comply with the legislation in force in your country).

142
Weights

Engine Body type
Number of
seats
Kerb weight
Maximum
weight (1)
Maximum
payload
Payload
without driver
Braked towed
weight (2)
2.0 HDi 136 PEF Short (L1-H1)
5 1 824 2 774 950 882 2 000
6 1 836 2 774 938 870 2 000
8 1 902 2 774 872 804 2 000
9 1 913 2 774 861 793 2 000
Long (L2-H1) 5 1 855 2 805 950 882 2 000
6 1 867 2 805 938 870 2 000
8 1 933 2 805 872 804 2 000
9 1 944 2 805 861 793 2 000
Reinforced 8 1 948 2 946 998 930 2 000
9 1 959 2 946 987 919 2 000

143
Weights
TECHNICAL DATA
8
(1) Gross vehicle weight (GVW).
(2) Braked towed weight with load transfer: this can be increased on condition that the equivalent of this load is removed from the vehicle so
that the GTW is not exceeded.
High exterior temperatures may result in a reducti on in the performance of the vehicle to protect the engine. When the exterior temperature
is higher than 37 °C, limit the towed weight to 700 kg, without load transfer.
The speed of a towing vehicle must not exceed 60 m ph (100 km/h) (comply with the legislation in force in your country).

Engine Body type
Number of
seats
Kerb weight
Maximum
weight (1)
Maximum
payload
Payload
without driver
Braked towed
weight (2)

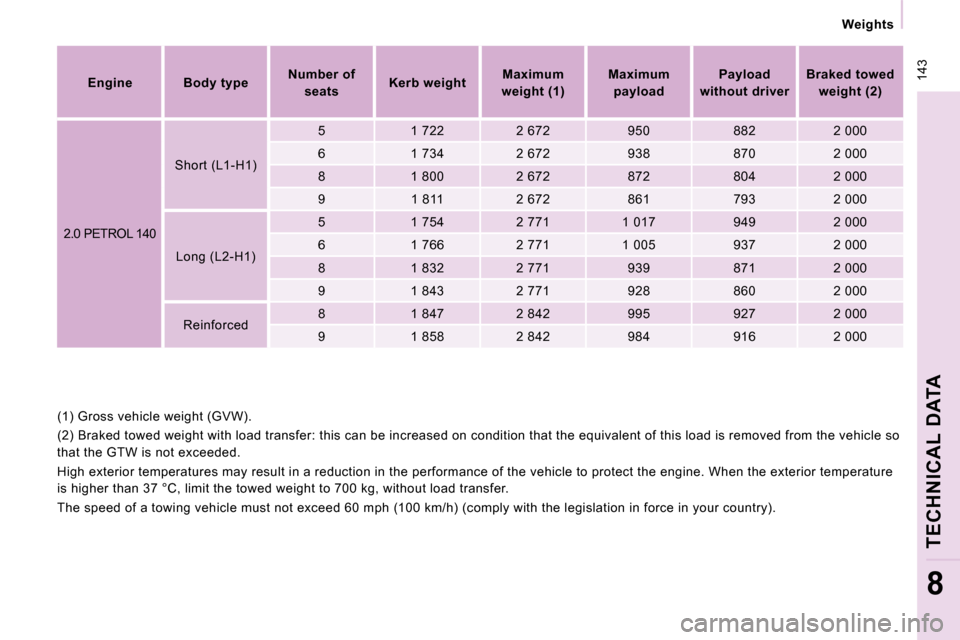

2.0 PETROL 140 Short (L1-H1)
5 1 722 2 672 950 882 2 000
6 1 734 2 672 938 870 2 000
8 1 800 2 672 872 804 2 000
9 1 811 2 672 861 793 2 000
Long (L2-H1) 5 1 754 2 771 1 017 949 2 000
6 1 766 2 771 1 005 937 2 000
8 1 832 2 771 939 871 2 000
9 1 843 2 771 928 860 2 000
Reinforced 8 1 847 2 842 995 927 2 000
9 1 858 2 842 984 916 2 000

144
Diesel - Petrol engines
Diesel
Petrol
1.6 HDi 90 2.0 HDi 120 2.0 HDi 120 PEF 2 .0 HDi 136 PEF 2.0 PETROL 140
Gearbox Manual
Gears 5 6 6 5
Power (bhp) 90 120 136 138
Power (DIN) 92 122 138 143
Cubic capacity (cm 3
) 1 560 1 997 1 997 1 997
Bore x stroke (mm) 75 x 88 85 x 88 85 x 88 85 x 88
EU standard maximum power (kW) 66 88 100 103
Max power engine speed (rpm) 4 000 4 000 4 000 6 000
EU standard max torque (Nm) 180 300 320 180
Max torque engine speed (rpm) 1 750 2 000 2 000 2 500
Fuel Diesel Diesel Diesel Diesel Unleaded
Particle emission filter No No Yes Yes /
Catalytic converter Yes Yes Yes Yes -
For further information, consult the internet sit e at the address: http://service.citroen.com
ENGINES AND GEARBOXES

145
Diesel - Petrol engines
TECHNICAL DATA
8
Diesel
1.6 HDi 90 2.0 HDi 120 and 2.0 HDi 120 PEF
2.0 HDi 136 PEF
Gearbox Manual
Gears 5 6 6
Power (bhp) 90 120 136
Power (DIN) 92 122 138
6 seats
max,
short L1 6 seats
max,
long L2 9 seats
max 6 seats
max,
short L1 6 seats
max,
long L2 9 seats
max 6 seats
max,
short L1 6 seats
max,
long L2 9 seats
max
Urban driving [mpg (l/100 km)] 33.6 (8.4) 32.8 (8.6) 32.8 (8.6) 31.0 (9.1) 30.7 (9.2) 30.4 (9.3) 30.7 (9.2) 30.4 (9.3) 30.1 (9.4)
Inter-urban driving [mpg (l/100 km)] 42.8 (6.6) 41.5 (6.8) 41.5 (6.8) 44.8 (6.3) 44.1 (6.4) 43.5 (6.5) 44.1 (6.4) 43.5 (6.5) 42.8 (6.6 )
Mixed driving [mpg (l/100 km)] 39.2 (7.2) 37.6 (7.5) 37.6 (7.5) 39.2 (7.2) 38.1 (7.4) 37.6 (7.5) 38.1 (7.4) 37.6 (7.5) 37.2 (7.6)
Emission of CO 2 by weight (g/km) 191 198 198 194 196
198 196 198 199
CONSUMPTION
For further information, consult the internet site at the address: http://service.citroen.com

146
Diesel - Petrol engines
Consumption values correct at time of printing. Th ese consumption values were established in accordan ce with EC Directive 80/1268 (as
amended). They may vary depending on the style of d riving, traffic conditions, weather conditions, the load in the vehicle, the maintenance
of the vehicle and the use of the accessories.
Petrol
2.0 PETROL 140
Gearbox Manual
Gears 5
Power (bhp) 140
Power (DIN) 143
6 seats max, short L1 6 seats max, long L2
9 seats max
Urban driving [mpg (l/100 km)] 21.5 (13.2) 21. 5 (13.2) 21.3 (13.3)
Inter-urban driving [mpg (l/100 km)] 35.7 (8) 35.7 (8) 34.4 (8.2)
Mixed driving [mpg (l/100 km)] 28.5 (9.9) 28.5 (9.9) 27.9 (10.1)
Emission of CO 2 by weight (g/km) 235 235 241
