99
Child safety
SAFETY
4

IUF: Seat suitable for the installation of an
ISOFIX child seat of the universal category.
"Forward facing" ISOFIX child seat fitted
with an upper strap secured to the upper
ring of the vehicle seats equipped with
ISOFIX mountings.
SUMMARY TABLE FOR THE INSTALLATION OF ISOFIX CHILD SEATS
This table indicates the options for the installation of ISOFIX child seats on the vehicle seats fitt ed with ISOFIX mountings.
In the case of the universal and semi-universal IS OFIX child seats, the child seat's ISOFIX size cate gory, determined by a letter from A to G ,
is indicated on the child seat next to the ISOFIX l ogo.

IL-SU: Seat suitable for the installation of a
semi-universal ISOFIX child seat. "Forward
facing" ISOFIX child seat fitted with a stay.
"Rear facing" ISOFIX child seat or infant car
seat, fitted with an upper strap or a stay.
X: No restraining system for children.

Weight of the child /indicative age

Less than
10 kg
(group 0)
Up to 6 months approx
Less than 10 kg
(group 0)
Less than 13 kg (group 0+)
Up to 1 year approx
From 9 to 18 kg
(group 1)
From 1 to 3 years approx

Type of ISOFIX child seat
Infant car
seat
"rear facing" "rear facing" "forward facing"

ISOFIX size category F G C D E C D A B B1

Row 2 rear side seats with individual
seats in Row 1
IL-SU IL-SU IL-SU IUF, IL-SU

Row 2 rear side seats with 2-seat
bench in Row 1
IL-SU X IL-SU X IL-SU IUF, IL-SU

Rear seats in Row 3 IL-SU X IL-SU X IL-SU IUF, IL-SU

Infant car seat: this is fixed to the lower
rings of a seat equipped with ISOFIX
mountings and occupies two rear seats.

100
Child safety
CHILD SEATS RECOMMENDED BY CITROËN
CITROËN offers a complete range of recommended child seats which are secured using a three point seat belt :

Group 0: from birth to 10 kg
Group 0+: from birth to 13 kg
Groups 1, 2 and 3: from 9 to 36 kg


L1
"ROMER Baby-Safe Plus"
Installed in the rear-facing position


L2
"KIDDY Life"
Use of the restraining cushion is compulsory for the transportation of young children (from 9 to 18 kg).

Groups 2 and 3: from 15 to 36 kg

L3
"RECARO Start''

L4
"KLIPPAN Optima"
From the age of 6 years (approximately 22 kg),
the booster is used on its own.

L5
"RÖMER KIDFIX"
Can be fixed on the vehicle's ISOFIX mountings. The child is restrained by the seat belt.

101
Child safety
SAFETY
4
Row 2 Side seats
U U U U
Centre seat U U U U
Row 3 Side seats
U U U U
Centre seat U U U U
a: Group 0: from birth to 10 kg. Infant car seats and "car cots" cannot be installed on the front pas senger seat.
b: consult the legislation in force in your countr y before installing your child on this seat.
U: seat suitable for the installation of a child s eat secured using a seat belt and universally appro ved, "rear facing" and/or "forward facing".
INSTALLING CHILD SEATS ATTACHED USING THE SEAT BEL T
This table indicates the options for installing child seats secured using a seat belt and universally approved in accordance with the weight of
the child and the seat in the vehicle.

Seat
Weight of the child and indicative age

Under 13 kg
(groups 0 (a) and 0+)
Up to approx 1 year
From 9 to 18 kg
(group 1)
1 to 3 years approx
From 15 to 25 kg
(group 2)
3 to 6 years approx
From 22 to 36 kg
(group 3) 6 to 10 years approx
Row 1 (b) Individual seat
U U U U
Bench, side seat U U U U
Bench, centre seat
L1 L2 L2, L3, L4 L2, L3, L4

102
Child safety
Deactivate the passenger airbag when a
"rear facing" child seat is installed on the
front seat.
Otherwise, the child would risk being
seriously injured or killed if the airbag were
to inflate. Installing a booster seat
The chest part of the seat belt must be
positioned on the child's shoulder without
touching the neck.
Ensure that the lap part of the seat belt
passes correctly over the child's thighs.
CITROËN recommends the use of a booster
seat which has a back, fitted with a seat belt
guide at shoulder level.
ADVICE ON CHILD SEATS
The incorrect installation of a child seat in a
vehicle compromises the child's protection in
the event of an accident.
Remember to fasten the seat belts or the
child seat harnesses keeping the slack in
relation to the child's body to a minimum ,
even for short journeys.
For optimum installation of the "forward
facing" child seat, ensure that the back of
the child seat is in contact with the back of
the vehicle's seat and that the head restraint
does not cause any discomfort.
If the head restraint has to be removed,
ensure that it is stored or attached securely
to prevent it from being thrown around the
vehicle in the event of sharp braking.
Children under the age of 10 must not travel
in the "forward facing" position on the front
passenger seat, unless the rear seats are
already occupied by other children, cannot
be used or are absent. As a safety precaution, do not leave:
- one or more children alone and
unsupervised in a vehicle,
- a child or an animal in a vehicle which is exposed to the sun, with the windows
closed,
- the keys within reach of children inside the vehicle.
To prevent accidental opening of the doors,
use the "Child Lock".
Take care not to open the rear windows by
more than one third.
To protect young children from the rays of
the sun, fit side blinds to the rear windows.

Changing a fuse
QUICK HELP
7
PASSENGER COMPARTMENT FUSES
- Unclip the battery compartment cover.
- Remove the red battery terminal (+).

When you have finished, close the cover
carefully.
Fuses A (amps) Allocation

1 30 Heated seats

2 20 Row 3 12 V socket

3 40/50 Trailer fuse box (accessory)

4 - Free

36 15 Hinged door locks

37 10 Hinged door locks

38 20 Hinged door rear wiper

39 10 Rear ventilation

40 5 Folding mirrors

140
Weights
WEIGHTS AND TOWED LOADS (KG)
For further information, refer to your registration certificate.
In each country, it is imperative that the towed l oads permitted by local legislation are complied wi th. To find out your vehicle’s towing
capabilities and its gross train weight, contact a CITROËN dealer.
Load transfer
If the towing vehicle has not reached the GVW, it is possible to transfer this weight to the trailer.
In all cases, do not exceed the weight of the trai ler and the GTW, indicated on your registration cer tificate.
Comply with the towing capacities of your vehicle.

Engine Body type
Number of
seats
Kerb weight
Maximum
weight (1)
Maximum
payload
Payload
without driver
Braked towed
weight (2)
1.6 HDi 90 Short (L1-H1)
5 1 733 2 683 950 882 2 000
6 1 745 2 683 938 870 2 000
8 1 811 2 683 872 804 2 000
9 1 822 2 683 861 793 2 000
Long (L2-H1) 5 1 764 2 714 950 882 2 000
6 1 776 2 714 938 870 2 000
8 1 842 2 714 872 804 2 000
9 1 853 2 714 861 793 2 000
Reinforced 8 1 857 2 852 995 927 2 000
9 1 868 2 852 984 916 2 000

141
Weights
TECHNICAL DATA
8

Engine Body type
Number of
seats
Kerb weight
Maximum
weight (1)
Maximum
payload
Payload
without driver
Braked towed
weight (2)
2.0 HDi 120 and
2.0 HDi 120 PEF Short (L1-H1)
5 1 809 2 759 950 882 2 000
6 1 821 2 759 938 870 2 000
8 1 887 2 759 872 804 2 000
9 1 898 2 759 861 793 2 000
Long (L2-H1) 5 1 841 2 791 950 882 2 000
6 1 853 2 791 938 870 2 000
8 1 919 2 791 872 804 2 000
9 1 930 2 791 861 793 2 000
Reinforced 8 1 934 2 932 958 930 2 000
9 1 945 2 932 987 919 2 000
(1) Gross vehicle weight (GVW).
(2) Braked towed weight with load transfer: this can be increased on condition that the equivalent o f this load is removed from the vehicle so
that the GTW is not exceeded.
High exterior temperatures may result in a reducti on in the performance of the vehicle to protect the engine. When the exterior temperature
is higher than 37 °C, limit the towed weight to 700 kg, without load transfer.
The speed of a towing vehicle must not exceed 60 m ph (100 km/h) (comply with the legislation in force in your country).

142
Weights

Engine Body type
Number of
seats
Kerb weight
Maximum
weight (1)
Maximum
payload
Payload
without driver
Braked towed
weight (2)

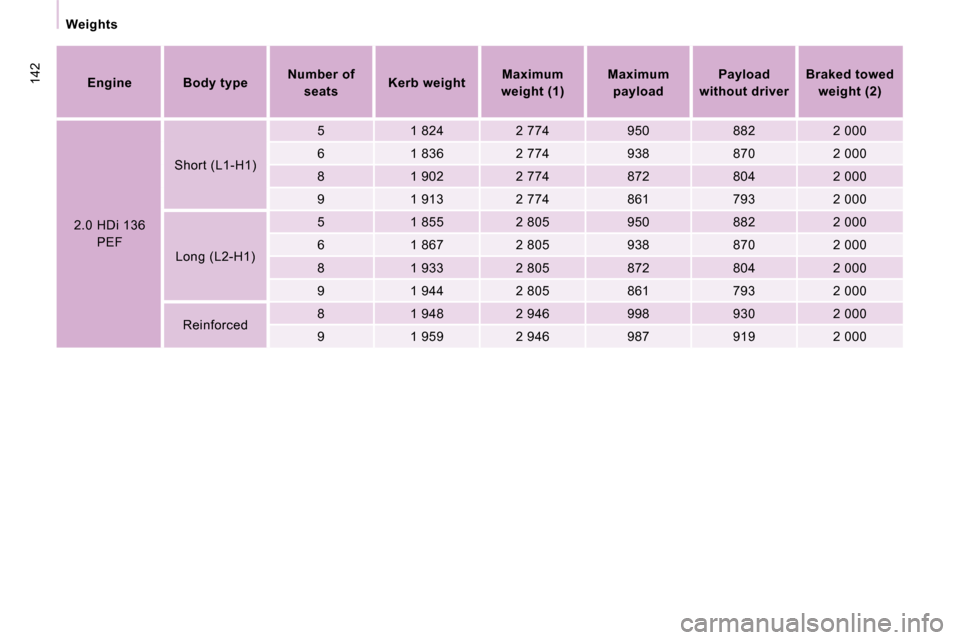

2.0 HDi 136 PEF Short (L1-H1)
5 1 824 2 774 950 882 2 000
6 1 836 2 774 938 870 2 000
8 1 902 2 774 872 804 2 000
9 1 913 2 774 861 793 2 000
Long (L2-H1) 5 1 855 2 805 950 882 2 000
6 1 867 2 805 938 870 2 000
8 1 933 2 805 872 804 2 000
9 1 944 2 805 861 793 2 000
Reinforced 8 1 948 2 946 998 930 2 000
9 1 959 2 946 987 919 2 000

143
Weights
TECHNICAL DATA
8
(1) Gross vehicle weight (GVW).
(2) Braked towed weight with load transfer: this can be increased on condition that the equivalent o f this load is removed from the vehicle so
that the GTW is not exceeded.
High exterior temperatures may result in a reducti on in the performance of the vehicle to protect the engine. When the exterior temperature
is higher than 37 °C, limit the towed weight to 700 kg, without load transfer.
The speed of a towing vehicle must not exceed 60 m ph (100 km/h) (comply with the legislation in force in your country).

Engine Body type
Number of
seats
Kerb weight
Maximum
weight (1)
Maximum
payload
Payload
without driver
Braked towed
weight (2)
2.0 PETROL 140 Short (L1-H1)
5 1 722 2 672 950 882 2 000
6 1 734 2 672 938 870 2 000
8 1 800 2 672 872 804 2 000
9 1 811 2 672 861 793 2 000
Long (L2-H1) 5 1 754 2 771 1 017 949 2 000
6 1 766 2 771 1 005 937 2 000
8 1 832 2 771 939 871 2 000
9 1 843 2 771 928 860 2 000
Reinforced 8 1 847 2 842 995 927 2 000
9 1 858 2 842 984 916 2 000

155
Model code
VISUAL SEARCH
10
Consult your registration certificate.
This table presents the Petrol and Diesel Model Codes.
MODEL CODE
Vehicle X

Body types X*____/_
6 seats max, short L1 XA____/_
6 seats max, long L2 XB____/_
9 seats max, short L1 XC____/_
9 seats max, long L2 XD____/_
8-9 seats, long L2 XE____/_

Engines X_***_/_

Diesel
1.6 HDi 90 X_9HU_/_
2.0 HDi 120 X_RHK_/_
2.0 HDi 120 with PEF X_RHG_/_
2.0 HDi 136 with PEF X_RHR_/_

Petrol
2.0 PETROL 140 X_RFH_/_

Versions X____*/_
The version code is a combination determined by th e type of manual gearbox and the associated emissio n control level.

Manual gearbox
5-speed X____*/_
6-speed X____*/_

Variants X_____/*
The variant code is determined in relation to the parameters authorised when the vehicle was manufact ured.
