Key - Remote control
Complete locking of the vehicle, cab
and rear doors.
Complete unlocking of the vehicle,
cab and rear doors.
Sliding side door
Pull the handle towards you then
towards the rear and open the door
guiding the rearward sliding until the
point of resistance has been passed.
If fitted on your vehicle, do not open the
left-hand side door while filling with fuel
as this could damage the fuel filler flap.
Usable dimensions
Door open warning light
If this comes on, a door has not been
closed correctly.

136

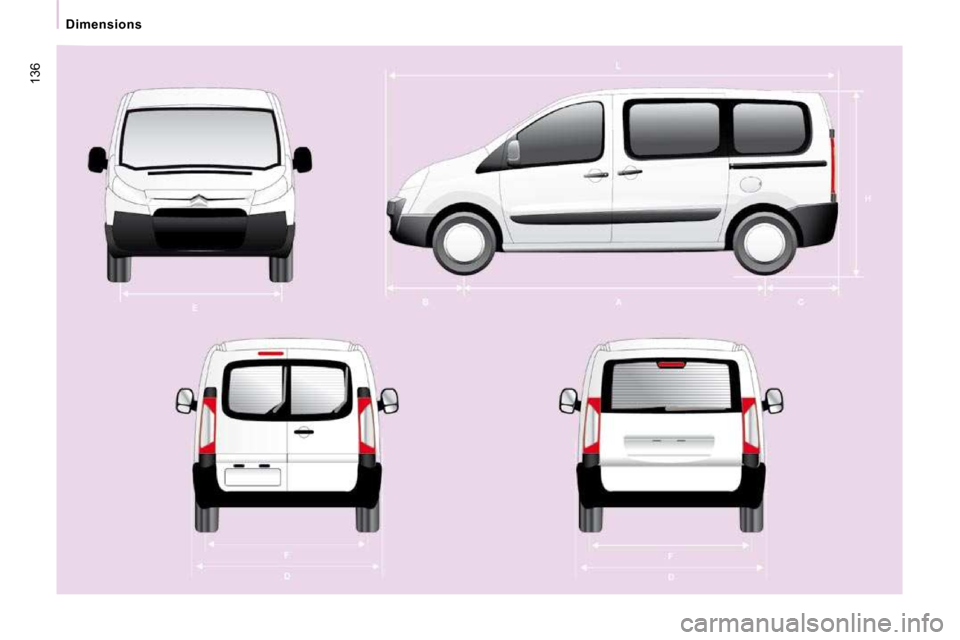

Dimensions

137
Dimensions
TECHNICAL DATA
8
H1
L Overall length 4 805 5 135
H Overall height pneumatic/metal suspension 1 895/1 942
A Wheelbase 3 000 3 122
B Front overhang 975
C Rear overhang 830 1 038
Overall width:
on panel 1 870
D with mouldings 1 895
with mirrors folded 1 986
with mirrors unfolded 2 194
E Width of front tracks 1 574
F Width of rear tracks 1 574
Turning circle pitch diameter between kerbs (m) 1 2,18 12,59
Maximum loads (kg)
Payload 1 000
On roof 170
DIMENSIONS
The vehicle is available in 2 lengths (L1, L2) and 1 height (H1),
refer to the tables:

138
Dimensions

REAR DOORS (mm)
L1 L2 H1
N Useful height 1 272
O Useful width 1 237

139
Dimensions
TECHNICAL DATA
8

SLIDING SIDE DOOR (mm)
L1 L2
H1
P Height 1 203
Q Width 924
