Changing bulbs
131
In bad weather or in winter, check that the
lamps are not covered with mud or snow.

111
Equipment

ACCE
SS
ORIE
S
5

OTHER ACCESSORIES


For any work on your vehicle, use
a qualified workshop that has the
technical information, competence and
equipment required, which a CITROËN
dealer is able to provide.

Installation of radiocommunication
transmitters
Before installing accessory
radiocommunication transmitters with an
external aerial on your vehicle, you are
advised to contact a representative of the
CITROËN marque.
The CITROËN Network will inform you of
the specifications (frequency band,
maximum output power, aerial position,
specific installation conditions) of the
transmitters which can be fitted, in
accordance with the Motor Vehicle
Electromagnetic Compatibility Directive
(2004/104/CE).
This range is also available, structured
around comfort, leisure and maintenance: Trims (except for 163 hp engine), front mud
flaps, rear mud flaps, spoilers, sill, ... Audio equipment, hands-free kit, speakers,
CD changer, navigation, ...
Regardless of the audio and telematic
equipment offered on the market, the
technical constraints linked with the
fitting of equipment of these families of
products mean that the special features
of the equipment and its compatibility with
the capacities of your vehicle's standard
equipment must be taken into account.
Please contact a dealer for information
before fitting such equipment.
Front seat covers compatible with airbags,
benches, rubber mats, carpet mats, boot
tray, roof bars, side blinds, snow chains.
To prevent the mat from becoming caught
under the pedals:


- ensure that the mat and its fixings are
positioned correctly,

- never fit one mat on top of another. Screenwash, replacement fuses,
wiper blades, interior and exterior cleaning
and maintenance products, replacement
bulbs, ...
The fitting of electrical equipment
or accessories which are not
recommended by CITROËN may result in a
failure of your vehicle's electronic system.
Please note this specific warning. You
are advised to contact a representative
of the Marque to be shown the range of
recommended equipment and accessories.
Depending on the country in which the
vehicle is sold or operated, it is compulsory
to have a high visibility safety jacket,
warning triangle and replacement bulbs
available in the vehicle. Anti-theft alarm, window engraving, first aid
kit, high visibility safety jacket, rear parking
assistance, warning triangle, ...

131
Changing a bulb
QUICK HEL
P
7
CHANGING A BULB


Ty p e C
Halogen bulb: release
the retaining spring from
its housing.
Ty p e A
Entirely glass bulb: pull
gently as it is fitted by
pressure.

TYPES OF BULB

Various types of bulb are installed on your vehicle. To remove them:
Ty p e B
Bayonet bulb: press
on the bulb then turn it
anticlockwise.
Halogen bulbs must be changed after
the headlamp has been off for several
minutes (risk of serious burns). Do not touch
the bulb directly with your fingers, use
lint-free cloths.
When each operation has been completed,
check the operation of the lights.

132
Changing a bulb

3.
Direction indicators
Type B
, PY21W - 21W (amber)


- Turn the bulb holder a quarter turn
anticlockwise.

- Remove the bulb by pressing it lightly
while turning it anticlockwise.

- Change the bulb.
- Ensure that the cover is refitted
correctly all the way round to ensure
sealing.


FRONT LAMPS

Open the bonnet. To access the bulbs,
reach behind the headlamp unit.
Carry out the operations in reverse order
to refit each bulb.


1.
Dipped/Main beam headlamps
Type C
, H4 - 55W


- Remove the centre cover by pulling
the flexible rubber tab.

- Disconnect the electrical connector.

- Release the retaining spring.

- Change the bulb taking care to align
the metal part with the slots in the
lamp.
2.
Sidelamps
Type A
, W5W - 5W


- Remove the cover by pulling the
flexible rubber tab.

- Remove the bulb holder fitted by
pressure by pulling the connector.

- Change the bulb.

- Ensure that the cover is refitted
correctly all the way round to ensure
sealing.
4.
Foglamps
Type C
, H1 - 55W
Contact a CITROËN dealer or a qualified
workshop.

133
Changing a bulb
QUICK HEL
P
7

DIRECTION INDICATOR SIDEREPEATER


Type A
, WY5W (amber)


- Push the repeater towards the rear
and disengage it.

- Support the connector and turn the bulb
holder a quarter turn to the left.

- Turn the bulb a quarter turn to the left,
remove it and change it.

- When refitting, engage the repeater
towards the rear and bring it towards
the front.
Front/Rear

Amber coloured bulbs (direction indicators
and side repeaters) must be replaced with
bulbs of identical specification and colour.
Type A
, 12 V 5W - 5W


- Unclip the lens by sliding a screwdriver
in the slots on each side of the
courtesy lamp.

- Pull the bulb and change it.

- Clip the lens in its housing and ensure
that it is secured correctly.


High pressure jet washing

When using this type of jet washer
on stubborn dirt, do not persist on the
headlamps, the lamps and their surrounds to
avoid damaging their coating and seals.

134
Changing a bulb
REAR LIGHTS

For further information concerning the bulbs,
refer to the "Types of bulb".

- Identify the faulty bulb then open
the rear doors to 180°. Refer to the
"Accesses" section of chapter 2.

- Remove the two fixing nuts.
Pull the lens block from the outside.

- Holding the light, disconnect the
electrical connector.
- Move aside the 8 tabs then extract
the bulb holder.

- Remove the faulty bulb by pressing it
lightly while turning it anticlockwise.

- Change the bulb.


1.
Brake lights/side lights

Type B
, P21/5W - 21/5W

2.
Direction indicators

Type B
, PY21W - 21W (amber)

3.
Reversing lights

Type B
, P21W - 21W

4.
Fog lamps

Type B
, P21W - 21W When refitting, take care to correctly
reposition:


- the 8 tabs,

- the two white lugs in the two rubber
holes to maintain the sealing of the light,

- the supply wire to avoid trapping it.

Changing a bulb
QUICK HEL
P
7
THIRD BRAKE LIGHT

Type A
, W5W - 5W
Type B
, P21W - 21W

NUMBER PLATE LIGHTS


Type A
, W5W - 5W

With tailgate


- Move aside the plastic lens using a
screwdriver, on the point indicated by
the arrow.

- Change the bulb.

- Replace the plastic lens and press on it.


With hinged doors


- Unclip the interior trim.

- Disconnect the connector by moving
aside its tab.

- Remove the plastic cover.

- Turn the bulb holder a quarter turn
anticlockwise.

- Change the bulb.


Light located on the outside
(hinged doors)


- Unscrew the two screws using a Torx
TM
screwdriver with 20 socket.

- Remove the light.

- Change the bulb.
Light located on the inside (tailgate)


- Unscrew the two screws using a Torx
TM
screwdriver with 20 socket.

- Remove the plastic cover.

- Remove the bulb holder moving aside
the two tabs.

- Remove the faulty bulb by pressing it
lightly while turning it anticlockwise.

- Change the bulb.

15
1


Exterior

VISUAL SEARC
H
10
EXTERIOR


Filler cap, fuel tank 120-121
Fuel cut-off, Diesel priming 121-122

Wiper blade 140
Door mirrors 87
Side repeater 133

Front lamps, foglamps, direction
indicators 42-44, 131
Headlamp beam height adjustment 44
Changing front bulbs 131-133
Headlamp wash 45, 116
Snow shield 130

Front doors 22-23
Sliding side door 23-24
Key 20
Opening the bonnet 112
Electric child lock 24

Brakes, pads 90, 117
Emergency braking 92
ABS, EBFD 92
ASR, ESP 93
Tyres, pressures 150
Rear suspension 84-86
Doors, tailgate 22-25
Emergency control 25
Accessories 111

Number plate lamp 135
Dimensions 144-147

Temporary puncture repair kit 124
Spare wheel, jack,
changing a wheel, tools 126-130
Inflation, pressures 150
Remote control 19-20
Changing the battery,
reinitialisation 20
Key 20
Starting 41
Central locking/unlocking 19, 23
Alarm 21-22

Towing, lifting 141
Towbar 109-110
Parking sensors 91
Rear lamps,
direction indicators 42-43, 133
3rd brake lamp 135
Changing rear bulbs 131, 134

154
Interior

Seating area fittings 81-83


- stowing rings,

- load space cover,

- coat hook and net fixing,

- bench net,

- grab handle,

- cup holder,

- 12 volt socket,

- storage compartment.

Temporary puncture repair kit 124
Spare wheel, jack, changing a wheel,
tools 126-130
Rear suspension 84-86
Front, side, curtain airbags 97-100
Passenger's airbag deactivation 100

Parking brake, handbrake 90
Opening the bonnet 112

Battery, charging, starting 123
Passenger compartment fuses 138
Front seats, adjustments,
head restraint 65-66
2-seat front bench 67-68
Seat belts 94-95

Rear ventilation 61

Child seats 101-108
Isofix mountings 103-105
Rear side windows 88

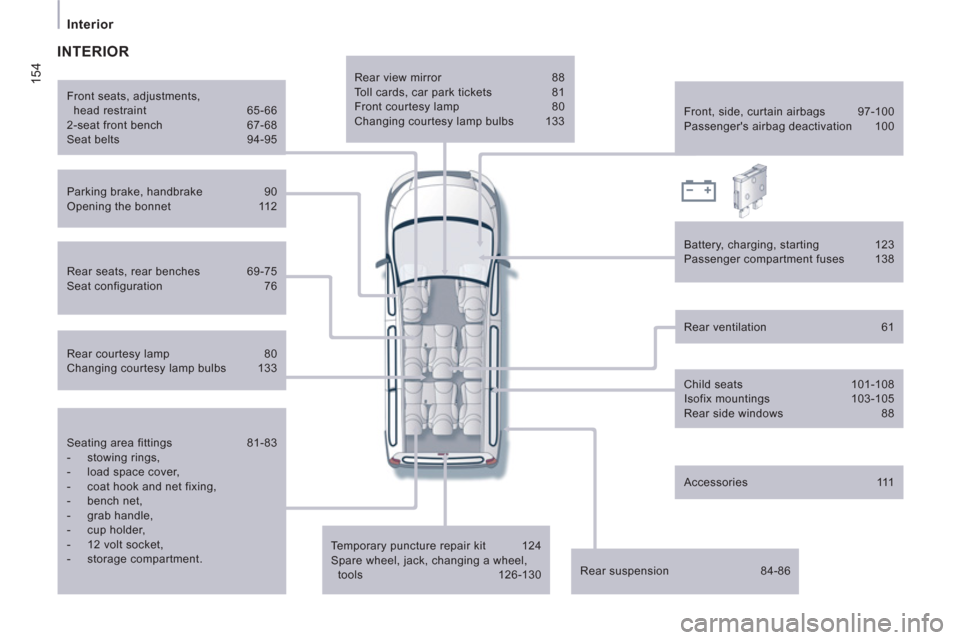

INTERIOR
