Interior
8


INSTRUMENTS AND CONTROLS


1.
Lights and direction indicator control
stalk.

2.
Instrument panel with screen.

3.
Wipers, screenwash, trip computer
control stalk.

4.
Gear lever.

5.
Ignition.

6.
Audio system controls.

7.
Driver's airbag, horn.

8.
Steering wheel height and reach
adjustment.

9.
Headlamp beam adjustment.

10.
Cruise control, speed limiter
switches.

11 .
12 volt accessory socket (120 W max)
of the cigarette lighter type.

12.
Ashtray.

13.
Glove box, auxiliary socket,
passenger's airbag deactivation
switch.

3
3
7
Interior
12

SEEING CLEARLY

42 Lighting off.
Sidelamps.
Main beam headlamps (blue).
Dipped beam headlamps (green).


Wiper control stalk

2
fast.
1
normal.
I
intermittent.
0
off.
È
single wipe.

AUTO
, press the stalk down.
AUTO, automatic illumination
of headlamps.
Lighting control stalk
45
Changing bulbs
131
In bad weather or in winter, check that the
lamps are not covered with mud or snow.

17
FAMILIARISATIO
N
1
ECO-DRIVING
Eco-driving is a range of everyday practices that allow the motorist to optimise their fuel
consumption and CO
2 emissions.
Optimise the use of your
gearbox

With a manual gearbox, move off gently,
change up without waiting and drive by
changing up quite soon. If your vehicle has
the system, the gear shift indicator invites
you to change up; it is displayed in the
instrument panel, follow its instructions.

With an automatic or electronic gearbox,
stay in Drive "D"
or Auto "A"
, according to
the type of gearbox, without pressing the
accelerator pedal heavily or suddenly.

Control the use of your
electrical equipment


Before moving off, if the passenger
compartment is too warm, ventilate it by
opening the windows and air vents before
using the air conditioning.
Above 30 mph (50 km/h), close the windows
and leave the air vents open.
Switch off the headlamps and front
foglamps when the level of light does not
require their use.

Avoid running the engine before moving
off, particularly in winter; your vehicle will
warm up much faster while driving.
Drive smoothly


Maintain a safe distance between vehicles,
use engine braking rather than the
brake pedal, and press the accelerator
progressively. These practices contribute
towards a reduction in fuel consumption and
CO
2 emissions and also helps reduce the
background traffic noise.

If your vehicle has cruise control, make
use of the system at speeds above 25 mph
(40 km/h) when the traffic is flowing well.


As a passenger, if you avoid connecting
your multimedia devices (film, music,
video game...), you will contribute towards
limiting the consumption of electrical
energy, and so of fuel.
Disconnect your portable devices before
leaving the vehicle.
Remember to make use of equipment
that can help keep the temperature in the
passenger compartment down (sun roof
and window blinds...).
Switch off the air conditioning, unless it
has automatic digital regulation, as soon
as the desired temperature is attained.
Switch off the demisting and defrosting
controls, if not automatic.
Switch off the heated seat as soon as
possible.

32


Instruments and controls


Warning lamp
is
indicates
Solution-action



Brake pads on. brake pad wear. Have the pads replaced by a CITROËN dealer or
a qualified workshop.



Dipped beam
headlamps/
Daytime
running lamps
on. manual selection or automatic
lighting. Turn the lighting stalk to the second position.

lighting of the dipped beam headlamps
from the time the ignition is switched
on - daytime running lamps. Depending on the country in which the vehicle is sold.
Chapter 3, "Steering mounted controls" section.

Main beam
headlamps pulling the stalk towards you. Pull the stalk to return to dipped beam headlamps.



Direction
indicators flashing with
audible signal. change of direction via the
lighting stalk, to the left of the
steering wheel. To the Right: control to be pushed upwards.
To the Left: control to be pushed downwards.


Front foglamps on. manual selection. The foglamps only operate if the sidelamps or dipped
beam headlamps are on.


Rear foglamps on. manual selection. The foglamps only operate if the sidelamps or dipped
beam headlamps are on. In conditions of normal
visibility, take care to switch them off to avoid any
penalty. "This light is a dazzling red."


Particle
emission filter on. a malfunction of the particle
emissions filter (Diesel additive
level, risk of clogging, ...). Have the filter checked by a CITROËN dealer or a
qualified workshop. Chapter 6, "Checks" section.

43
Steering mounted controls

EASE OF USE and COMFOR
T
3

Front fog lights (green)
and rear fog lights (amber,
2nd rotation of the ring
forwards).

To switch off the front and rear fog
lights, turn the ring rearwards twice in
succession.

In clear weather or in rain, both day
and night, rear fog lights dazzle and
are prohibited.
Do not forget to switch them off when they
are no longer needed.
Automatic switching on of the lights switches
off the rear fog lamps, but the front fog
lamps remain on. Daytime lights

Depending on the country in which the
vehicle is sold, the vehicle may be equipped
with daytime lights. The dipped headlamps
come on when the vehicle is started.
The instruments and controls
(instrument panel, display,
air conditioning control panel, ...) are only
lit on switching to the automatic switching
on of the lights mode or when the lights are
switched on manually.
Front and rear fog lights
Rotate ring B
forwards to switch on and
rearwards to switch off. The status is
confirmed by the light on the instrument
panel.
These operate with the side lights and the
dipped beam headlamps.
Front fog lights (green,
1st rotation of the ring forwards). This warning light comes on on
the instrument panel.

44
Steering mounted controls
Automatic illumination of headlamps
Activation
Turn the ring to the AUTO
position. The activation
of this function is accompanied by a message in
the screen.

If the sunshine sensor does not
function correctly
, the lighting comes on
accompanied by the service warning lamp,
an audible signal and a message in the
screen.
Contact a CITROËN dealer or a qualified
workshop.

HEADLAMP BEAM

Depending on the load in your vehicle,
the beam setting must be adjusted.

0
- 1 or 2 people in the front seats.

1
- 5 people.

2
- 6 to 9 people.

3
- Driver + maximum authorised loads. Do not cover the sunshine sensor
located on the windscreen, behind
the mirror. It is used for the automatic
illumination of headlamps and for the
automatic rain sensitive wipers. The sidelamps and dipped
beam headlamps switch
on automatically if the light
is poor, or during operation
of the windscreen wipers. They switch off as
soon as the light becomes bright enough or
the windscreen wipers stop.
This function is not compatible with the
daytime running lamps.
Deactivation
Turn the ring forwards or rearwards.
The deactivation of this function is
accompanied by a message on the display.
The function is deactivated temporarily when
you use the manual lights stalk.

Initial setting is position 0. In foggy weather or in snow, the sunshine
sensor may detect suffi cient light. As a
consequence, the lighting will not come on
automatically. If necessary, you must switch on
the dipped beam headlamps manually.

45
Steering mounted controls

EASE OF USE and COMFOR
T
3

WINDSCREEN WIPER STALK


Manual windscreen wipers


2
Fast wipe (heavy rain).

1
Normal wipe (moderate rain).

l
Intermittent wipe.

0
Off.

È
Single wipe
(press downwards). Do not cover the rain sensor,
located in the centre of the
windscreen, behind the mirror.
In the AUTO
position, the windscreen wipers
operate automatically and adapt their speed
to the intensity of the rainfall.
When not in AUTO
mode, for the other
positions, refer to the manual windscreen
wipers section.
In the I
ntermittent position, the wiping speed
is in proportion to the vehicle speed.

Wash-wipe and headlamp wash
Pull the stalk towards you, the wash-wipe
is accompanied by a timed sweep of the
wipers.
The headlamp wash is linked with the wash-
wipe, it is triggered if the dipped headlamps
are on.
To top up the levels, refer to the
"Levels" section of chapter 6.

Automatic rain sensitive windscreen wipers

Whenever the ignition has been switched
off for more than one minute,
with the
windscreen wiper stalk in
position 2, 1 or I,
the stalk must be reactivated:


- move the stalk to any position,

- then move it back to the required
position.

11 3


Under the bonnet

CHECK
S
6

DIESEL ENGINES


8 -
Power steering reservoir.

9 -
Removable towing eye.

10 -
Repriming pump
( a
: 1.6 litre HDi; b
: 2 litre HDi).

11 -
Engine oil filling funnel (2 litre HDi).

UNDER THE BONNET


1 -
Windscreen/headlamp wash reservoir.

2 -
Fuse box.

3 -
Coolant reservoir.

4 -
Brake and clutch fluid reservoir.

5 -
Air filter.

6 -
Dipstick.

7 -
Engine oil filler cap.
7.1 -
Engine oil filler cap.
If your vehicle is fitted with this oil filler tube,
proceed as follows:

A -
Remove the oil filler cap.

B -
Remove the filler tube from its location.

C -
Place the filler tube in the filler opening
as shown on the illustration.

D -
Turn it a 1/4 of a turn to the left to lock it
then top up the oil.
To refit, proceed in the reverse order without
forgetting to retighten the cap A
correctly.

11 4


Under the bonnet

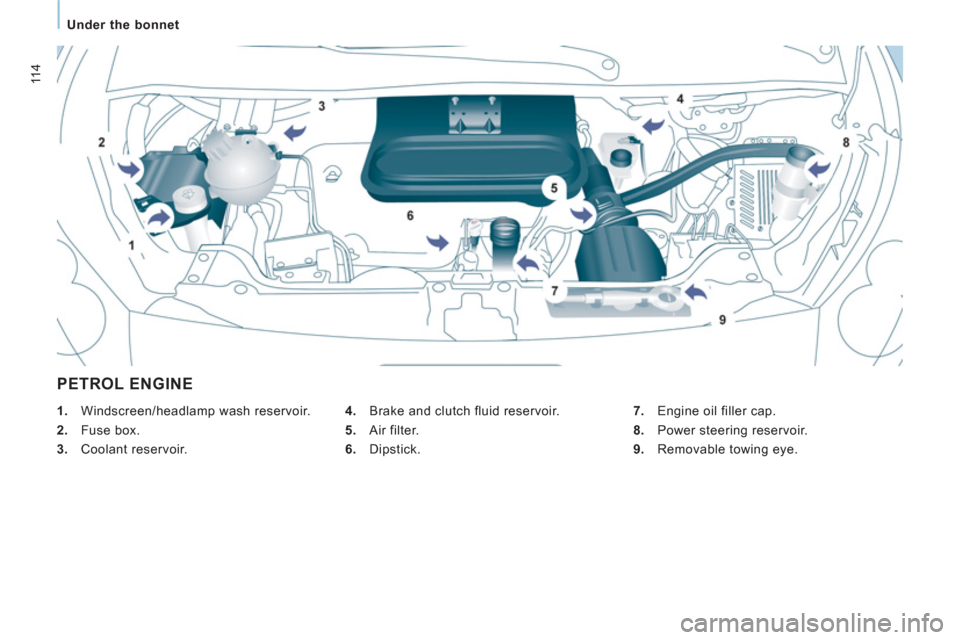

PETROL ENGINE


4.
Brake and clutch fluid reservoir.

5.
Air filter.

6.
Dipstick.

1.
Windscreen/headlamp wash reservoir.

2.
Fuse box.

3.
Coolant reservoir.
7.
Engine oil filler cap.

8.
Power steering reservoir.

9.
Removable towing eye.

11 6
Levels

Cooling system

Only use the fluid recommended by the
manufacturer.
Otherwise, you risk seriously damaging your
engine.
When the engine is warm, the temperature
of the coolant is controlled by the engine
fan. As this fan can operate with the ignition
key removed and because the cooling
system is pressurised, wait for at least one
hour after the engine has stopped before
carrying out any work.
Slacken the cap by 1/4 of a turn to release
the pressure to prevent any risk of scalding.
When the pressure has dropped, remove the
cap and top up the level with coolant.
If fluid has to be added frequently, this
indicates a fault which must be checked by a
CITROËN dealer or a qualified workshop as
soon as possible. The vehicle must be parked on level ground
with the engine cold. Unscrew the cap
integrated with the gauge and check the
level which must be between the MIN and
MAX marks.


Diesel additive level (Diesel
with particle emission filter)
The minimum level of this additive
is indicated by lighting of the
service warning light, accompanied by an
audible signal and a message in the screen.
When this occurs with the engine running it
is due to the start of saturation of the particle
emission filter (exceptionally prolonged
urban type driving conditions: low speed,
long traffic jams, ...).
In order to regenerate the filter, you are
advised to drive at a speed higher than
40 mph (60 km/h) for at least five minutes
as soon as possible, when traffic conditions
permit (until the message disappears and
the service warning lamp goes off).
During regeneration of the particle emission
filter, relay noise may be heard under the
dashboard.
If the message is still displayed and if the
service warning lamp remains on, contact a
CITROËN dealer or a qualified workshop.

Topping up
The level must be between the MIN and
MAX marks on the expansion bottle. If more
than 1 litre of fluid is required to top up
the level, have the system checked by a
CITROËN dealer or a qualified workshop.

Screenwash and headlamp wash level

For best quality cleaning and for your safety,
we would advise that you use products of
the CITROËN range.
Capacity of the screenwash reservoir:
approximately 4.5 litres.
If your vehicle is fitted with headlamp
washers, the capacity of the reservoir is
7.5 litres.
To ensure optimum cleaning and prevent
freezing, this fluid must not be topped up or
replaced with plain water.

Topping up
This additive must be topped up by a
CITROËN dealer or a qualified workshop
without delay.
