Writing table
If fitted to your vehicle, the back of the
centre seat of the bench (Row 1) folds to
form a writing table with two cup holder
recesses.
Pull the handle located at the top of the seat
back cushion.

73
Seats
EASE OF USE and COMFORT
3
JUMPY-ATLANTE-VP_EN_CHAP03_ERGONOMIE ET CONFORT_ED01-2014

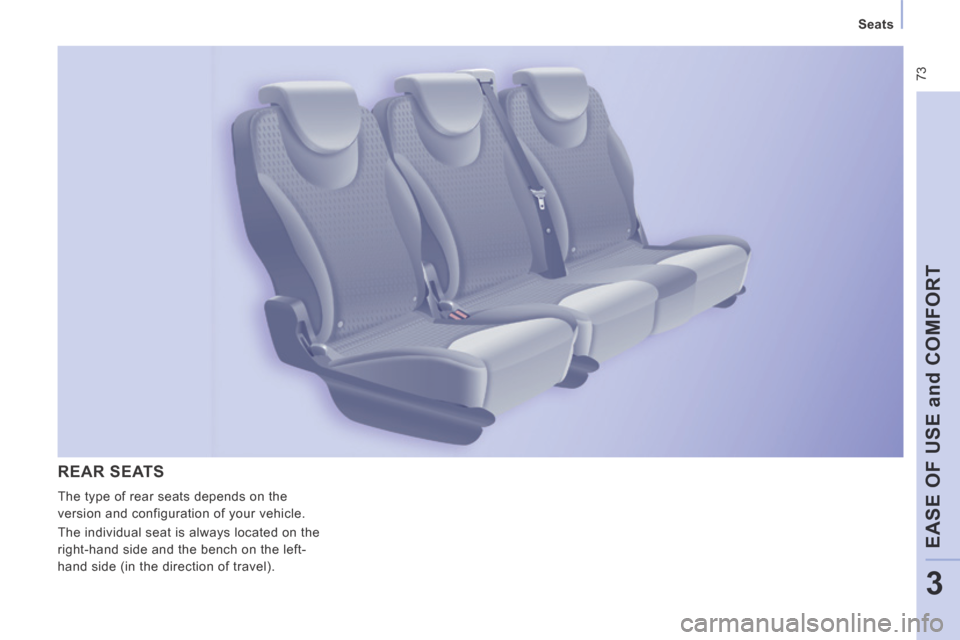

REAR SEATS
The type of rear seats depends on the
version and configuration of your vehicle.
The individual seat is always located on the
right-hand side and the bench on the left-
hand side (in the direction of travel).

74
Seats
JUMPY-ATLANTE-VP_EN_CHAP03_ERGONOMIE ET CONFORT_ED01-2014
Type 2: an individual seat the back of which
can be folded to the table position then
raised, facilitating access to the rear space. Individual passenger seat
This seat and the 2-seat bench are
interdependent. Any handling operation must
begin with the individual seat.
Two models are offered:
Two-seat bench
Three models are offered:
Type 1: an individual seat which can be
raised permitting access to the rear space. Type 1: a two-seat cushion with fixed
seat back.

75
Seats
EASE OF USE and COMFORT
3
JUMPY-ATLANTE-VP_EN_CHAP03_ERGONOMIE ET CONFORT_ED01-2014
Type 2: two seats with folding seat backs
and seat cushion which can be raised.
Type 3: a two-seat cushion with individual
tilting seat backs which can be folded to the
table position and cushion which can be
raised. Specifications depending on the type of seat
Seat fitted with this control: the seat back
can be tilted.
Seat fitted with this control: the seat back
can be tilted and raised. Seat fitted with this control: the seat back
can be folded and coupled with the raising
control.
"Comma" shape head restraint.

76
Seats
JUMPY-ATLANTE-VP_EN_CHAP03_ERGONOMIE ET CONFORT_ED01-2014

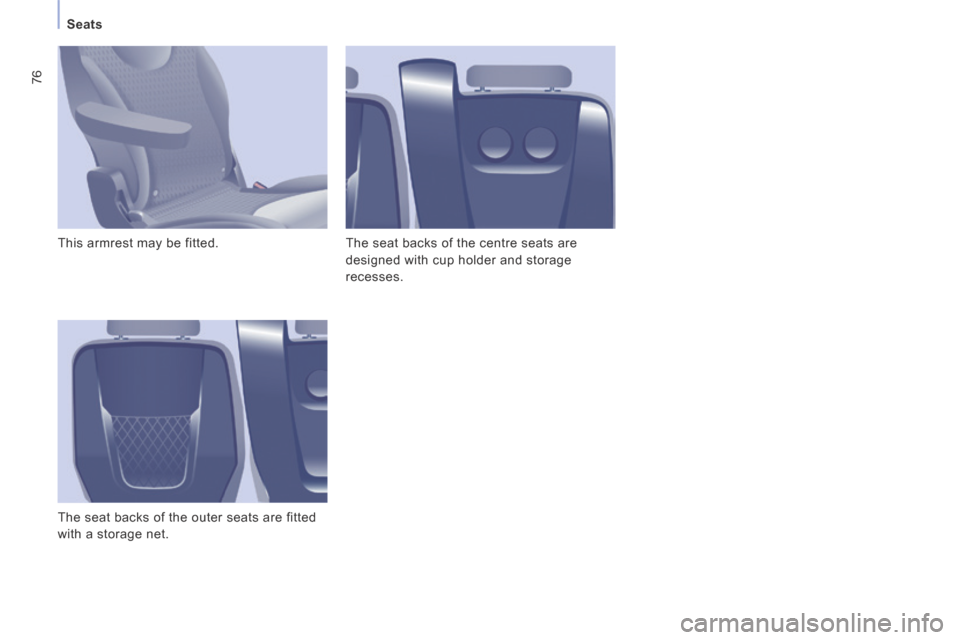

This armrest may be fitted.
The seat backs of the outer seats are fitted
with a storage net. The seat backs of the centre seats are
designed with cup holder and storage
recesses.

77
Seats
EASE OF USE and COMFORT
3
JUMPY-ATLANTE-VP_EN_CHAP03_ERGONOMIE ET CONFORT_ED01-2014
Handling Folding the seat back to the table
position
(centre seat example)
- Place the head restraints in the low position.
- Raise this handle to unlock the seat back (from the rear, lower the handle).
- Tilt the seat back onto the seat cushion. Seat and bench of type 1:
- Raise the seat.
Seat and bench of type 2 / type 3:
- Fold the seat back to the table position using this handle.
- Raise the seat. - Unlock the front feet using this handle.
- Disengage the seat from its anchorages.
- Remove the seat from the vehicle via
the side door in row 2 and via the rear in
row 3.
- Unlock the front feet using this handle.
- Disengage the seat from its anchorages.
- Remove the seat from the vehicle via
the side door in row 2 and via the rear in
row 3.
Enter, exit the vehicle: raise the seat
Always start with the individual seat located
on the right-hand side and place the head
restraint in the low position.

78
Seats
JUMPY-ATLANTE-VP_EN_CHAP03_ERGONOMIE ET CONFORT_ED01-2014
Installing the seat
Always install the bench first.
- Check that there are no objects obstructing the anchorages and
preventing correct locking of the feet.
- Engage the front feet in the anchorages on the floor. - Lock the front feet using this handle.
- Tilt the seat towards the rear until the
rear feet lock. Be aware of the feet of
passengers when tilting. For the type 2 seat and the type 2 / 3 bench:
fold up the seat back.
Correct anchoring of the front feet Check that the seat is locked correctly
on the floor when it is returned to the
sitting position.

79
Seats
EASE OF USE and COMFORT
3
JUMPY-ATLANTE-VP_EN_CHAP03_ERGONOMIE ET CONFORT_ED01-2014
Precautions
Following the various handling operations:
- do not remove a head restraint without storing it and fix it to a support,
- check that the seat belts are always accessible to the passenger and easy to
fasten,
- a passenger must not take his seat without adjusting his seat's head
restraint correctly and adjusting and
fastening his seat belt.
Labels
While driving, it is prohibited to have a
passenger:
- in row 3 if the seat back in front (row 2) is in the table position.
- in row 3 if the seat/bench in front (row 2) is in the folded position.
- in row 3 if the seat in front (row 2) has been removed,
- on the centre seat if the right-hand side seat is in the folded position.

80
Seats
JUMPY-ATLANTE-VP_EN_CHAP03_ERGONOMIE ET CONFORT_ED01-2014
SEAT AND BENCH CONFIGURATIONS
Examples of various layouts combining comfort and practicality
The various operations must be carried
out while stationary.
7 seats 8 seats
9 seats
5 seats
6 seats
Do not fit seats in the 3rd row without
first fitting the corresponding seatbelts.

85
Practical information
EASE OF USE and COMFORT
3
JUMPY-ATLANTE-VP_EN_CHAP03_ERGONOMIE ET CONFORT_ED01-2014
Mat fitting / removal
When removing the front mat, push the
seats as far back as possible and remove
the fixings.
When refitting, position the mat correctly on
the pins and clip the fixings. Check that the
mat is secured correctly.
Areas for toll cards / car park tickets
The athermic windscreen has two non-
reflective zones located either side of the
base of the interior mirror.
They are intended for affixing toll cards and/
or car park tickets.
SEATING AREA FITTINGS
Depending on the vehicle's equipment, the
various fittings below enhance your seating
area.
12 volt socket
This operates with the ignition off, so limit its
use to avoid discharging the battery.
Maximum power: 120 W.
To prevent the mat from becoming caught
under the pedals:
- only use mats suited to the fixings
already present in the vehicle. It is
imperative that these fixings are used.
- never fit one mat on top of another.
Grab handle Cup holder
Any liquid carried in an open receptacle (cup
or other) may be spilt, presenting a risk.
"Take care".
