suspension Citroen JUMPY MULTISPACE 2014 2.G Owner's Manual

2
Contents
JUMPY-ATLANTE-VP_EN_CHAP00A_SOMMAIRE_ED01-2014
Remote control 20Key 21Alarm 22Doors 23Instrument panel 27Adjusting the time 28Warning lamps 29
Fuel gauge 35Coolant 35Tyre under-inflation detection 36Service indicator 38Lighting dimmer 395-speed manual gearbox 406-speed manual gearbox 40Automatic gearbox 41Gear shift indicator 44Steering wheel adjustment 44Starting and stopping 45
Controls for 46 lighting 46 wipers 49Cruise control 51Fixed speed limiter 53Speed limiter 54Heating / air conditioning,
manual 57 digital 59Demisting and defrosting 63Rear ventilation 65Additional heating 66Seats 692-seat front bench 71Rear seats 73Seat and bench configuration 80Cab fittings 81Courtesy lamps 84Toll cards/car park tickets 85Seating area fittings 85Rear suspension 88Mirrors 91Electric windows 93
Presentation 4Exterior 6Sitting comfortably 11Seeing clearly 13Driving safely 14Cab fittings 15Rear fittings 15
Child safety 16Ventilation 17Eco-driving 18
Parking brake 94Hazard warning lamps 94Parking sensors 95Horn 96Anti-lock braking system (ABS) 96Emergency braking assistance 96ASR and DSC 97"Grip control" 98Seat belts 100Airbags 103Lateral airbags 105Front airbags 106Child seats 107Deactivating the passenger's front airbag 108ISOFIX mountings 111Recommended seats 115
2. READY TO GO 20-454. SAFETY 94-1181. FAMILIARISATION 4-193. EASE OF USE and COMFORT 46-93

7
4
7
8
3
2b
2
2a
7
Exterior
FAMILIARISATION
1
JUMPY-ATLANTE-VP_EN_CHAP01_PRISE EN MAIN_ED01-2014
Key
: section identification
: page identification 135
95
Rear suspension
Repairing a wheel Parking sensors
137
Changing a wheel
88
26
24 20
Side-hinged rear doors
Key - Remote control
Sliding side door
156
Usable dimensions

ABS
32
Instruments and controls
JUMPY-ATLANTE-VP_EN_CHAP02_PRET A PARTIR_ED01-2014
Warning lamp is indicates Solution-action
Power steering on. system malfunction. The vehicle retains conventional steering without
assistance. Have the system checked by a CITROËN
dealer or a qualified workshop.
Opening
detection

on and accompanied
by a message in the
screen.
door not closed correctly. Check that the cab doors, the rear and side doors and
the bonnet are closed (if your vehicle is fitted with an
alarm).
Rear
suspension
with pneumatic
height
correction
flashing.
abnormal difference between
the detected sill height and the
optimum sill height. I n automatic correction mode: drive slowly (approximately 6 mph
(10 km/h)) until the warning lamp goes off.
In manual correction mode: return the sill which is still at
the upper or lower limit to an optimum height. Chapter 3,
"Rear suspension" section.
on when starting
or while driving. malfunction of the pneumatic
height correction. You must stop as soon as it is safe to do so. Contact a
CITROËN dealer or a qualified workshop.
ABS remains on. malfunction of the anti-lock
braking system. The vehicle retains conventional braking without
assistance but you are advised to stop. Contact a
CITROËN dealer or a qualified workshop.
DSC flashing.
DSC regulation triggered. The system optimises drive and permits improvement of
the directional stability of the vehicle. Chapter 4, "Driving
safety" section.
remains on with
the LED in the
button (in the
dashboard) on. system malfunction. E.g.: under-
inflation of the tyres.
E.g. Check the pressure of the tyres. Have them
checked by a CITROËN dealer or a qualified workshop.

88
Rear suspension
JUMPY-ATLANTE-VP_EN_CHAP03_ERGONOMIE ET CONFORT_ED01-2014
Metal suspension
This equipment adopts long movement limiters
which make it possible to guarantee stable
behaviour both when loaded and when empty.
No action on your part is required except to
ensure that maintenance is carried out and that
the authorised loads are complied with. the increasing or lightening of the load on
the vehicle's platform is detected by two
height sensors. When all of the doors are
closed, the sensors trigger the automatic
height correction and determine the optimum
height of the sill for the vehicle's driving
conditions.
Deactivation of automatic height correction
The control which permits deactivation of
automatic regulation is located on the right-
hand side, at the rear of the vehicle.
REAR SUSPENSION
Two types of suspension are available.
You must deactivate automatic height
correction manually in the following
situations:
- when working underneath the vehicle,
- when changing a wheel,
- when the vehicle is being transported by lorry, train, ferry, boat, ...
Rear suspension with pneumatic height correction
If fitted on your vehicle, this type of
suspension regulates the variations in the
height of the rear platform of your vehicle
irrespective of the weight of the load, within
the limit of the authorised values. On board, Two functions
1. Automatic height correction
2. Manual height correction
1 - Automatic correction of the height of the rear sill
The pneumatic suspension automatically
regulates the variations in the height of the
rear platform of your vehicle.
The automatic height correction is
temporarily inactive:
- if a door / the tailgate is open,
- when braking or when stopped at a red traffic signal (brake pedal pressed). With the vehicle stationary:
- press and hold,
- release the control.
Return to automatic correction With the vehicle stationary:
- press and hold,
- release the control.
According to the configurations, a beep may
be heard during these operations.
A red warning light on your
instrument panel fl ashes if the
height is not at its optimum level
and requires correction, drive slowly
until this warning lamp goes off.
Return to automatic height correction is
confirmed by the LED which goes off. Deactivation is confirmed by the LED which
is on. It remains on for approximately
30 seconds.

89
Rear suspension
EASE OF USE and COMFORT
3
JUMPY-ATLANTE-VP_EN_CHAP03_ERGONOMIE ET CONFORT_ED01-2014
2 - Manual correction of the height of the rear sill
If your vehicle is fitted with this adjustment,
the control is located on the right-hand side
at the rear of the vehicle.
This manual adjustment permits "lowering"
or "raising" of the height of the sill of the
rear platform to facilitate operations in a
parking area.
This adjustment of the height of the sill is
restricted by a lower limit and an upper limit. First use
To initialise the function, press the control
for approximately 2 seconds.
Malfunctions
If the load sill is not adjusted when the
control is pressed, "3 beeps" indicate a
malfunction for the following reasons:
- foot on the brake pedal with the key in
the ignition,
- excessive use of the manual correction,
- low battery charge,
- other.
If the audible signal persists, contact a
CITROËN dealer or a qualified workshop.
Carry out these operations with the vehicle
still stationary and:
- with the front and side doors closed,
- with the parking brake applied,
- do not leave your foot on the brake
pedal.
Lower: downwards adjustment
of the platform sill
Press the control downwards
continuously.
Release the button to stop the movement,
"3 beeps" indicate that you have reached
the maximum limit, the movement stops
automatically.
Raise: upwards adjustment of
the platform sill
Press the control upwards
continuously.
Release the button to stop the movement,
"3 beeps" indicate that you have reached
the maximum limit, the movement stops
automatically.
Return to the optimum sill height
Press the control up or down twice in
succession, the opposite of the position of
the load sill.

90
Rear suspension
JUMPY-ATLANTE-VP_EN_CHAP03_ERGONOMIE ET CONFORT_ED01-2014
Deactivation of manual height correction Good practice
When stationary and with the ignition key
removed, excessive use of the system
consumes battery power. Long term parking
Avoid parking for a long duration on ground
which could present a potential obstacle as
your vehicle could lower.
Following a long period out of use, the
height of the platform may change due to the
automatic height correction on unlocking or
on opening one of your vehicle's doors.
With the vehicle stationary:
- press and hold,
- release the control.
Deactivation is confirmed by
the LED which is on. It remains on for
approximately 30 seconds.
Return to manual height correction
You must deactivate the manual height
correction in the following situations:
- when working underneath the vehicle,
- when changing a wheel,
- when the vehicle is being transported by lorry, train, ferry, boat, ... Driving with the height of the rear platform:
- too low, risks damaging the technical
components underneath the vehicle,
- too high, risks unstable driving.
If you start and the warning lamp flashes, to
switch it off:
- correct the position of the manual control which is still at the lower or
upper limit,
- or drive slowly at above 6 mph (10 km/h), until height correction returns
to automatic mode. Warning lamp
Refer to the "Instruments and controls"
section of chapter 2.
With the vehicle stationary:
- press and hold,
- release the control.
Return to manual correction is
confirmed by the LED which goes off.
According to the configuration, a beep may
be heard during these operations.

137
Changing a wheel
QUICK HELP
7
JUMPY-ATLANTE-VP_EN_CHAP07_AIDE RAPIDE_ED01-2014
CHANGING A WHEEL
If your vehicle is equipped with a spare
wheel located underneath the vehicle, follow
these instructions.
1. PARKING THE VEHICLE
- You must ensure that the occupants get out of the vehicle and wait in a safe
location.
- If possible, park the vehicle on level, stable and non-slippery ground.
- Apply the parking brake, switch off the ignition and engage first or reverse gear.
- If available, place a chock under the wheel diagonally opposite the one to be
changed.
On certain types of ground and/or if heavy
loads are being transported, the vehicle
must be raised in order to disengage
the spare wheel from the carrier. Call a
CITROËN dealer or a qualified workshop. If your vehicle is fitted with suspension
with pneumatic height correction,
please deactivate the system. Refer to the
"Rear suspension" section of chapter 3.
2. TOOLS
- If fitted on your vehicle, open the plastic flap located at the rear left of the
vehicle.
- Unscrew the nut then take out the jack and the wheelbrace.
1. Wheelbrace.
2. Jack.
3. Towing eye.
The jack and the tool kit are specific to
your vehicle. Do not use them for other
purposes.

157

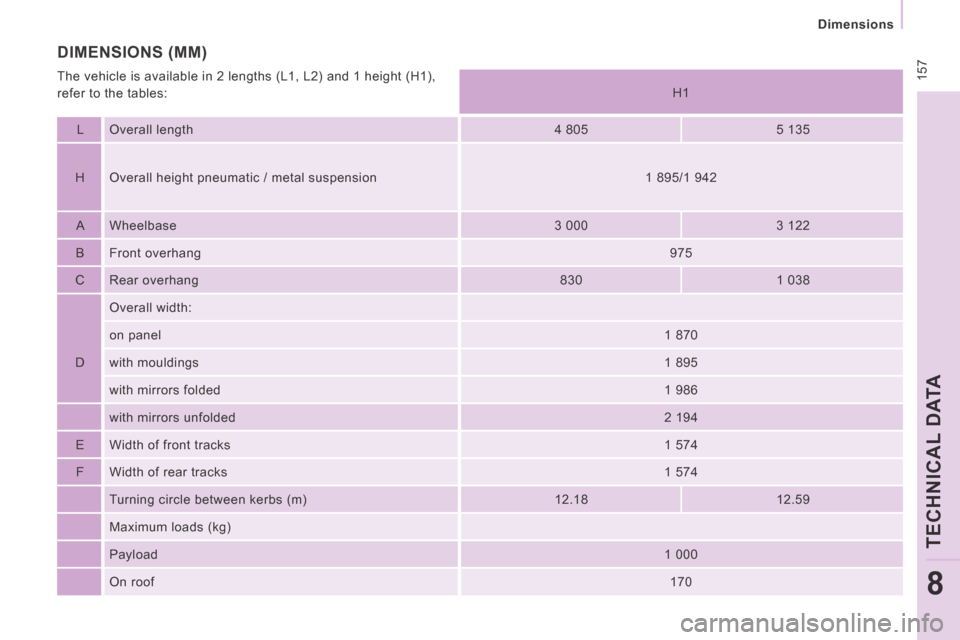

Dimensions
TECHNICAL DATA
8
JUMPY-ATLANTE-VP_EN_CHAP08_CARACTERISTIQUES TECHNIQUES_ED01-2014
H1
L Overall length 4 805 5 135
H Overall height pneumatic / metal suspension 1 895/1 942
A Wheelbase 3 000 3 122
B Front overhang 975
C Rear overhang 830 1 038
Overall width:
on panel 1 870
D with mouldings 1 895
with mirrors folded 1 986
with mirrors unfolded 2 194
E Width of front tracks 1 574
F Width of rear tracks 1 574
Turning circle between kerbs (m) 12.18 12.59
Maximum loads (kg)
Payload 1 000
On roof 170
DIMENSIONS (MM)
The vehicle is available in 2 lengths (L1, L2) and 1 height (H1),
refer to the tables:

163
Exterior
VISUAL SEARCH
10
JUMPY-ATLANTE-VP_EN_CHAP10_LOCALISATION_ED01-2014
EXTERIOR
Filler cap, fuel tank 130-131
Fuel cut-off, Diesel priming 131-132
Wiper blade
152
Door mirrors 91
Side repeater 145
Front lamps, foglamps, direction
indicators 46-48 Headlamp beam height adjustment 48
Changing front bulbs 143-145
Headlamp wash 49, 126
Snow shield 141
Front doors 23-24
Sliding side door 24-25
Key 21
Opening the bonnet 122
Electric child lock 25
Brakes, pads 94, 125
Emergency braking 96
ABS, EBFD 96
ASR, DSC 97
Tyres, pressures 36-37, 162
Snow chains 142
Rear suspension 88-90
Doors, tailgate
23-26
Emergency control 26
Accessories
121
Number plate lamp 147 Dimensions
156-159
Temporary puncture repair kit 135-136
Spare wheel, jack, changing a wheel, tools 137-141
Inflation, pressures 36-37, 162 Remote control
20-21
Changing the battery,
reinitialisation 21 Key 21
Starting 45
Central locking / unlocking 20, 23-24
Alarm 22-23
Towing, lifting 153-154
Towbar 119-120
Parking sensors 95
Rear lamps,
direction indicators 46-47, 146
3rd brake lamp 147
Changing rear bulbs 143, 146

166
Interior
JUMPY-ATLANTE-VP_EN_CHAP10_LOCALISATION_ED01-2014
Seating area fittings 85-87
- stowing rings,
- load space cover,
- coat hook and net fixing,
- bench net,
- grab handle,
- cup holder,
- 12 volt socket,
- storage compartment. Temporary puncture repair kit 135-136
Spare wheel, jack,
changing a wheel, tools 137-141 Rear suspension
88-90
Front, side,
curtain airbags 103-106
Passenger's front airbag deactivation 106
Parking brake, handbrake 94
Opening the bonnet 122
Battery, charging, starting 133
Passenger compartment fuses 148, 150
Front seats, adjustments,
head restraint 69-70
2-seat front bench 71-72
Seat belts 100-101
Rear ventilation 65
Child seats 107-118
ISOFIXmountings 111-114
Rear side windows 92
INTERIOR
Rear seats,
rear benches 73-79
Configuration of seats and benches 80
Rear courtesy lamp 84
Changing courtesy lamp bulbs 145
Accessories 121
Rear view mirror
92
Toll cards, car park tickets 85
Front courtesy lamp 84
Changing courtesy lamp bulbs 145
