Page 32 of 231
39
Steering wheel controls
ERGONOMICS and COMFORT
3
Automatic switching on of the lights Activation
Turn the ring to the AUTO position. The
activation of this function is accompanied by
a message on the display.
If the brightness sensor does not
function correctly , the lights come on
accompanied by the service warning light,
an audible signal and a message on the
display.
Consult a CITROËN dealer.
HEADLAMP BEAM
Depending on the load in your vehicle,
the beam setting must be adjusted.
0 - 1 or 2 people in the front seats.
1 - 5 people.
2 - 6 to 9 people.
3 - Driver + maximum authorised loads.
Do not cover the brightness sensor
located on the windscreen, behind the
mirror. It is used for the automatic switching
on of the lights and for the automatic wipers. The side lights and dipped
beam headlamps switch
on automatically if the light
is poor, or during operation
of the windscreen wipers. They switch off as
soon as the light becomes bright enough or
the windscreen wipers stop.
This function is not compatible with the
daytime lights. Deactivation
Turn the ring forwards or rearwards. The
deactivation of this function is accompanied
by a message on the display.
The function is deactivated temporarily when
you use the manual lights stalk.
Initial setting is position 0.
In foggy weather or in snow, the
brightness sensor can detect sufficient
light. As a consequence, the lights will
not come on automatically. If necessary,
you must switch on the dipped headlamps
manually.
Page 33 of 231
40
Steering wheel controls
WINDSCREEN WIPER STALK
Manual windscreen wipers
2 Fast wipe (heavy rain).
1 Normal wipe (moderate rain).
l Intermittent wipe.
0 Off.
Single wipe
(press downwards). Do not cover the rain sensor,
located in the centre of the
windscreen, behind the mirror.
In the AUTO position, the windscreen wipers
operate automatically and adapt their speed
to the intensity of the rainfall.
When not in AUTO mode, for the other
positions, refer to the manual windscreen
wipers section.
In the I ntermittent position, the wiping speed
is in proportion to the vehicle speed.
Wash-wipe and headlamp wash
Pull the stalk towards you, the wash-wipe
is accompanied by a timed sweep of the
wipers.
The headlamp wash is linked with the wash-
wipe, it is triggered if the dipped headlamps
are on.
To top up the levels, refer to the
"Levels" section of chapter 6.
Automatic windscreen wipers
Whenever the ignition has been switched
off for more than one minute, with the
windscreen wiper stalk in position 2, 1 or I,
the stalk must be reactivated:
- move the stalk to any position,
- then move it back to the required position.
Page 34 of 231
41
Steering wheel controls
ERGONOMICS and COMFORT
3

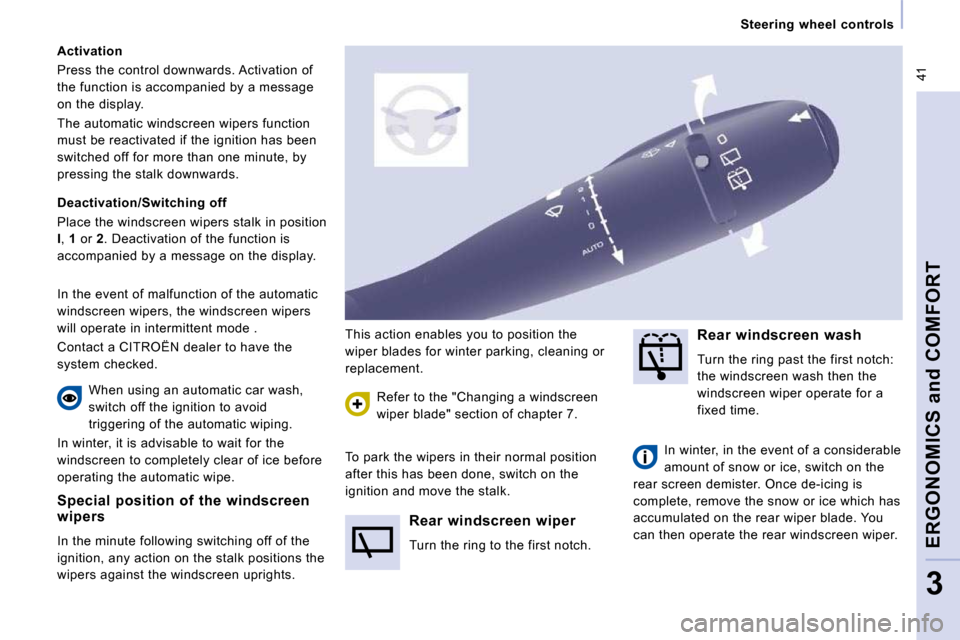

Special position of the windscreen wipers
In the minute following switching off of the
ignition, any action on the stalk positions the
wipers against the windscreen uprights. This action enables you to position the
wiper blades for winter parking, cleaning or
replacement.
Refer to the "Changing a windscreen
wiper blade" section of chapter 7.
To park the wipers in their normal position
after this has been done, switch on the
ignition and move the stalk.
When using an automatic car wash,
switch off the ignition to avoid
triggering of the automatic wiping.
In winter, it is advisable to wait for the
windscreen to completely clear of ice before
operating the automatic wipe.
Rear windscreen wiper
Turn the ring to the first notch.
Rear windscreen wash
Turn the ring past the first notch:
the windscreen wash then the
windscreen wiper operate for a
fixed time.
In winter, in the event of a considerable
amount of snow or ice, switch on the
rear screen demister. Once de-icing is
complete, remove the snow or ice which has
accumulated on the rear wiper blade. You
can then operate the rear windscreen wiper.
Activation
Press the control downwards. Activation of
the function is accompanied by a message
on the display.
The automatic windscreen wipers function
must be reactivated if the ignition has been
switched off for more than one minute, by
pressing the stalk downwards.
Deactivation/Switching off
Place the windscreen wipers stalk in position
I , 1 or 2 . Deactivation of the function is
accompanied by a message on the display.
In the event of malfunction of the automatic
windscreen wipers, the windscreen wipers
will operate in intermittent mode .
Contact a CITROËN dealer to have the
system checked.
Page 127 of 231
131
Changing a fuse
TROUBLESHOOTING
7
FUSES UNDER THE BONNET
- After opening the bonnet, slide the screenwash support to make access
easier.
- Unclip and tilt the box to access the fuses.
Fuses A (amps) Allocation
1 20 Engine control unit, Fuel supply and air supply systems, Fan
assembly
2 15 Horn
3 10 Front and rear wash-wipe pump
4 20 Headlamp wash pump
5 15 Fuel supply system
6 10 Power steering, Secondary brake pedal switch
7 10 Braking system (ABS/ESP)
8 20 Starter control
9 10 Main brake pedal switch
10 30 Fuel supply and air supply systems, Emission co ntrol systems
11 40 Front ventilation
12 30 Windscreen wipers
13 40 Built-in systems interface
14 30 Free
Page 128 of 231
132
Changing a wiper blade
Placing the wiper blades in the special position
- Less than a minute after switching off the ignition, press the wipers stalk
downwards to position the wiper blades
along the windscreen uprights (special
position). Changing a front wiper blade
- Lift the wiper arm.
- Unclip the blade and remove it.
- Fit the new blade.
- Push back the wiper arm.
Changing the rear wiper blade
- Lift the wiper arm, then unclip the blade
and remove it.
- Fit the new blade and push back the wiper arm.
CHANGING A WINDSCREEN WIPER BLADE
To return the windscreen wipers to their
normal position, switch on the ignition and
operate the wipers stalk.
Page 206 of 231
0 9
9.61
TRIP COMPUTER
V E H I C L E D I A G N O S T I C S
- The "vehicle" tab: The range, the current consumption and the distance remaining. - The "1" (route 1) tab with: The average speed, the average consumption and the distance travelled calculated over route "1". - The "2" (route 2) tab with the same functions for a second route.
R a n g e : displays the distance which can travelled with th with the remaining fuel detected in the tank, basd on the average consumpnsumption over the last few miles (kilometres). T h i s d i s p l a y e d v a l u e m a y v a r y s i g n i fi c a n t l y f o l l o w i n g a c h a n g e i n t h e T h i s d i s p l a y e d v a l u e m a y v a r y s i g n i fi c a n t l y f o l l o w i n g a c h a n g e i n t h e vehicle speed or the relief of the route. When the range falls below 20 miles (30 km), dashe s ahes are displayed. A f t e r fi l l i n g w i t h a t l e a s t 5 l i t r e s o f f u e l , t h e r a n g e i s r e c a l c u l a t e d a n d A f t e r fi l l i n g w i t h a t l e a s t 5 l i t r e s o f f u e l , t h e r a n g e i s r e c a l c u l a t e d a n d is displayed when it exceeds 60 miles (100 km). If, whilst driving, dashes are displayed continuou sly in ply in place of the digits, contact a CITROËN dealer. If, whilst driving, dashes are displayehes ar
C u r r e n t f u e l c o n s u m p t i o n : only calculated and displaydisplayed above20 mph (30 km/h).
A v e r a g e f u e l c o n s u m p t i o n : this is the average fuel couel consumption since the last trip computer zero reset.
D i s t a n c e t r a v e l l e d : calculated since the last trip compucomputer zero reset.
D i s t a n c e r e m a i n i n g t o t h e d e s t i n a t i o n : calculated wited with reference t o t h e fi n a l d e s t i n a t i o n , e n t e r e d b y t h e u s e r . I f g u i d a n c e i s a c t i v a t e d , t o t h e fi n a l d e s t i n a t i o n , e n t e r e d b y t h e u s e r . I f g u i d a n c e i s a c t i v a t e d , the navigation system calculates it as a current va lue.
A v e r a g e s p e e d : this is the average speed calculated sated since the last trip computer zero reset (ignition on).
Each press of the button at the end of the wipers stalk dstalk displays the various trip computer data in succession, according to tg to the display.
A FEW DEFINITIONS
Page 219 of 231
9.76
0 5
9
TRIP COMPUTER
Each press of the button, located at the end of the wipers stalk , permits displaying of the different trip computer data in succession, depending on the displ ay.
- the "vehicle" tab with:
