height adjustment Citroen JUMPY MULTISPACE RHD 2012 2.G Owner's Manual

9
Interior

FAMILIARISATIO
N
1



INSTRUMENTS AND CONTROLS


1.
Lighting and direction indicator
control stalk.

2.
Instrument panel with screen.

3.
Wipers, screenwash, trip computer
control stalk.

4.
Gear lever.

5.
Ignition.

6.
Audio system controls.

7.
Driver's airbag, horn.

8.
Steering wheel height and reach
adjustment.

9.
Headlamp beam adjustment.

10.
Cruise control, speed limiter
switches.

11 .
12 volt accessory socket (120 W max)
of the cigarette lighter type.

12.
Ashtray.

13.
Glove box, auxiliary socket,
passenger's airbag deactivation
switch.

14.
"Grip control".

3
11
Interior

FAMILIARISATIO
N
1


Driver's seat




SITTING COMFORTABLY



1.
Forwards-backwards adjustment.

2.
Backrest angle.

3.
Cushion height.

4.
Lumbar.

5.
Head restraint height.
68

2
4
3
3
12

Steering wheel

Electric windows

Mirrors
44

Seat belts
99 92

90 Adjust the steering wheel for height and
reach. Manual adjustments.
Electric adjustments, electric folding /
unfolding.
Height adjustment.
Fastening.

44


Gearboxes and steering wheel

STARTING AND STOPPING


Key

Take care to prevent the key from coming
into contact with grease, dust, rain or a
damp environment.
A heavy object attached to the key (key
ring, ...) weighing the key down in the
ignition switch may cause a malfunction.
Starting position.
The starter is operated, the engine turns
over, release the key.

STOP position:
steering lock.
The ignition is off. Turn the steering wheel
until the steering locks. Remove the key.

Good practice when starting

If this comes on, a door or the
bonnet is not closed correctly,
check!

Diesel pre-heating warning lamp
If the temperature is high enough,
the warning lamp comes on for
less than one second, you can
start without waiting.
In cold weather, wait for this warning lamp
to go off then operate the starter (Starting
position) until the engine starts.



Good practice when stopping


Minimise engine and gearbox wear
When switching off the ignition, let the
engine run for a few seconds to allow the
turbocharger (Diesel engine) to return to
idle.
Do not press the accelerator when switching
off the ignition.
There is no need to engage a gear after
parking the vehicle.

Running and accessories position.
To unlock the steering, turn the steering
wheel gently while turning the key, without
forcing. In this position, certain accessories
can be used.
Door or bonnet open warning lamp
STEERING WHEEL HEIGHT AND
REACH ADJUSTMENT
When the vehicle is stationary, release the
steering wheel adjustment mechanism by
lowering the lever.
Adjust the steering wheel for height and
reach, then lock the adjustment mechanism
by pushing the lever fully upwards.

Starting and stopping

68


Seats
FRONT SEATS

Depending on the version and configuration
of your vehicle, different front seats are
fitted, either:


- a driver's seat and a passenger seat,

- an individual driver's seat and a
two-seat passenger bench.
3 - Driver's seat height adjustment
Depending on the version and configuration
of your vehicle, you have either:


- a passive adjustment: pull the handle
upwards then take your weight off the
seat to raise, or push on the seat to
lower,
2 - Seat back angle adjustment
Pull the lever upwards and set the required
angle.

1 - Forwards/backwards adjustment
Lift the bar and slide the seat forwards or
backwards. Depending on the models, the following
adjustments are available:

69


Seats

EASE OF USE and COMFOR
T
3


- an active adjustment: operate the handle
upwards or downwards until the desired
position is reached.


Head restraint height adjustment
To raise or lower the restraint, pull it
forwards, then slide it. The adjustment is correct when the upper
edge of the head restraint is level with the
top of the head.
Never drive with the head restraints
removed; they must be in place and
correctly adjusted.
Front heated seat controls


Adjustable armrest
To place the armrest in its rest position:


- raise it until it is in the centreline of the
seat back.

4 - Driver's seat lumbar adjustment
Move the lever up or down to obtain the
required position. To remove it, set it in the high position, press
the tabs and pull upwards and forwards at
the same time.
To re-install, engage the head restraint rods
in the holes, making sure they are aligned
with the seat back.
To place the armrest in a position for use:


- fold it down fully,

- raise it slowly to the required position,

- if you pass the required position, raise it
fully then repeat the operations above.


Press the corresponding control,
located on the overhead storage
unit.
The temperature is controlled
automatically.
Pressing a second time stops operation.

70


Seats

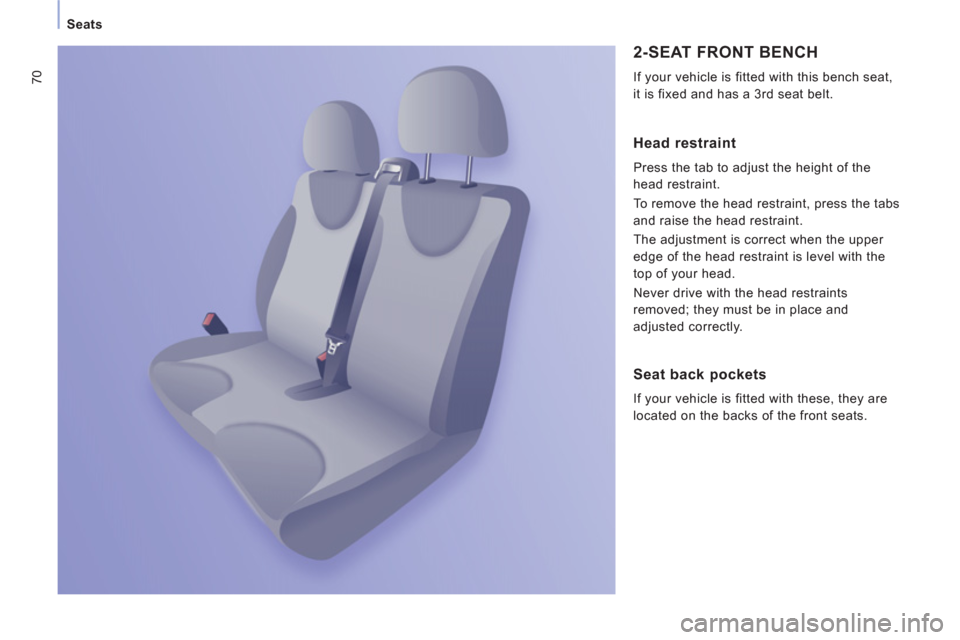

2-SEAT FRONT BENCH

If your vehicle is fitted with this bench seat,
it is fixed and has a 3rd seat belt.

Head restraint

Press the tab to adjust the height of the
head restraint.
To remove the head restraint, press the tabs
and raise the head restraint.
The adjustment is correct when the upper
edge of the head restraint is level with the
top of your head.
Never drive with the head restraints
removed; they must be in place and
adjusted correctly.


Seat back pockets

If your vehicle is fitted with these, they are
located on the backs of the front seats.

88

Rear suspension
2 - Manual correction of the height of the rear sill

If your vehicle is fitted with this adjustment,
the control is located on the right-hand side
at the rear of the vehicle.
This manual adjustment permits "lowering"
or "raising" of the height of the sill of the rear
platform to facilitate operations in a parking
area.
This adjustment of the height of the sill is
restricted by a lower limit and an upper limit.
First use
To initialise the function, press the control
for approximately 2 seconds.
Malfunctions
If the load sill is not adjusted when the
control is pressed, "3 beeps" indicate a
malfunction for the following reasons:


- foot on the brake pedal with the key in
the ignition,

- excessive use of the manual correction,

- low battery charge,

- other.
If the audible signal persists, contact a
CITROËN dealer or a qualified workshop. Carry out these operations with the vehicle
still stationary and:


- with the front and side doors closed,

- with the parking brake applied,

- do not leave your foot on the brake
pedal.

Lower: downwards adjustment
of the platform sill
Press the control downwards
continuously.
Release the button to stop the movement,
"3 beeps" indicate that you have reached
the maximum limit, the movement stops
automatically.

Raise: upwards adjustment of
the platform sill
Press the control upwards
continuously.
Release the button to stop the movement,
"3 beeps" indicate that you have reached
the maximum limit, the movement stops
automatically.

Return to the optimum sill height
Press the control up or down twice in
succession, the opposite of the position of
the load sill.

99
Seat belts

SAFETY
4


Height adjustment

Squeeze the control with the return and slide
the assembly on the driver's seat side and
on the individual passenger seat side.
If your vehicle is fitted with a front bench,
the height of the seat belt associated with
the centre seat cannot be adjusted.
Unfastening

Press the red button.
SEAT BELTS


Good practice

The driver must ensure that passengers use
the seat belts correctly and that they are all
strapped in securely before moving off.
Wherever you are seated in the vehicle,
always fasten your seat belt, even for short
journeys.
The seat belts are fitted with an inertia reel
which automatically adjusts the length of the
strap to your size.
Do not use accessories (clothes pegs, clips,
safety pins, etc.) which allow the seat belt
straps to fit loosely.
Ensure that the seat belt has reeled in
correctly after use.
After folding or moving a seat or a rear
bench seat, ensure that the seat belt has
reeled in correctly and that the buckle is
ready to accommodate the tongue.
Depending on the nature and seriousness
of any impact, the pretensioning device may
be deployed before and independently of
inflation of the airbags. It instantly tightens
the seat belts against the body of the
occupants.

Deployment of the pretensioners is
accompanied by a slight discharge of
harmless smoke and a noise, due to the
activation of the pyrotechnic cartridge
incorporated in the system.

Fastening

Pull the strap, then insert the tongue into the
buckle.
Check that the seat belt is fastened correctly
by pulling the strap.
Driver's seat belt not fastened
warning lamp
When the vehicle is started, this
warning lamp comes on if the
driver has not fastened their seat
belt.

Passenger seat belt not
fastened warning lamp
If your vehicle is fitted with a front
passenger seat, when the vehicle
is started, this warning lamp
comes on if the passenger has not fastened
their seat belt.

15
7


Exterior

VISUAL SEARCH
10
EXTERIOR


Filler cap, fuel tank 125-126
Fuel cut-off, Diesel priming 126-127

Wiper blade 146
Door mirrors 90
Side repeater 139

Front lamps, foglamps,
direction indicators 45-47
Headlamp beam
height adjustment 47
Changing front bulbs 137-139
Headlamp wash 48, 121
Snow shield 136

Front doors 24-25
Sliding side door 25-26
Key 22
Opening the bonnet 117
Electric child lock 26

Brakes, pads 93, 122
Emergency braking 95
ABS, EBFD 95
ASR, ESP 96
Tyres, pressures 156
Rear suspension 87-89
Doors, tailgate 24-27
Emergency control 27
Accessories 116

Number plate lamp 141
Dimensions 150-153

Temporary puncture repair kit 130
Spare wheel, jack,
changing a wheel, tools 132-136
Inflation, pressures 156
Remote control 21-22
Changing the battery,
reinitialisation 22
Key 22
Starting 44
Central locking /
unlocking 21, 24-25
Alarm 23-24

Towing, lifting 147
Towbar 114-115
Parking sensors 94
Rear lamps,
direction indicators 45-46, 139
3rd brake lamp 141
Changing rear bulbs 137, 140
