CONTENT
S

Contents
3


The "Technology on board"
section presents the new radio/
navigation systems.
Towing a trailer 114Other accessories 116
Opening the bonnet 117Diesel engines 118Petrol engine 119Levels 120Checks 122Fuel 125Fuel cut-off 126Diesel priming pump 126
Battery 128Puncture repair kit 130Changing a wheel 132Removable snow screen 136Changing a bulb 137a fuse 142a windscreen wiper blade 146
Towing the vehicle 147
Dimensions 150Weights 154Engines 155Identification markings 156
Exterior 157Instruments and controls 158Interior 160Technical data - Maintenance161Model code 162
9. TECHNOLOGY onBOARD 5. ACCESSORIES
114-116
6. CHECKS11 7-127
7. QUICK HELP 128-148
8. TECHNICAL DATA149-156
10. VISUAL SEARCH 157-164


The "Location" section assists
you in finding the controls and
functions and their associated
page numbers on the schematic
outlines of the vehicle
(visual index).
Emergency or assistance 9.1NaviDrive 9.5MyWay 9.51Audio system 9.85

Instruments and controls

The points at which a service is due are
calculated from the last indicator zero reset.
The point at which a service is due is
determined by two parameters:


- the distance travelled,

- the time which has elapsed since the
last service. A few seconds after the ignition is switched
on, the oil level is displayed, then the total
distance recorder resumes normal operation
showing the total and trip distances.

Less than 1 000 miles/km before the next
service is due
Each time the ignition is switched on and for a few
seconds, the spanner fl ashes and the number of
miles/kilometres remaining is displayed:
A few seconds after the ignition is switched
on, the oil level is displayed, then the total
distance recorder resumes normal operation
and the spanner remains on. This indicates
that a service should be carried out shortly. The distance remaining before the next
service may be weighted by the time
factor, depending on the type of driving.
More than 1 000 miles/km before the next
service is due

Example:
4 800 miles/km remain before
the next service is due. When the ignition
is switched on and for a few seconds, the
screen shows:
SERVICE INDICATOR
This programmes service intervals according
to the use of the vehicle.

Operation
A few moments after the ignition has been
switched on, the spanner indicating a
service operation comes on; the display for
the total distance recorder gives (in round
figures) the distance remaining before the
next service.

Good practice

This system does not avoid the need to
have the tyre pressures checked regularly
(including the spare wheel), to ensure that
the dynamic performance of the vehicle
remains at its best and to avoid premature
wear of the tyres, in particular in the case of
heavy loads and high speeds.
Observing the recommended tyre pressures
helps reduce the vehicle's fuel consumption.
The system may temporarily be disturbed by
electro-magnetic emissions on a frequency
close to that used by it. All repairs and changing of tyres on
a wheel fitted with this system must
be carried out by a CITROËN dealer or a
qualified workshop.
If when changing a tyre, you fit a
wheel not detected by your vehicle
(for example: fitting snow tyres), you must
have the system reinitialised by a CITROËN
dealer or a qualified workshop.

The tyre under-inflation detection system
is a driving aid which does not take the
place of vigilance or the responsibility of
the driver.

68


Seats
FRONT SEATS

Depending on the version and configuration
of your vehicle, different front seats are
fitted, either:


- a driver's seat and a passenger seat,

- an individual driver's seat and a
two-seat passenger bench.
3 - Driver's seat height adjustment
Depending on the version and configuration
of your vehicle, you have either:


- a passive adjustment: pull the handle
upwards then take your weight off the
seat to raise, or push on the seat to
lower,
2 - Seat back angle adjustment
Pull the lever upwards and set the required
angle.

1 - Forwards/backwards adjustment
Lift the bar and slide the seat forwards or
backwards. Depending on the models, the following
adjustments are available:

87

Rear suspension
EASE OF USE and COMFOR
T
3


Metal suspension

This equipment adopts long movement limiters
which make it possible to guarantee stable
behaviour both when loaded and when empty.
No action on your part is required except to
ensure that maintenance is carried out and that
the authorised loads are complied with. the increasing or lightening of the load on
the vehicle's platform is detected by two
height sensors. When all of the doors are
closed, the sensors trigger the automatic
height correction and determine the optimum
height of the sill for the vehicle's driving
conditions.



Deactivation of automatic height correction
The control which permits deactivation of
automatic regulation is located on the right-
hand side, at the rear of the vehicle.
Two types of suspension are available. You must deactivate automatic height
correction manually in the following
situations:


- when working underneath the vehicle,

- when changing a wheel,

- when the vehicle is being transported by
lorry, train, ferry, boat, ...



Rear suspension with pneumatic
height correction
If fitted on your vehicle, this type of
suspension regulates the variations in the
height of the rear platform of your vehicle
irrespective of the weight of the load, within
the limit of the authorised values. On board,
Two functions


1.
Automatic height
correction

2.
Manual height
correction


1 - Automatic correction of the
height of the rear sill
The pneumatic suspension automatically
regulates the variations in the height of
the rear platform of your vehicle.
The automatic height correction is
temporarily inactive:


- if a door / the tailgate is open,

- when braking or when stopped at a red
traffic signal (brake pedal pressed). With the vehicle stationary:


- press and hold,

- release the control.

Return to automatic correction
With the vehicle stationary:


- press and hold,

- release the control.
According to the configurations, a beep may
be heard during these operations.
A red warning light on your
instrument panel fl ashes if the
height is not at its optimum level
and requires correction, drive slowly
until this warning lamp goes off. Return to automatic height correction is
confirmed by the LED which goes off. Deactivation is confirmed by the LED which
is on. It remains on for approximately
30 seconds.

106

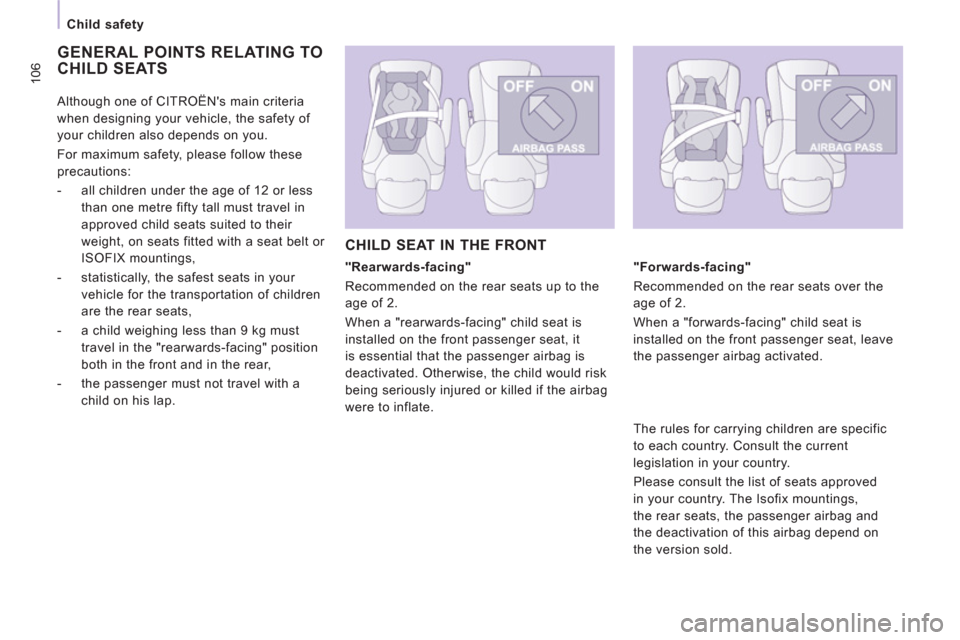

Child safety
GENERAL POINTS RELATING TO
CHILD SEATS

"Rearwards-facing"
Recommended on the rear seats up to the
age of 2.
When a "rearwards-facing" child seat is
installed on the front passenger seat, it
is essential that the passenger airbag is
deactivated. Otherwise, the child would risk
being seriously injured or killed if the airbag
were to inflate.
"Forwards-facing"
Recommended on the rear seats over the
age of 2.
When a "forwards-facing" child seat is
installed on the front passenger seat, leave
the passenger airbag activated.

CHILD SEAT IN THE FRONT


The rules for carrying children are specific
to each country. Consult the current
legislation in your country.
Please consult the list of seats approved
in your country. The Isofix mountings,
the rear seats, the passenger airbag and
the deactivation of this airbag depend on
the version sold.
Although one of CITROËN's main criteria
when designing your vehicle, the safety of
your children also depends on you.
For maximum safety, please follow these
precautions:


- all children under the age of 12 or less
than one metre fifty tall must travel in
approved child seats suited to their
weight, on seats fitted with a seat belt or
ISOFIX mountings,

- statistically, the safest seats in your
vehicle for the transportation of children
are the rear seats,

- a child weighing less than 9 kg must
travel in the "rearwards-facing" position
both in the front and in the rear,

- the passenger must not travel with a
child on his lap.

11 0
Child safety

IUF:
Seat suitable for the installation of an
ISOFIX child seat of the universal category.
"Forward facing" ISOFIX child seat fitted
with an upper strap secured to the upper
ring of the vehicle seats equipped with
ISOFIX mountings.
LOCATIONS FOR ISOFIX CHILD SEATS

This table indicates the options for the installation of ISOFIX child seats on the vehicle seats fitted with ISOFIX mountings.
In the case of the universal and semi-universal ISOFIX child seats, the child seat's ISOFIX size category, determined by a letter from A
to G
,
is indicated on the child seat next to the ISOFIX logo.

IL-SU:
Seat suitable for the installation of a
semi-universal ISOFIX child seat. "Forward
facing" ISOFIX child seat fitted with a stay.
"Rear facing" ISOFIX child seat or infant car
seat, fitted with an upper strap or a stay.
X:
No restraining system for children.

Weight of the child
/indicative age


Less than
10 kg
(group 0)
Up to
6 months
approx

Less than 10 kg
(group 0)
Less than 13 kg
(group 0+)
Up to 1 year approx

From 9 to 18 kg
(group 1)
From 1 to 3 years approx

Type of ISOFIX child seat

Infant car
seat


"rear facing"


"rear facing"



"forward facing"


ISOFIX size category
F
G
C
D
E
C
D
A
B

B1

Row 2
outer
rear
seats
with individual seats in Row 1

IL-SU


IL-SU


IL-SU


IUF, IL-SU


Row 2
outer
rear
seats
with 2-seat bench in Row 1

IL-SU

X
IL-SU
X
IL-SU


IUF, IL-SU


Rear seats in Row 3

IL-SU

X
IL-SU
X
IL-SU


IUF, IL-SU


Infant car seat:
this is fixed to the lower
rings of a seat equipped with ISOFIX
mountings and occupies two rear seats.

11 2
Child safety
Row 2
Outer seats

U


U


U


U


Centre seat

U


U


U


U

Row 3
Outer seats

U


U


U


U


Centre seat

U


U


U


U

(a): Group 0: from birth to 13 kg. Infant car seats and "car cots" cannot be installed on the front passenger seat.
(b): consult the legislation in force in your country before installing your child on this seat.
U: seat suitable for the installation of a child seat secured using a seat belt and universally approved, "rear facing" and/or "forward facing".

INSTALLING CHILD SEATS ATTACHED USING THE SEAT BELT

This table indicates the options for installing child seats secured using a seat belt and universally approved in accordance with the weight of
the child and the seat in the vehicle.


Seat


Weight of the child and indicative age



Under 13 kg
(groups 0 (a)
and 0+)
Up to approx 1 year

From 9 to 18 kg

(group 1)
1 to 3 years approx

From 15 to 25 kg



(group 2)
3 to 6 years approx

From 22 to 36 kg


(group 3)
6 to 10 years
approx

Row 1 (b)
Individual seat

U


U


U


U


Bench, outer seat

U


U


U


U


Bench,
centre seat

L1


-


L3, L4, L5


L3, L4, L5

114


Towing a trailer
For more information about weights,
refer to the administrative documents
(registration document, ...) or to the
"Weights" section of chapter 8.
TOWING A TRAILER, CARAVAN, BOAT, ETC...


Distribution of loads
Distribute the load in the trailer so that the
heaviest objects are as close as possible
to the axle and the nose weight is close to
the maximum authorised without, however,
exceeding it.
Cooling
Towing a trailer on a slope increases the
coolant temperature.
As the fan is electrically controlled, its
cooling capacity is not dependent on the
engine speed.

Driving advice

A towed vehicle must free wheel: gearbox in
neutral.

148


Having your vehicle towed

General recommendations

Observe the legislation in force in your
country.
Ensure that the weight of the towing vehicle
is higher than that of the towed vehicle.
The driver must stay at the wheel of the
towed vehicle.
Driving on motorways and fast roads is
prohibited when towing.
When towing a vehicle with all four wheels
on the ground, always use an approved
towing bar; rope and straps are prohibited.
When towing a vehicle with the engine off,
there is no longer any power assistance
for braking or steering.
In the following cases, you must always call
on a professional recovery service:


- vehicle broken down on a motorway or
fast road,

- when it is not possible to put the
gearbox into neutral, unlock the
steering, or release the parking brake,

- towing with only two wheels on the
ground,

- where there is no approved towing bar
available...

154
Weights
WEIGHTS AND TOWED LOADS (KG)

For more information, refer to your registration certificate.
In each country, it is imperative that the towed loads permitted by local legislation are complied with. To find out your vehicle's towing
capabilities and its gross train weight, contact a CITROËN dealer.

Load transfer
If the towing vehicle has not reached the GVW, it is possible to transfer this weight to the trailer.
In all cases, do not exceed the weight of the trailer and the GTW, indicated on your registration certificate.
Observe the towing capacities of your vehicle.

The weight of a braked trailer with load transfer can be increased on condition that the equivalent weight is removed from the vehicle and
the GTW is not exceeded.
High ambient temperatures may result in a reduction in the performance of the vehicle to protect the engine. If the ambient temperature is
above 37 °C, limit the towed load to 700 kg, without any transfer of load.
The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country).
