Dimensions

TECHNI
CAL DAT
A
8

*
Value for rear suspension.
L1
L2

H1
H1
H2

L Overall length
4 805 to 4 813
5 135 to 5 143

H Overall height
1 894 * / 1 942
2 204 * / 2 276

A Wheelbase
3 000
3 122

B Front overhang

975

C Rear overhang
830 to 838
1 038 to 1 046

D Overall width:



over panels

1 870
with mouldings

1 895
with mirrors folded

1 986
with mirrors unfolded
2 194

E Width of front track
1 562 to 1 570

F Width of rear track
1 596 to 1 604

I Length of interior floor
2 254
2 584


J Maximum interior height under roof
1 449
1 750

K Maximum interior width
1 600

M Interior width between wheel arches
1 245

Turning circle between kerbs (m)
12.18
12.59

Maximum loads (kg)




Payload

1 000 to 1 200

On roof

170

m
3

5
6
7

DIMENSIONS (MM)

The vehicle is available in 2 lengths (L1, L2) and 2 heights
(H1, H2), refer to the tables:

142


Dimensions

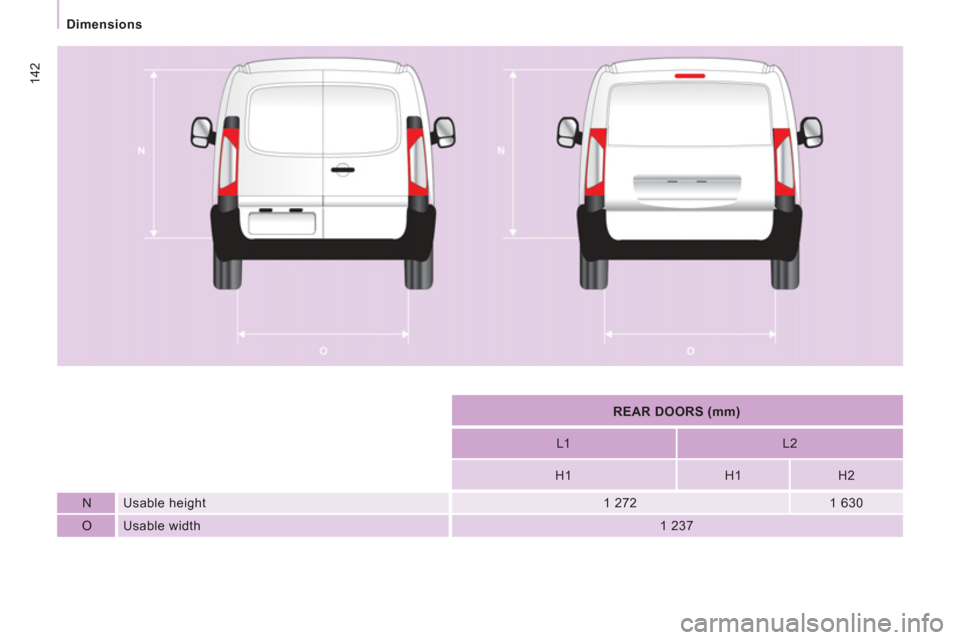

REAR DOORS (mm)


L1
L2

H1
H1
H2

N Usable height
1 272
1 630

O Usable width

1 237

Dimensions

TECHNI
CAL DAT
A
8




SLIDING SIDE DOOR (mm)




L1
L2



H1
H1
H2

P
Height

1 293
1 301

Q
Width

924

145


Dimensions

TECHNI
CAL DAT
A
8




PLATFORM CAB (mm)




L2

L Overall length

5 016

A Wheelbase

3 122

B Front overhang

975

C Rear overhang

920


Max rear body overhang
1 420

D Overall width (excluding mirrors)
1 895

E Width of front track

1 574

F Width of rear track

1 574

- Gross vehicle weight

-

- Max weight at the front
1 400

- Max weight at the rear
1 700
