Eco-driving is a range of everyday practices
that allow the motorist to optimise their fuel
consumption and CO
2 emissions.
Eco-driving
Optimise the use of your
gearbox
With a manual gearbox, move off gently and
change up without waiting. During acceleration
change up early.
With an automatic or electronic gearbox,
give preference to automatic mode and avoid
pressing the accelerator pedal heavily or
suddenly.
The gear efficiency indicator invites you to
engage the most suitable gear: as soon as the
indication is displayed in the instrument panel,
follow it straight away.
For vehicles fitted with an electronic or
automatic gearbox, this indicator appears only
in manual mode.
Drive smoothly
Maintain a safe distance between vehicles, use
engine braking rather than the brake pedal,
and press the accelerator progressively. These
practices contribute towards a reduction in fuel
consumption and CO
2 emissions and also help
to reduce the background traffic noise.
If your vehicle has cruise control, make use of
the system at speeds above 25 mph (40 km/h)
when the traffic is flowing well.
Control the use of your
electrical equipment
Switch off the demisting and defrosting controls,
if not automatic.
Switch off the heated seat as soon as possible.
Switch off the headlamps and front foglamps
when the level of light does not require
their
u

se.
Avoid running the engine before moving off,
particularly in winter; your vehicle will warm up
much faster while driving.
As a passenger, if you avoid connecting
your multimedia devices (film, music, video
game...), you will contribute towards limiting the
consumption of electrical energy, and so of fuel.
Disconnect your portable devices before
leaving the vehicle.
Before moving off, if the passenger compartment is
too warm, ventilate it by opening the windows and
air vents before using the air conditioning.
Above 30 mph (50 km/h), close the windows and
leave the air vents open.
Remember to make use of equipment that can
help keep the temperature in the passenger
compartment down (sunroof and window blinds...).
Switch off the air conditioning, unless it has
automatic regulation, as soon as the desired
temperature is attained.
Eco-driving

126
The air conditioning system only operates with the engine running.
Manual air conditioning
Temperature
F Turn the knob from "LO"
(cold) to " HI" (hot) to
adjust the temperature to
your requirements.
Air flow
F Turn the knob to obtain a comfortable air flow.
If you put the air flow control in the
minimum position
(system off), the
temperature is no longer controlled.
However, a slight flow of air can still be
felt, resulting from the movement of the
vehicle.
Air distribution
Windscreen and side windows.
Footwells. Central and side vents.
The air distribution can be adapted by adding
the corresponding buttons.
Air intake / Air recirculation
The intake of exterior air avoids misting of the
windscreen and side windows.
The recirculation of interior air insulates the
passenger compartment from exterior odours
and fumes.
Return to exterior air intake as soon as
possible to avoid deterioration of the air
quality and the formation of mist. This allows hot or cold air to be
delivered quickly when required.F

P
ress this button to recirculate
the interior air; its indicator lamp
comes on.
F

P
ress this button again to allow
exterior air into the passenger
compartment; its indicator lamp
goes off.
Ease of use and comfort

127

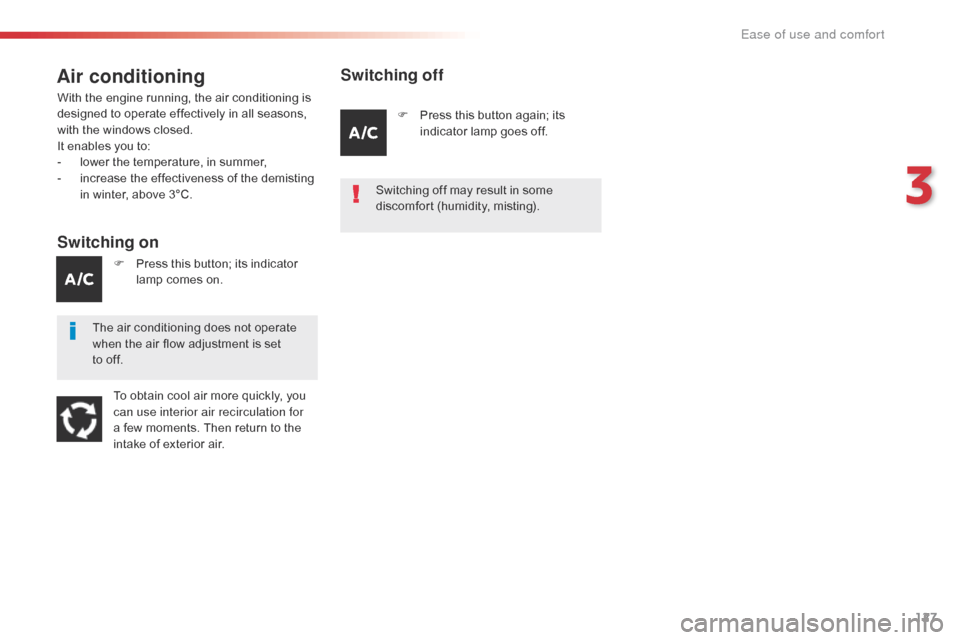

Air conditioning
Switching on
With the engine running, the air conditioning is
designed to operate effectively in all seasons,
with the windows closed.
It enables you to:
-
l
ower the temperature, in summer,
-

i
ncrease the effectiveness of the demisting
in winter, above 3°C.
To obtain cool air more quickly, you
can use interior air recirculation for
a few moments. Then return to the
intake of exterior air. F
P
ress this button; its indicator
lamp comes on. F

P
ress this button again; its
indicator lamp goes off.
Switching off
The air conditioning does not operate
when the air flow adjustment is set
to
off. Switching off may result in some
discomfort (humidity, misting).
3
Ease of use and comfort

128
A setting around 21 enables you to
obtain an optimum level of comfort.
Depending on your requirements, a
setting between 18 and 24 is usual.
In addition, it is recommended that you
avoid a left /right setting difference of
more than 3.
Dual-zone automatic air conditioning
Offers the best compromise between
a comfortable temperature and quiet
operation.
Provides soft and quiet operation by
limiting air flow. Provides strong and effective air flow.
F
P
ress the "
AUTO" button
repeatedly.
Automatic comfort mode TemperatureF Push the button down to
reduce the value or up to
increase it.
When the engine is cold, the air flow will
only reach its optimum level gradually
to prevent too great a distribution of
cold air.
In cold weather, it favours the
distribution of warm air to the
windscreen, the side windows and the
footwells only.
The active mode appears in the display screen,
as described below:
If desired, you can choose settings different
to those offered by the system, by adjusting a
setting manually. The other functions are still
managed automatically.
The "AUTO " symbol disappears if you modify
a setting.
Manual mode
The driver and front passenger can each set
the temperature to suit their requirements.
The value indicated in the screen corresponds
to a level of comfort and not to a temperature in
degrees Celsius or Fahrenheit.
Ease of use and comfort

129
Visibility programme
F Press the "visibility" button for
faster demisting or defrosting
of the windscreen and side
windows.
F

P
ress the " visibility" button
again to stop the programme.
The system automatically manages the
air conditioning, air flow and air intake and
distributes the flow of air to the windscreen and
side windows to the best effect.
For maximum cooling or heating of
the passenger compartment, you can
exceed the minimum value of 14 or the
maximum value of 28. F

P

ush the button down
until "LO" is displayed
or up until "HI" is
displayed.
On entering the vehicle, if the interior
temperature is much colder or warmer
than the comfort value, there is no need
to alter the value displayed in order to
obtain the required level of comfort.
The system corrects the temperature
difference automatically and as quickly
as possible.
"Mono" function
The comfort setting for the passenger side
can be indexed to the driver's comfort setting
(mono-zone).
The function is deactivated automatically if a
passenger uses the temperature control.
Or
F

P
ress the "AUTO" button to
return to the automatic comfort
programme.
F

P
ress this button to activate /
deactivate the "Mono" function.
The indicator lamp in the button is on
when the function is activated.
3
Ease of use and comfort

130
F Press this button to increase air f low.
Air distribution
F Press this button repeatedly to direct the air flow in turn to:
-

t

he windscreen, the side windows and the
footwells,
-

t

he footwells,
-

t

he central vents, the side vents and the
footwells,
-

t

he windscreen, the side windows, the
centre vents and the footwells,
-

t

he centre and side vents,
-

t

he windscreen and side windows
(demisting or defrosting).
Air flow
F Press this button to decrease air f low.
The air flow symbol (a fan) appears. It is filled
in or emptied progressively according to the
setting.
Air conditioning
It enables you to:
- l ower the temperature, in summer,
-

i
ncrease the effectiveness of the demisting
in winter, above 3°C.
Switching on
With the engine running, the air conditioning is
designed to operate effectively in all seasons,
with the windows closed.
The air conditioning does not operate
when the air flow adjustment is set
to
off.To obtain cool air more quickly, you
can use interior air recirculation for
a few moments. Then return to the
intake of exterior air. F

P
ress this button; its indicator
lamp comes on.
F

P
ress this button again; its
indicator lamp goes off.
Switching off
Switching off may result in some
discomfort (humidity, misting).
Ease of use and comfort

132
Front demist - defrost
These markings on the control panel indicate the control positions for rapid demisting or
defrosting of the windscreen and side windows.
Manual heating/ventilation
or air conditioning
With Stop & Start, when demisting has
been activated, the STOP mode is not
available.
Dual-zone digital air
conditioning
F Put the air flow, temperature and distribution controls to the dedicated
marked position. The system automatically manages the air
conditioning, air flow and air intake, and
provides optimum distribution towards the
windscreen and side windows.
The system reverts to the previous settings. F

P
ress this button to demist or
defrost the windscreen and side
windows as quickly as possible.
F
T
o stop, press this button again
or on "AUTO".
F

F
or air conditioning, press
this button; its indicator lamp
comes
on. Heated windscreen and washer jets
For more information on the Wiper
control stalk
and in particular the
heated windscreen and washer jets,
refer to the corresponding section.
Ease of use and comfort
