Changing a bulb
FRONT LIGHTS
Open the bonnet. To access the bulbs, reach
behind the headlamp unit.
Remove the protective covers to gain
access to the bulbs.
Carry out the operations in reverse order to
refit each bulb.
CHANGING A BULB
TYPES OF BULB
Various types of bulb are installed on your
vehicle. To remove them:

1. Type A
Entirely glass bulb: pull gently as it is
fitted by pressure.

2. Type B
Bayonet bulb: press on the bulb then turn
it anticlockwise.

3. Type C
Cylindrical bulb: move aside the contacts.

4. Type D -E
Halogen bulb: release the retaining
spring from its housing.

105
7
TROUBLESHOOTING
Changing a bulb
1 - Dipped headlamp

Type D , H4 - 55W
- Remove the cover by turning it anticlockwise.
- Disconnect the electrical connector.
- Release the retaining spring by pressing on the two clips.
- Change the bulb taking care to align the metal part with the grooves on the light.
2 - Side light

Type A , W5W - 5W
- Remove the cover by turning it anticlockwise.
- Pull the bulb holder to gain access to the bulb.
- Change the bulb.
3 - Main beam headlamp

Type D , H4 - 55W
- Remove the cover by turning it anticlockwise.
- Disconnect the electrical connector.
- Release the retaining spring by pressing on the two clips.
- Remove the bulb holder.
- Change the bulb taking care to align the metal part with the groove on the light.
4 - Direction indicators

Type B , PY 21W - 21W - amber
- Turn the bulb holder a quarter turn anticlockwise.
- Remove the bulb by pressing it lightly while turning it anticlockwise.
- Change the bulb.
If you encounter any difficulty, consult a
CITROËN dealer.
When each operation has been
completed, check the operation of the
lights.
5 - Fog lamps

Type E , H1 - 55W
Consult a CITROËN dealer .

110

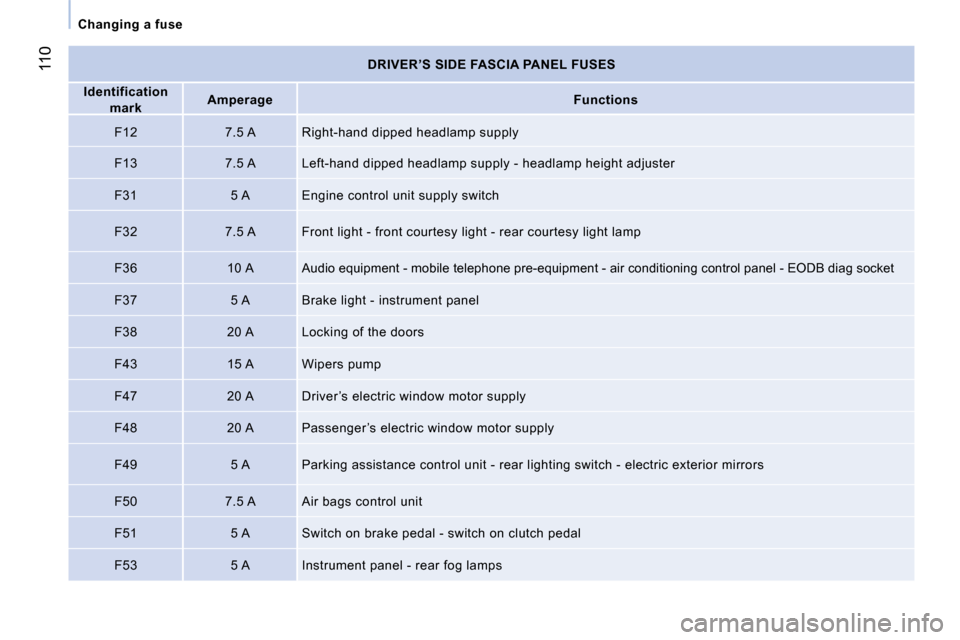

Changing a fuse

Identification
mark
Amperage
Functions
F12 7.5 A Right-hand dipped headlamp supply
F13 7.5 A Left-hand dipped headlamp supply - hea dlamp height adjuster
F31 5 A Engine control unit supply switch
F32 7.5 A Front light - front courtesy light - r ear courtesy light lamp
F36 10 A Audio equipment - mobile telephone pre- equipment - air conditioning control panel - EODB diag socket
F37 5 A Brake light - instrument panel
F38 20 A Locking of the doors
F43 15 A Wipers pump
F47 20 A Driver ’s electric window motor supply
F48 20 A Passenger ’s electric window motor suppl y
F49 5 A Parking assistance control unit - rear l ighting switch - electric exterior mirrors
F50 7.5 A Air bags control unit
F51 5 A Switch on brake pedal - switch on clutch pedal
F53 5 A Instrument panel - rear fog lamps DRIVER’S SIDE FASCIA PANEL FUSES

111
7
TROUBLESHOOTING
Changing a fuse

Identifi cation mark
Amperage
Functions
F01 60 A Control unit
F03 20 A Starter supply
F04 40 A ABS hydraulic block pump supply
F06 30 A Single speed fan assembly control
F07 40 A High speed fan assembly control
F08 30 A Air conditioning unit pump
F10 10 A Horn F11 10 A Engine management secondary charge supp ly
F14 15 A Main beam headlamps
F16 7.5 A
F17 15 A Supply for ignition coil, injectors, en gine management central unit
F18 7.5 A Engine management control unit (1.4 HD i)
F19 7.5 A Air conditioning compressor
F20 30 A Supply for heated rear screen, electric exterior mirrors de-icing heaters
F21 15 A Engine management 1.4 petrol, relay coi l T09 (HDi)
F22 20 A Engine management control unit (1.4 HDi ), petrol pump
F23 20 A ABS hydraulic block solenoid valves sup ply
F24 7.5 A ABS
F30 15 A Fog lamps
F81 60 A Pre-heat unit
F82 30 A
Electronic gearbox system pump - electronic gearbo x system supply
F84 10 A Electronic gearbox system control unit and valves
F85 30 A Lighter - 12 V accessories socket
F87 7.5 A Reversing lights - water in diesel sen sor
