Familiarisation INSTRUMENTS AND
CONTROLS

1. Steering wheel adjustment control.

2. Lights and direction indicators controls.

3. Instrument panel.

4. Driver’s air bag.
Horn.

5. Gear lever.

6. Handbrake.

7. Bonnet release.

8. Exterior mirror controls.

9. Fuse box.

10. Manual headlamp height adjustment.

11. Side adjustable and closing vent.

12. Front side window demisting vent.

13. Windscreen demisting vent.

14. Steering lock and ignition.

15. Wipers / wash-wipe / trip computer
controls.

16. Central adjustable and closing vents.

17. Passenger air bag.

18. MENU button.

19. Glove box.

20. Lighter.

21. Ashtray.

22. Heating / air conditioning controls.

23. Audio equipment.

24. Electric window controls.

25. 12V socket.

99
7
TROUBLESHOOTING
Changing a wheel
CHANGING A WHEEL
PARKING THE VEHICLE
As far as possible, park the vehicle on level,
stable and non-slippery ground.
Apply the handbrake, switch off the ignition
and engage first gear (on a hill).
If possible, place a chock under the
wheel diagonally opposite the wheel to be
changed.
TOOLS

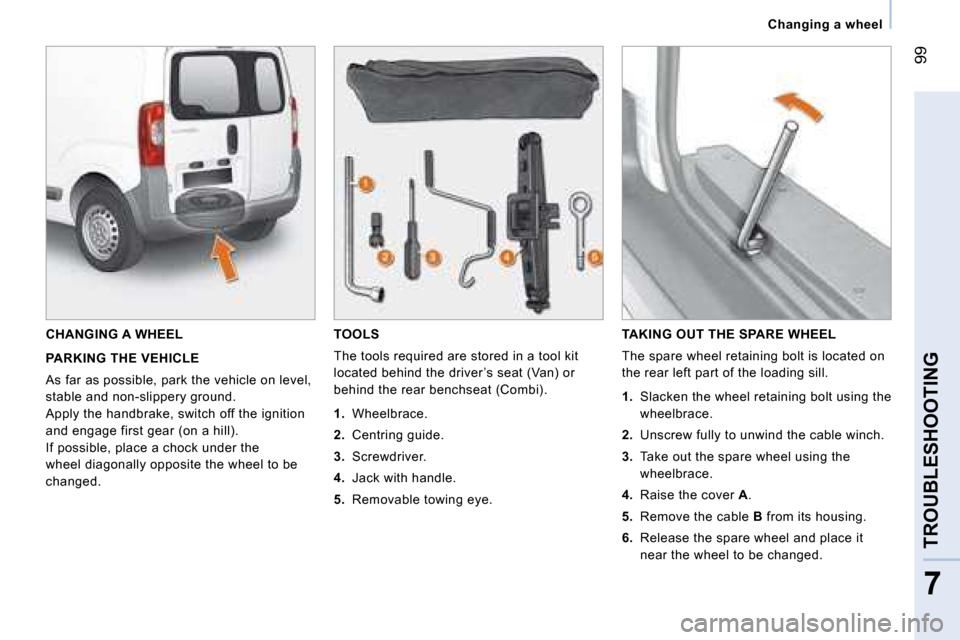

The tools required are stored in a tool kit
located behind the driver ’s seat (Van) or
behind the rear benchseat (Combi).

1. Wheelbrace.

2. Centring guide.

3. Screwdriver.

4. Jack with handle.

5. Removable towing eye.
TAKING OUT THE SPARE WHEEL
The spare wheel retaining bolt is located on
the rear left part of the loading sill.

1. Slacken the wheel retaining bolt using the
wheelbrace.

2.
Unscrew fully to unwind the cable winch.

3. Take out the spare wheel using the
wheelbrace.

4. Raise the cover A .

5. Remove the cable B from its housing.

6. Release the spare wheel and place it
near the wheel to be changed.

100
Changing a wheel
REMOVING

1. Park the vehicle on level, stable and non-
slippery ground. Apply the handbrake.
Switch off the ignition and engage first
gear or reverse, depending on the slope.

2.
Detach the wheel trim using the
wheelbrace 1, pulling at the valve
passage.
Slide the screwdriver 3 into the central
trim notch and use the tool as a lever,
pressing to unclip the trim.

3. Slacken the wheel bolts using the
wheelbrace.

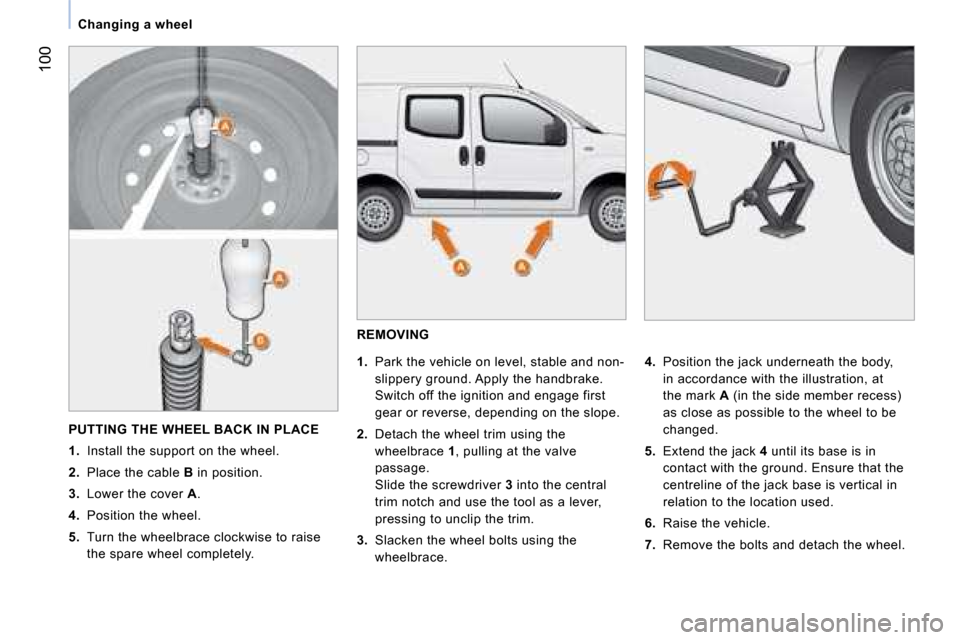

4. Position the jack underneath the body,
in accordance with the illustration, at
the mark A (in the side member recess)
as close as possible to the wheel to be
changed.

5. Extend the jack 4 until its base is in
contact with the ground. Ensure that the
centreline of the jack base is vertical in
relation to the location used.

6. Raise the vehicle.

7. Remove the bolts and detach the wheel.
PUTTING THE WHEEL BACK IN PLACE

1. Install the support on the wheel.

2. Place the cable B in position.

3. Lower the cover A .

4. Position the wheel.

5. Turn the wheelbrace clockwise to raise
the spare wheel completely.

121
7
TROUBLESHOOTING
Checks
CHECKS

Bleeding the water contained in the
diesel filter
If this warning light comes on,
bleed the filter, otherwise bleed
regularly each time the engine is
drained.
To evacuate the water, unscrew the bleed
screw or the water in diesel sensor, located
at the base of the filter. Operate until all
of the water has been drained out. Then
tighten the bleed screw or the water sensor.
HDi engines use advanced technology. All
work requires a special qualification which is
guaranteed by a CITROËN dealer .

Battery
At the start of winter, have it checked by a
CITROËN dealer .
Air filter and passenger compartment
filter
A clogged passenger compartment filter
may reduce the performance of the
air conditioning system and generate
undesirable odours. The replacement
intervals for these components are indicated
in the servicing booklet.
Depending on the environment (dusty
atmosphere...) and the use of the vehicle
(urban driving...), change them twice as
often if necessary, refer to the “Under the
bonnet” section of chapter 7.

Brake pads
Brake pad wear depends on the style of
driving, in particular for vehicles which are
used in town, over short distances. It may
be necessary to check the thickness of the
pads, even between services.
Unless there is a leak on the circuit, a drop
in the brake fluid level indicates that the
brake pads are worn.

Brake disc/drum wear status
For any information relating to checking
the brake disc/drum wear status, consult a
CITROËN dealer .
Handbrake
Where the handbrake travel is too great
or there is a reduction in the performance
of the system, the handbrake should be
adjusted, even between services.
Have it checked by a CITROËN dealer .

Oil filter
Change the filter regularly, in accordance
with the servicing schedule.
Manual gearbox
Have the level checked in accordance with
the manufacturer ’s servicing schedule.
To check the main levels and certain
components, in accordance with the
manufacturer ’s servicing schedule, refer
to the pages of the servicing booklet which
correspond to your vehicle’s engine.
Only use products recommended by
CITROËN or products of equivalent quality
and characteristics.
In order to optimise the operation of units as
important as the braking circuit, CITROËN
selects and offers specific products.
In order to avoid damaging the electrical
units, high pressure washing to clean the
engine compartment is strictly prohibited.
