CITROEN NEMO 2010 Owners Manual

126
Changing a bulb
Front lamps
Open the bonnet. To access the bulbs, reach
behind the headlamp unit.
Remove the protective covers to gain
access to the bulbs.
Carry out the operations in reverse order to
refit each bulb.
CHANGING A BULB
Types of bulb
Various types of bulb are fitted on your
vehicle.
To remove them:

1. Type A
Entirely glass bulb: pull gently as it is fitted by pressure.

2. Type B
Bayonet bulb: press on the bulb then turn it anticlockwise.

3. Type C
Cylindrical bulb: move aside the contacts.

4. Type D - E
Halogen bulb: release the retaining spring from its housing.
High pressure washing
When using this type of washing on
stubborn dirt, do not persist very long on
the headlamps, or on other lamps and their
edges to avoid damaging their coating and
seals.

127
7
QUICK HELP
Changing a bulb
1 - Dipped beam headlamp

Type D , H4 - 55 W
- Remove the cover by turning it anticlockwise.
- Disconnect the electrical connector.
- Release the retaining spring by pressing on the two clips.
- Change the bulb taking care to align the metal part with the grooves on the lamp.
2 - Sidelamp

Type A , W 5 W - 5 W
- Remove the cover by turning it anticlockwise.
- Pull the bulb holder to gain access to the bulb.
- Change the bulb. 3 - Main beam headlamp

Type D , H4 - 55 W
- Remove the cover by turning it anticlockwise.
- Disconnect the electrical connector.
- Release the retaining spring by pressing on the two clips.
- Remove the bulb holder.
- Change the bulb taking care to align the metal part with the groove on the lamp. 4 - Direction indicators

Type B , PY 21 W - 21 W amber
- Turn the bulb holder a quarter turn anticlockwise.
- Remove the bulb by pressing it lightly while turning it anticlockwise.
- Change the bulb.
If you encounter any difficulty, consult a
CITROËN dealer.
When each operation has been
completed, check the operation of the
lamps.
5 - Foglamps

Type E , H1 - 55 W
Consult a CITROËN dealer.

128
Changing a bulb
Front/rear courtesy lamps

Type C , 12 V 10 W - 10 W
- Release the courtesy lamp using a screwdriver.
- Remove the cover to gain access to the bulb.
- Change the bulb moving aside the two contacts.
- Ensure that the new bulbs are secured correctly between the two contacts.
- Close the protective flap.
- Fix the courtesy lamp in its housing and ensure that it is secured correctly.

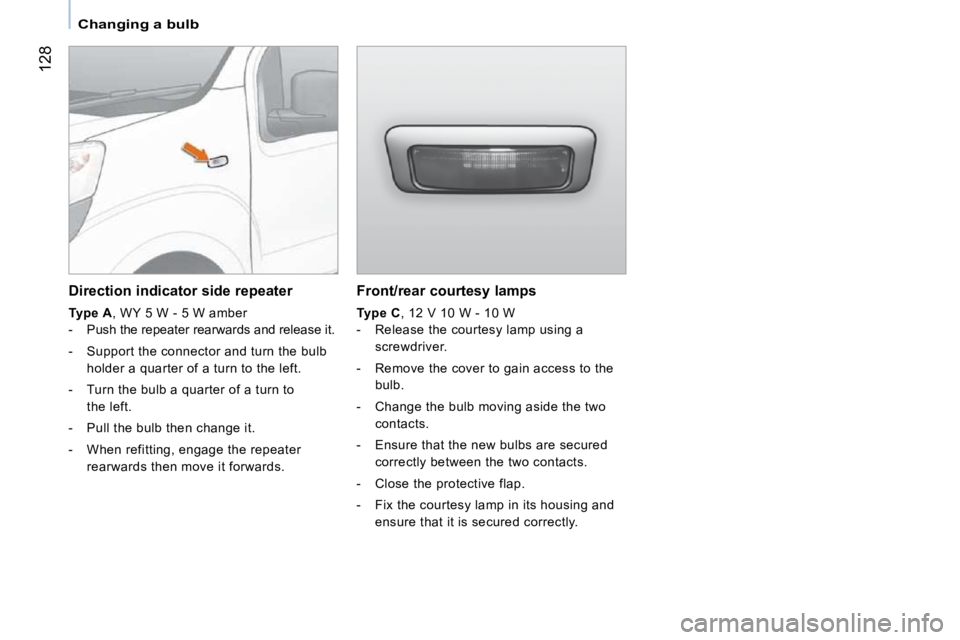

Direction indicator side repeater

Type A , WY 5 W - 5 W amber
- Push the repeater rearwards and release it.
- Support the connector and turn the bulb holder a quarter of a turn to the left.
- Turn the bulb a quarter of a turn to the left.
- Pull the bulb then change it.
- When refitting, engage the repeater rearwards then move it forwards.

128
Changing a bulb
Front/rear courtesy lamps

Type C , 12 V 10 W - 10 W
- Release the courtesy lamp using a screwdriver.
- Remove the cover to gain access to the bulb.
- Change the bulb moving aside the two contacts.
- Ensure that the new bulbs are secured correctly between the two contacts.
- Close the protective flap.
- Fix the courtesy lamp in its housing and ensure that it is secured correctly.
Direction indicator side repeater

Type A , WY 5 W - 5 W amber
- Push the repeater rearwards and release it.
- Support the connector and turn the bulb holder a quarter of a turn to the left.
- Turn the bulb a quarter of a turn to the left.
- Pull the bulb then change it.
- When refitting, engage the repeater rearwards then move it forwards.

129
7
QUICK HELP
Changing a bulb

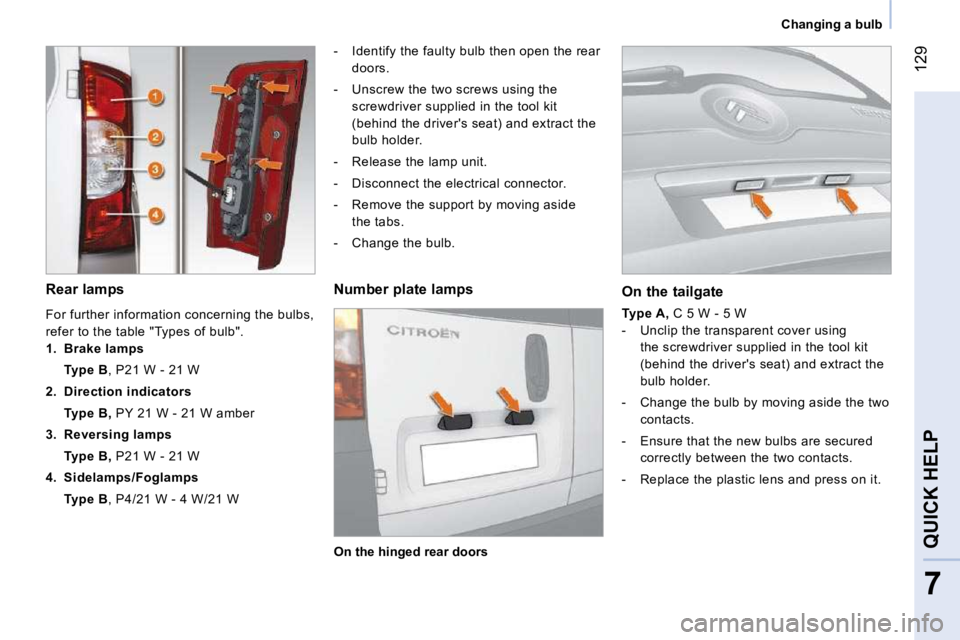

Rear lamps - Identify the faulty bulb then open the rear
doors.
- Unscrew the two screws using the screwdriver supplied in the tool kit
(behind the driver's seat) and extract the
bulb holder.
- Release the lamp unit.
- Disconnect the electrical connector.
- Remove the support by moving aside the tabs.
- Change the bulb.
Number plate lamps

Type A, C 5 W - 5 W
- Unclip the transparent cover using the screwdriver supplied in the tool kit
(behind the driver's seat) and extract the
bulb holder.
- Change the bulb by moving aside the two contacts.
- Ensure that the new bulbs are secured correctly between the two contacts.
- Replace the plastic lens and press on it.
For further information concerning the bulbs,
refer to the table "Types of bulb".


1. Brake lamps
Type B , P21 W - 21 W

2. Direction indicators
Type B, PY 21 W - 21 W amber

3. Reversing lamps
Type B, P21 W - 21 W

4. Sidelamps/Foglamps
Type B , P4/21 W - 4 W/21 W
On the hinged rear doors On the tailgate

130
Changing a bulb

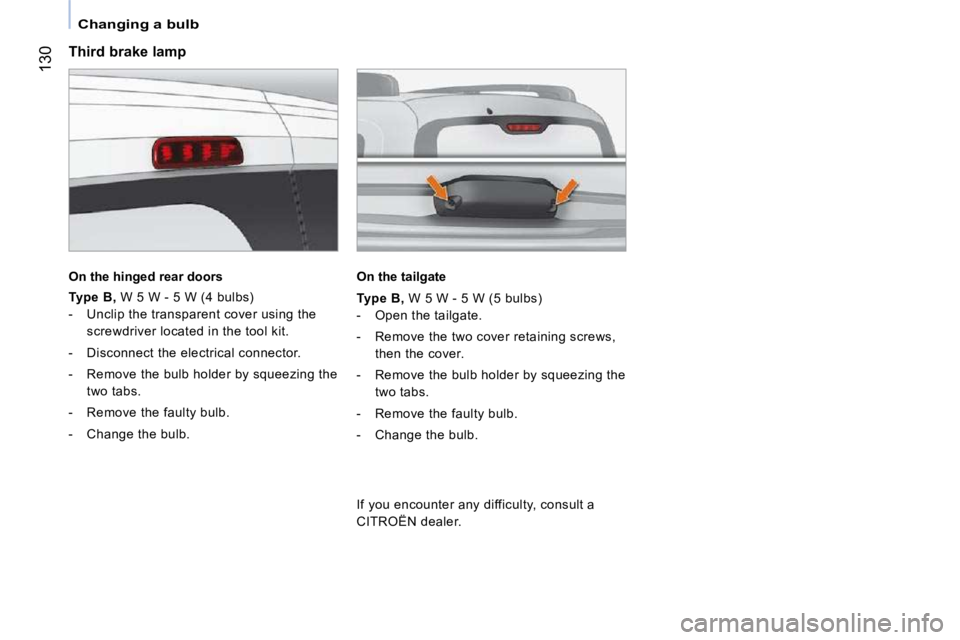

Third brake lamp
On the hinged rear doors

Type B , W 5 W - 5 W (4 bulbs)
- Unclip the transparent cover using the screwdriver located in the tool kit.
- Disconnect the electrical connector.
- Remove the bulb holder by squeezing the two tabs.
- Remove the faulty bulb.
- Change the bulb. On the tailgate

Type B, W 5 W - 5 W (5 bulbs)
- Open the tailgate.
- Remove the two cover retaining screws, then the cover.
- Remove the bulb holder by squeezing the two tabs.
- Remove the faulty bulb.
- Change the bulb.
If you encounter any difficulty, consult a
CITROËN dealer.

131
7
QUICK HELP
Changing a wiper blade
CHANGING A WIPER BLADE

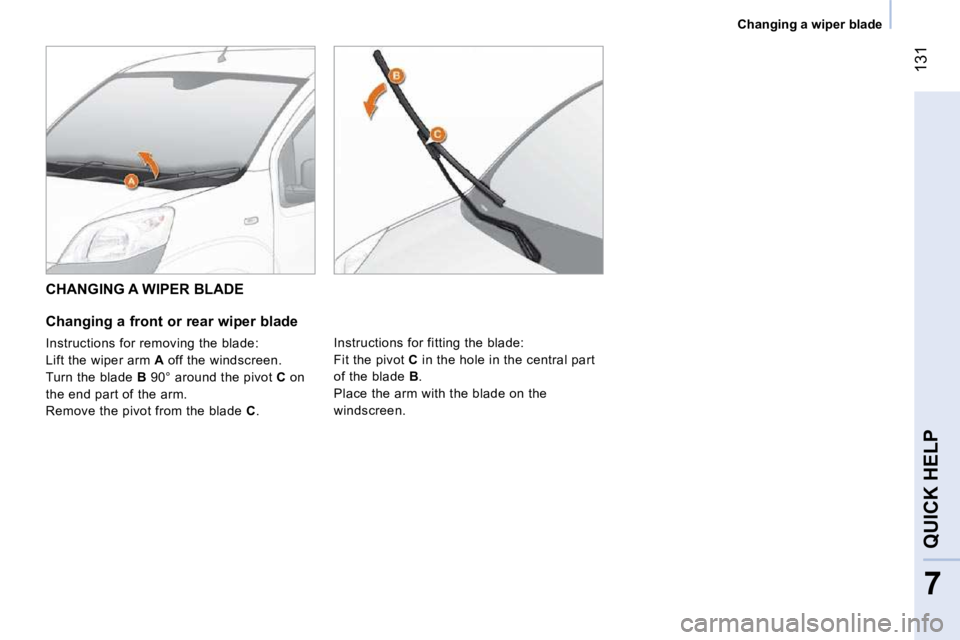

Changing a front or rear wiper blade
Instructions for removing the blade:
Lift the wiper arm A off the windscreen.
Turn the blade B 90° around the pivot C on
the end part of the arm.
Remove the pivot from the blade C . Instructions for fitting the blade:
Fit the pivot
C in the hole in the central part
of the blade B .
Place the arm with the blade on the
windscreen.

132
Changing a fuse
CHANGING A FUSE
The two fuseboxes are placed on the
dashboard on the driver's side and under the
bonnet. Removing and fitting a fuse
Before changing a fuse, the cause of the
fault must be found and rectified. The fuse
numbers are indicated on the fusebox.
Always use the special tweezer to extract
the fuse from its housing and check the
condition of its filament.

Always replace a faulty fuse with a fuse
of the same rating.
If a fuse fails again soon after replacement,
have the electrical system of your vehicle
checked by a CITROËN dealer. Access to fuses in the dashboard
- To gain access to the dashboard fuses,
remove the 2 screws using the ignition
key and tilt the housing.
CITROËN will not accept responsibility
for the cost incurred in repairing your
vehicle or for rectifying the malfunctions
resulting from the installation of accessories
not supplied and not recommended by
CITROËN dealers and not installed in
accordance with its instructions, in particular
when the combined consumption of all of the
additional equipment connected exceeds
10 milliamperes.
A. Good.

B. Failed.

C. Tweezer.
Access to fuses in the engine
compartment
- For access to the fuses in the engine compartment, remove the left hand front
headlamp connector, then unclip the
fusebox cover.

132
Changing a fuse
CHANGING A FUSE
The two fuseboxes are placed on the
dashboard on the driver's side and under the
bonnet. Removing and fitting a fuse
Before changing a fuse, the cause of the
fault must be found and rectified. The fuse
numbers are indicated on the fusebox.
Always use the special tweezer to extract
the fuse from its housing and check the
condition of its filament.

Always replace a faulty fuse with a fuse
of the same rating.
If a fuse fails again soon after replacement,
have the electrical system of your vehicle
checked by a CITROËN dealer. Access to fuses in the dashboard
- To gain access to the dashboard fuses,
remove the 2 screws using the ignition
key and tilt the housing.
CITROËN will not accept responsibility
for the cost incurred in repairing your
vehicle or for rectifying the malfunctions
resulting from the installation of accessories
not supplied and not recommended by
CITROËN dealers and not installed in
accordance with its instructions, in particular
when the combined consumption of all of the
additional equipment connected exceeds
10 milliamperes.
A. Good.

B. Failed.

C. Tweezer.
Access to fuses in the engine
compartment
- For access to the fuses in the engine compartment, remove the left hand front
headlamp connector, then unclip the
fusebox cover.

133
7
QUICK HELP
Changing a fuse
Table of dashboard fuses, driver's side
Mark
ing Rating Functions
F12 7.5 A Right-hand dipped beam headlamp su pply
F13 7.5 A Left-hand dipped beam headlamp supply - headlamp h
eight
adjuster
F31 5 A Engine control unit supply switch
F32 7.5 A Front lamp - front courtesy lamp - rear courtesy light lamp
F36 10 A Audio system - mobile telephone pre-equipment -
air conditioning control panel - EODB diagnostic s
ocket
F37 5 A Brake lamp - instrument panel
F38 20 A Door locking
F43 15 A Screenwash pump
F47 20 A Driver's electric window motor supp ly
F48 20 A Passenger's electric window motor s upply
F49 5 A Parking sensors control unit - rear lighting switc
h - electric
door mirrors - volumetric alarm control unit
F50 7.5 A Airbags control unit
F51 7.5 A Switch on brake pedal - switch on clutch pedal - d
oor mirror
controls - central Bluetooth system
F53 5 A Instrument panel - rear foglamps
