CITROEN NEMO 2010 Repair Manual
Manufacturer: CITROEN, Model Year: 2010, Model line: NEMO, Model: CITROEN NEMO 2010Pages: 166, PDF Size: 4.22 MB
Page 61 of 166
53
1
READY TO GO
Gearbox and steering wheel
- with a manual gearbox , with the vehicle
stationary, put the gear lever into neutral,
then release the clutch pedal,
- with an electronic gearbox , with the
vehicle stationary, hold the brake pedal
down or put the gear lever into position N . Special cases: STOP mode unavailable
The STOP mode is not invoked when:
- the driver's door is open,
- the driver's seat belt is not fastened,
- the heated rear screen is on,
- the windscreen wiper is on fast wipe,
- reverse gear is engaged,
- some special conditions (battery
charge, engine temperature, particle
filter regeneration, braking assistance,
ambient temperature...) where the engine
is needed to assure control of a system.
In this case, a message appears
in the instrument panel screen,
accompanied by the "S" warning
lamp, which flashes for a few
seconds, then goes off.
This operation is perfectly normal.
STOP & START
The Stop & Start system puts the engine
temporarily into standby - STOP mode -
during stops in the traffic (red lights, traffic
jams, or other...). The engine restarts
automatically - START mode - as soon as
you want to move off. The restart takes
place instantly, quickly and silently.
Perfect for urban use, the Stop & Start
system reduces fuel consumption and
exhaust emissions and offers the comfort of
complete silence when stationary.
Operation
Going into engine STOP mode
The "S" warning lamp comes on
in the instrument panel and the
engine goes into standby: Automatic stopping of the engine is
only possible after the vehicle has
exceed a speed of about 6 mph (10 km/h),
to avoid repeated stopping of the engine
when driving slowly.
In the STOP mode Stop & Start, hill
start assist is inactive.
Never leave your vehicle with out first
turning off the ignition with the key.
Never refuel with the engine in STOP
mode; you must switch off the ignition
with the key.
Page 62 of 166
54
Gearbox and steering wheel Special cases: START invoked
automatically
The START mode is invoked automatically
when:
- the vehicle's is free wheeling on a slope,
- the windscreen wiper is on fast wipe,
- the engine has been stopped for more than 3 minutes with Stop & Start,
- some special conditions (battery charge, engine temperature, braking assistance,
ambient temperature...) where the engine
is needed to assure control of a system. Good practice
With a manual gearbox in STOP mode, if
a gear is engaged without fully depressing
the clutch pedal, a warning lamp comes on
or a message is displayed in the instrument
panel asking you to fully depress the clutch
pedal to restart the engine.
With the engine stopped in STOP mode,
if the driver unfasten's their seat belt and
opens a front door, the engine can only
be restarted using the ignition key. This is
indicated by an audible signal, accompanied
by flashing of the service warning lamp and
a message in the instrument panel screen.
If following an automatic restart in START
mode, the driver takes no action on the the
vehicle during the next 3 minutes, the system
s t o p s t h e e n g i n e d e fi n i t i v e l y . T h e e n g i n e c a n
then only be restarted using the key.
Going into engine START mode
The "S" warning lamp goes off and
the engine starts:
- with a manual gearbox , depress the
clutch pedal,
- with an electronic gearbox :
Page 63 of 166
55
1
READY TO GO
Gearbox and steering wheel
Deactivation
To give precedence to the control
of the temperature in the passenger
compartment, the Stop & Start
system should be deactivated to
allow continuous operation of the air
conditioning. The system is reactivated automatically
at every new start using the key.
At any time, press the "S - OFF" switch to
deactivate the system.
This is confirmed by the switch warning lamp
coming on accompanied by a message in
the instrument panel screen.
If the system has been deactivated
in STOP mode, the engine restarts
immediately. Operating fault Maintenance
In the event of a fault with
the system, the Stop & Start
system is deactivated and the
service warning lamp comes on,
accompanied by a message in the
instrument panel screen
Have it checked by a CITROËN dealer.
In the event of an operating fault with STOP
mode, it is possible to restart the engine by
depressing the clutch pedal fully and putting
the gear lever into neutral. Before working under the bonnet, you
must switch off the ignition with the
key to avoid any risk of injury resulting from
automatic operation of START mode.
This system requires a specific battery
with a special specification and technology
(reference numbers available from
CITROËN dealers).
Fitting a battery not listed by
CITROËN introduces the risk of malfunction
of the system.
The Stop & Start system makes use
of advanced technology. Specialist
knowledge is needed for any work on the
system, which can only be assured by
CITROËN dealers.
Reactivation
Press the
"S - OFF" switch again.
The system is active again; this is confirmed
by the switch warning lamp going off and a
message in the instrument panel screen.
Page 64 of 166
56

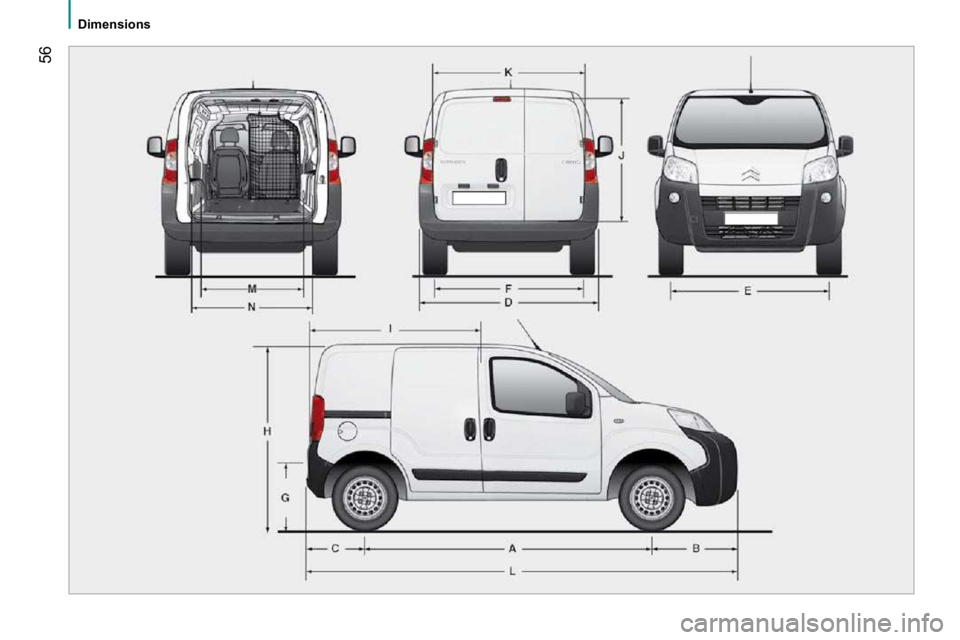

Dimensions
Page 65 of 166
2
Dimensions
TECHNICAL DATA
DIMENSIONS
The light van "L1" is the standard model, the "L2 - Worksite Pack" version is a model sold according to country:

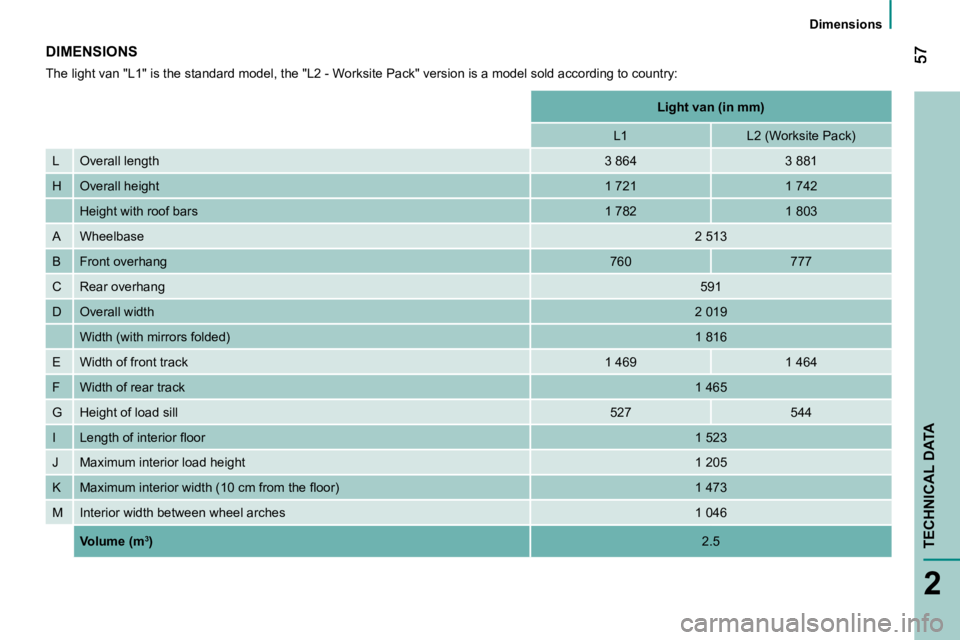

Light van (in mm)
L1 L2 (Worksite Pack)
L Overall length 3 864 3 881
H Overall height 1 721 1 742
Height with roof bars 1 782 1 803
A Wheelbase 2 513
B Front overhang 760 777
C Rear overhang 591
D Overall width 2 019
Width (with mirrors folded) 1 816
E Width of front track 1 469 1 464
F Width of rear track 1 465
G Height of load sill 527 544
I L e n g t h o f i n t e r i o r fl o o r 1 523
J Maximum interior load height 1 205
K M a x i m u m i n t e r i o r w i d t h ( 1 0 c m f r o m t h e fl o o r ) 1 473
M Interior width between wheel arches 1 046
Volume
(m 3
) 2.5
Page 66 of 166
58

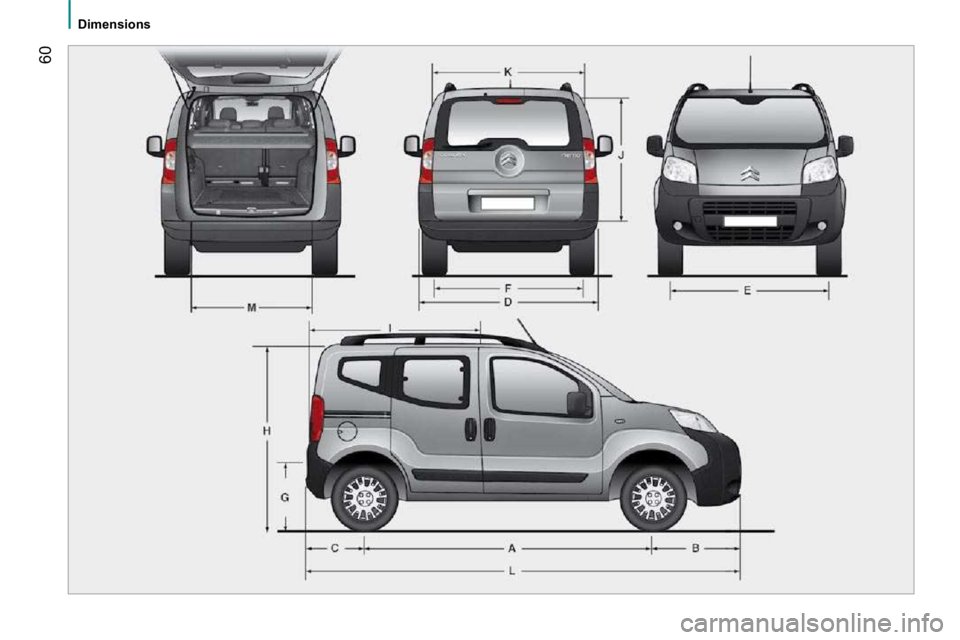

Dimensions
Page 67 of 166
2
Dimensions
TECHNICAL DATA

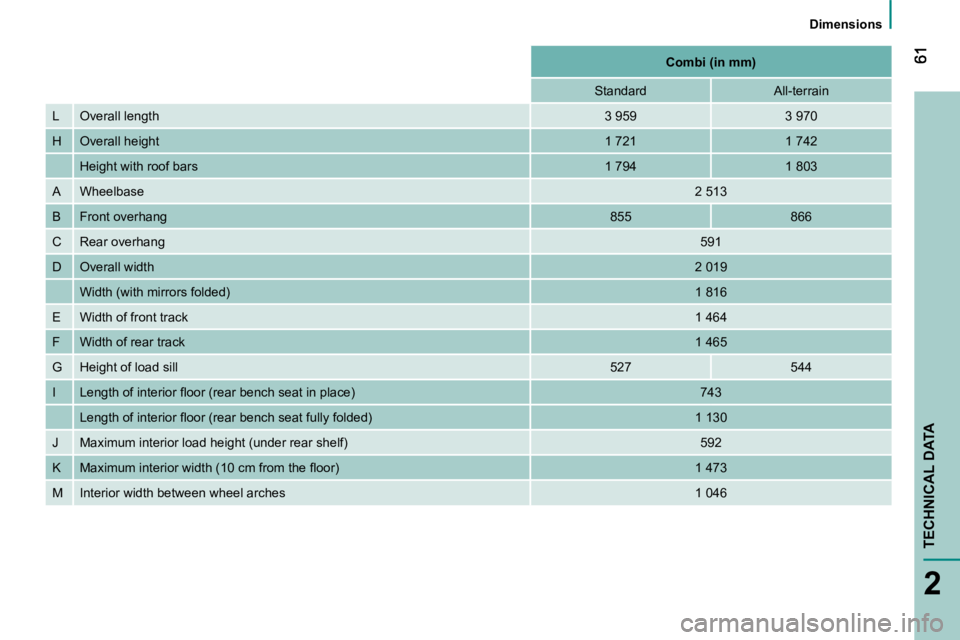

Combi (in mm)
Standard All-terrain
L Overall length 3 959 3 970
H Overall height 1 721 1 742
Height with roof bars 1 782 1 803
A Wheelbase 2 513
B Front overhang 855 866
C Rear overhang 591
D Overall width 2 019
Width (with mirrors folded) 1 816
E Width of front track 1 464
F Width of rear track 1 465
G Height of load sill 527 544
I L e n g t h o f i n t e r i o r fl o o r ( r e a r b e n c h s e a t i n p l a c e ) 743
L e n g t h o f i n t e r i o r fl o o r ( r e a r b e n c h s e a t f u l l y f o l d e d ) 1 130
J Maximum interior load height (under rear shelf) 592
K M a x i m u m i n t e r i o r w i d t h ( 1 0 c m f r o m t h e fl o o r ) 1 473
M Interior width between wheel arches 1 046
Page 68 of 166
60
Dimensions
Page 69 of 166
2
Dimensions
TECHNICAL DATA
Combi (in mm)
Standard All-terrain
L Overall length 3 959 3 970
H Overall height 1 721 1 742
Height with roof bars 1 794 1 803
A Wheelbase 2 513
B Front overhang 855 866
C Rear overhang 591
D Overall width 2 019
Width (with mirrors folded) 1 816
E Width of front track 1 464
F Width of rear track 1 465
G Height of load sill 527 544
I L e n g t h o f i n t e r i o r fl o o r ( r e a r b e n c h s e a t i n p l a c e ) 743
L e n g t h o f i n t e r i o r fl o o r ( r e a r b e n c h s e a t f u l l y f o l d e d ) 1 130
J Maximum interior load height (under rear shelf) 592
K M a x i m u m i n t e r i o r w i d t h ( 1 0 c m f r o m t h e fl o o r ) 1 473
M Interior width between wheel arches 1 046
Page 70 of 166
Engines DIESEL ENGINE S
1.4 litre HDi 70 hp 1.3 litre HDi 75 hp
Gearboxes
Manual Manual Electronic
Gears 5 5 5
E U s t a n d a r d m a x i m u m p o w e r ( k W ) 50 55
C u b i c c a p a c i t y ( c c ) 1 399 1 248
Bore x stroke (mm) 73.7 x 82 69.6 x 82
M a x p o w e r e n g i n e s p e e d ( r p m ) 4 000 3 750
EU standard max torque (Nm) 160 190
M a x t o r q u e e n g i n e s p e e d ( r p m ) 2 750 1 750
Fuel Diesel Diesel
Catalytic converter Yes Yes
P a r t i c l e e m i s s i o n s fi l t e r ( P E F ) No Yes
S t o p & S t a r t No Yes
E n g i n e o i l c a p a c i t y w i t h fi l t e r r e p l a c e m e n t ( l i t r e s ) 3.8 3.0
